Article no.: F032114122

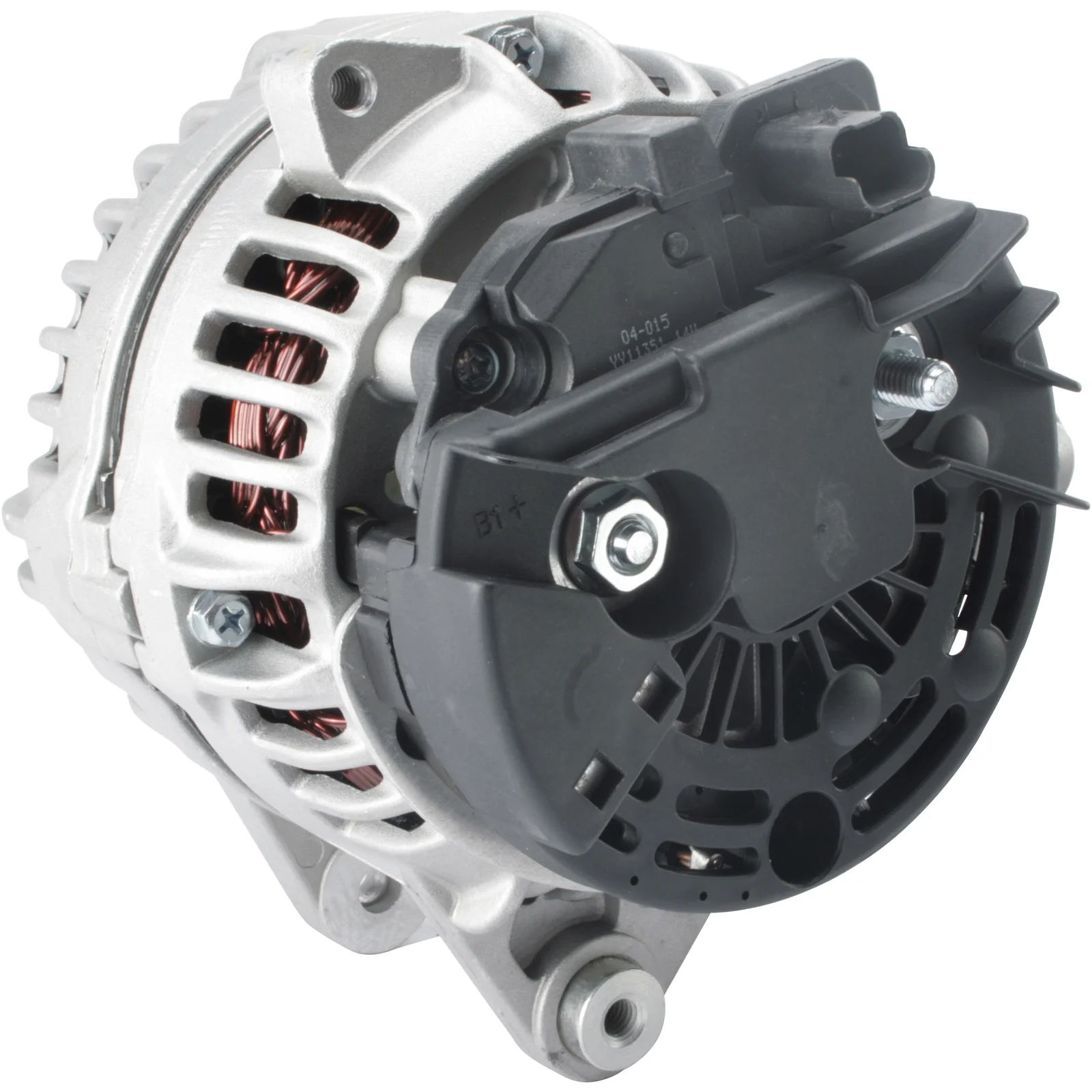

HC-Cargo Alternator

Technical info:

Voltage: 14, Current: 150, Rotation: CW, Mounting bracket distributor: 60.80

Description

Renault Alternator 12V-150A 12V - 150A, 6-groove pulley, (L-DFM) 12V - 150A, 6-groove pulley, (L-DFM) For Yourex product order 90-480-4737 Voltage: 14 Amps: 150 Pulley diameter: 32.50 Width / holder arm: 14.50 Mounting bracket diameter: 60.80 Bracket hole: 8.50 Belt adjustment bracket hole position: 45 Belt adjustment bracket hole 1: 8.50 Pulley diameter: 50.00 Grooves / pulley: 6 Radius: 90.00 Radius 2: 90.00 B+: M8 Position / B+ in min.: 7 D+ size: Plug Rotation: CW Plug no.: PL72 Total length mm: 183.00 Pulley: SP Regulator type: IR Product info: BN

Files

  • OEM
    F032114122, 0124 525 049, 0124 525 135, 0986 047 370, 1824ir, 23100-00Q2G, 23100-00QA5, 114122, 4416485, 93188332, 93192764, 93198274, 0124525043, 0124525049, 0124525132, 0124525135, 0124525532, 0124525535, 7711135519, 7711135545, 8200175210, 8200262462, 8200660020, 8200692869

  • Normalised article numbler
    a0164, alt2094, cal10316, drb6250, f032114122, f042301105, f042301107, f042a01105, ia1330, lra02369, mg7, 8el012429321, 1824ir, 4684, 23369n, 111567, 111822, 114122, 210567, 210567a, 284876, 301824ri, 440061, 440067, 443283, 747048, 2310000q2g, 2310000qa5, 4416485, 9046250, 9212653, 12046250, 12047370, 32046250, 93188332, 93192764, 93198274, 0124525043, 0124525049, 0124525132, 0124525135, 0124525532, 0124525535, 0986046250, 0986047370, 2303031502, 7711135519, 7711135545, 8200175210, 8200262462, 8200660020, 8200692869, 944390462500
  • Description
    Renault Alternator 12V-150A 12V - 150A, 6-groove pulley, (L-DFM) 12V - 150A, 6-groove pulley, (L-DFM) For Yourex product order 90-480-4737 Voltage: 14 Amps: 150 Pulley diameter: 32.50 Width / holder arm: 14.50 Mounting bracket diameter: 60.80 Bracket hole: 8.50 Belt adjustment bracket hole position: 45 Belt adjustment bracket hole 1: 8.50 Pulley diameter: 50.00 Grooves / pulley: 6 Radius: 90.00 Radius 2: 90.00 B+: M8 Position / B+ in min.: 7 D+ size: Plug Rotation: CW Plug no.: PL72 Total length mm: 183.00 Pulley: SP Regulator type: IR Product info: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032114122, 0124 525 049, 0124 525 135, 0986 047 370, 1824ir, 23100-00Q2G, 23100-00QA5, 114122, 4416485, 93188332, 93192764, 93198274, 0124525043, 0124525049, 0124525132, 0124525135, 0124525532, 0124525535, 7711135519, 7711135545, 8200175210, 8200262462, 8200660020, 8200692869

    • Normalised article numbler
      a0164, alt2094, cal10316, drb6250, f032114122, f042301105, f042301107, f042a01105, ia1330, lra02369, mg7, 8el012429321, 1824ir, 4684, 23369n, 111567, 111822, 114122, 210567, 210567a, 284876, 301824ri, 440061, 440067, 443283, 747048, 2310000q2g, 2310000qa5, 4416485, 9046250, 9212653, 12046250, 12047370, 32046250, 93188332, 93192764, 93198274, 0124525043, 0124525049, 0124525132, 0124525135, 0124525532, 0124525535, 0986046250, 0986047370, 2303031502, 7711135519, 7711135545, 8200175210, 8200262462, 8200660020, 8200692869, 944390462500
