HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114147

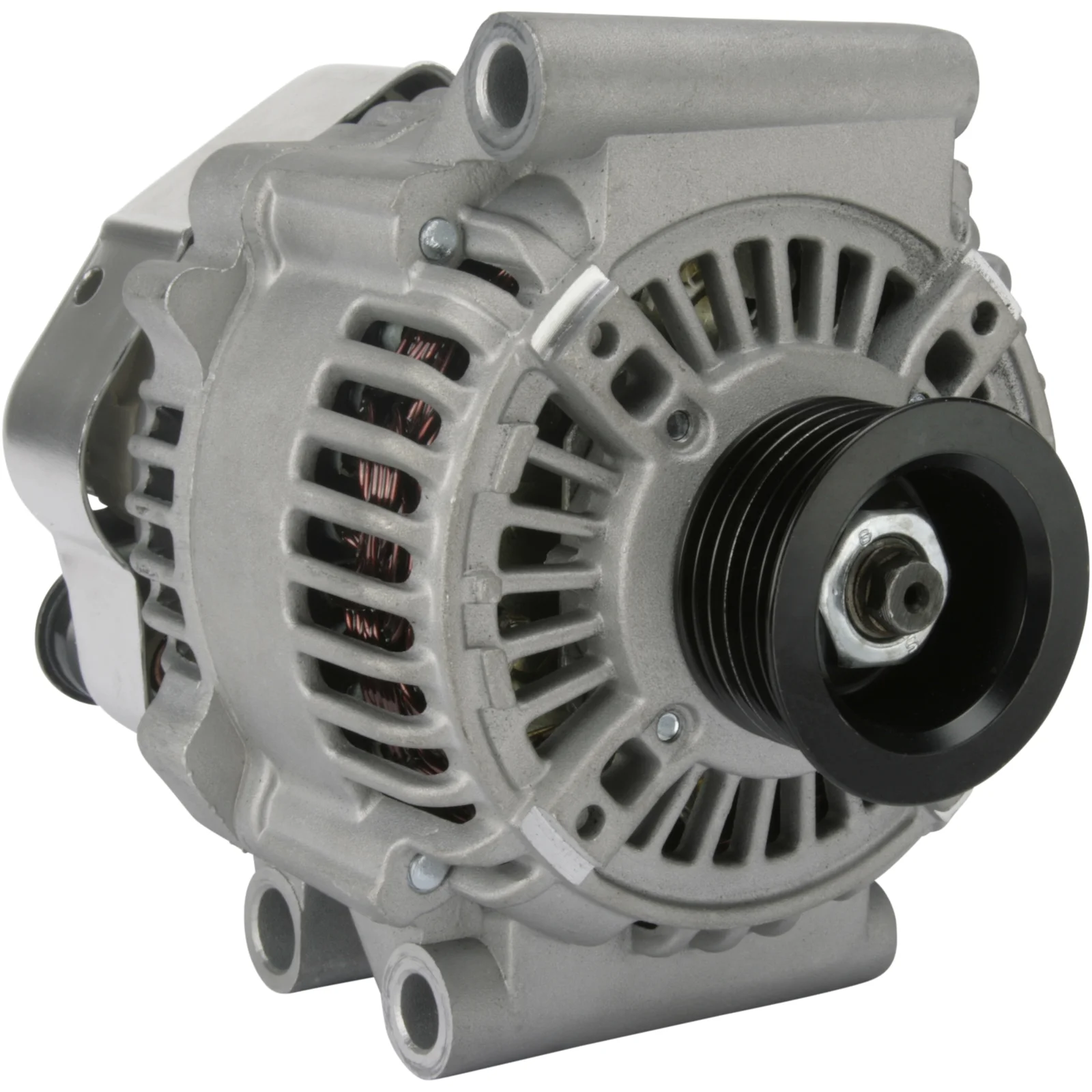

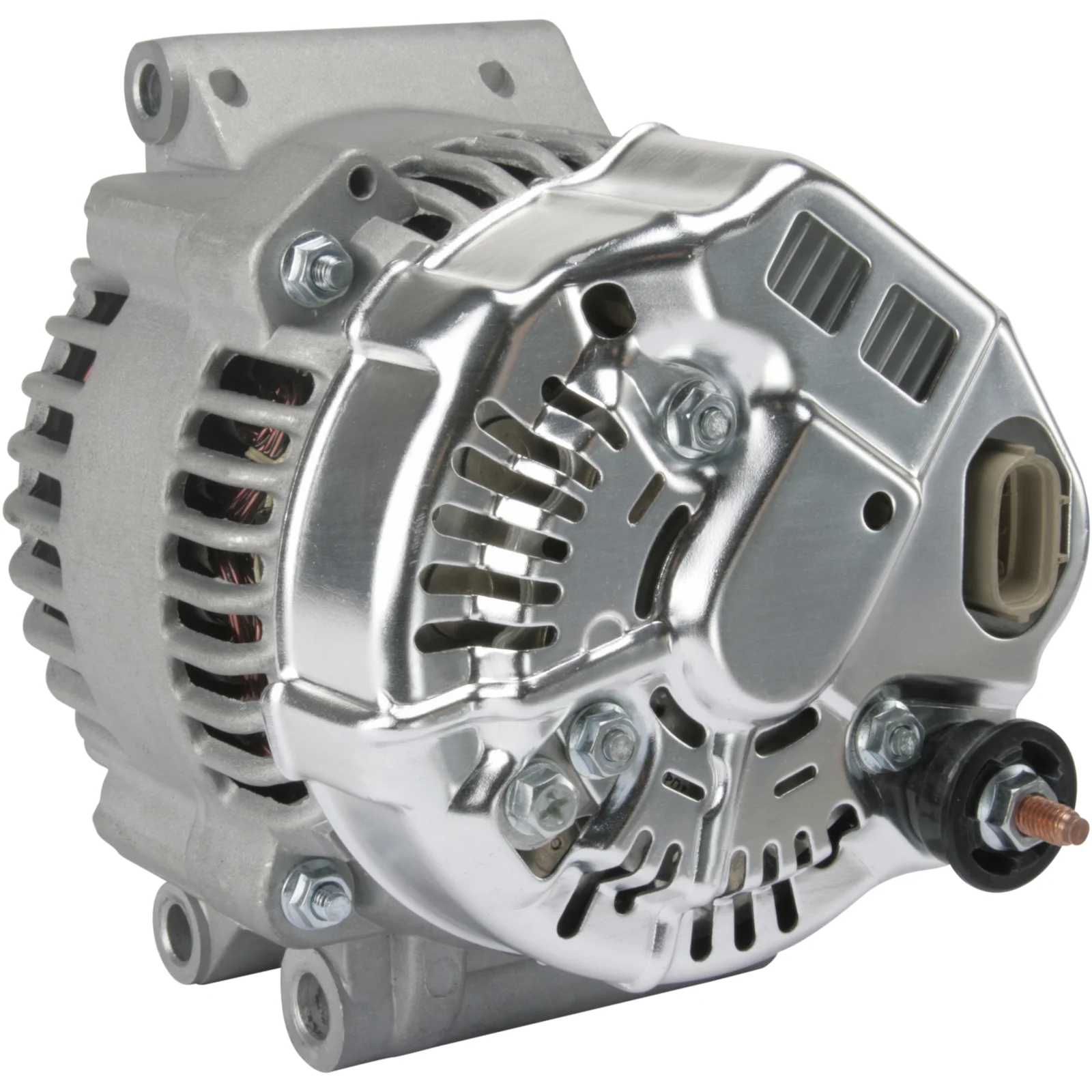

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 105, Rotation: CW, Mounting bracket distance: 43.50

Description

Voltage: 14
Amp: 105
Pulley dist.: 38.00
Width/holder arm: 83.00
Mounting bracket dist.: 43.50
Bracket hole: 9.00
Belt tensioning bracket hole position: 60
Belt tensioning bracket hole 1: 8.50
Pulley diameter: 49.00
Grooves/pulley: 6
B+: M6
Position/B+ in minutes: 20
D+ Size: Plug
Rotation: CW
Plug no.: PL74
Total length mm: 182.00
Pulley: SP

Files

  • OEM
    F032114147, YLE102400, 1676ir, 1986A01856, 102211-2220, 102211-2221, 102211-2222, 102211-2223, 7509342, 7515029, 12317509342, 12317515029

  • Normalised article numbler
    a6036, alth199, cal40161, dra4169, f032114147, f042a0h199, yle102400, 8el011710671, 1676ir, 1986a01856, 4789, 23297n, 111748, 210895, 210895a, 284780, 301676ri, 440865, 440909, 443179, 7509342, 7515029, 12090085, 32118822, 0986084240, 1022112220, 1022112221, 1022112222, 1022112223, 2151421052, 12317509342, 12317515029
  • Description
    Voltage: 14
    Amp: 105
    Pulley dist.: 38.00
    Width/holder arm: 83.00
    Mounting bracket dist.: 43.50
    Bracket hole: 9.00
    Belt tensioning bracket hole position: 60
    Belt tensioning bracket hole 1: 8.50
    Pulley diameter: 49.00
    Grooves/pulley: 6
    B+: M6
    Position/B+ in minutes: 20
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL74
    Total length mm: 182.00
    Pulley: SP

    Files

  • Suitable for these vehicles

    • OEM
      F032114147, YLE102400, 1676ir, 1986A01856, 102211-2220, 102211-2221, 102211-2222, 102211-2223, 7509342, 7515029, 12317509342, 12317515029

    • Normalised article numbler
      a6036, alth199, cal40161, dra4169, f032114147, f042a0h199, yle102400, 8el011710671, 1676ir, 1986a01856, 4789, 23297n, 111748, 210895, 210895a, 284780, 301676ri, 440865, 440909, 443179, 7509342, 7515029, 12090085, 32118822, 0986084240, 1022112220, 1022112221, 1022112222, 1022112223, 2151421052, 12317509342, 12317515029
