HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032113536

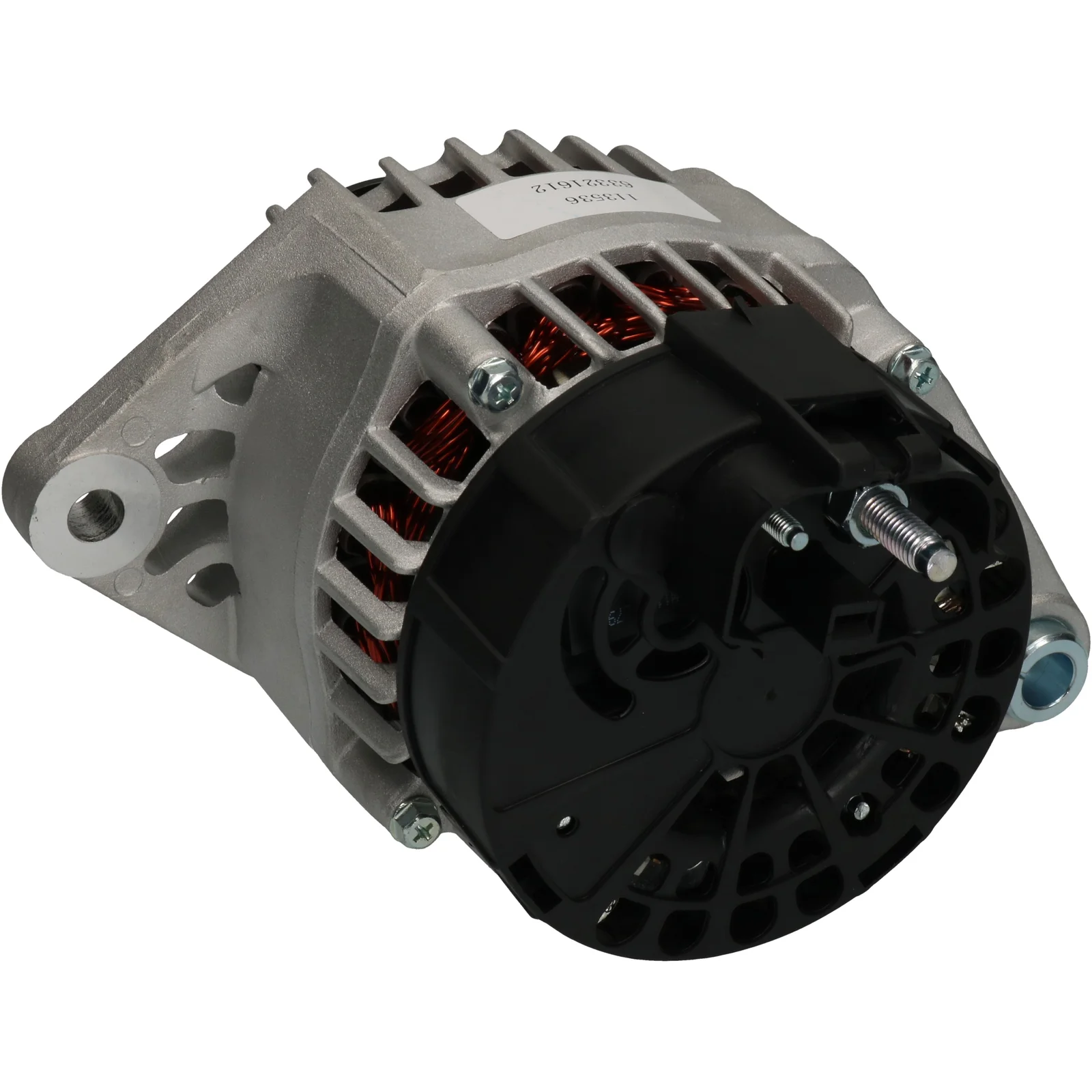

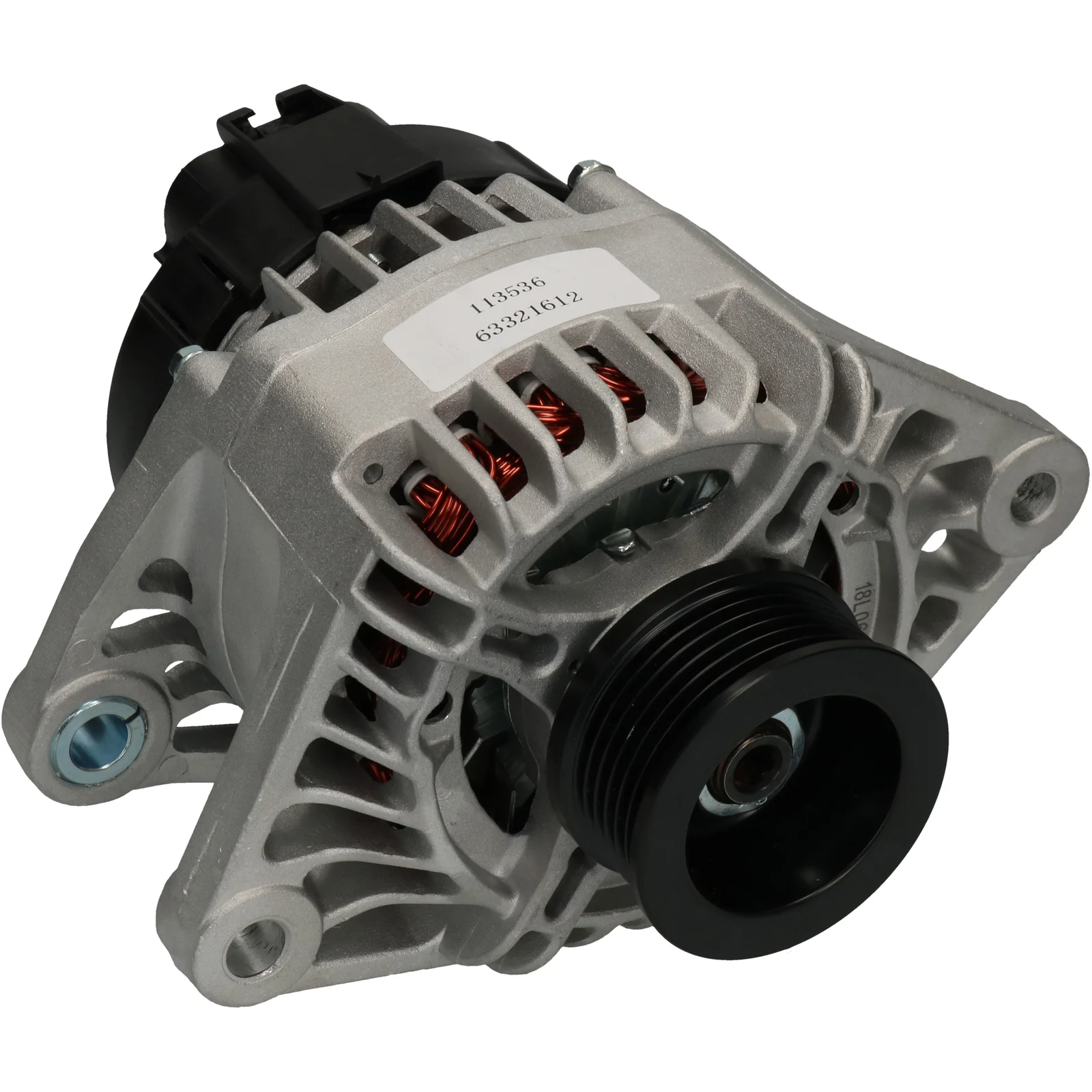

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperes: 90, Rotation: CW, Mounting bracket distance: 54.30

Description

Voltage: 14
Amp: 90
Pulley: Alternator
dist.: 44.50
Width/holder arm: 17.00
Mount. bracket distance: 54.30
Bracket hole: 12.20
Belt. adjustment bracket hole position: 3
Belt. adjustment bracket hole 1: 10.70
Pulley diameter: 61.50
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 15
D+ Size: M5
Rotation: CW
Total length mm: 197.00
Pulley: SP
Voltage regulator type: IR
Production info: BN
Servicing: Alfa Romeo

Files

  • OEM
    F032113536, 1159ir, 1986A00577, 1986A00790, 101210-1530, 46430528, 46544330, 46782219, 46813062, 51742335, 51859052, 51859642, 60812989, 60817038, 63321287, 63321330, 63321612, 63321729, 63321810, 63321819, 63321836, 0124325060, 0124325148, 0124325254, 063321819000

  • Normalised article numbler
    a4017denso, a4025er, a4077pr, a4132s, a6258denso, alt12064, alt12089, alth146, cal10104, cal10417, cal30135, dan1037, dan520, dan636, dendan1037, dendan636, dra0938, dra3396, dra4206, drb6090, drb6090x, f032113536, f042a0h146, lra00887, lra02180, lra02871, 8el011360891, 8el011710161, 8el012240821, 8el012429051, 8el737206001, 8el738100001, 1159ir, 1986a00577, 1986a00790, 4004, 5608, 21424r, 23137r, 111547, 112348, 118845, 200318, 210344, 210344a, 210863, 210863a, 210884, 210884a, 210947, 210947a, 282724, 284639, 284987, 301743ri, 440802, 443059, 443089, 443160, 444313, 9046090, 12040680, 12046090, 12048030, 32040681, 46430528, 46544330, 46782219, 46813062, 51742335, 51859052, 51859642, 60812989, 60817038, 63321287, 63321330, 63321612, 63321729, 063321810, 63321810, 63321819, 063321836, 63321836, 105508090, 105510090, 0124325060, 0124325148, 0124325254, 218141852, 218148902, 0986040681, 0986046090, 0986048030, 0986049610, 1012101530, 063321810010, 063321813010, 063321819000, 063321836010, 944390460900
  • Description
    Voltage: 14
    Amp: 90
    Pulley: Alternator
    dist.: 44.50
    Width/holder arm: 17.00
    Mount. bracket distance: 54.30
    Bracket hole: 12.20
    Belt. adjustment bracket hole position: 3
    Belt. adjustment bracket hole 1: 10.70
    Pulley diameter: 61.50
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 15
    D+ Size: M5
    Rotation: CW
    Total length mm: 197.00
    Pulley: SP
    Voltage regulator type: IR
    Production info: BN
    Servicing: Alfa Romeo

    Files

  • Suitable for these vehicles

    • OEM
      F032113536, 1159ir, 1986A00577, 1986A00790, 101210-1530, 46430528, 46544330, 46782219, 46813062, 51742335, 51859052, 51859642, 60812989, 60817038, 63321287, 63321330, 63321612, 63321729, 63321810, 63321819, 63321836, 0124325060, 0124325148, 0124325254, 063321819000

    • Normalised article numbler
      a4017denso, a4025er, a4077pr, a4132s, a6258denso, alt12064, alt12089, alth146, cal10104, cal10417, cal30135, dan1037, dan520, dan636, dendan1037, dendan636, dra0938, dra3396, dra4206, drb6090, drb6090x, f032113536, f042a0h146, lra00887, lra02180, lra02871, 8el011360891, 8el011710161, 8el012240821, 8el012429051, 8el737206001, 8el738100001, 1159ir, 1986a00577, 1986a00790, 4004, 5608, 21424r, 23137r, 111547, 112348, 118845, 200318, 210344, 210344a, 210863, 210863a, 210884, 210884a, 210947, 210947a, 282724, 284639, 284987, 301743ri, 440802, 443059, 443089, 443160, 444313, 9046090, 12040680, 12046090, 12048030, 32040681, 46430528, 46544330, 46782219, 46813062, 51742335, 51859052, 51859642, 60812989, 60817038, 63321287, 63321330, 63321612, 63321729, 063321810, 63321810, 63321819, 063321836, 63321836, 105508090, 105510090, 0124325060, 0124325148, 0124325254, 218141852, 218148902, 0986040681, 0986046090, 0986048030, 0986049610, 1012101530, 063321810010, 063321813010, 063321819000, 063321836010, 944390460900
