HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116469

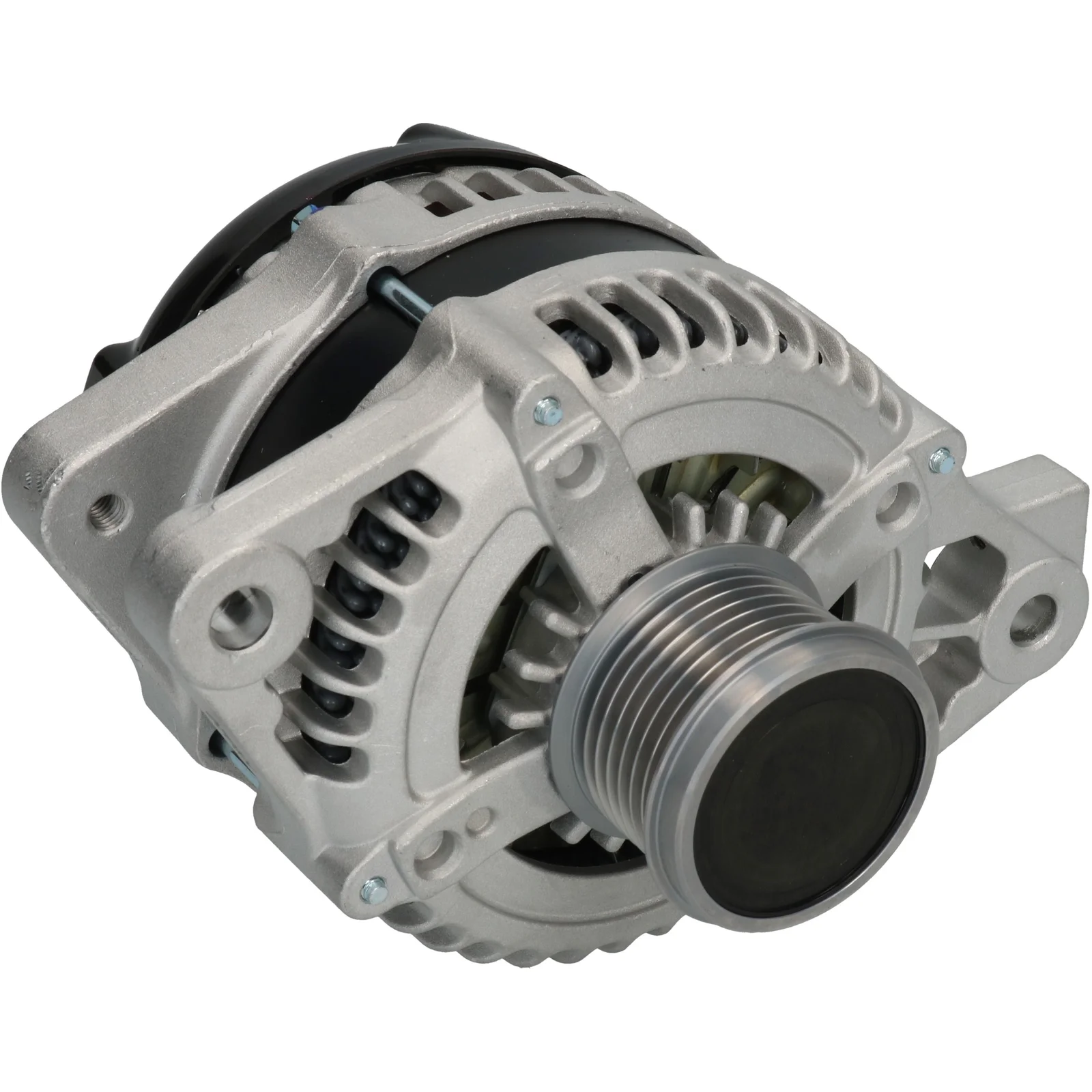

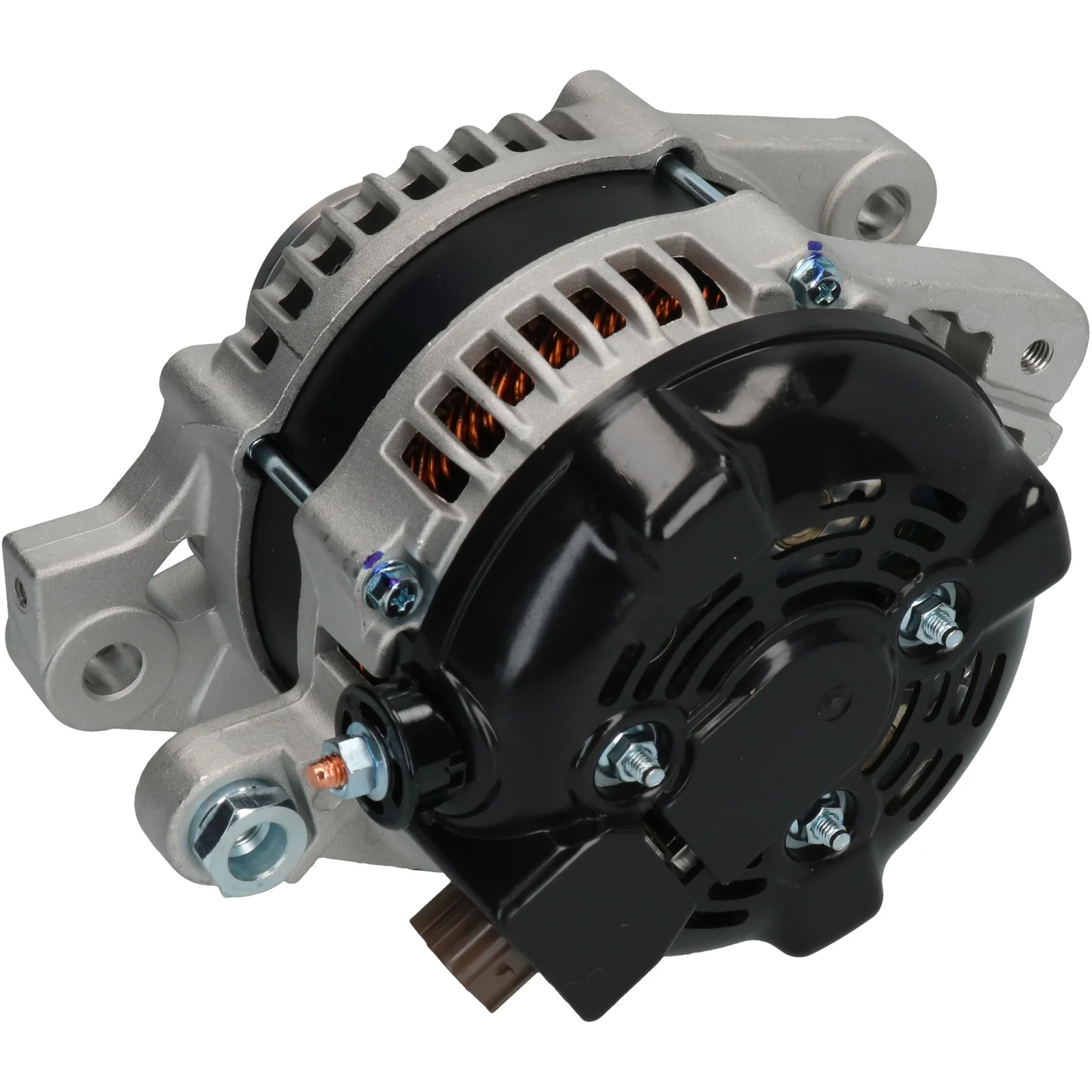

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 150, Rotation: CW, Mounting bracket distance: 33.00

Description

Lexus IS 250 Gen. 12V-150A 12V - 150A, 7 teeth, (RLO, IG, L, M) Not suitable for cars directly imported from the United States! For United States cars, order 90-555-3106! For Yourrex product, order 90-555-3105

Voltage: 14
Amp: 150
Pulley distance: 38.30
Width/holder arm: 18.00
Mounting bracket distance: 33.00
Bracket hole: 11.00
Belt adjustment bracket hole position: 57
Belt adjustment bracket hole 1: 11.00
Belt adjustment bracket hole 2: M10
Pulley diameter: 52.50
Grooves/pulley: 7
Radius: 84.00
Radius 2: 90.00
B+: M6
Position/B+ in minutes: 3
D+ size: Plug
Rotation: CW
Plug number: PL146
Total length mm: 176.00
Terminal type: RLO
Pulley: SP/FW
Fan: IF
Regulator type: IR

Files

  • OEM
    F032116469, 1986A01689, 021080-2440, 27060-31050, 27060-31051, 27060-31052, 27060-31060, 27060-31062, 27060-31201, 27060-31212, 104210-1090, 104210-1091, 104210-2040, 104210-2041, 104210-2050, 104210-2051, 104210-2052, 104210-4670, 104210-4680, 104211-8090, 104211-8092, 116469

  • Normalised article numbler
    a6323, a6522s, cal40376, dan1354, dan1483, dra0883, f032116469, j5112163, lra03669, lra04156, 0986ur6016, 1986a01689, 20490r, 113439, 113452, 116469, 286809, 287765, 553706ri, 553862ri, 12060984, 12061063, 195957150, 195989150, 0210802440, 1042101090, 1042101091, 1042102040, 1042102041, 1042102050, 1042102051, 1042102052, 1042104670, 1042104680, 1042118090, 1042118092, 2706031050, 2706031051, 2706031052, 2706031060, 2706031062, 2706031201, 2706031212, 5351371502
  • Description
    Lexus IS 250 Gen. 12V-150A 12V - 150A, 7 teeth, (RLO, IG, L, M) Not suitable for cars directly imported from the United States! For United States cars, order 90-555-3106! For Yourrex product, order 90-555-3105

    Voltage: 14
    Amp: 150
    Pulley distance: 38.30
    Width/holder arm: 18.00
    Mounting bracket distance: 33.00
    Bracket hole: 11.00
    Belt adjustment bracket hole position: 57
    Belt adjustment bracket hole 1: 11.00
    Belt adjustment bracket hole 2: M10
    Pulley diameter: 52.50
    Grooves/pulley: 7
    Radius: 84.00
    Radius 2: 90.00
    B+: M6
    Position/B+ in minutes: 3
    D+ size: Plug
    Rotation: CW
    Plug number: PL146
    Total length mm: 176.00
    Terminal type: RLO
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      F032116469, 1986A01689, 021080-2440, 27060-31050, 27060-31051, 27060-31052, 27060-31060, 27060-31062, 27060-31201, 27060-31212, 104210-1090, 104210-1091, 104210-2040, 104210-2041, 104210-2050, 104210-2051, 104210-2052, 104210-4670, 104210-4680, 104211-8090, 104211-8092, 116469

    • Normalised article numbler
      a6323, a6522s, cal40376, dan1354, dan1483, dra0883, f032116469, j5112163, lra03669, lra04156, 0986ur6016, 1986a01689, 20490r, 113439, 113452, 116469, 286809, 287765, 553706ri, 553862ri, 12060984, 12061063, 195957150, 195989150, 0210802440, 1042101090, 1042101091, 1042102040, 1042102041, 1042102050, 1042102051, 1042102052, 1042104670, 1042104680, 1042118090, 1042118092, 2706031050, 2706031051, 2706031052, 2706031060, 2706031062, 2706031201, 2706031212, 5351371502
