HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032111963

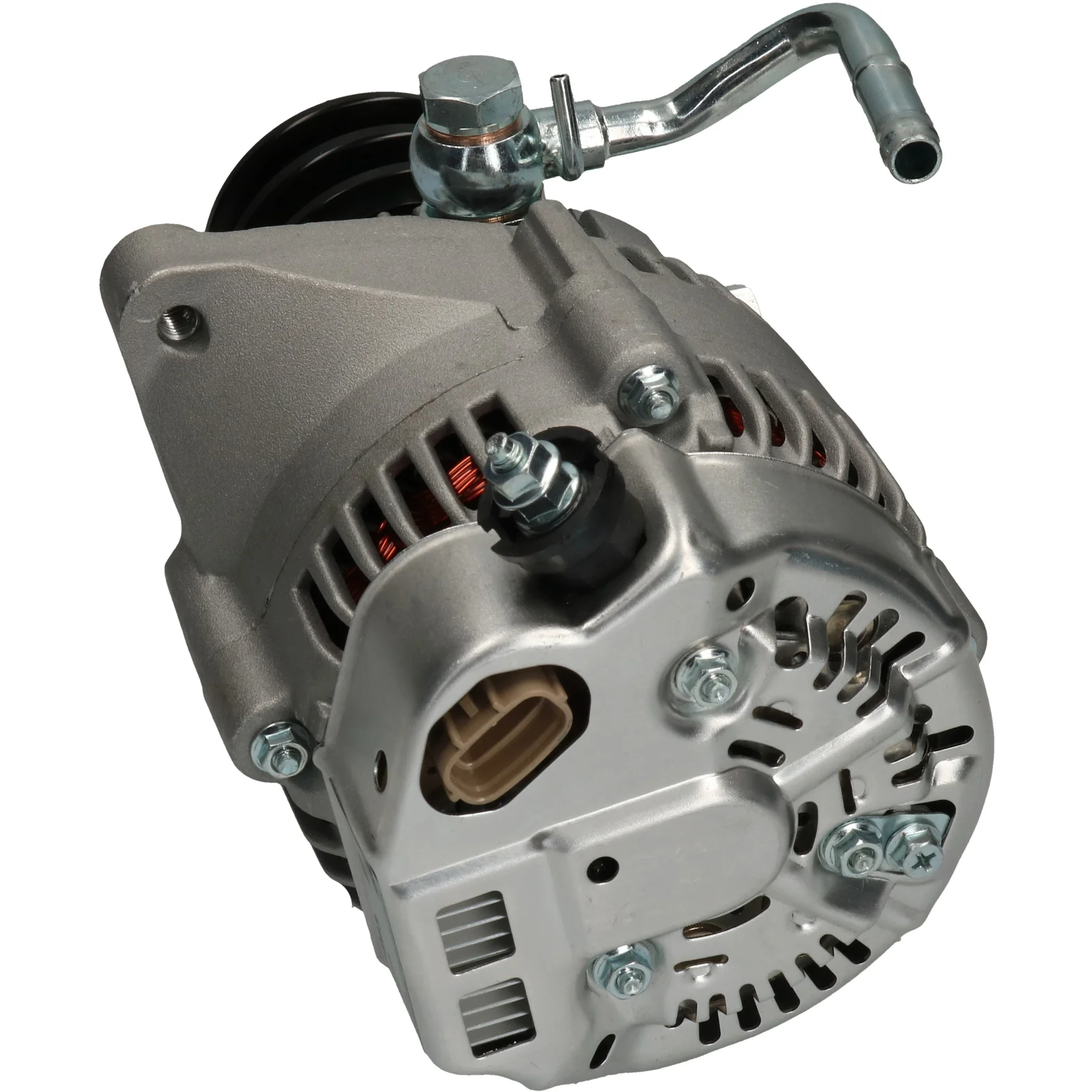

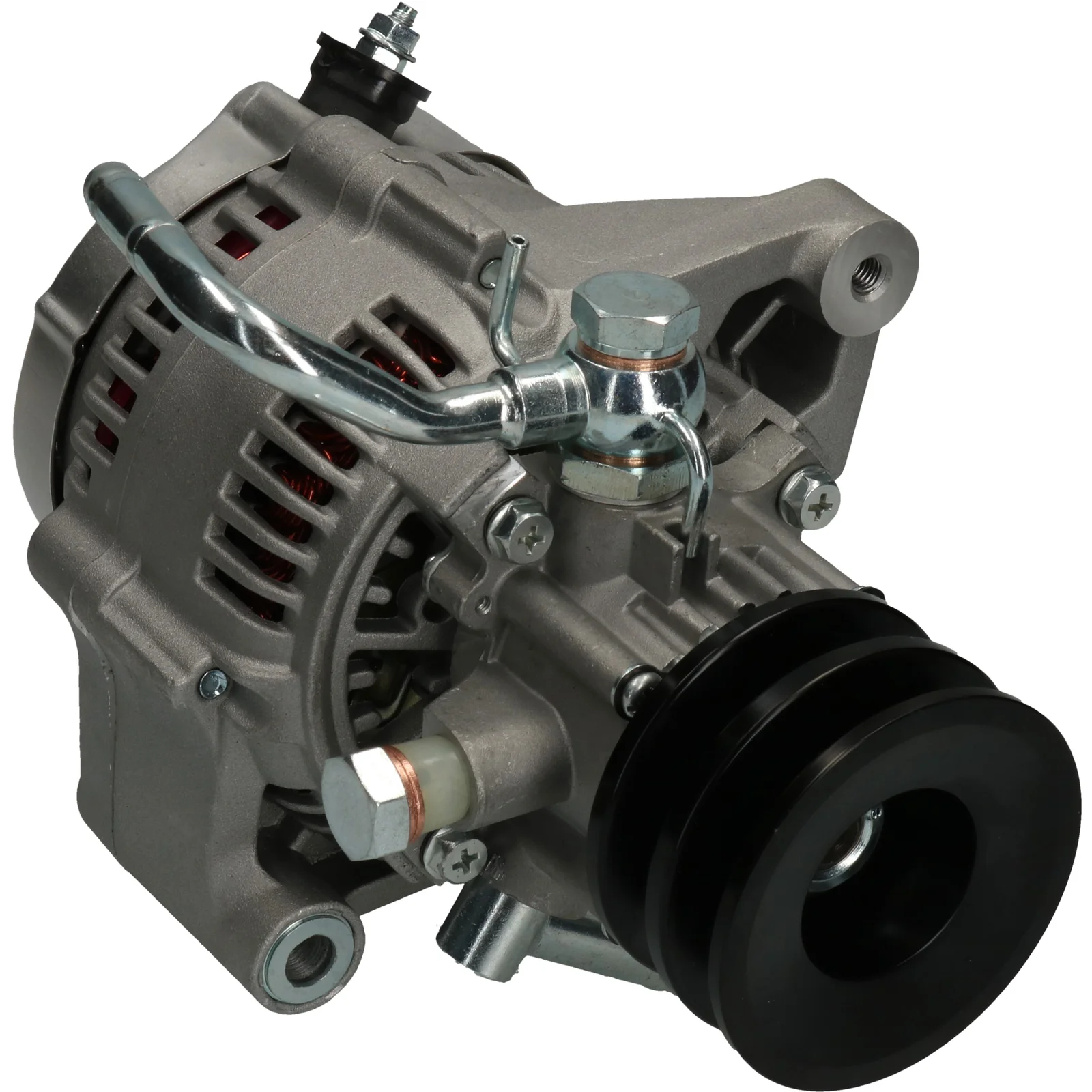

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 70, Rotation: CW, Pulley dia.: 74.50

Description

Alternator 12V-70A 1995-2001 12V - 70A, 2V, (S, IG, L) For Yourex product order 90-555-2350

Voltage: 14
Amps: 70
Pulley diameter: 146.50
Width/holder arm: 70.20
Bracket hole: 10.30
Belt adjustment bracket hole position: 2
Belt adjustment bracket hole 1: M8
Pulley diameter: 74.50
Grooves/pulley: 2
Radius: 80.00
Radius 2: 84.00
B+: M6
Position/B+ in minutes: 5
D+ size: Plug
Rotation: CW
Plug number: PL42
Total length mm: 230.00
Terminal type: L-IG-S
Pulley: DP
Regulator type: IR
Vacuum pump: Yes
Product info: BN
Servicing: Toyota

Files

  • OEM
    F032111963, ja1367ir, 0986 049 510, 27040-54280, 27040-54300, 27040-54310, 27040-54370, 27040-54380, 27040-54410, 27040-54440, 27040-54450, 27040-54500, 27040-54580, 27060-54140, 27060-54290, 27060-54330, 100213-1730, 100213-1770, 100213-2240, 100213-2241, 100213-2250, 100213-2350, 100213-2351, 100213-2352, 100213-2400, 100213-2470, 100213-2471, 100213-2480, 100213-2500, 100213-2580, 100213-2920, 111963, 9660218-537

  • Normalised article numbler
    a6040, alth072, cal40132, f032111963, f042a0h072, j5112111, ja1367ir, lra02710, lrb00308, 8el012428041, 8el737558001, 6019, 23710n, 111963, 119708, 210267, 210267a, 282629, 282726, 401367ri, 12060768, 235155702, 235166702, 0986049510, 1002131730, 1002131770, 1002132240, 1002132241, 1002132250, 1002132350, 1002132351, 1002132352, 1002132400, 1002132470, 1002132471, 1002132480, 1002132500, 1002132580, 1002132920, 2704054280, 2704054300, 2704054310, 2704054370, 2704054380, 2704054410, 2704054440, 2704054450, 2704054500, 2704054580, 2706054140, 2706054290, 2706054330, 9660218537
  • Description
    Alternator 12V-70A 1995-2001 12V - 70A, 2V, (S, IG, L) For Yourex product order 90-555-2350

    Voltage: 14
    Amps: 70
    Pulley diameter: 146.50
    Width/holder arm: 70.20
    Bracket hole: 10.30
    Belt adjustment bracket hole position: 2
    Belt adjustment bracket hole 1: M8
    Pulley diameter: 74.50
    Grooves/pulley: 2
    Radius: 80.00
    Radius 2: 84.00
    B+: M6
    Position/B+ in minutes: 5
    D+ size: Plug
    Rotation: CW
    Plug number: PL42
    Total length mm: 230.00
    Terminal type: L-IG-S
    Pulley: DP
    Regulator type: IR
    Vacuum pump: Yes
    Product info: BN
    Servicing: Toyota

    Files

  • Suitable for these vehicles

    • OEM
      F032111963, ja1367ir, 0986 049 510, 27040-54280, 27040-54300, 27040-54310, 27040-54370, 27040-54380, 27040-54410, 27040-54440, 27040-54450, 27040-54500, 27040-54580, 27060-54140, 27060-54290, 27060-54330, 100213-1730, 100213-1770, 100213-2240, 100213-2241, 100213-2250, 100213-2350, 100213-2351, 100213-2352, 100213-2400, 100213-2470, 100213-2471, 100213-2480, 100213-2500, 100213-2580, 100213-2920, 111963, 9660218-537

    • Normalised article numbler
      a6040, alth072, cal40132, f032111963, f042a0h072, j5112111, ja1367ir, lra02710, lrb00308, 8el012428041, 8el737558001, 6019, 23710n, 111963, 119708, 210267, 210267a, 282629, 282726, 401367ri, 12060768, 235155702, 235166702, 0986049510, 1002131730, 1002131770, 1002132240, 1002132241, 1002132250, 1002132350, 1002132351, 1002132352, 1002132400, 1002132470, 1002132471, 1002132480, 1002132500, 1002132580, 1002132920, 2704054280, 2704054300, 2704054310, 2704054370, 2704054380, 2704054410, 2704054440, 2704054450, 2704054500, 2704054580, 2706054140, 2706054290, 2706054330, 9660218537
