HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114512

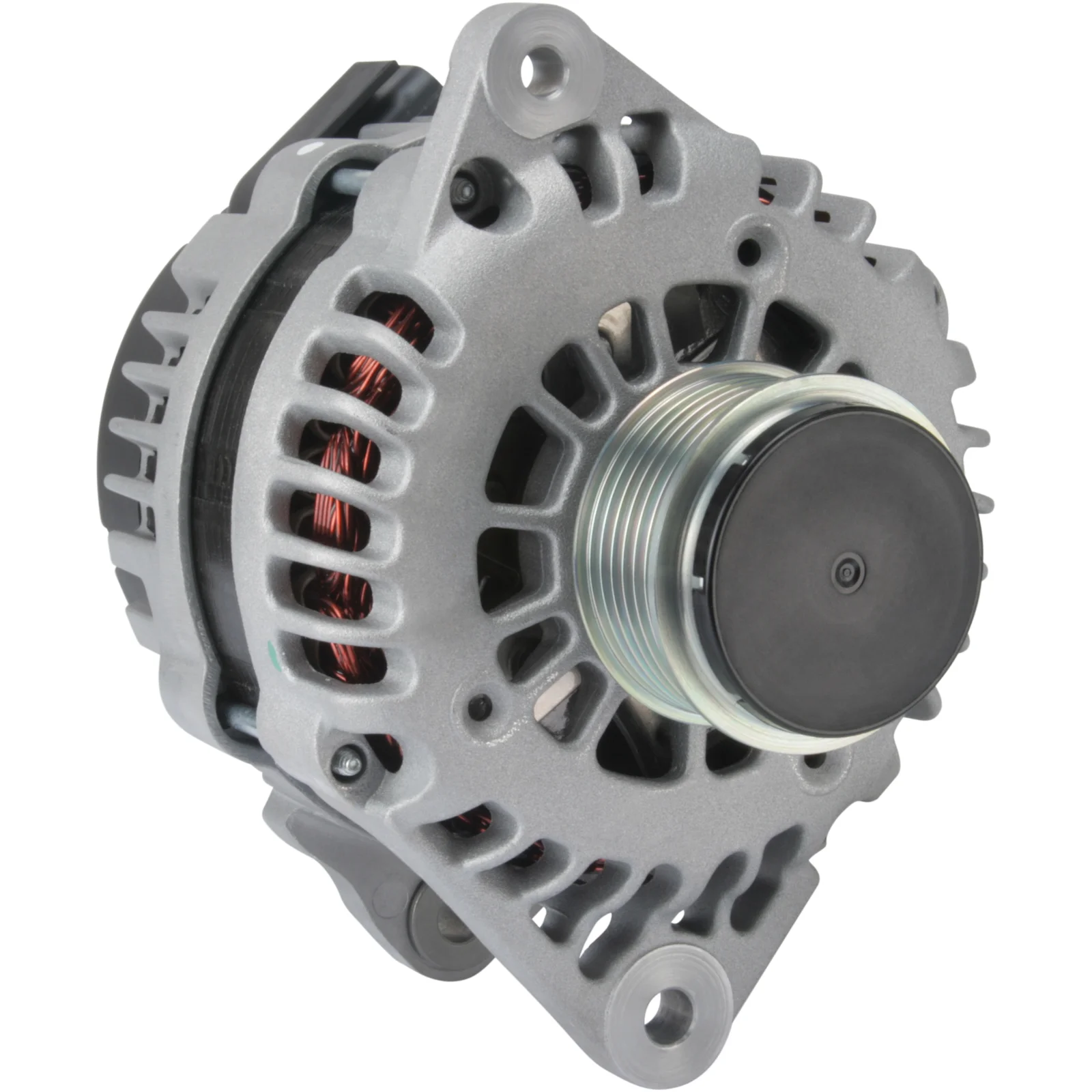

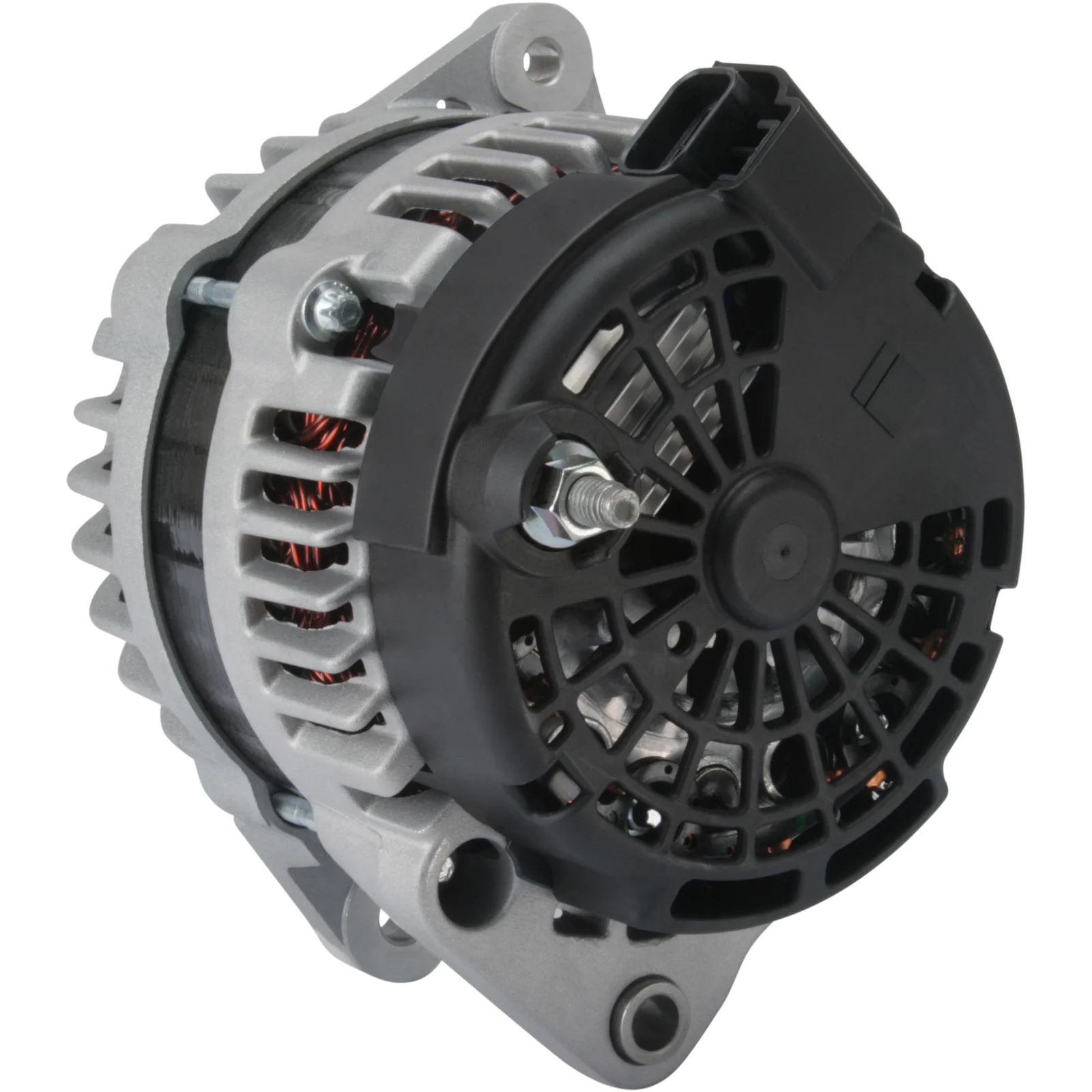

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 140, Rotation: CW, Mounting bracket distributor: 66.00

Description

Voltage: 14
Amp: 140
Pulley dist.: 35.50
Width/holder arm: 13.00
Mount. bracket dist.: 66.00
Bracket hole: 10.50
Belt. adj. bracket hole pos.: 60
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 60.00
Grooves/pulley: 6
Radius: 84.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 50
Rotation: CW
Plug no.: PL127
Total length mm: 200.00
Pulley: SP/FW
Regulator type: IR
Prod. info: BN

Files

  • OEM
    F032114512, 2017ir, 1204425, 6204275, 8400156, 8400158, 8400218, 98031155, 98042873, 8980311551, 8980428730

  • Normalised article numbler
    a1021, a1021p, cal60113, dra2075, dra2075n, dra4295, f032114512, 8el012429171, 8el738212481, 2017ir, 112822, 210945, 210945a, 285706, 302017ri, 440707, 553272ri, 1204425, 6204275, 8400156, 8400158, 8400218, 9090840, 12090316, 98031155, 98042873, 0986084150, 2281771402, 8980311551, 8980428730
  • Description
    Voltage: 14
    Amp: 140
    Pulley dist.: 35.50
    Width/holder arm: 13.00
    Mount. bracket dist.: 66.00
    Bracket hole: 10.50
    Belt. adj. bracket hole pos.: 60
    Belt. adj. bracket hole 1: 8.50
    Pulley dia.: 60.00
    Grooves/pulley: 6
    Radius: 84.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 50
    Rotation: CW
    Plug no.: PL127
    Total length mm: 200.00
    Pulley: SP/FW
    Regulator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032114512, 2017ir, 1204425, 6204275, 8400156, 8400158, 8400218, 98031155, 98042873, 8980311551, 8980428730

    • Normalised article numbler
      a1021, a1021p, cal60113, dra2075, dra2075n, dra4295, f032114512, 8el012429171, 8el738212481, 2017ir, 112822, 210945, 210945a, 285706, 302017ri, 440707, 553272ri, 1204425, 6204275, 8400156, 8400158, 8400218, 9090840, 12090316, 98031155, 98042873, 0986084150, 2281771402, 8980311551, 8980428730
