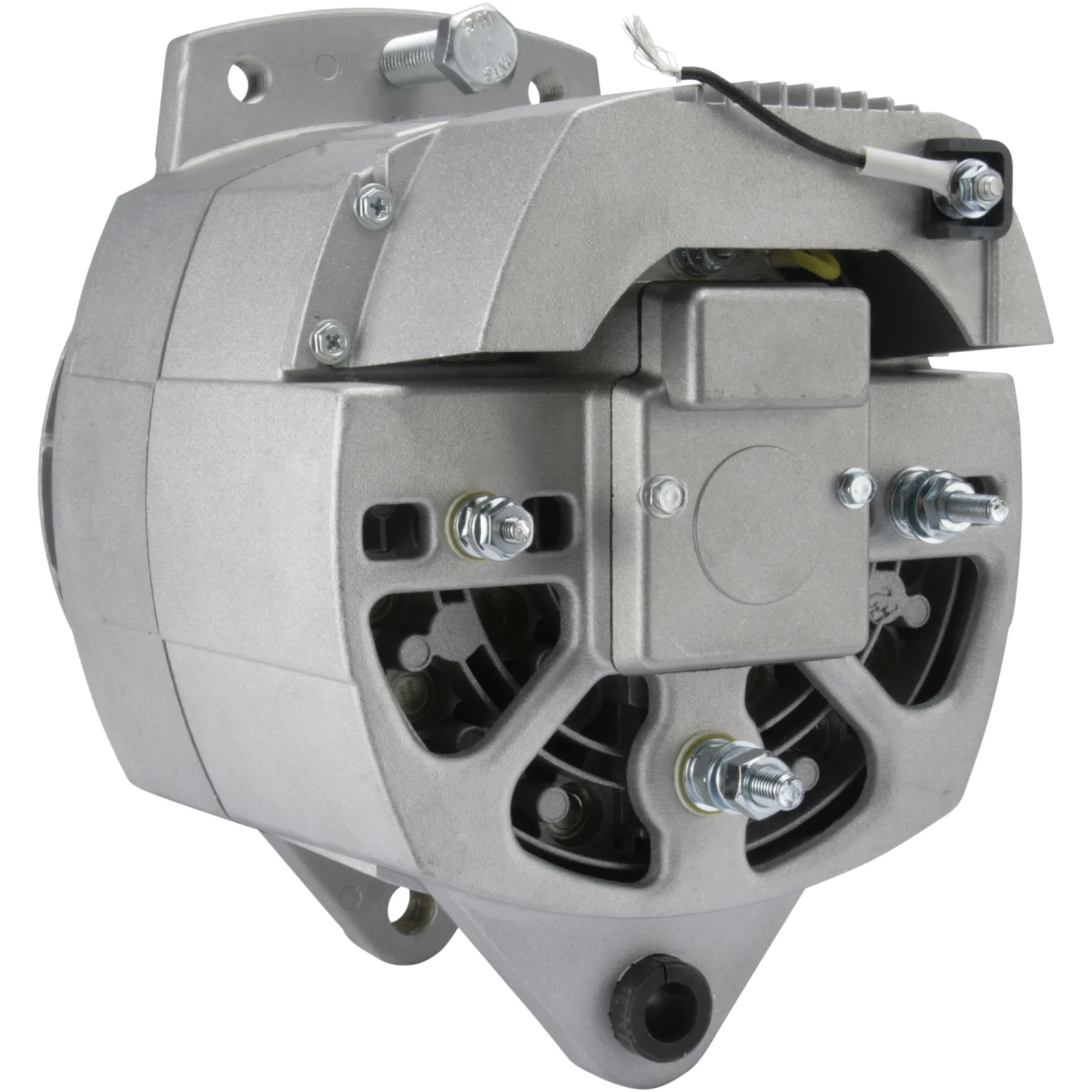

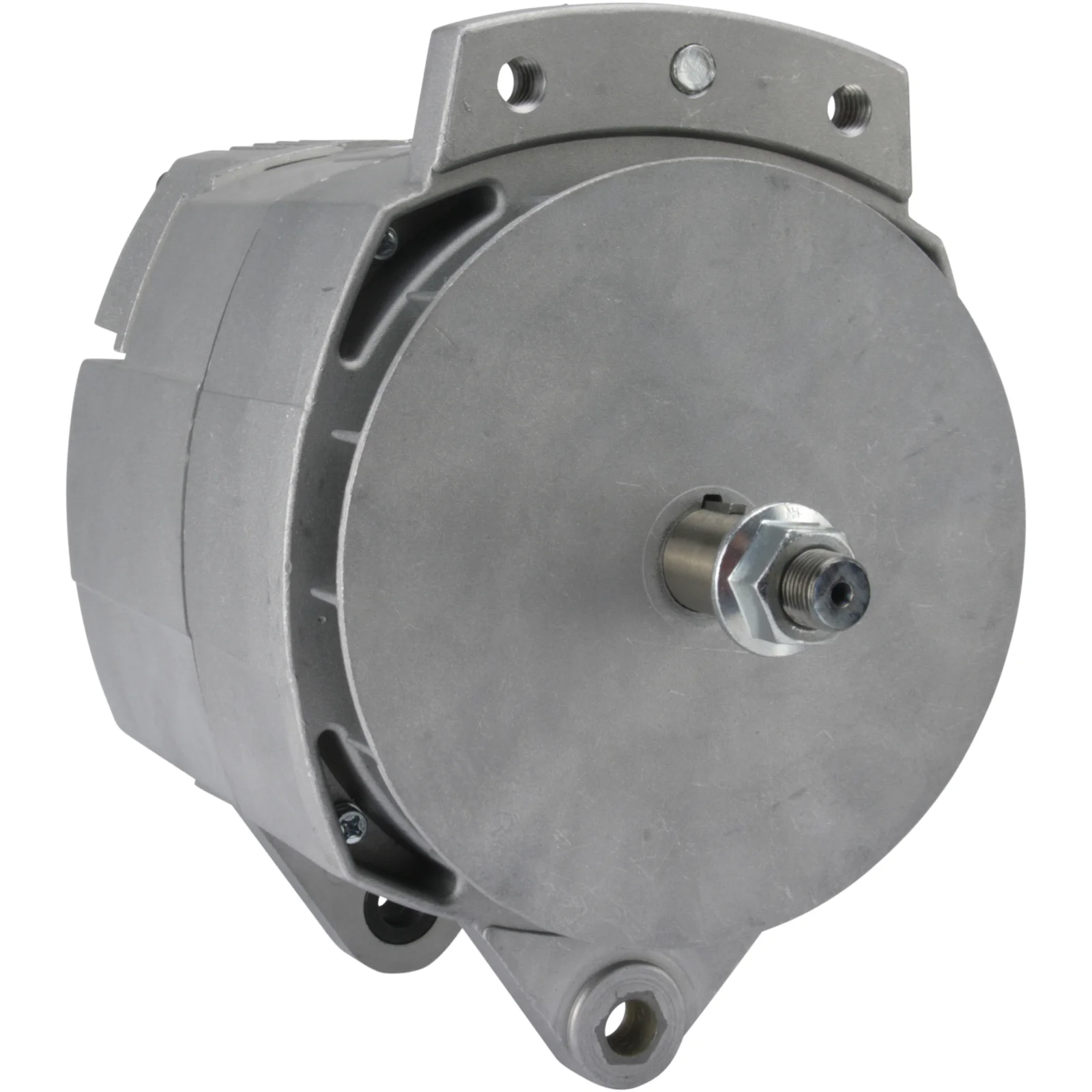

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114349

HC-Cargo Alternator

Technical info:

Voltage: 28, Amp: 150, Rotation: CW, Mounting bracket distributor: 101.00

Description

Voltage: 28
Amp: 150
Pulley dist.: 45.50
Width/holder arm: 14.00
Mount. bracket dist.: 101.00
Bracket hole: 13.00
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 1/2" UNC
Belt. adj. bracket hole 2: 1/2" UNC
Belt. adj. bracket hole 3: 1/2" UNC
Pulley dia.: 78.00
Grooves/pulley: 2
Radius: 104.00
Radius 2: 108.00
B+: M8
Position/B+ in min.: 30
D+ Size: M5
Rotation: CW
Total length mm: 270.00
Pulley: w/o
Voltage regulator type: IR
Prod. info: BN

Files

  • OEM
    F032114349, 8SC3238VC

  • Normalised article numbler
    alt0192, f032114349, f042308018, f042308019, f042308021, f042308057, f042511761, f042a08018, f042a08021, 8sc3238vc
  • Description
    Voltage: 28
    Amp: 150
    Pulley dist.: 45.50
    Width/holder arm: 14.00
    Mount. bracket dist.: 101.00
    Bracket hole: 13.00
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: 1/2" UNC
    Belt. adj. bracket hole 2: 1/2" UNC
    Belt. adj. bracket hole 3: 1/2" UNC
    Pulley dia.: 78.00
    Grooves/pulley: 2
    Radius: 104.00
    Radius 2: 108.00
    B+: M8
    Position/B+ in min.: 30
    D+ Size: M5
    Rotation: CW
    Total length mm: 270.00
    Pulley: w/o
    Voltage regulator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032114349, 8SC3238VC

    • Normalised article numbler
      alt0192, f032114349, f042308018, f042308019, f042308021, f042308057, f042511761, f042a08018, f042a08021, 8sc3238vc
