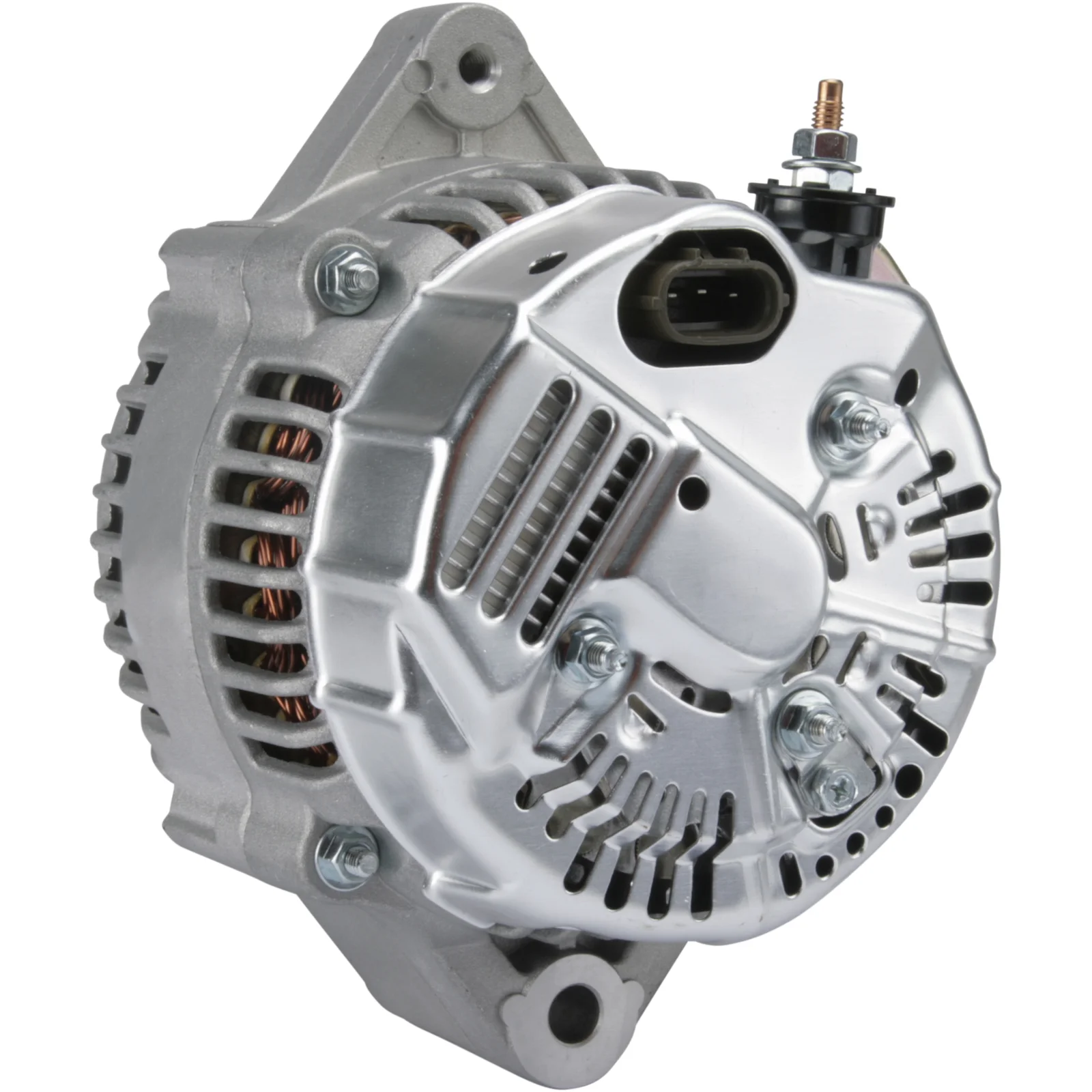

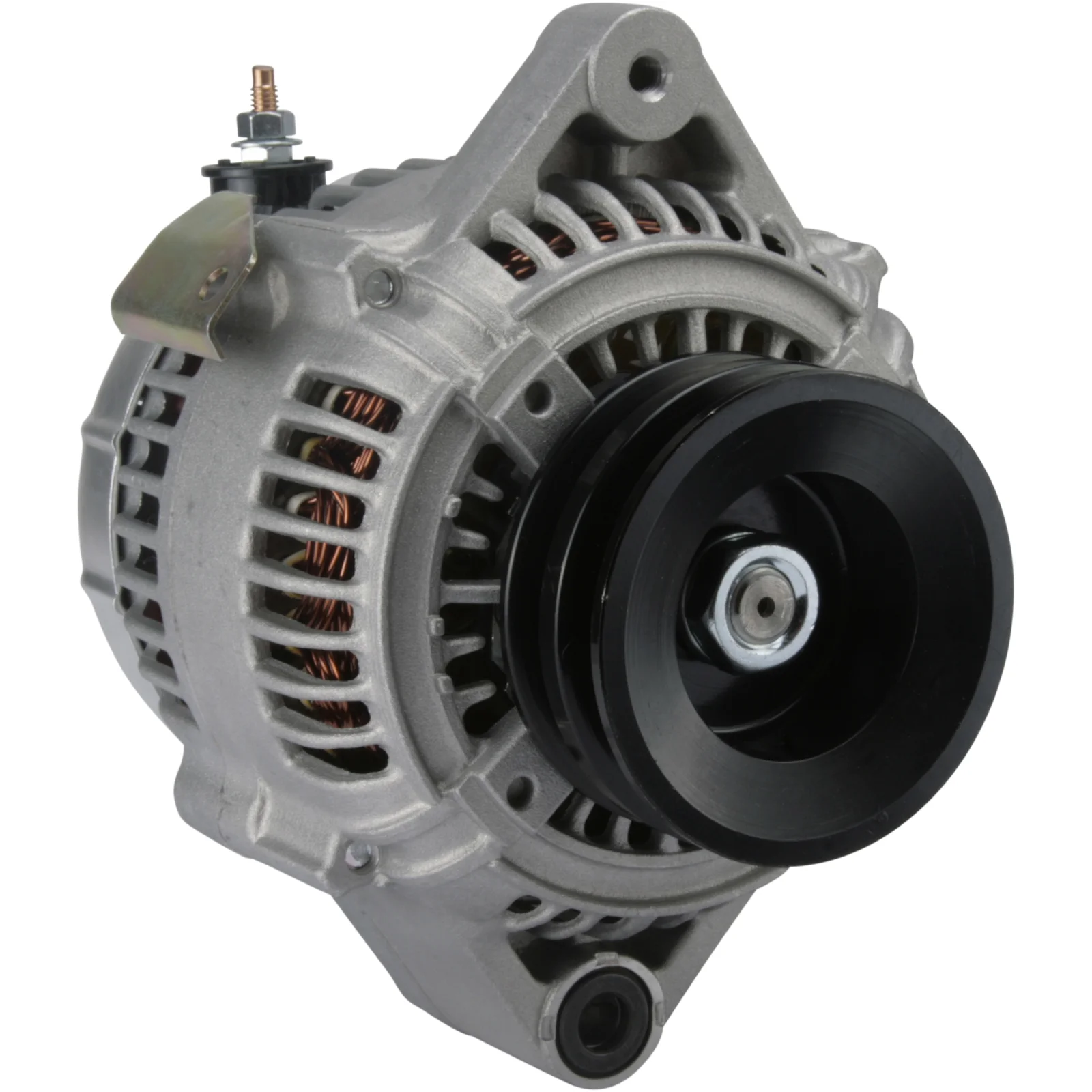

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114363

HC-Cargo Alternator

Technical info:

Voltage: 28, Amp: 60, Rotation: CW, Pulley diameter: 82.00

Description

Voltage: 28
Amp: 60
Pulley dist.: 92.00
Width/holder arm: 58.40
Bracket hole: 10.50
Belt. adj. bracket holes pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 82.00
Grooves/pulley: 2
Radius: 83.00
Radius 2: 86.00
B+: M6
Position/B+ in min.: 5
D+ Size: Plug
Rotation: CW
Plug no.: PL42
Total length mm: 174.00
Pulley: Alternator
Prod. info: BN

Files

  • Description
    Voltage: 28
    Amp: 60
    Pulley dist.: 92.00
    Width/holder arm: 58.40
    Bracket hole: 10.50
    Belt. adj. bracket holes pos.: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 82.00
    Grooves/pulley: 2
    Radius: 83.00
    Radius 2: 86.00
    B+: M6
    Position/B+ in min.: 5
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL42
    Total length mm: 174.00
    Pulley: Alternator
    Prod. info: BN
