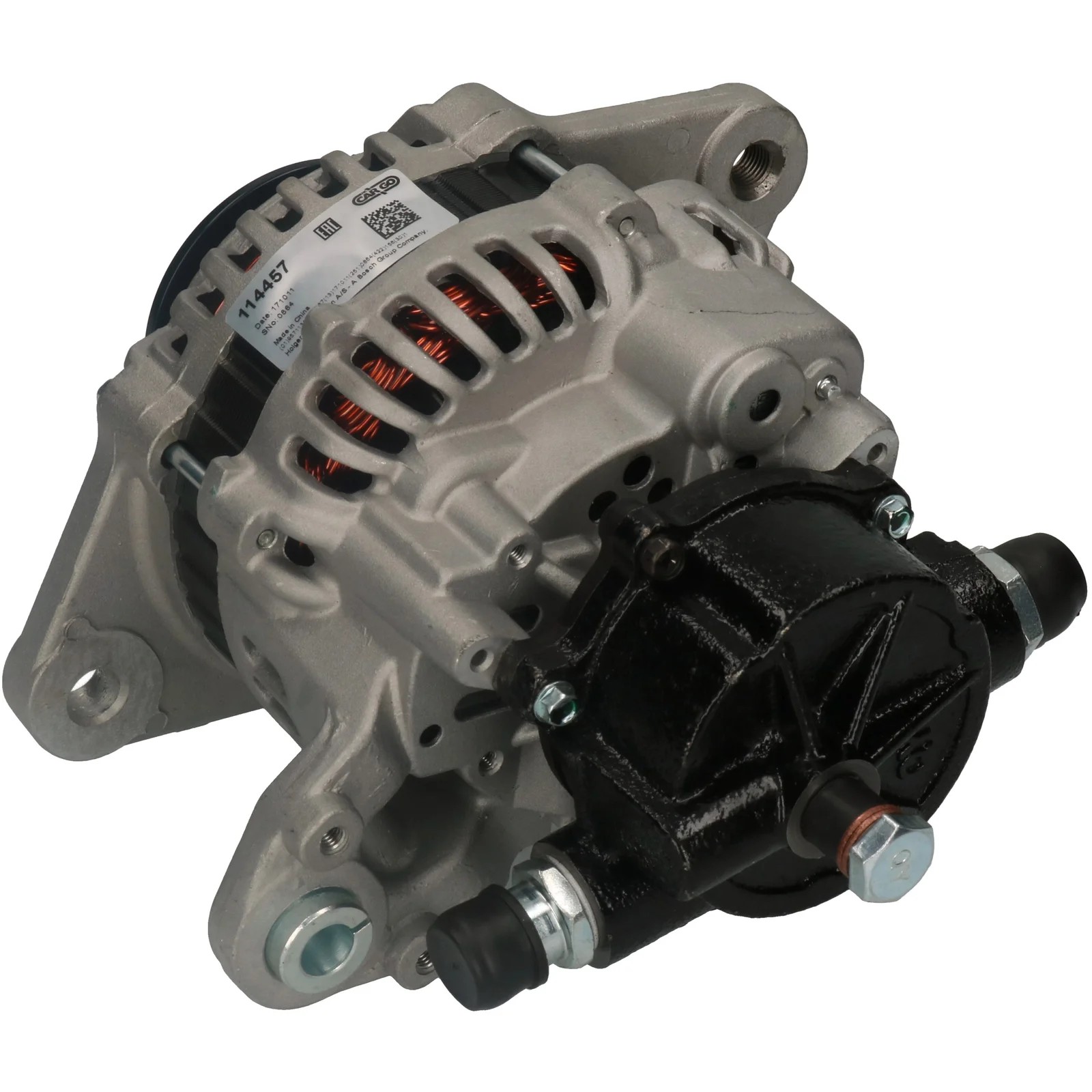

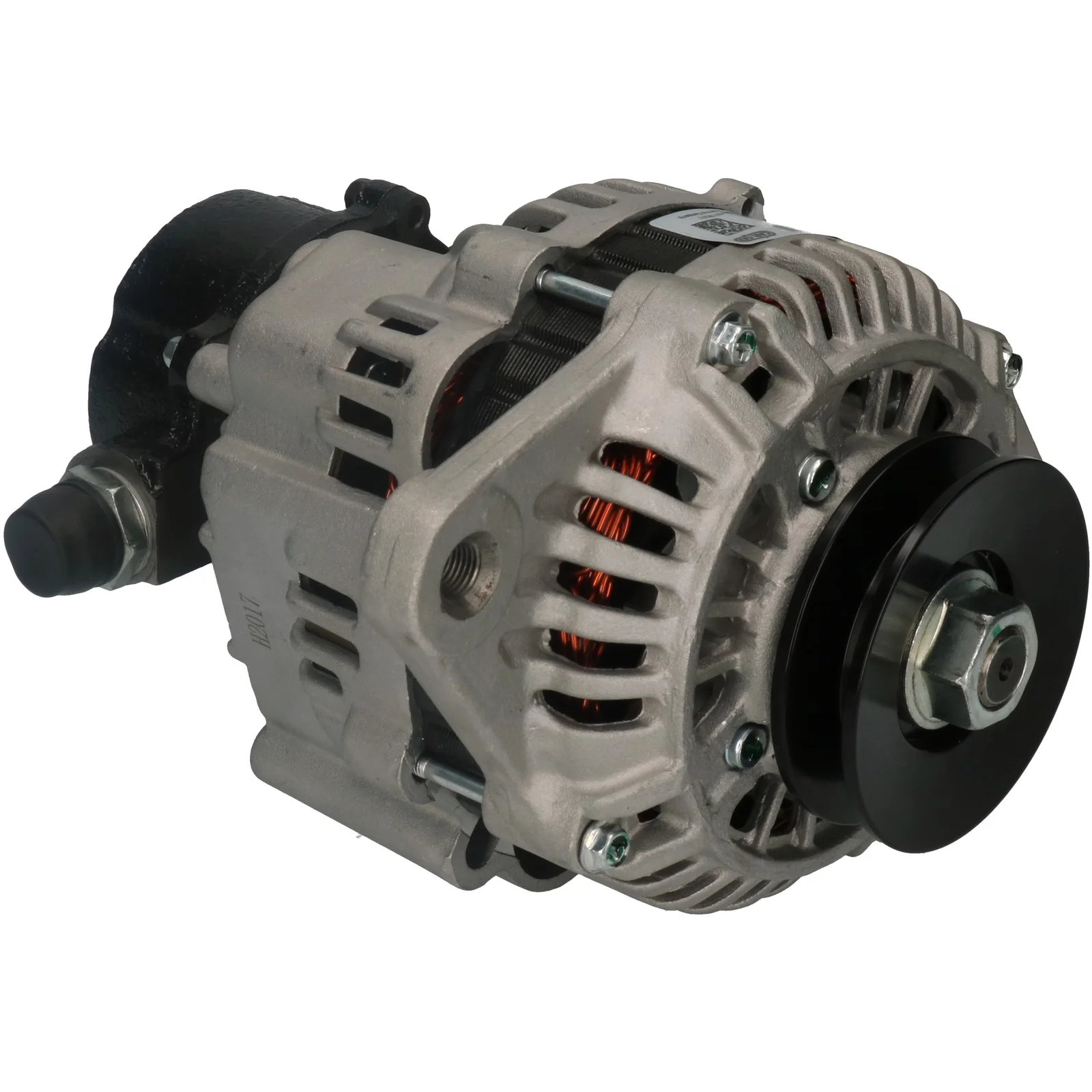

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114457

HC-Cargo Alternator

Technical info:

Voltage: 28, Amp: 35, Rotation: CW, Mounting bracket distance: 81.00

Description

Voltage: 28
Amp: 35
Pulley dist.: 44.50
Width/holder arm: 13.70
Mount. bracket dist.: 81.00
Bracket hole: 12.30
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M12
Pulley dia.: 84.00
Grooves/pulley: 1
Radius: 94.00
Radius 2: 95.00
B+: M8
Position/B+ in min.: 15
D+ Size: Plug
Rotation: CW
Plug no.: PL89
Total length mm: 237.00
Terminal type: L-R
Lamp type: Active
Pulley: P
Vacuum pump: Yes
Prod. info: BN

Files

  • OEM
    A003TN5883, a3tn5883, F032114457, 32B68-00200

  • Normalised article numbler
    a003tn5883, a3tn5883, a5345, cal35608, dra0465, f032114457, lra04257, 32b6800200, 12435n, 487866
  • Description
    Voltage: 28
    Amp: 35
    Pulley dist.: 44.50
    Width/holder arm: 13.70
    Mount. bracket dist.: 81.00
    Bracket hole: 12.30
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M12
    Pulley dia.: 84.00
    Grooves/pulley: 1
    Radius: 94.00
    Radius 2: 95.00
    B+: M8
    Position/B+ in min.: 15
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL89
    Total length mm: 237.00
    Terminal type: L-R
    Lamp type: Active
    Pulley: P
    Vacuum pump: Yes
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      A003TN5883, a3tn5883, F032114457, 32B68-00200

    • Normalised article numbler
      a003tn5883, a3tn5883, a5345, cal35608, dra0465, f032114457, lra04257, 32b6800200, 12435n, 487866
