HC-Cargo Alternator

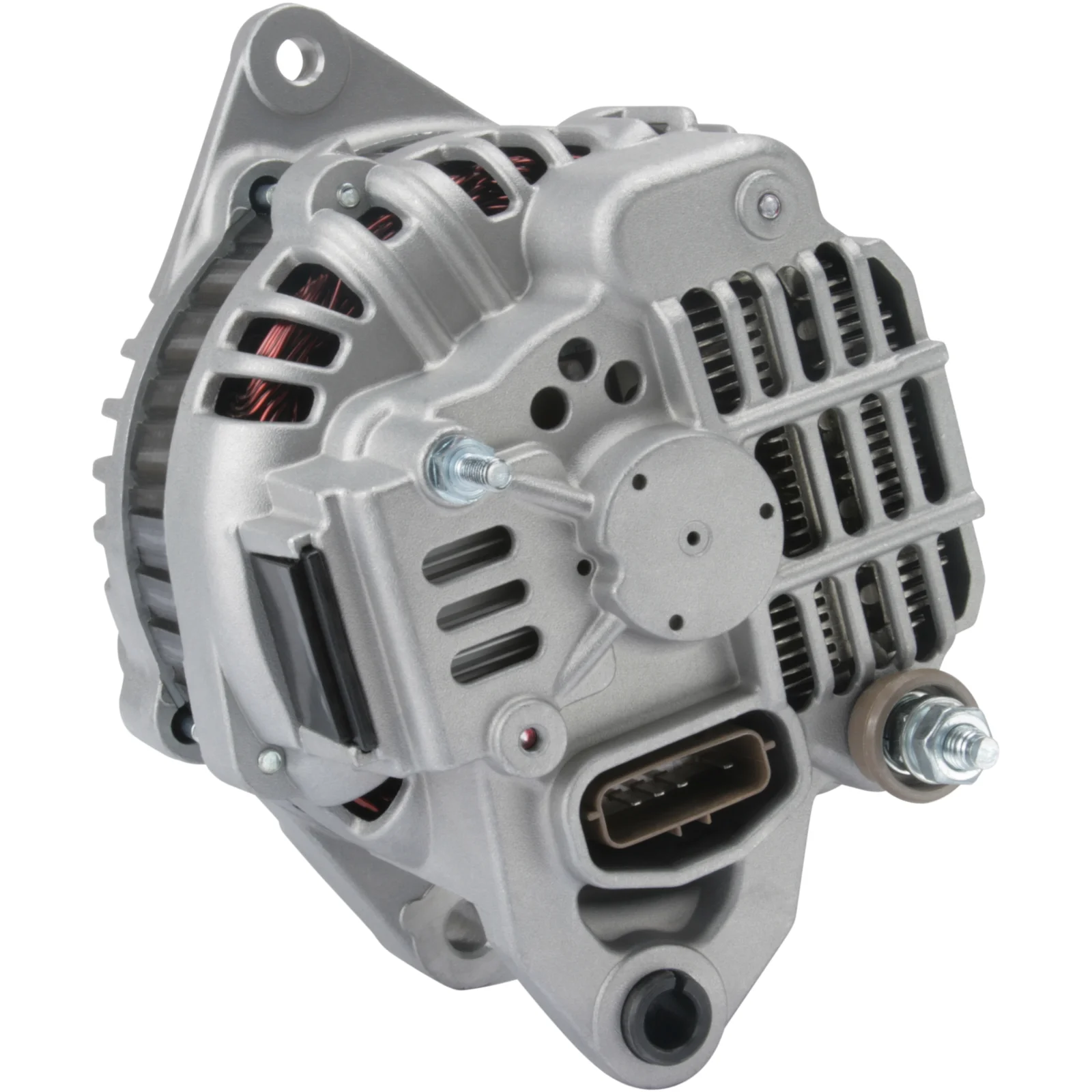

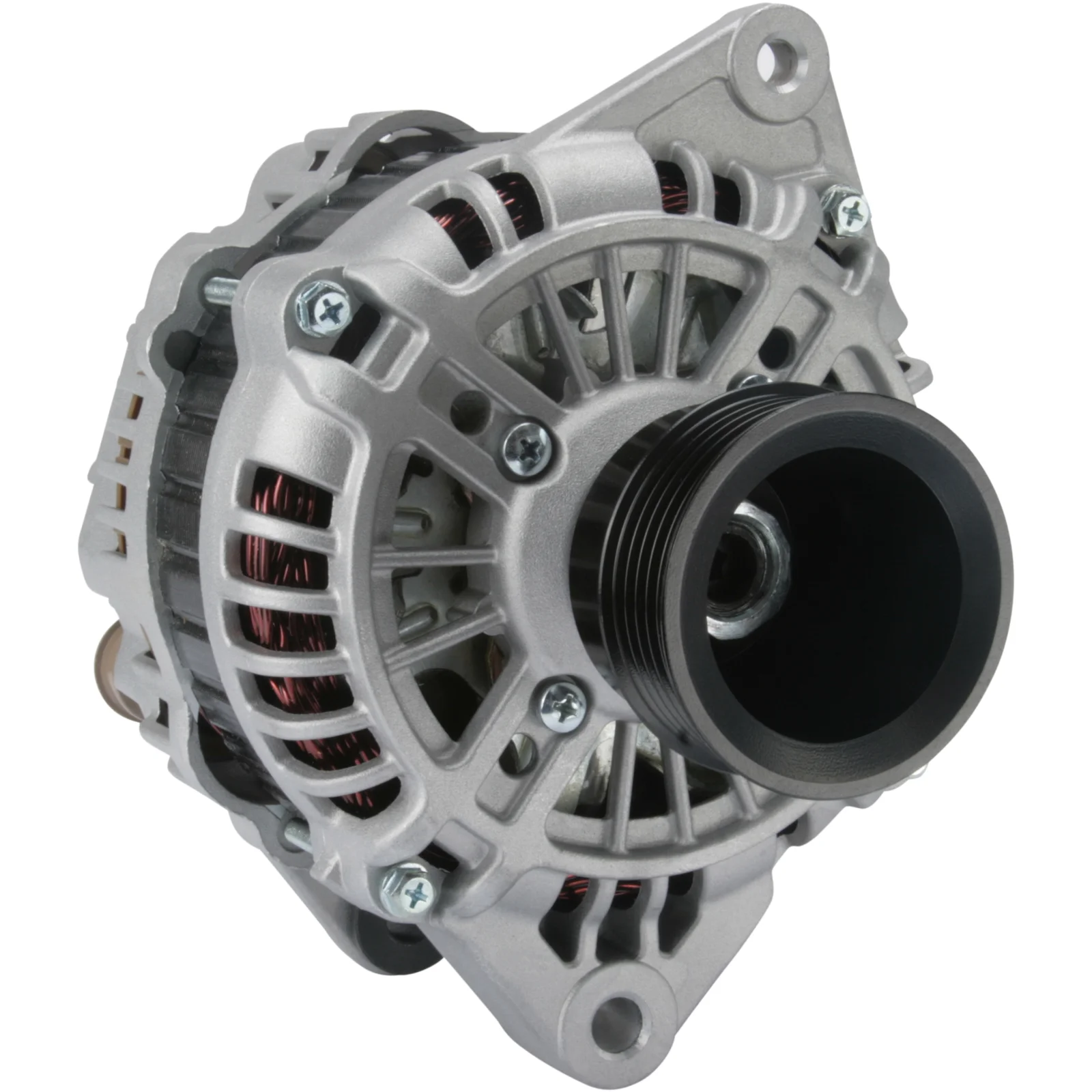

HC-Cargo Alternator
Article no.: F032114508

HC-Cargo Alternator

Technical info:

Voltage: 28, Amp: 90, Rotation: CW, Mounting bracket distance: 65.00

Description

Voltage: 28
Amp: 90
Terminal: W
Pulley dist.: 81.00
Width/holder arm: 27.00
Mount. bracket dist.: 65.00
Bracket hole: 10.20
Belt. adj. brackethole pos.: 3
Belt. adj. bracket hole 1: 8.30
Pulley dia.: 62.00
Grooves/pulley: 5
Radius: 89.00
Radius 2: 92.50
B+: M8
Position/B+ in min.: 20
D+ Size: Plug
Rotation: CW
Plug no.: PL152
W plug type: Plug
Total length mm: 215.00
Pulley: SP
Regulator type: IR

Files

  • OEM
    A004TR5091, A004TR5091ZT, A004TR5991ZT, A4TR5091, A4TR5091AM, a4tr5091zt, A4TR5991, A4TR5991ZT, F032114508, 2019ir, 5001866377, 5010480765

  • Normalised article numbler
    a004tr5091, a004tr5091zt, a004tr5991zt, a4tr5091, a4tr5091am, a4tr5091zt, a4tr5991, a4tr5991zt, a5045, alt3532, cal35614, dra0623, dra0623n, f032114508, f042208014, f042a03115, mita4tr5091, 8el012584401, 8el738213081, 2019ir, 20347n, 202107, 302019ri, 443234, 444401, 485890, 12061085, 530122904, 576503090, 5001866377, 5010480765
  • Description
    Voltage: 28
    Amp: 90
    Terminal: W
    Pulley dist.: 81.00
    Width/holder arm: 27.00
    Mount. bracket dist.: 65.00
    Bracket hole: 10.20
    Belt. adj. brackethole pos.: 3
    Belt. adj. bracket hole 1: 8.30
    Pulley dia.: 62.00
    Grooves/pulley: 5
    Radius: 89.00
    Radius 2: 92.50
    B+: M8
    Position/B+ in min.: 20
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL152
    W plug type: Plug
    Total length mm: 215.00
    Pulley: SP
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      A004TR5091, A004TR5091ZT, A004TR5991ZT, A4TR5091, A4TR5091AM, a4tr5091zt, A4TR5991, A4TR5991ZT, F032114508, 2019ir, 5001866377, 5010480765

    • Normalised article numbler
      a004tr5091, a004tr5091zt, a004tr5991zt, a4tr5091, a4tr5091am, a4tr5091zt, a4tr5991, a4tr5991zt, a5045, alt3532, cal35614, dra0623, dra0623n, f032114508, f042208014, f042a03115, mita4tr5091, 8el012584401, 8el738213081, 2019ir, 20347n, 202107, 302019ri, 443234, 444401, 485890, 12061085, 530122904, 576503090, 5001866377, 5010480765
