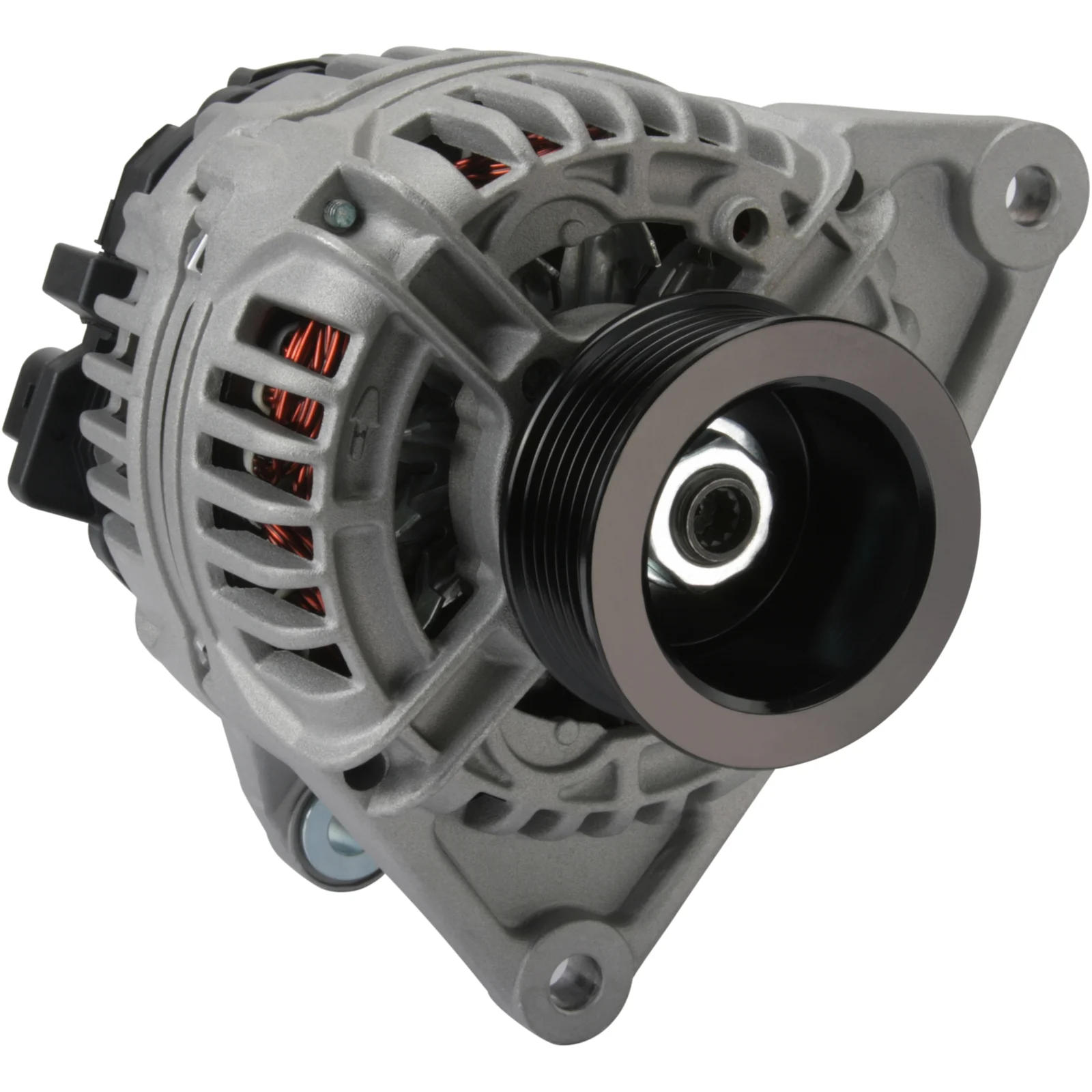

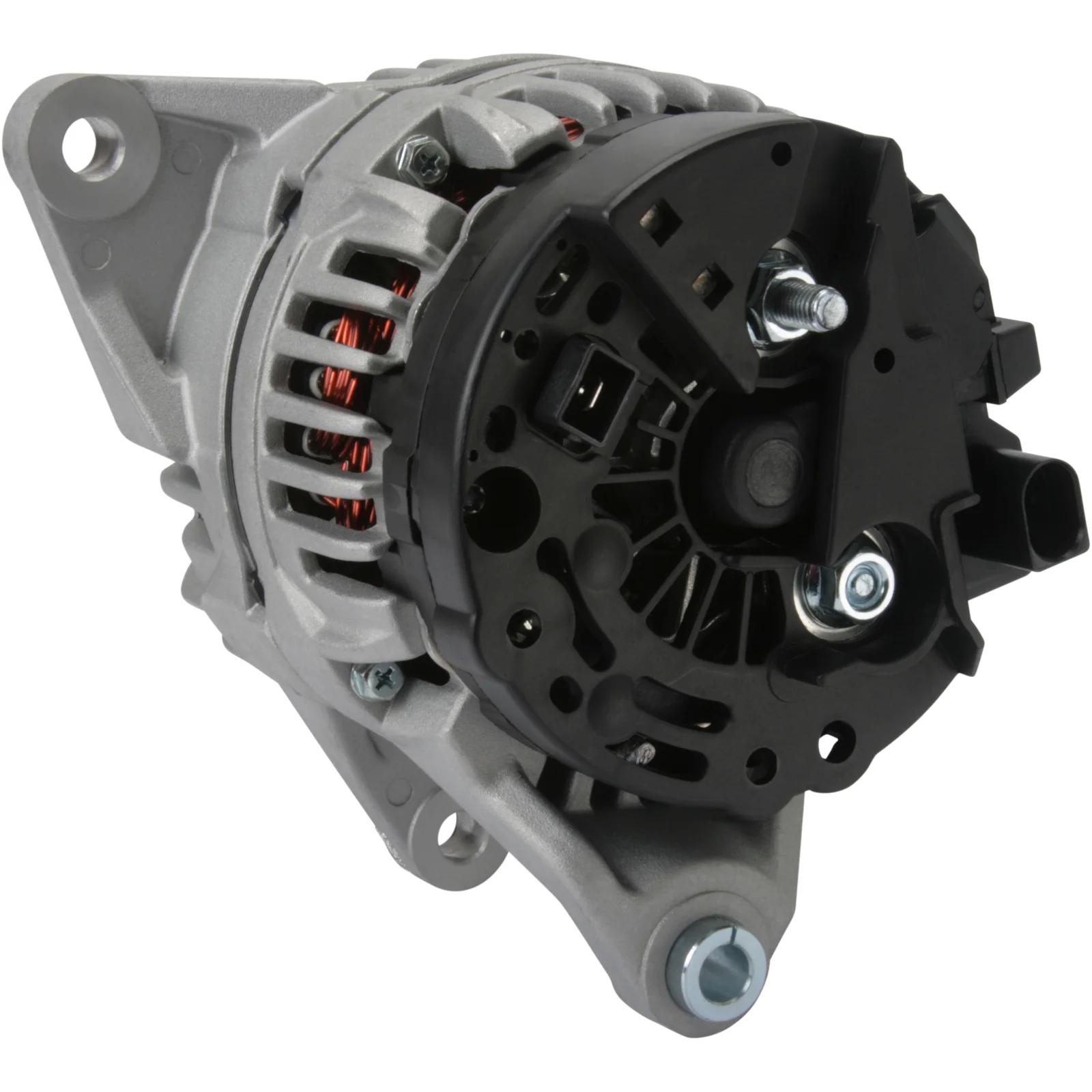

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032113280

HC-Cargo Alternator

Technical info:

Voltage: 14, Current: 90, Rotation: CW, Mounting bracket distributor: 81.00

Description

Voltage: 14
Amp: 90
Terminal: W
Pulley dist.: 46.70
Width/holder arm: 13.70
Mount. bracket dist.: 81.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 10
Belt. adj. bracket hole 1: 11.20
Pulley dia.: 68.00
Grooves/pulley: 6
Radius: 91.50
Radius 2: 94.00
B+: M8
Position/B+ in min.: 2
D+ Size: Plug
Rotation: CW
Plug no.: PL87
W plug type: 6.30
Total length mm: 191.00
Pulley: SP
Regulator type: IR
Prod. info: BN
Servicing: Renault VI

Files

  • OEM
    C8520046A, F032113280, 1684ir, 1986A00727, 2855975, 8520046A, 38522314F, 0124320002, 0124325052, 504010576, 504225814, 7700377092

  • Normalised article numbler
    a0255, a0522, c8520046a, cal10157, cal10261, dra0749, drb2670, f032113280, lra02187, lra03280, 1684ir, 1986a00727, 9451, 20021n, 23187n, 119912, 202095, 210933, 210933a, 284649, 285892, 301684ri, 437481, 443513, 2855975, 8520046a, 12042670, 12090340, 38522314f, 0124320002, 0124325052, 230187902, 504010576, 504225814, 519124902, 0986042670, 0986081360, 0986081363, 7700377092
  • Description
    Voltage: 14
    Amp: 90
    Terminal: W
    Pulley dist.: 46.70
    Width/holder arm: 13.70
    Mount. bracket dist.: 81.00
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 10
    Belt. adj. bracket hole 1: 11.20
    Pulley dia.: 68.00
    Grooves/pulley: 6
    Radius: 91.50
    Radius 2: 94.00
    B+: M8
    Position/B+ in min.: 2
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL87
    W plug type: 6.30
    Total length mm: 191.00
    Pulley: SP
    Regulator type: IR
    Prod. info: BN
    Servicing: Renault VI

    Files

  • Suitable for these vehicles

    • OEM
      C8520046A, F032113280, 1684ir, 1986A00727, 2855975, 8520046A, 38522314F, 0124320002, 0124325052, 504010576, 504225814, 7700377092

    • Normalised article numbler
      a0255, a0522, c8520046a, cal10157, cal10261, dra0749, drb2670, f032113280, lra02187, lra03280, 1684ir, 1986a00727, 9451, 20021n, 23187n, 119912, 202095, 210933, 210933a, 284649, 285892, 301684ri, 437481, 443513, 2855975, 8520046a, 12042670, 12090340, 38522314f, 0124320002, 0124325052, 230187902, 504010576, 504225814, 519124902, 0986042670, 0986081360, 0986081363, 7700377092
