HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114109

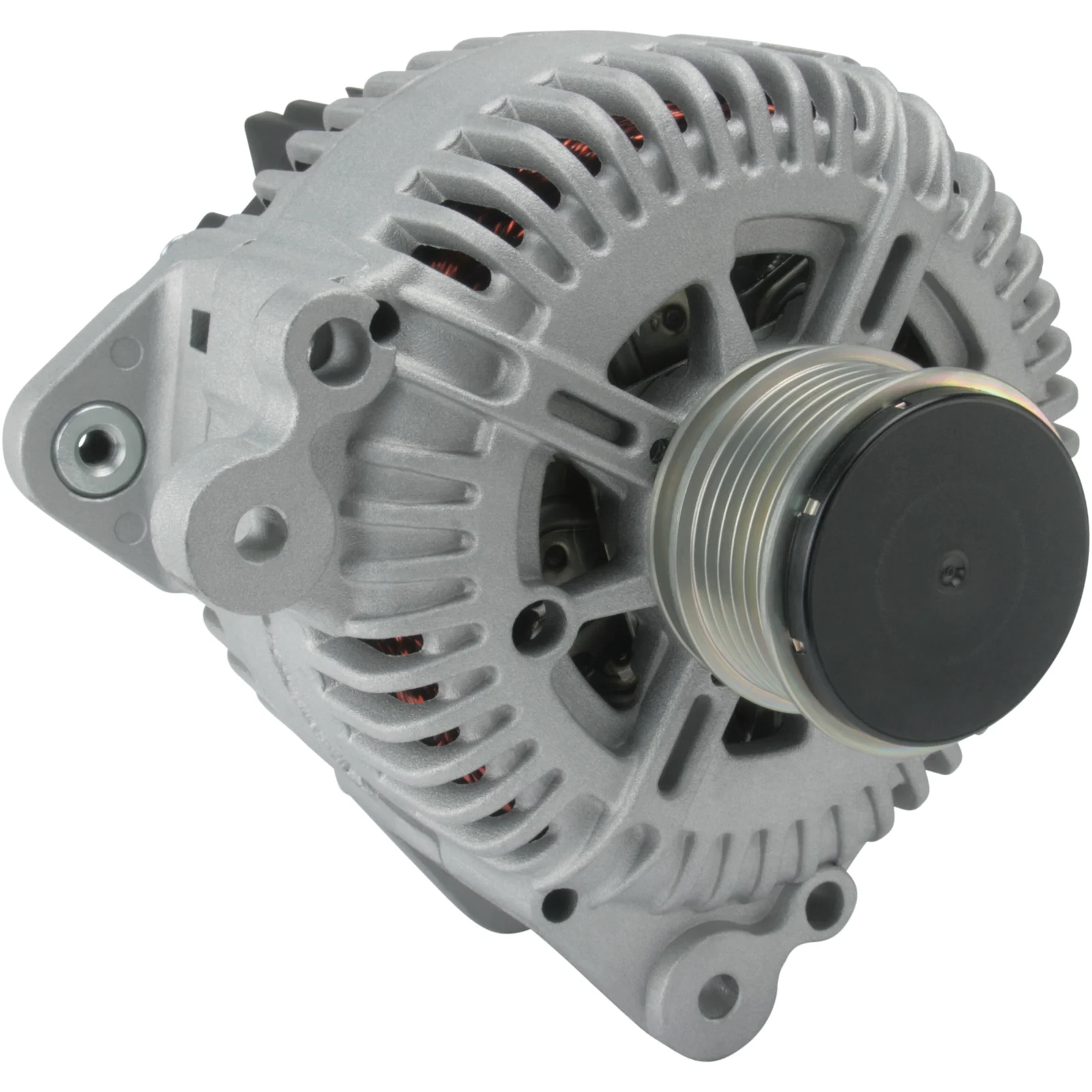

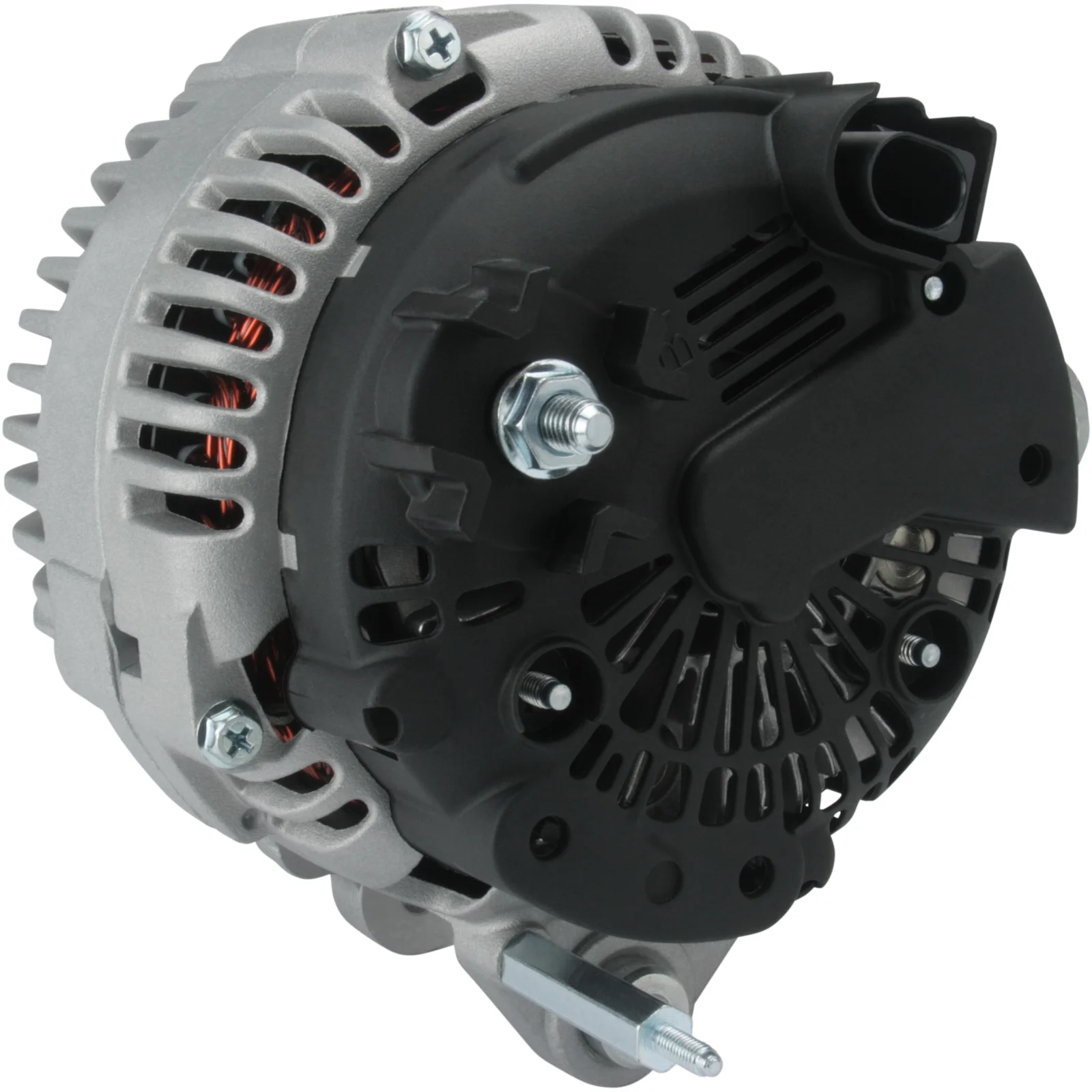

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperes: 180, Rotation: CW, Mounting bracket distributor: 60.60

Description

VW Alternator 12V-180A 12V - 180A, 6-slot, (L, DFM) For vehicles without start-stop function!

Voltage: 14
Amp: 180
Pulley dist.: 39.00
Width/holder arm: 14.50
Mount. bracket dist.: 60.60
Bracket hole: 9.70
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: 9.70
Pulley dia.: 56.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 50
Rotation: CW
Plug no.: PL61
Total length mm: 190.00
Pulley: SP/FW
Regulator type: IR

Files

  • OEM
    F032114109, F032116038, FG18T 033, FG18T033, TG17C 019, 03G 903 023, 03G903023X, 03L 903 023E, 03l903023e, 03L903024J, 021 903 026G, 021 903 026L, 022 903 028B, 0121 715 003, 0121 715 103, 0124 625 010, 0124 625 028, 0986 045 350, 0986 081 230, 1912ir, 1986A00954, 114109, 116038, 437555, 2542783, 2605717, 2605717A, 022903028b, 022903028BX, 0124625028, 0124625210

  • Normalised article numbler
    a0237pina, a0237sr, a0261, a0261pr, a3203, a3203pr, alth194, cal15583, dra0201, f032114109, f032116038, f042a0h194, fg18t033, tg17c019, 03g903023, 03g903023x, 03l903023e, 03l903024j, 8el012240051, 8el012426001, 1912ir, 1986a00954, 11388n, 111443, 114109, 116038, 301912ri, 437555, 439667, 440253, 443058, 2542783, 2605717, 2605717a, 021903026g, 021903026l, 022903028b, 022903028bx, 0121715003, 0121715103, 0124625010, 0124625028, 0124625210, 0986045350, 0986081230, 2113211802
  • Description
    VW Alternator 12V-180A 12V - 180A, 6-slot, (L, DFM) For vehicles without start-stop function!

    Voltage: 14
    Amp: 180
    Pulley dist.: 39.00
    Width/holder arm: 14.50
    Mount. bracket dist.: 60.60
    Bracket hole: 9.70
    Belt. adj. brackethole pos.: 45
    Belt. adj. bracket hole 1: 9.70
    Pulley dia.: 56.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 50
    Rotation: CW
    Plug no.: PL61
    Total length mm: 190.00
    Pulley: SP/FW
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      F032114109, F032116038, FG18T 033, FG18T033, TG17C 019, 03G 903 023, 03G903023X, 03L 903 023E, 03l903023e, 03L903024J, 021 903 026G, 021 903 026L, 022 903 028B, 0121 715 003, 0121 715 103, 0124 625 010, 0124 625 028, 0986 045 350, 0986 081 230, 1912ir, 1986A00954, 114109, 116038, 437555, 2542783, 2605717, 2605717A, 022903028b, 022903028BX, 0124625028, 0124625210

    • Normalised article numbler
      a0237pina, a0237sr, a0261, a0261pr, a3203, a3203pr, alth194, cal15583, dra0201, f032114109, f032116038, f042a0h194, fg18t033, tg17c019, 03g903023, 03g903023x, 03l903023e, 03l903024j, 8el012240051, 8el012426001, 1912ir, 1986a00954, 11388n, 111443, 114109, 116038, 301912ri, 437555, 439667, 440253, 443058, 2542783, 2605717, 2605717a, 021903026g, 021903026l, 022903028b, 022903028bx, 0121715003, 0121715103, 0124625010, 0124625028, 0124625210, 0986045350, 0986081230, 2113211802
