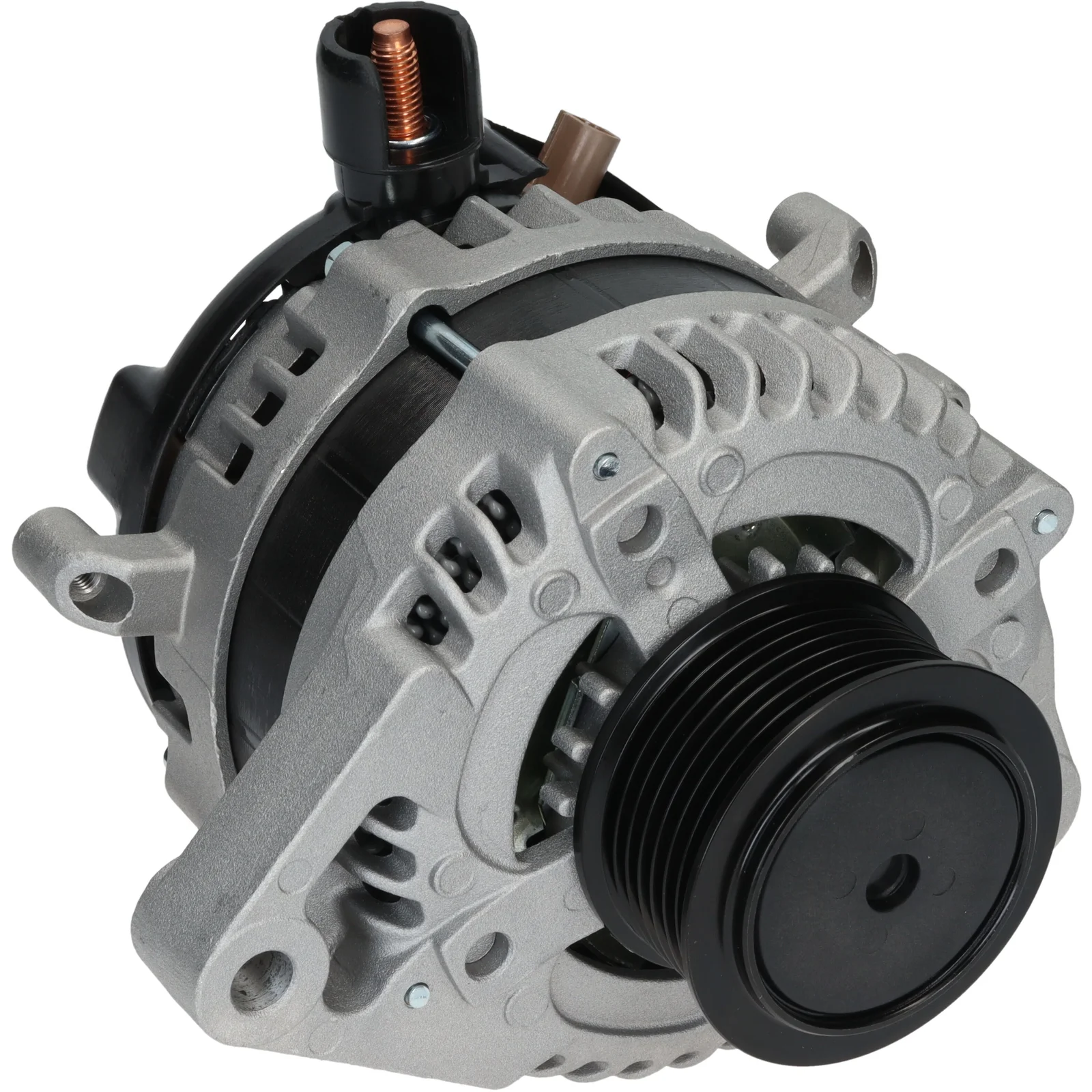

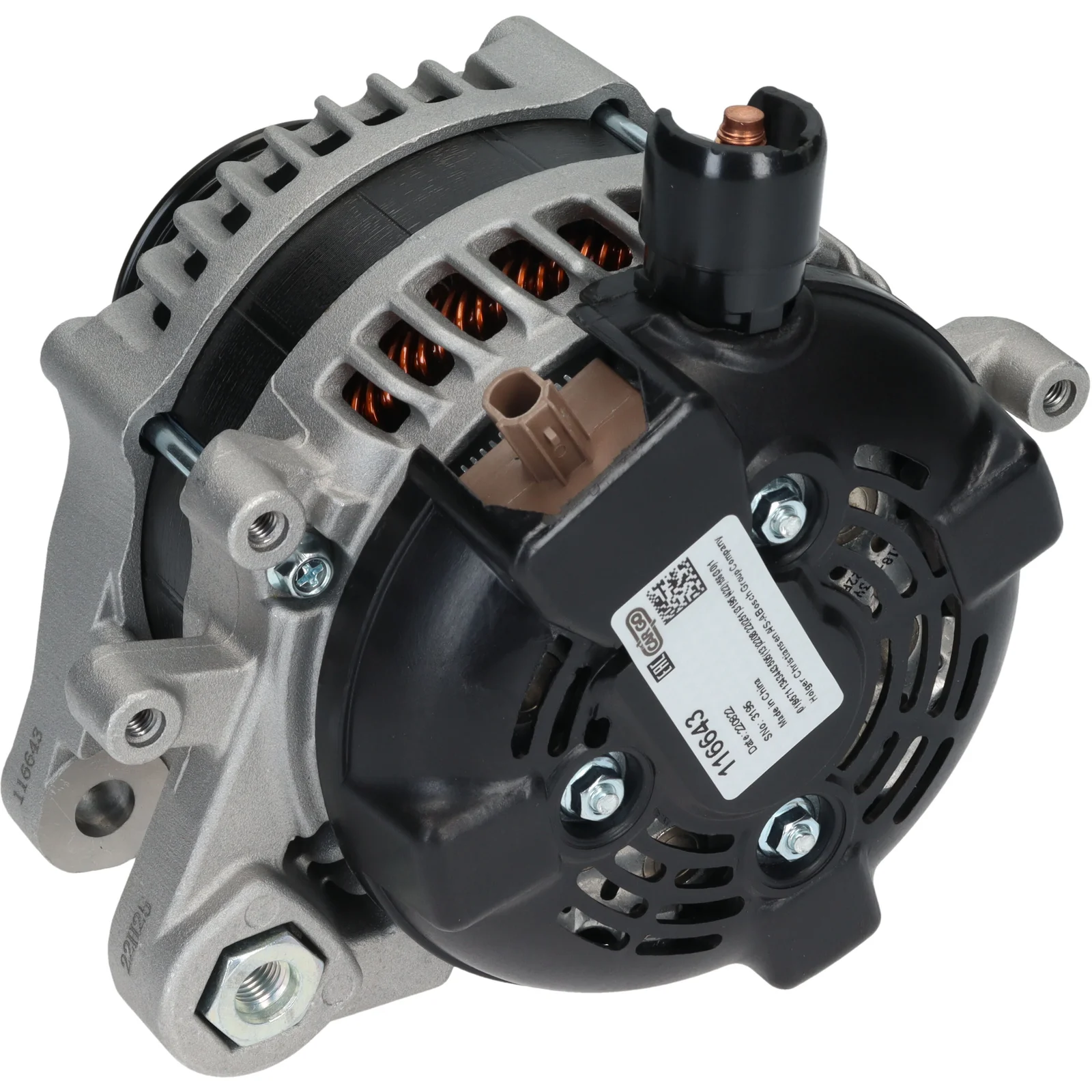

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116643

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 150, Rotation: CW, Mounting bracket distance: 35.00

Description

Alternator 12V-150A 12V - 150A, 7 grooves, (LIN) ID code 244 For Yourex product order 90-222-4828 Voltage: 14 Current: 150 Pulley diameter: 42.50 Width/holder arm: 15.00 Mounting bracket distance: 35.00 Bracket hole: 11.00 Belt adjustment bracket hole position: 53 Belt adjustment bracket hole 1: 10.50 Pulley diameter: 65.00 Grove count/pulley: 7 Radius: 86.00 Radius 2: 87.50 B+: M8 Position/B+ in min.: 50 Rotation: Clockwise Plug number: PL205 Total length mm: 165.00 Terminal type: COM Communication: LIN Fan: IF Voltage regulator type: IR Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    CSK 04, CSK 28, CSK04, CSK28, F032116643, MAN 7587, 31100-59N-G01, 31100-RSX-G01, 31100-RSXG01, 31100-RZ0-G01, 31100-RZ0G01, 104211-8040, 104211-8280, 116643, 19084020, 63377587

  • Normalised article numbler
    a6667s, cal40401, cal40401gs, cal40438, csk04, csk28, dan1122, dan1326, dra1352, dra1483, f032116643, lra03992, man7587, 8el015630821, 31100rsxg01, 31100rz0g01, 116643, 209300, 209300a, 287602, 554201ri, 554201rid, 554464ri, 3110059ng01, 12061214, 19084020, 63377587, 125568150, 0986085000, 1042118040, 1042118280, 2221681502
  • Description
    Alternator 12V-150A 12V - 150A, 7 grooves, (LIN) ID code 244 For Yourex product order 90-222-4828 Voltage: 14 Current: 150 Pulley diameter: 42.50 Width/holder arm: 15.00 Mounting bracket distance: 35.00 Bracket hole: 11.00 Belt adjustment bracket hole position: 53 Belt adjustment bracket hole 1: 10.50 Pulley diameter: 65.00 Grove count/pulley: 7 Radius: 86.00 Radius 2: 87.50 B+: M8 Position/B+ in min.: 50 Rotation: Clockwise Plug number: PL205 Total length mm: 165.00 Terminal type: COM Communication: LIN Fan: IF Voltage regulator type: IR Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      CSK 04, CSK 28, CSK04, CSK28, F032116643, MAN 7587, 31100-59N-G01, 31100-RSX-G01, 31100-RSXG01, 31100-RZ0-G01, 31100-RZ0G01, 104211-8040, 104211-8280, 116643, 19084020, 63377587

    • Normalised article numbler
      a6667s, cal40401, cal40401gs, cal40438, csk04, csk28, dan1122, dan1326, dra1352, dra1483, f032116643, lra03992, man7587, 8el015630821, 31100rsxg01, 31100rz0g01, 116643, 209300, 209300a, 287602, 554201ri, 554201rid, 554464ri, 3110059ng01, 12061214, 19084020, 63377587, 125568150, 0986085000, 1042118040, 1042118280, 2221681502
