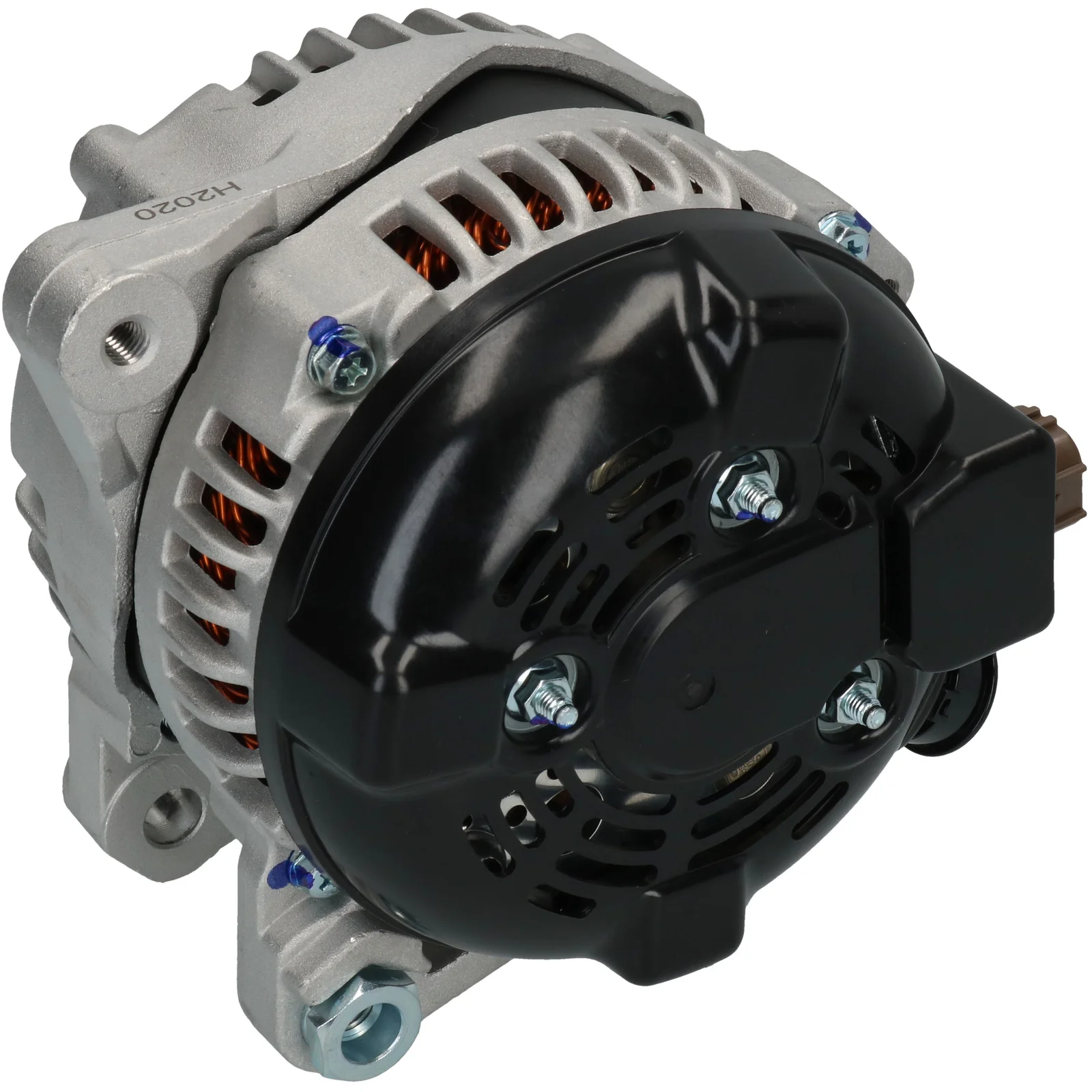

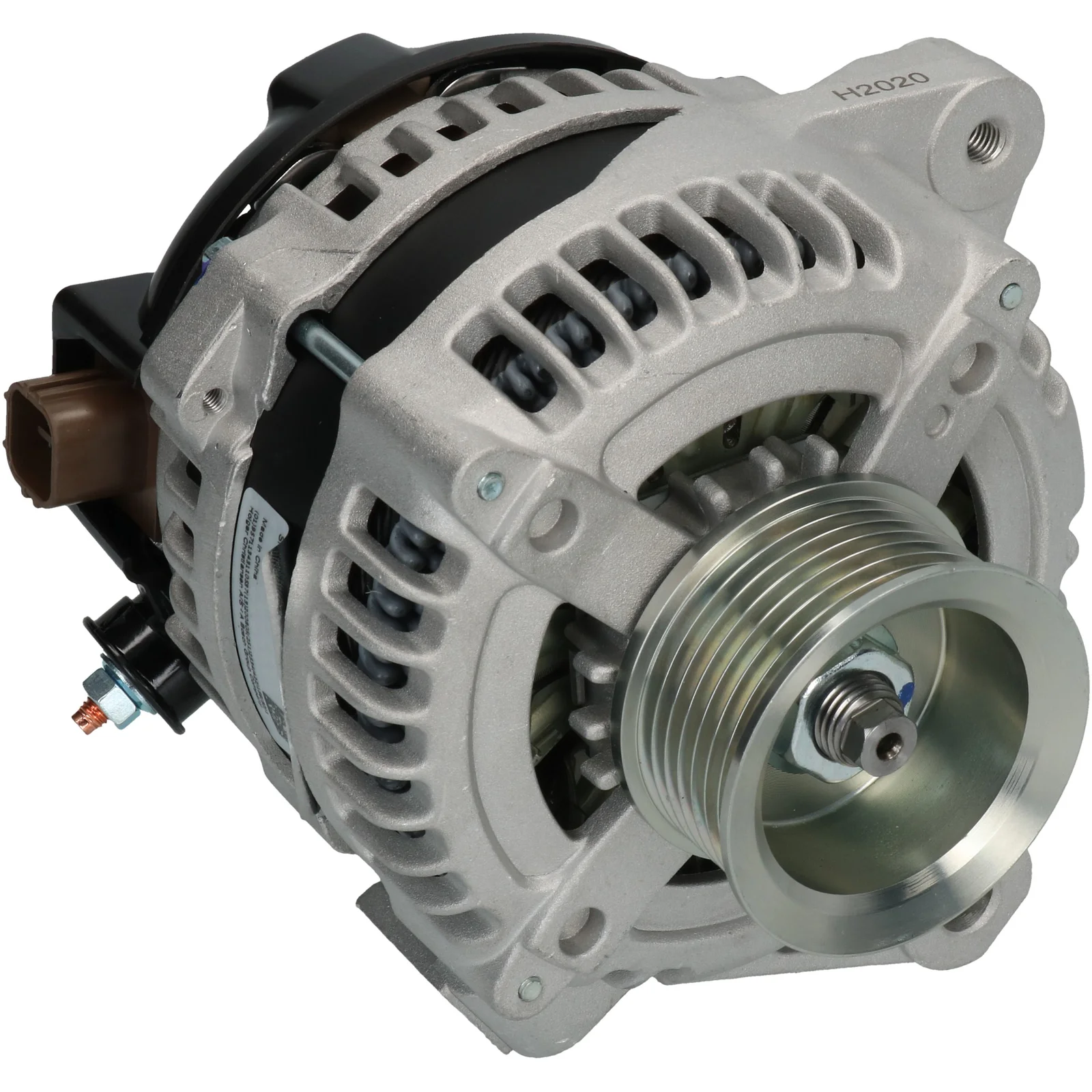

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114246

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 100, Rotation: CW, Mounting bracket distance: 46.70

Description

Toyota RAV4 Alternator 12V-100A 12V - 100A, 7 grooves, (IGN, L, RLO, M) For Yourex product order 90-555-2833 Voltage: 14 Amp: 100 Pulley distance: 35.60 Width/holder arm: 18.00 Mounting bracket distance: 46.70 Bracket hole: 11.20 Belt adjustment bracket hole position: 15 Belt adjustment bracket hole 1: M8 Pulley diameter: 55.00 Grooves/pulley: 7 Radius: 84.00 Radius 2: 86.00 B+: M6 Position/B+ in min.: 12 Rotation: CW Plug no.: PL146 Total length mm: 162.00 Communication: RLO Pulley: SP Regulator type: IR Servicing: Toyota

Files

  • OEM
    DAN 1052, F032114246, 021080-2040, 27060-0H200, 27060-0h200, 27060-28190, 27060-28330, 104210-2190, 104210-3610, 104210-4760, 104210-4761, 104210-4762, 114246

  • Normalised article numbler
    a6312, a6312denso, cal40316, dan1052, dra0659, f032114246, j5112159, 21418r, 114246, 270600h200, 285765, 12060953, 195951100, 0210802040, 1042102190, 1042103610, 1042104760, 1042104761, 1042104762, 2353161002, 2706028190, 2706028330
  • Description
    Toyota RAV4 Alternator 12V-100A 12V - 100A, 7 grooves, (IGN, L, RLO, M) For Yourex product order 90-555-2833 Voltage: 14 Amp: 100 Pulley distance: 35.60 Width/holder arm: 18.00 Mounting bracket distance: 46.70 Bracket hole: 11.20 Belt adjustment bracket hole position: 15 Belt adjustment bracket hole 1: M8 Pulley diameter: 55.00 Grooves/pulley: 7 Radius: 84.00 Radius 2: 86.00 B+: M6 Position/B+ in min.: 12 Rotation: CW Plug no.: PL146 Total length mm: 162.00 Communication: RLO Pulley: SP Regulator type: IR Servicing: Toyota

    Files

  • Suitable for these vehicles

    • OEM
      DAN 1052, F032114246, 021080-2040, 27060-0H200, 27060-0h200, 27060-28190, 27060-28330, 104210-2190, 104210-3610, 104210-4760, 104210-4761, 104210-4762, 114246

    • Normalised article numbler
      a6312, a6312denso, cal40316, dan1052, dra0659, f032114246, j5112159, 21418r, 114246, 270600h200, 285765, 12060953, 195951100, 0210802040, 1042102190, 1042103610, 1042104760, 1042104761, 1042104762, 2353161002, 2706028190, 2706028330
