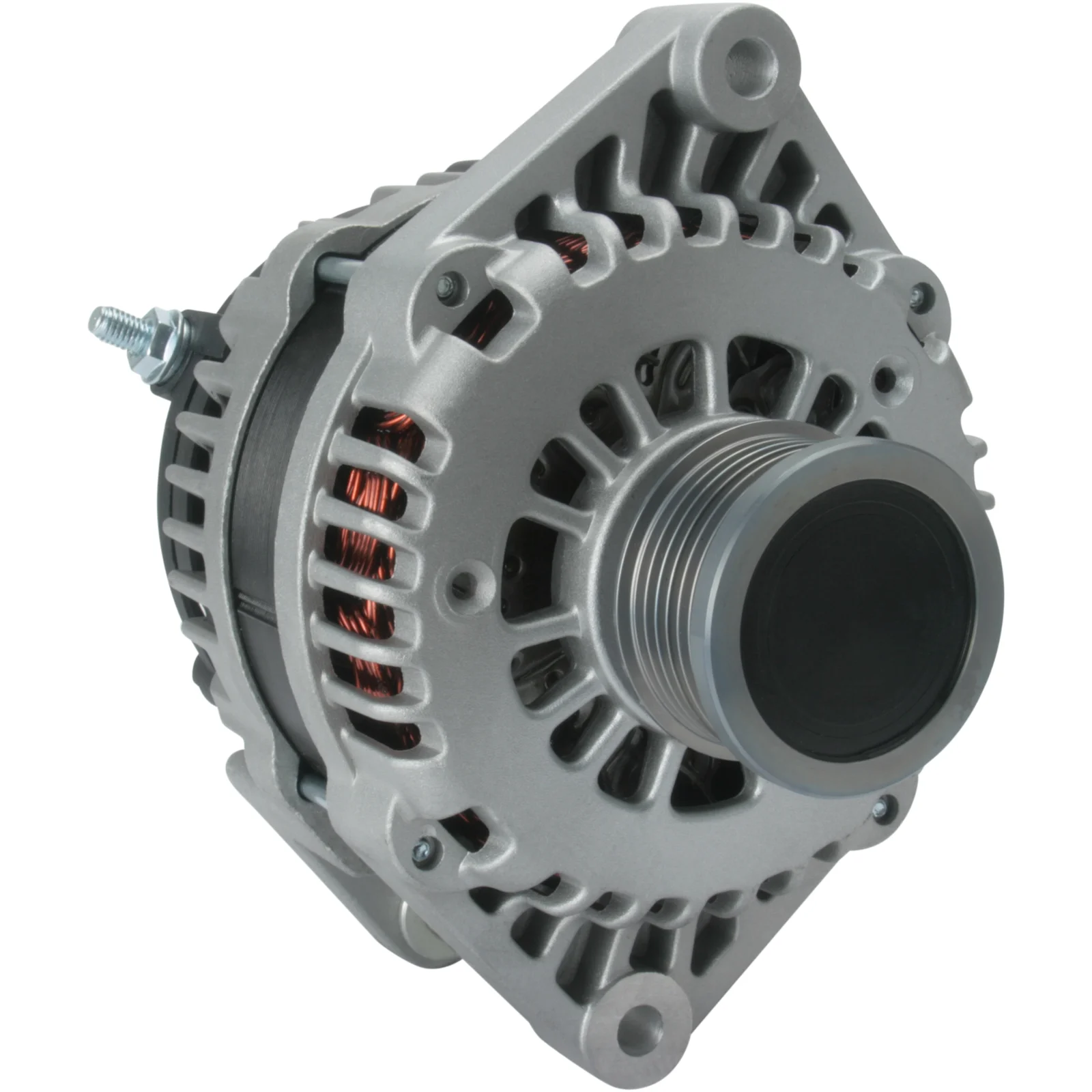

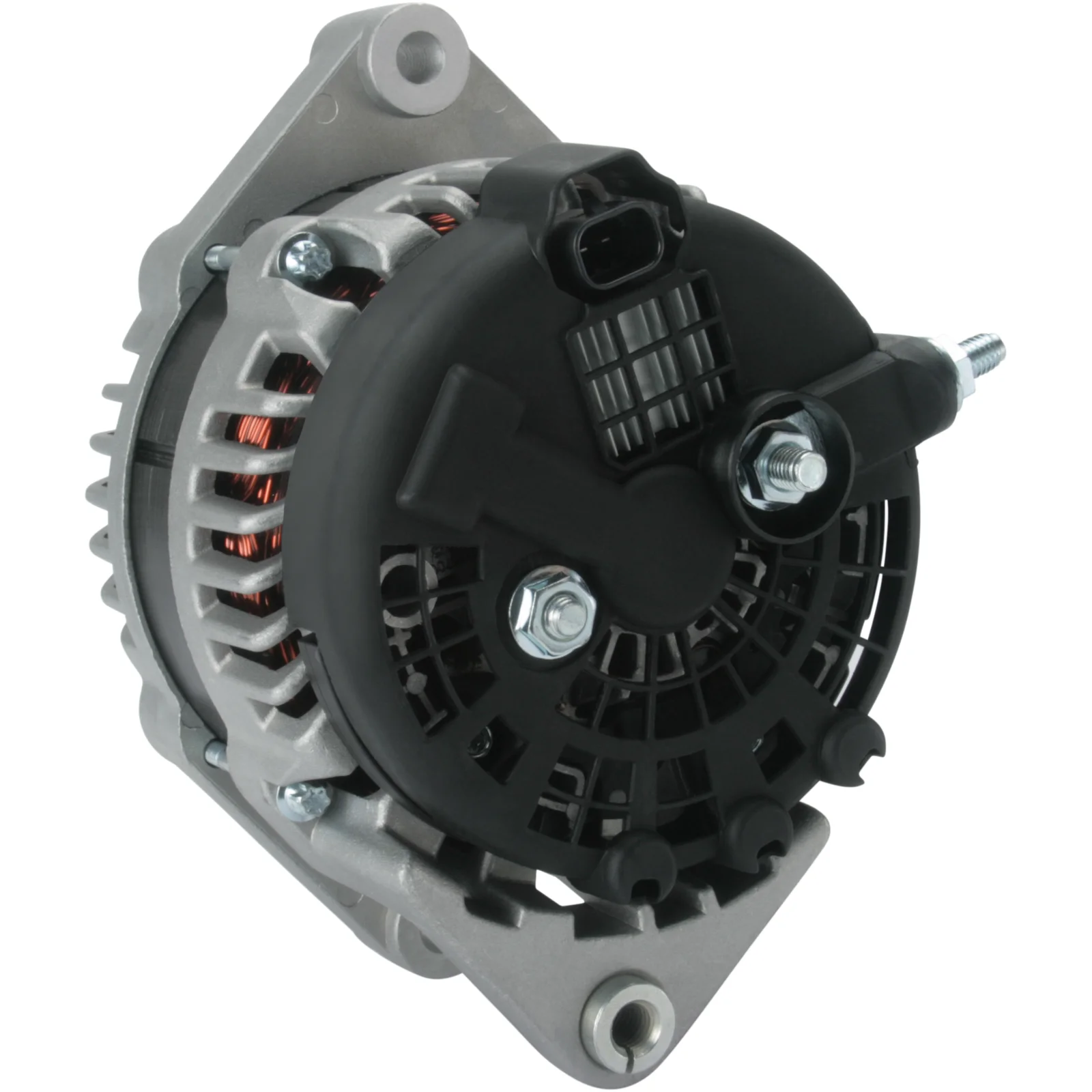

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115761

HC-Cargo Alternator

Technical info:

Voltage: 14, Current: 140, Rotation: CW, Mounting bracket distance: 59.50

Description

Chev/Opel Alternator 12V-140A 12V - 140A, 6 grooves. For Yourex product order 90-200-0078 Voltage: 14 Amp: 140 Pulley diameter: 61.00 Width / holder arm: 24.60 Mounting bracket diameter: 59.50 Bracket hole: 10.20 Belt adjustment bracket hole position: 1 Belt adjustment bracket hole 1: 10.40 Pulley diameter: 55.70 Grooves / pulley: 6 Radius: 92.00 Radius 2: 92.00 B+: M8 Position / B+ in min.: 11 D+ size: Plug Rotation: CW Plug no.: PL180 Total length mm: 188.00 Terminal type: L-F Communication: PWM Pulley: SP/FW Regulator type: IR Prod. info: BN Remarks: This Alternator has a PWM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032115761, GM 13501719, GM 13579114, GM 13580078, GM 4818330, GM 4819446, 115761, 4818330, 4819446, 13501719, 13579114, 13580078

  • Normalised article numbler
    a1032, cal42118, dra1219, f032115761, gm13501719, gm13579114, gm13580078, gm4818330, gm4819446, 20096n, 115761, 209018, 209018a, 286837, 444251, 554204ri, 4818330, 4819446, 12090614, 13501719, 13579114, 13580078, 835919140, 2281961402
  • Description
    Chev/Opel Alternator 12V-140A 12V - 140A, 6 grooves. For Yourex product order 90-200-0078 Voltage: 14 Amp: 140 Pulley diameter: 61.00 Width / holder arm: 24.60 Mounting bracket diameter: 59.50 Bracket hole: 10.20 Belt adjustment bracket hole position: 1 Belt adjustment bracket hole 1: 10.40 Pulley diameter: 55.70 Grooves / pulley: 6 Radius: 92.00 Radius 2: 92.00 B+: M8 Position / B+ in min.: 11 D+ size: Plug Rotation: CW Plug no.: PL180 Total length mm: 188.00 Terminal type: L-F Communication: PWM Pulley: SP/FW Regulator type: IR Prod. info: BN Remarks: This Alternator has a PWM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032115761, GM 13501719, GM 13579114, GM 13580078, GM 4818330, GM 4819446, 115761, 4818330, 4819446, 13501719, 13579114, 13580078

    • Normalised article numbler
      a1032, cal42118, dra1219, f032115761, gm13501719, gm13579114, gm13580078, gm4818330, gm4819446, 20096n, 115761, 209018, 209018a, 286837, 444251, 554204ri, 4818330, 4819446, 12090614, 13501719, 13579114, 13580078, 835919140, 2281961402
