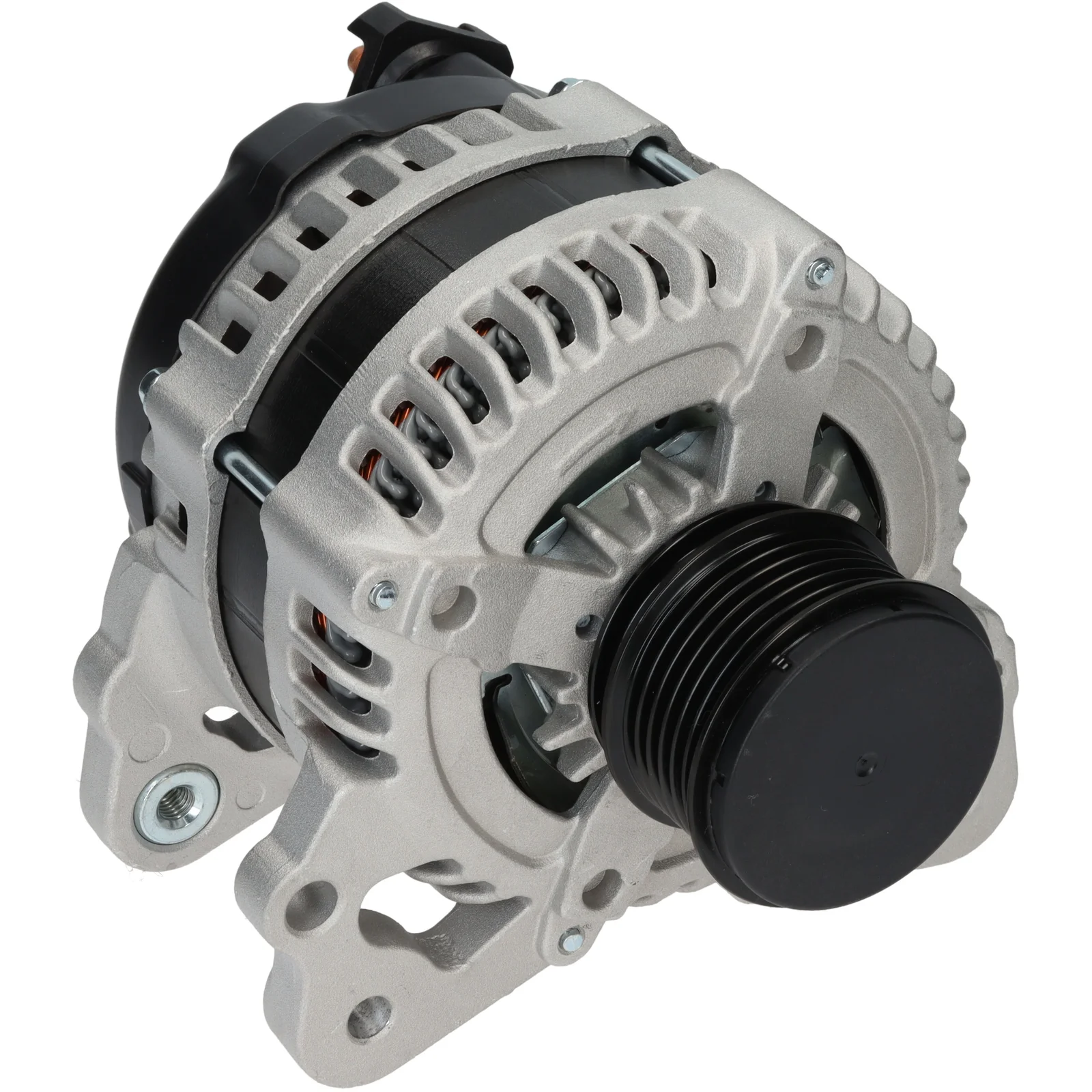

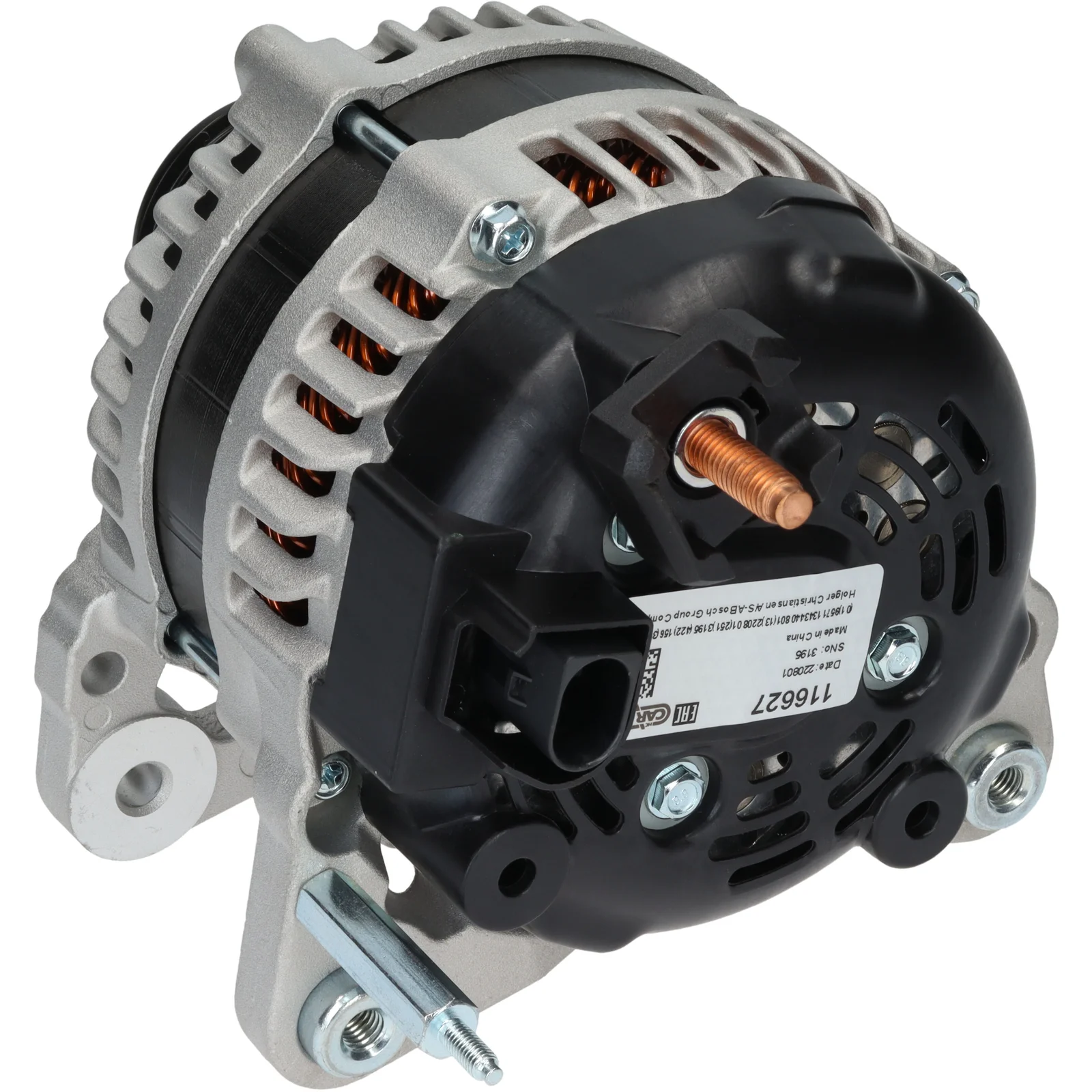

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116627

HC-Cargo Alternator

Technical info:

Voltage: 14, Current: 140, Rotation: CW, Mounting bracket distance: 60.50

Description

Voltage: 14
Amp: 140
Pulley → Pulley
dist.: 39.50
Width/holder arm: 13.80
Mounting bracket dist.: 60.50
Bracket hole: 8.50
Belt. adj. bracket hole position: 45
Belt. adj. bracket hole 1: 8.50
Belt. adj. bracket hole 2: M8
Pulley dia.: 56.20
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 60
Rotation: CW
Plug no.: PL181
Total length mm: 200.00
Terminal type: COM
Pulley: SP/FW
Fan: IF
Regulator: w/
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    A6506S, CAL40439, DAN1328, DRA1484, F032116627, 03L903023, 03L903023A, 03L903023AX, 03L903023X, 03L903024, 03L903024M, 03L903024MX, 03L903024X, 03L906023, 3L903023, 3L903023A, 3L903023AX, 3L903023X, 3L903024, 3L903024M, 3L903024MX, 3L903024X, 04B903023B, 04B903023BX, 04B903023D, 04B903023DX, 04B903024, 04B903024X, 4B903023B, 4B903023BX, 28-6984, 305.935.140, 104211-8380, 210974, 210974A, 440904, 554465RI, 12090900

  • Normalised article numbler
    a6506s, cal40439, dan1328, dra1484, f032116627, 03l903023, 03l903023a, 03l903023ax, 03l903023x, 03l903024, 03l903024m, 03l903024mx, 03l903024x, 03l906023, 3l903023, 3l903023a, 3l903023ax, 3l903023x, 3l903024, 3l903024m, 3l903024mx, 3l903024x, 04b903023b, 04b903023bx, 04b903023d, 04b903023dx, 04b903024, 04b903024x, 4b903023b, 4b903023bx, 210974, 210974a, 286984, 440904, 554465ri, 12090900, 305935140, 1042118380
  • Description
    Voltage: 14
    Amp: 140
    Pulley → Pulley
    dist.: 39.50
    Width/holder arm: 13.80
    Mounting bracket dist.: 60.50
    Bracket hole: 8.50
    Belt. adj. bracket hole position: 45
    Belt. adj. bracket hole 1: 8.50
    Belt. adj. bracket hole 2: M8
    Pulley dia.: 56.20
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 60
    Rotation: CW
    Plug no.: PL181
    Total length mm: 200.00
    Terminal type: COM
    Pulley: SP/FW
    Fan: IF
    Regulator: w/
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      A6506S, CAL40439, DAN1328, DRA1484, F032116627, 03L903023, 03L903023A, 03L903023AX, 03L903023X, 03L903024, 03L903024M, 03L903024MX, 03L903024X, 03L906023, 3L903023, 3L903023A, 3L903023AX, 3L903023X, 3L903024, 3L903024M, 3L903024MX, 3L903024X, 04B903023B, 04B903023BX, 04B903023D, 04B903023DX, 04B903024, 04B903024X, 4B903023B, 4B903023BX, 28-6984, 305.935.140, 104211-8380, 210974, 210974A, 440904, 554465RI, 12090900

    • Normalised article numbler
      a6506s, cal40439, dan1328, dra1484, f032116627, 03l903023, 03l903023a, 03l903023ax, 03l903023x, 03l903024, 03l903024m, 03l903024mx, 03l903024x, 03l906023, 3l903023, 3l903023a, 3l903023ax, 3l903023x, 3l903024, 3l903024m, 3l903024mx, 3l903024x, 04b903023b, 04b903023bx, 04b903023d, 04b903023dx, 04b903024, 04b903024x, 4b903023b, 4b903023bx, 210974, 210974a, 286984, 440904, 554465ri, 12090900, 305935140, 1042118380
