HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116723

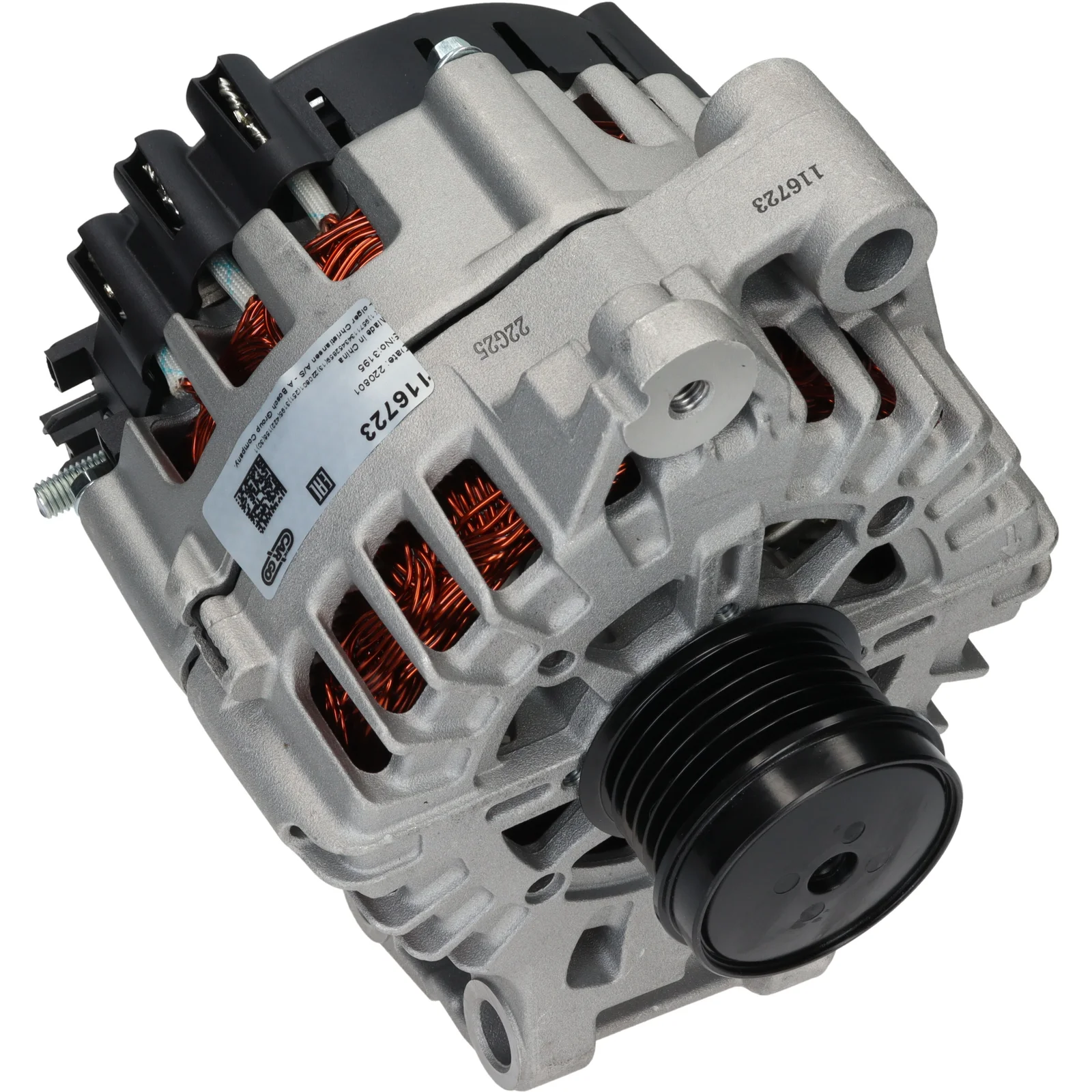

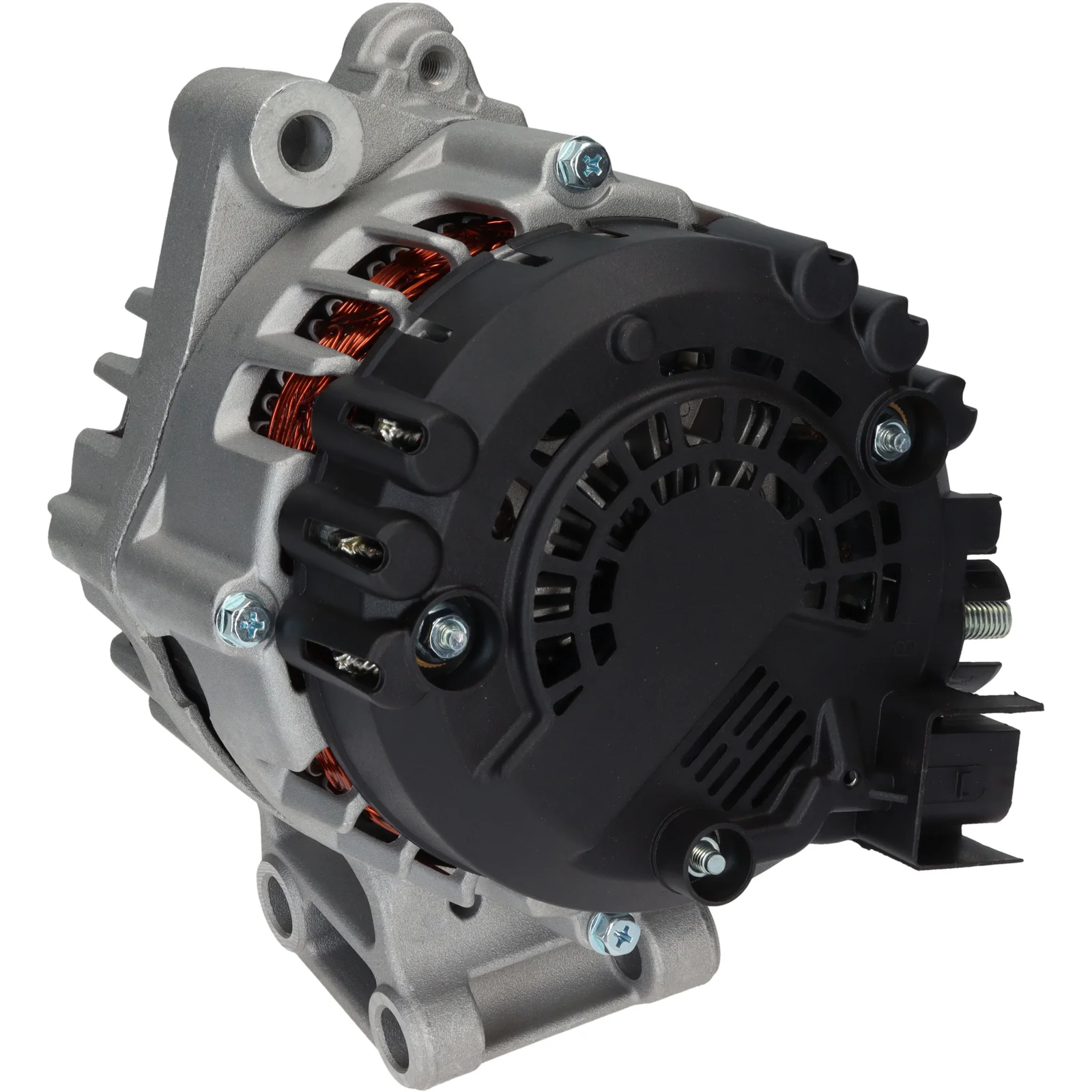

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 180, Rotation: CW, Mounting bracket distributor: 50.00

Description

Alternator 12V-180A fits Volvo 12V - 180A, reddish-brown 6 wires. COM/LIN For Yourex product order 90-600-5236

Voltage: 14
Amp: 180
Pulley distance: 11.00
Width/holder arm: 72.00
Mounting bracket distance: 50.00
Bracket hole: 12.50
Belt adjustment bracket hole position: 3
Belt adjustment bracket hole 1: 10.50
Belt adjustment bracket hole 2: M8
Pulley diameter: 51.00
Grooves/pulley: 6
Radius: 84.50
Radius 2: 87.00
B+: M8
Position/B+ in min.: 20
Rotation: CW
Plug number: PL174
Total length mm: 185.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032116723, fg17t010, FG18S 107, fg18s107, FGN18S107, 115990, 116723, 439968, 440582, 2617130, 31285436, 31345236, 36002013

  • Normalised article numbler
    a3622s, cal15591, dra0874, f032116723, fg17t010, fg18s107, fgn18s107, lra03776, 4112, 115990, 116723, 286886, 286887, 439968, 440582, 554503riv, 2617130, 12090884, 12090985, 31285436, 31345236, 36002013, 89215951, 815540180, 815542180, 2381551802
  • Description
    Alternator 12V-180A fits Volvo 12V - 180A, reddish-brown 6 wires. COM/LIN For Yourex product order 90-600-5236

    Voltage: 14
    Amp: 180
    Pulley distance: 11.00
    Width/holder arm: 72.00
    Mounting bracket distance: 50.00
    Bracket hole: 12.50
    Belt adjustment bracket hole position: 3
    Belt adjustment bracket hole 1: 10.50
    Belt adjustment bracket hole 2: M8
    Pulley diameter: 51.00
    Grooves/pulley: 6
    Radius: 84.50
    Radius 2: 87.00
    B+: M8
    Position/B+ in min.: 20
    Rotation: CW
    Plug number: PL174
    Total length mm: 185.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032116723, fg17t010, FG18S 107, fg18s107, FGN18S107, 115990, 116723, 439968, 440582, 2617130, 31285436, 31345236, 36002013

    • Normalised article numbler
      a3622s, cal15591, dra0874, f032116723, fg17t010, fg18s107, fgn18s107, lra03776, 4112, 115990, 116723, 286886, 286887, 439968, 440582, 554503riv, 2617130, 12090884, 12090985, 31285436, 31345236, 36002013, 89215951, 815540180, 815542180, 2381551802
