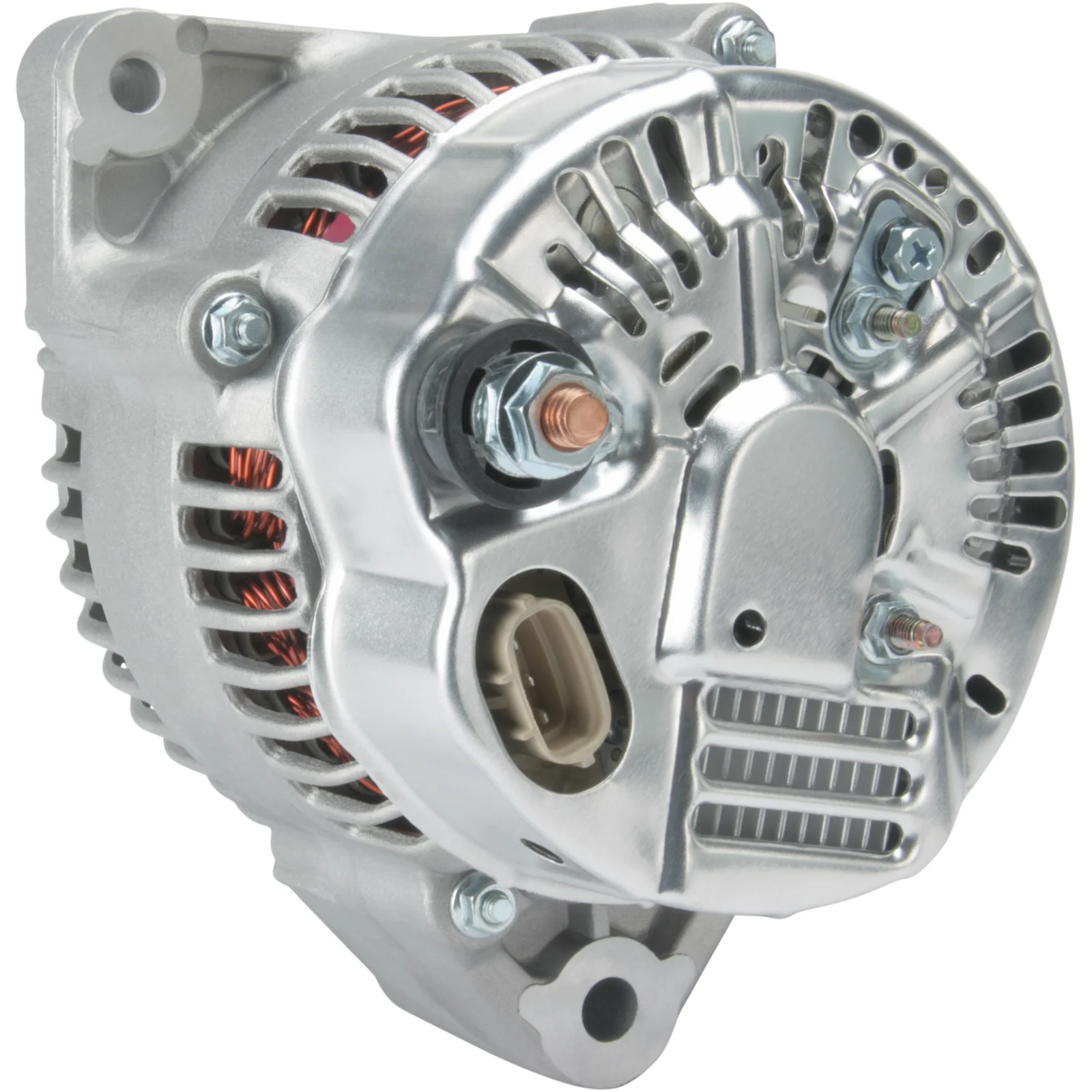

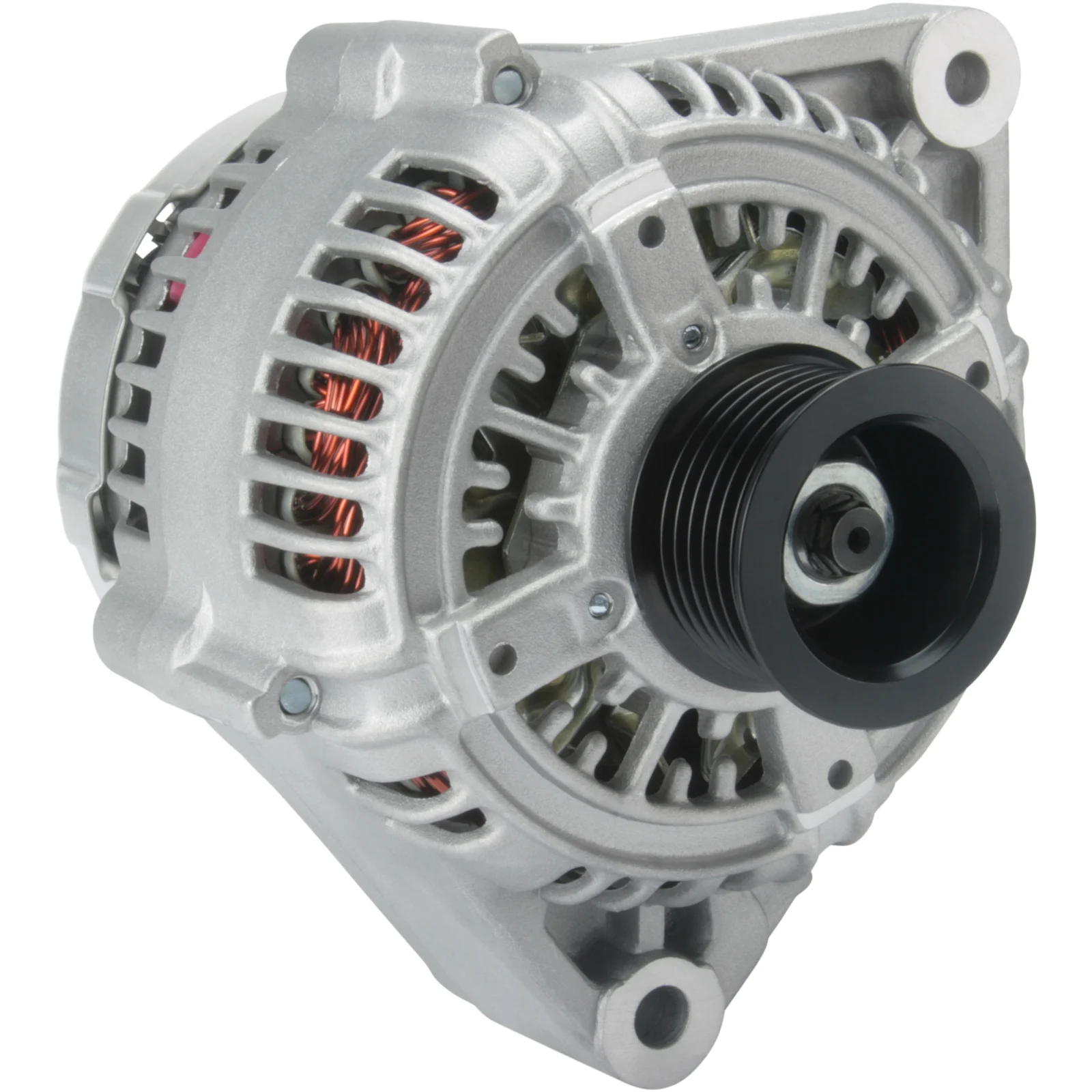

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115748

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 120, Rotation: CW, Pulley diameter: 48.00

Description

Voltage: 14
Amp: 120
Pulley dist.: 90.50
Width/holder arm: 58.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 7
Belt. adj. bracket hole 1: 8.20
Pulley dia.: 48.00
Grooves/pulley: 7
Radius: 87.00
Radius 2: 86.00
B+: M8
Position/B+ in min.: 50
D+ Size: Plug
Rotation: CW
Plug no.: PL58
Total length mm: 190.00
Terminal type: L-IG
Pulley: SP
Regulator type: IR
Prod. info: BN

Files

  • OEM
    C1800AA, F032115748, LJA1800AC, lja1800ad, LJA1800AE, 101211-7630, 101211-7631, 101211-7632, 101211-7633

  • Normalised article numbler
    a6090, a6090denso, c1800aa, cal40236, dan672, dra0436, f032115748, lja1800ac, lja1800ad, lja1800ae, lra03394, 8el012240891, 8el015630651, 13758r, 111829, 112371, 286506, 12090309, 845507120, 1012117630, 1012117631, 1012117632, 1012117633, 2141721202
  • Description
    Voltage: 14
    Amp: 120
    Pulley dist.: 90.50
    Width/holder arm: 58.00
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 7
    Belt. adj. bracket hole 1: 8.20
    Pulley dia.: 48.00
    Grooves/pulley: 7
    Radius: 87.00
    Radius 2: 86.00
    B+: M8
    Position/B+ in min.: 50
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL58
    Total length mm: 190.00
    Terminal type: L-IG
    Pulley: SP
    Regulator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      C1800AA, F032115748, LJA1800AC, lja1800ad, LJA1800AE, 101211-7630, 101211-7631, 101211-7632, 101211-7633

    • Normalised article numbler
      a6090, a6090denso, c1800aa, cal40236, dan672, dra0436, f032115748, lja1800ac, lja1800ad, lja1800ae, lra03394, 8el012240891, 8el015630651, 13758r, 111829, 112371, 286506, 12090309, 845507120, 1012117630, 1012117631, 1012117632, 1012117633, 2141721202
