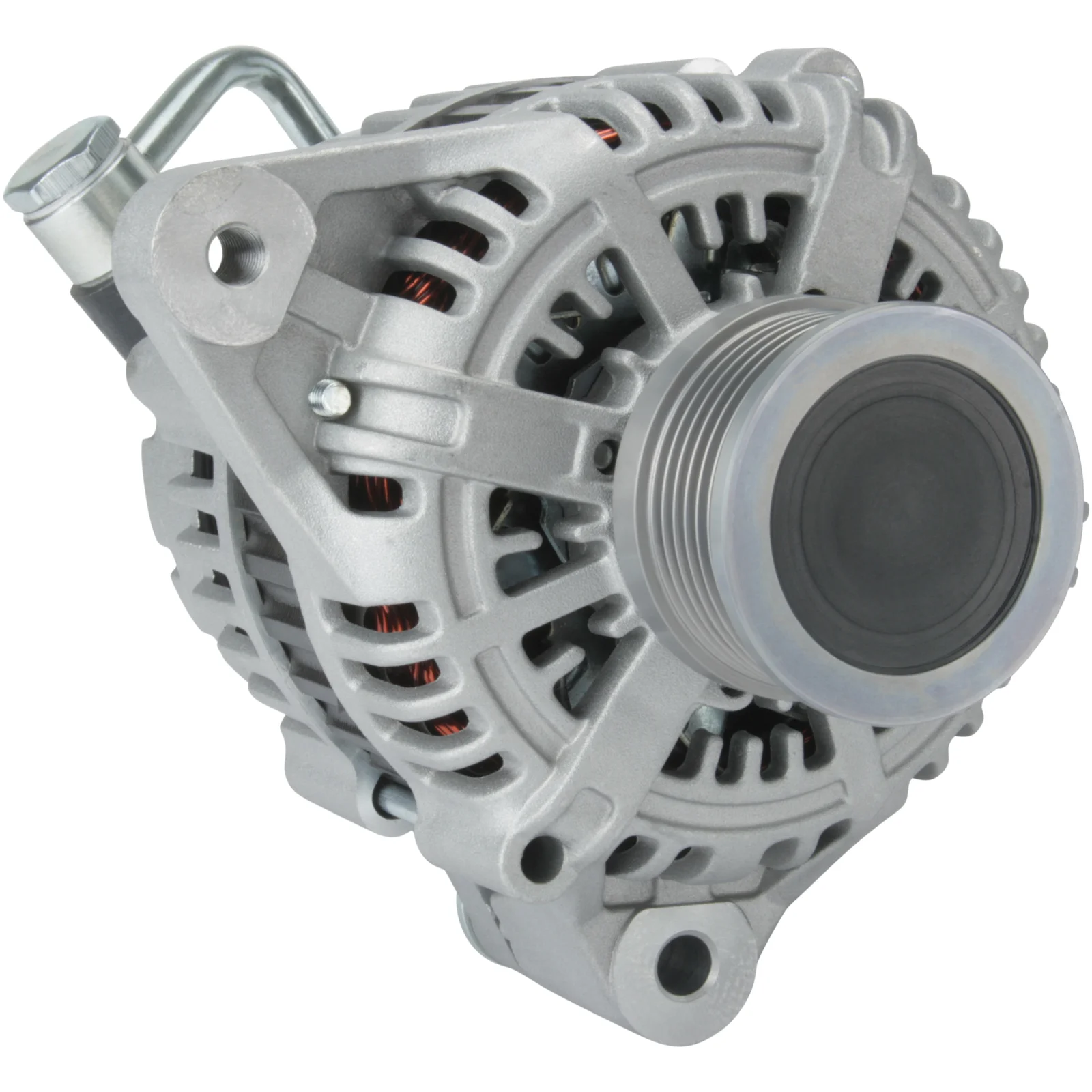

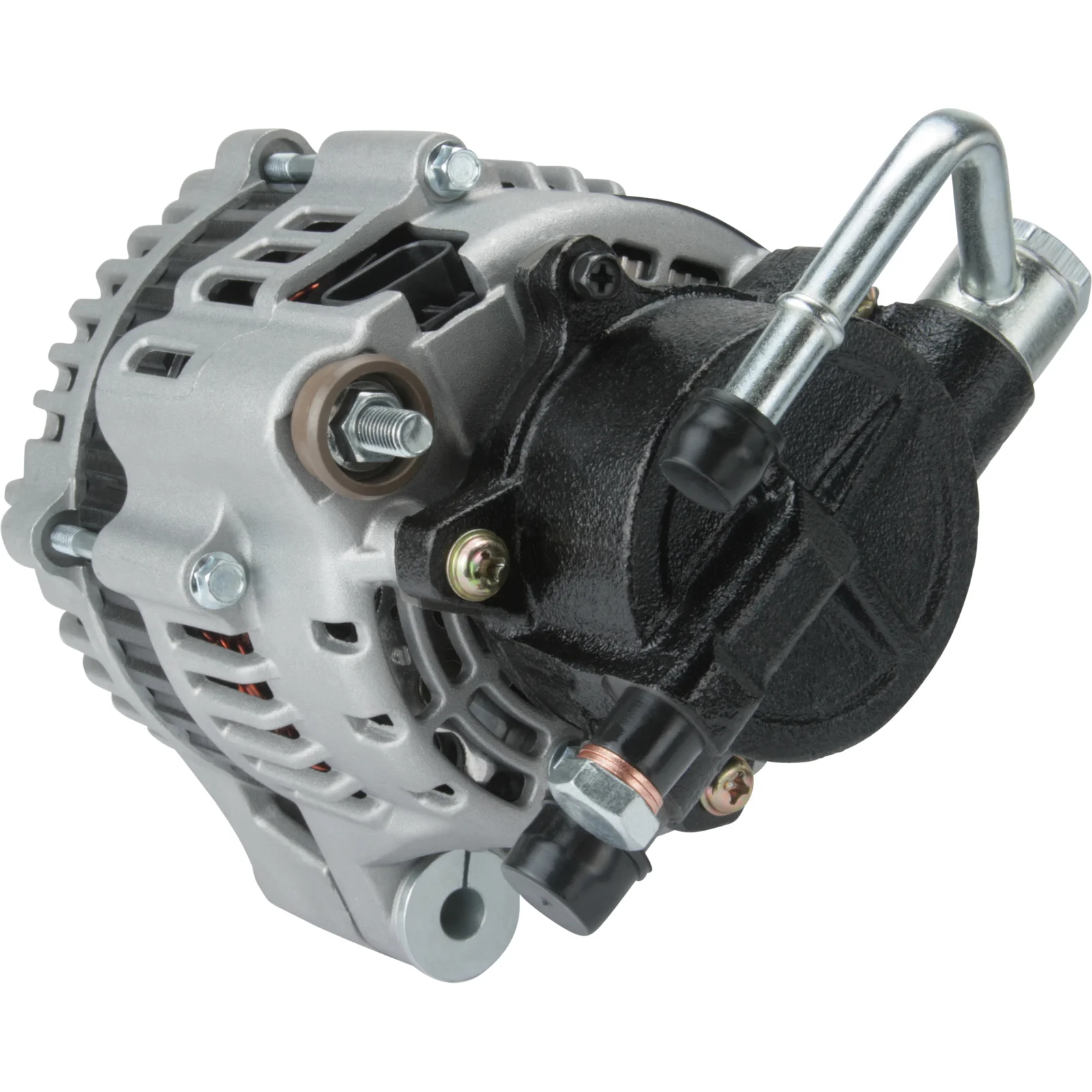

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115409

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 120, Rotation: CW, Pulley diameter: 59.70

Description

Hyundai Diesel Alternator 12V-120A 12V - 120A, 6 grooves, (S, L) Original Denso Alternator For Yourrex product order 90-228-2702

Voltage: 14
Amp: 120
Pulley dist.: 103.00
Width/holder arm: 63.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 50
Belt. adj. bracket hole 1: M10
Pulley dia.: 59.70
Grooves/pulley: 6
Radius: 83.00
Radius 2: 92.50
B+: M8
Position/B+ in min.: 46
Rotation: CW
Plug no.: PL07
Pulley: SP/FW
Regulator type: IR
Vacuum pump: Yes
Prod. info: BN

Files

  • OEM
    F032115409, 2018ir, 02131-9261, 02131-9262, 37300-27020, 37300-27021, 115409

  • Normalised article numbler
    a3173, a3173valeo, a6223denso, cal32139, dra0243, dra0243n, f032115409, 8el012426181, 8el738212641, 2018ir, 9405, 24027n, 24027r, 115409, 210024, 210024a, 285667, 440982, 12060938, 021319261, 021319262, 3730027020, 3730027021
  • Description
    Hyundai Diesel Alternator 12V-120A 12V - 120A, 6 grooves, (S, L) Original Denso Alternator For Yourrex product order 90-228-2702

    Voltage: 14
    Amp: 120
    Pulley dist.: 103.00
    Width/holder arm: 63.00
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 50
    Belt. adj. bracket hole 1: M10
    Pulley dia.: 59.70
    Grooves/pulley: 6
    Radius: 83.00
    Radius 2: 92.50
    B+: M8
    Position/B+ in min.: 46
    Rotation: CW
    Plug no.: PL07
    Pulley: SP/FW
    Regulator type: IR
    Vacuum pump: Yes
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032115409, 2018ir, 02131-9261, 02131-9262, 37300-27020, 37300-27021, 115409

    • Normalised article numbler
      a3173, a3173valeo, a6223denso, cal32139, dra0243, dra0243n, f032115409, 8el012426181, 8el738212641, 2018ir, 9405, 24027n, 24027r, 115409, 210024, 210024a, 285667, 440982, 12060938, 021319261, 021319262, 3730027020, 3730027021
