HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115720

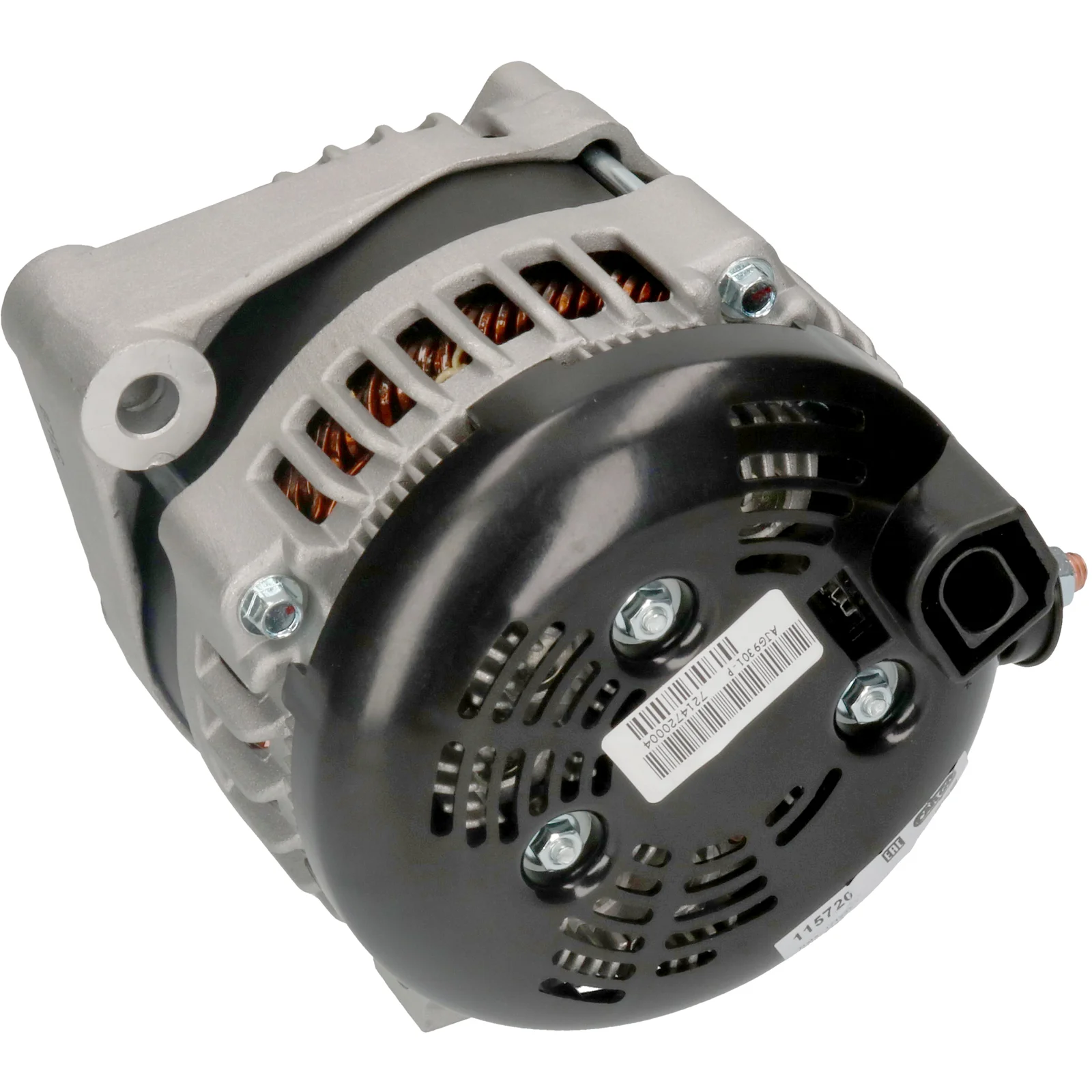

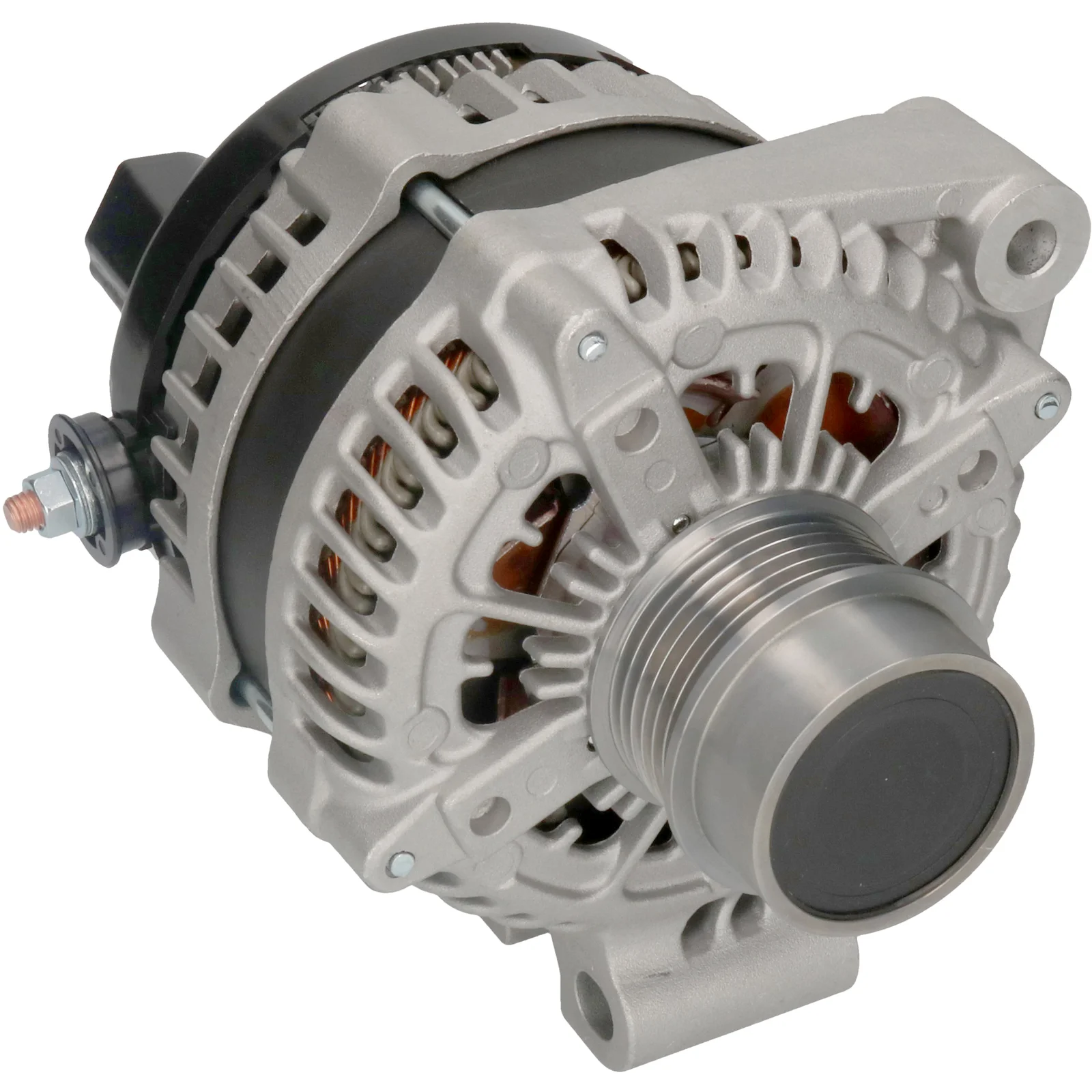

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 150, Rotation: CW, Mounting bracket distributor: 47.50

Description

Jaguar XF Diesel Alternator 12V-180A 12V - 180A, 6-gr.color, (LIN) ID code: 28 For Yourex product order 90-258-4612

Voltage: 14
Amp: 150
Pulley distance: 22.00
Width/holder arm: 50.00
Mounting bracket distance: 47.50
Bracket hole: 14.00
Belt adjustment bracket hole position: 9
Belt adjustment bracket hole 1: 10.50
Pulley diameter: 57.50
Grooves/pulley: 6
Radius: 84.00
Radius 2: 86.00
B+: M8
Position/B+ in min.: 15
Rotation: CW
Plug no.: PL174
Total length mm: 198.00
Terminal type: COM
ID Code: 28
Communication: LIN
Pulley: SP/FW
Regulator type: IR
Prod. info: BN
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    C2D2661, C2Z-3415, C2Z31670, C2Z3415, F032115720, 8X23-10300CB, 8X2310300CB, 104210-6120, 115720

  • Normalised article numbler
    a6348, c2d2661, c2z31670, c2z3415, cal40443, dra0964, f032115720, lra03641, 8el015630731, 8x2310300cb, 20139n, 20139nos, 113487, 115720, 286781, 12090622, 12090936, 32010003, 845512150, 1042106120, 2141801202
  • Description
    Jaguar XF Diesel Alternator 12V-180A 12V - 180A, 6-gr.color, (LIN) ID code: 28 For Yourex product order 90-258-4612

    Voltage: 14
    Amp: 150
    Pulley distance: 22.00
    Width/holder arm: 50.00
    Mounting bracket distance: 47.50
    Bracket hole: 14.00
    Belt adjustment bracket hole position: 9
    Belt adjustment bracket hole 1: 10.50
    Pulley diameter: 57.50
    Grooves/pulley: 6
    Radius: 84.00
    Radius 2: 86.00
    B+: M8
    Position/B+ in min.: 15
    Rotation: CW
    Plug no.: PL174
    Total length mm: 198.00
    Terminal type: COM
    ID Code: 28
    Communication: LIN
    Pulley: SP/FW
    Regulator type: IR
    Prod. info: BN
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      C2D2661, C2Z-3415, C2Z31670, C2Z3415, F032115720, 8X23-10300CB, 8X2310300CB, 104210-6120, 115720

    • Normalised article numbler
      a6348, c2d2661, c2z31670, c2z3415, cal40443, dra0964, f032115720, lra03641, 8el015630731, 8x2310300cb, 20139n, 20139nos, 113487, 115720, 286781, 12090622, 12090936, 32010003, 845512150, 1042106120, 2141801202
