HC-Cargo Alternator

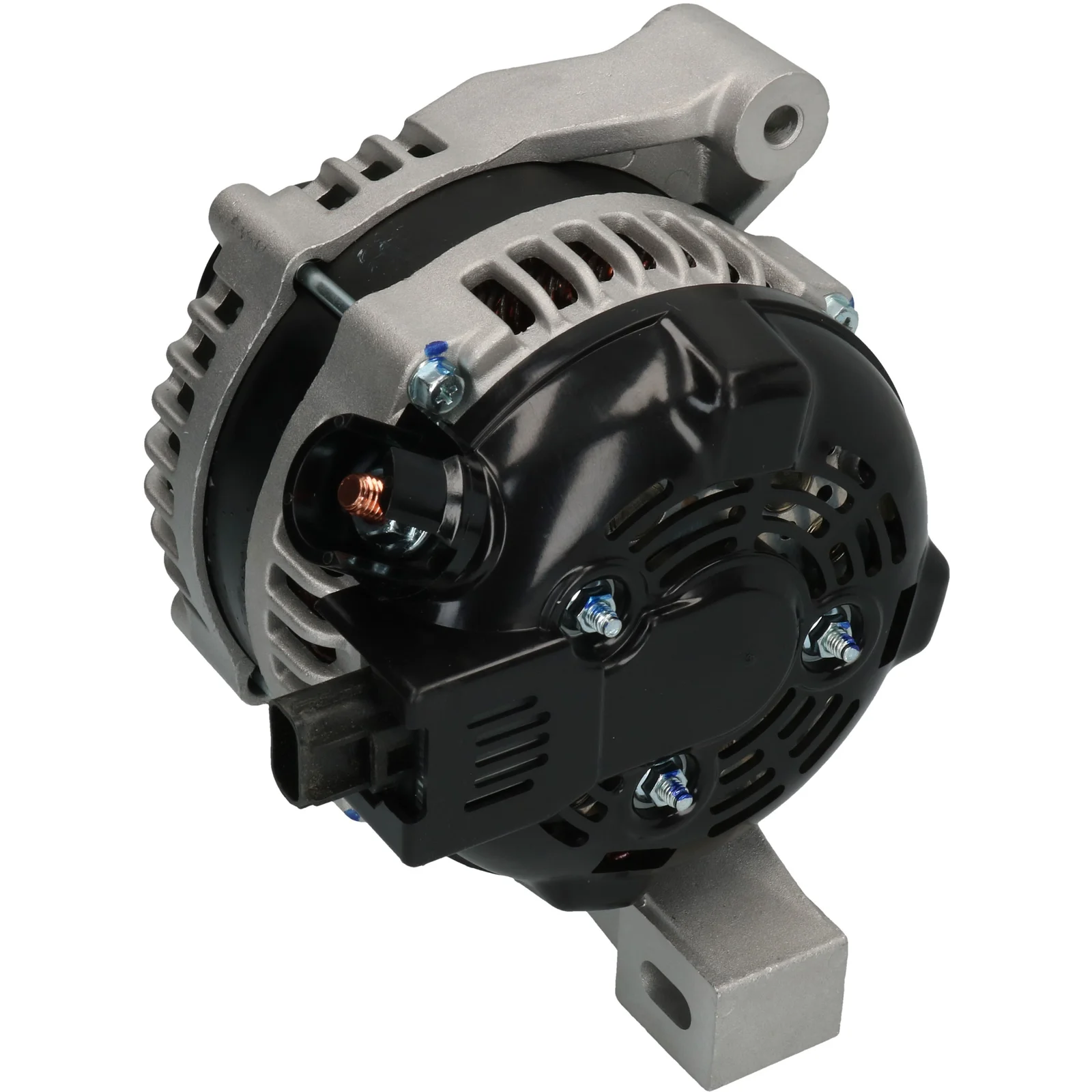

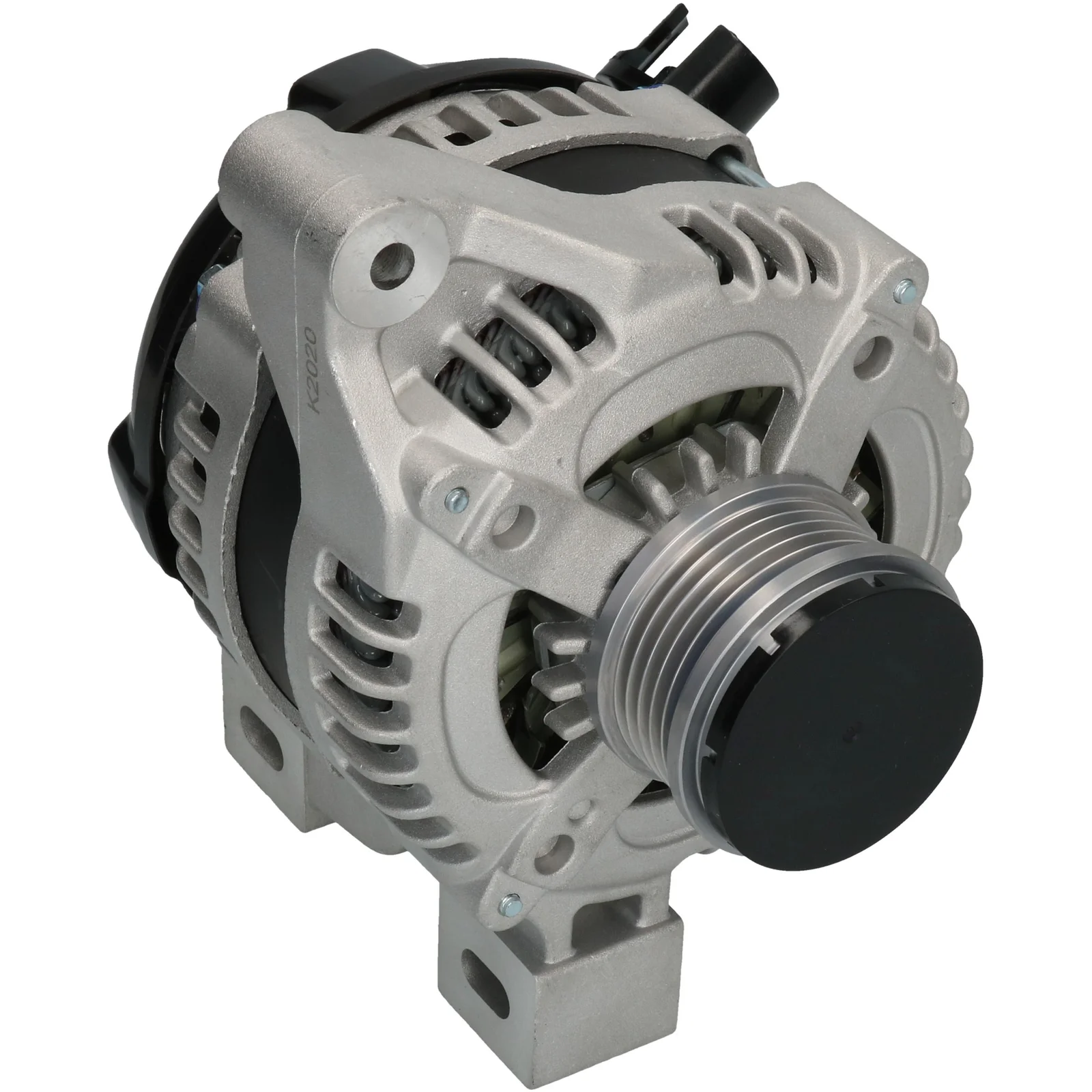

HC-Cargo Alternator
Article no.: F032115700

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 150, Rotation: CW, Mounting bracket distance: 91.00

Description

Alternator 12V-150A fits Volvo 12V - 150A, 5gr.frg, (DFM, L) WARNING! chassis drum! S40: Ch. no. -> 045203, V50: Ch. no. -> 040122. Contact piece / Repair lead: 54-101-0111 For Yourex product order 90-600-2920 Voltage: 14 Amp: 150 Pulley diameter.: 34.00 Width / holder arm: 33.00 Mounting bracket distance.: 91.00 Bracket hole: 8.20/17.50 Bracket hole 2: 8.50x17.00 Belt adjustment bracket hole position.: 55 Belt adjustment bracket hole 1: 8.00 Pulley diameter: 55.00 Grooves / pulley: 5 Radius: 89.00 Radius 2: 89.00 B+: M8 Position / B+ in min.: 50 D+ Size: Plug Rotation: CW Plug no.: PL184 Total length mm: 172.00 Pulley: SP / FW Fan: IF Regulator type: IR Product info: BN

Files

  • OEM
    F032115700, 3M5T-10300UA, 3M5T10300UA, 104210-4050, 104210-4051, 115700, 8602920, 30667051, 30667051A

  • Normalised article numbler
    a4086, a4086mm, a6292, cal40296, dra1426, f032115700, lra03662, 3m5t10300ua, 11093r, 115700, 286802, 443155, 8602920, 12090635, 30667051, 30667051a, 32006000, 815529150, 1042104050, 1042104051, 2381621502
  • Description
    Alternator 12V-150A fits Volvo 12V - 150A, 5gr.frg, (DFM, L) WARNING! chassis drum! S40: Ch. no. -> 045203, V50: Ch. no. -> 040122. Contact piece / Repair lead: 54-101-0111 For Yourex product order 90-600-2920 Voltage: 14 Amp: 150 Pulley diameter.: 34.00 Width / holder arm: 33.00 Mounting bracket distance.: 91.00 Bracket hole: 8.20/17.50 Bracket hole 2: 8.50x17.00 Belt adjustment bracket hole position.: 55 Belt adjustment bracket hole 1: 8.00 Pulley diameter: 55.00 Grooves / pulley: 5 Radius: 89.00 Radius 2: 89.00 B+: M8 Position / B+ in min.: 50 D+ Size: Plug Rotation: CW Plug no.: PL184 Total length mm: 172.00 Pulley: SP / FW Fan: IF Regulator type: IR Product info: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032115700, 3M5T-10300UA, 3M5T10300UA, 104210-4050, 104210-4051, 115700, 8602920, 30667051, 30667051A

    • Normalised article numbler
      a4086, a4086mm, a6292, cal40296, dra1426, f032115700, lra03662, 3m5t10300ua, 11093r, 115700, 286802, 443155, 8602920, 12090635, 30667051, 30667051a, 32006000, 815529150, 1042104050, 1042104051, 2381621502
