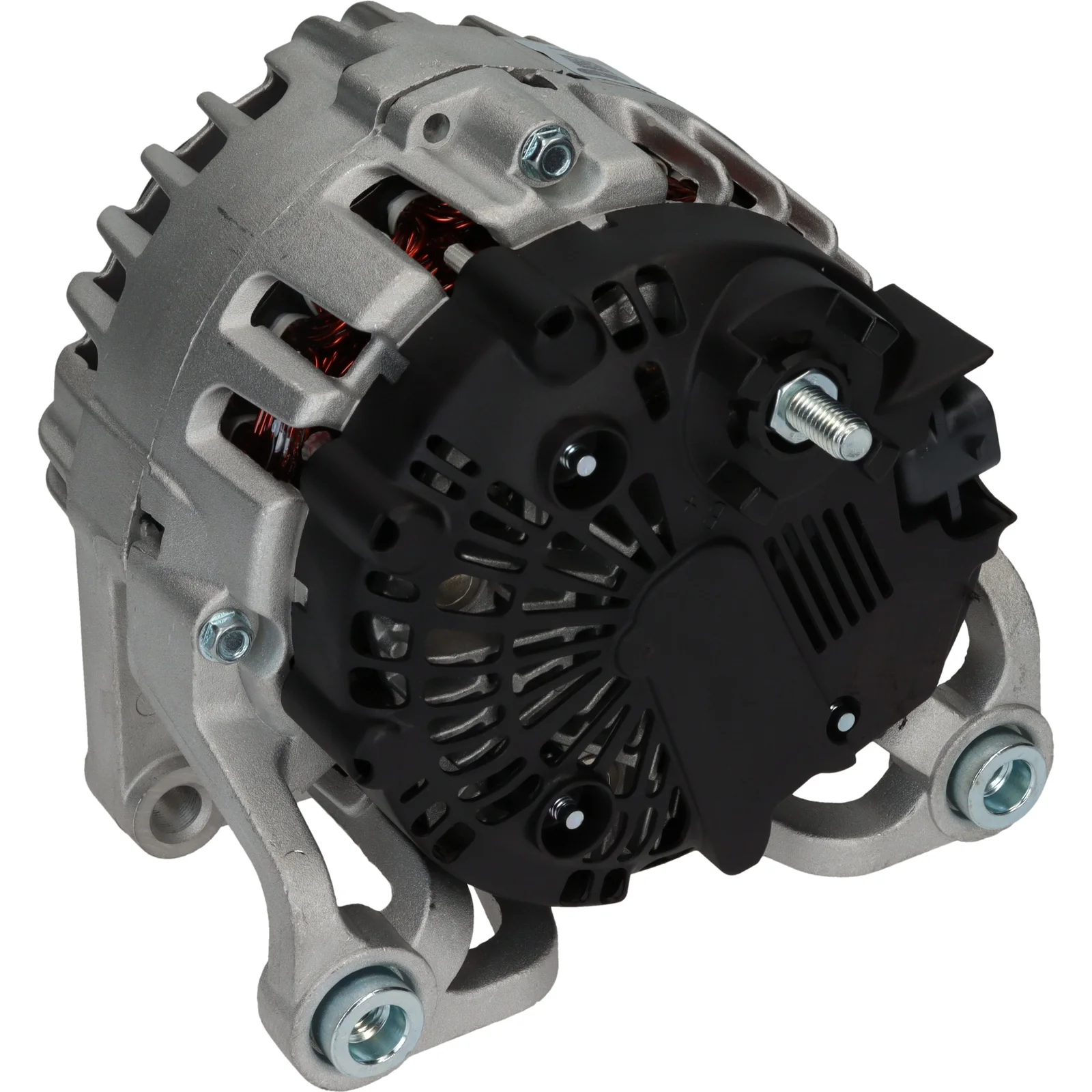

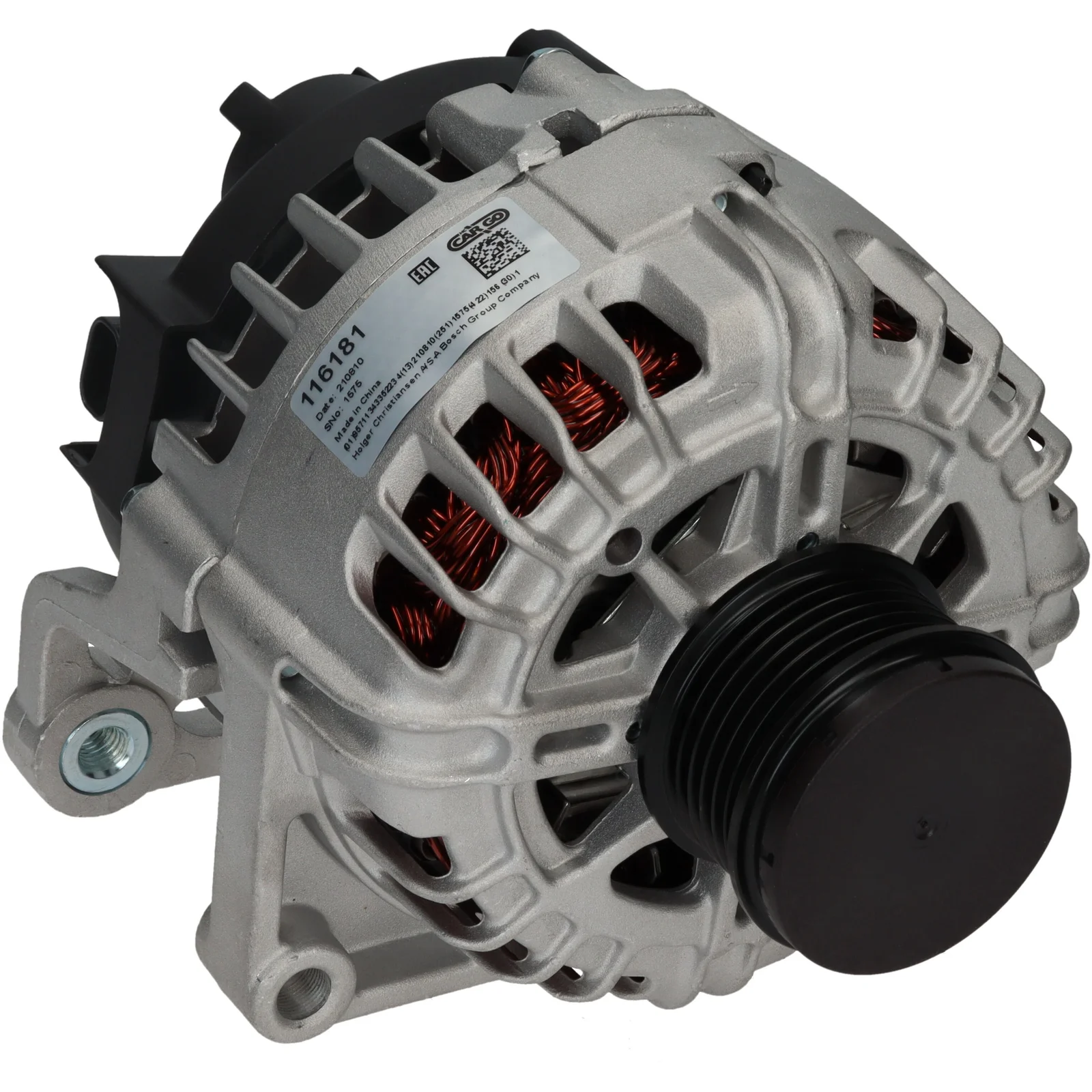

HC-Cargo Alternator
Article no.: F032116181

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 120, Rotation: CW, Mounting bracket distributor: 59.00

Description

Voltage: 14
Amp: 120
Pulley dist.: 64.50
Width/holder arm: 23.00
Mount. bracket dist.: 59.00
Bracket hole: 10.20
Belt. adj. brackethole pos.: 46
Belt. adj. bracket hole 1: 10.20
Pulley dia.: 59.00
Grooves/pulley: 6
Radius: 92.00
Radius 2: 92.00
B+: M8
Position/B+ in min.: 55
D+ Size: Plug
Rotation: CW
Plug no.: PL180
Total length mm: 194.00
Terminal type: L-F
Communication: PWM
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a PWM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032116181, TG12C070, 1202332, 1204622, 2605853A, 13500586, 13512748, 13588301

  • Normalised article numbler
    cal15507, dra0878, dra1044, f032116181, lra03459, tg12c070, 8el011713291, 8el012240551, 20505r, 20505rw, 210943, 210943a, 286569, 440619, 554177ri, 849235, 1202332, 1204622, 2605853a, 12090494, 13500586, 13512748, 13588301, 135563120, 135924120, 2281801202
  • Description
    Voltage: 14
    Amp: 120
    Pulley dist.: 64.50
    Width/holder arm: 23.00
    Mount. bracket dist.: 59.00
    Bracket hole: 10.20
    Belt. adj. brackethole pos.: 46
    Belt. adj. bracket hole 1: 10.20
    Pulley dia.: 59.00
    Grooves/pulley: 6
    Radius: 92.00
    Radius 2: 92.00
    B+: M8
    Position/B+ in min.: 55
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL180
    Total length mm: 194.00
    Terminal type: L-F
    Communication: PWM
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a PWM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032116181, TG12C070, 1202332, 1204622, 2605853A, 13500586, 13512748, 13588301

    • Normalised article numbler
      cal15507, dra0878, dra1044, f032116181, lra03459, tg12c070, 8el011713291, 8el012240551, 20505r, 20505rw, 210943, 210943a, 286569, 440619, 554177ri, 849235, 1202332, 1204622, 2605853a, 12090494, 13500586, 13512748, 13588301, 135563120, 135924120, 2281801202
