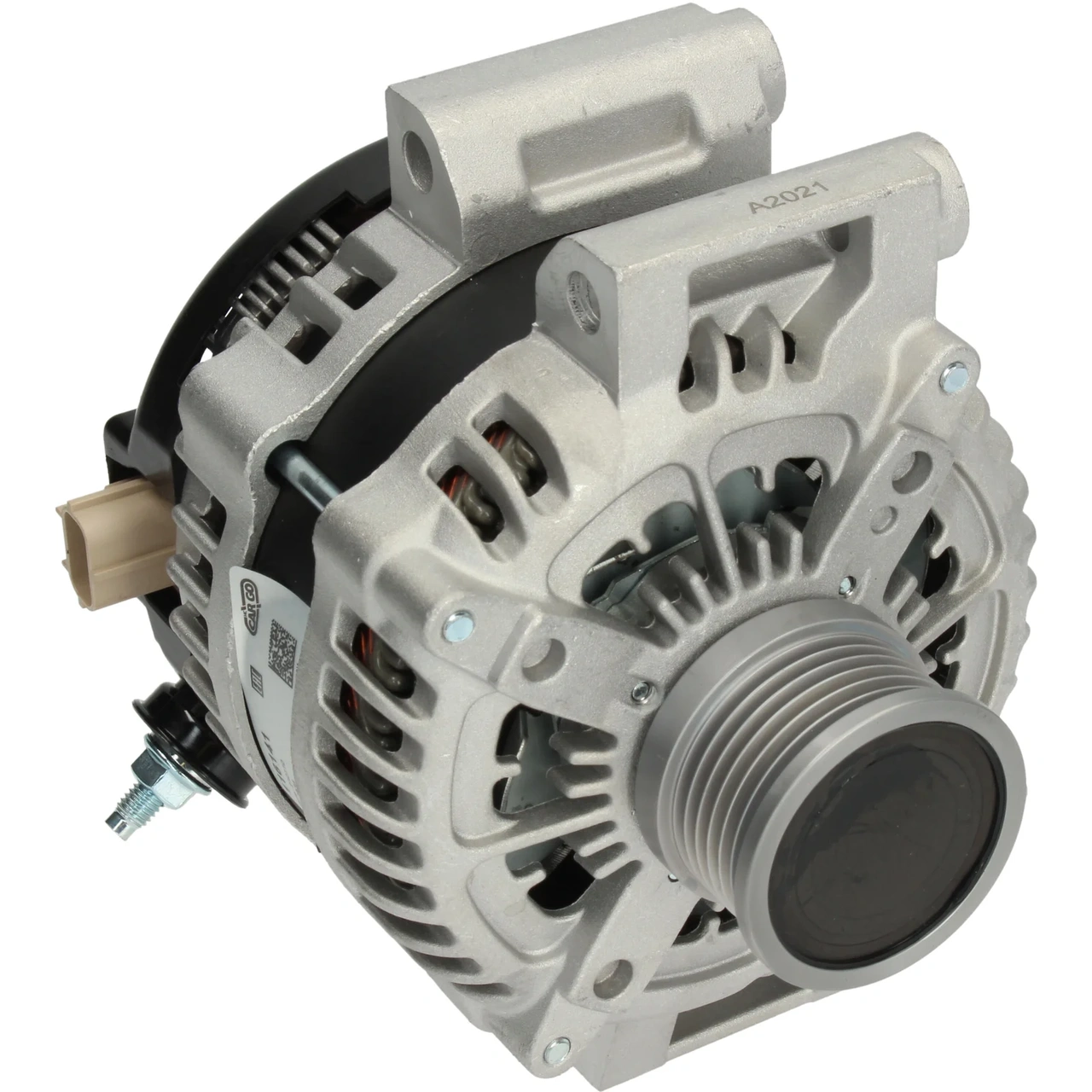

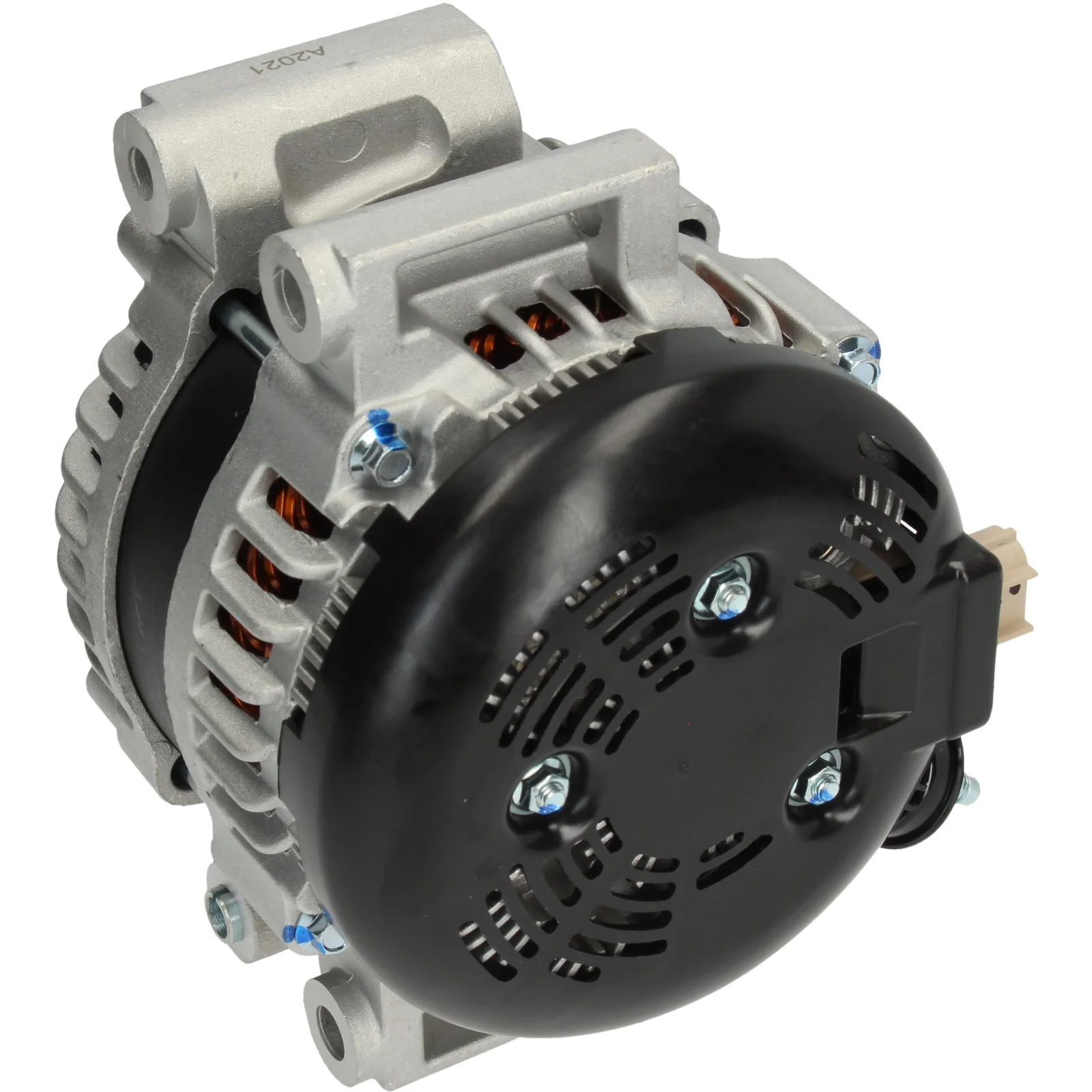

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116141

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 210, Rotation: CW, Mounting bracket distributor: 56.00

Description

Chrysler 2.8CRD Alternator 220A 12V - 220A, 6-pole flywheel ( - LIN - ) For Yourex product order 90-095-7866 Voltage: 14 Current: 210 Pulley distance: 38.40 Width/holder arm: 70.00 Mounting bracket distance: 56.00 Bracket hole: 10.70 Belt adjustment bracket hole 1: 10.00 Pulley diameter: 53.50 Grooves/pulley: 6 Radius: 93.50 Radius 2: 93.50 B+: M8 Position/B+ in min.: 50 Rotation: Clockwise Plug no.: PL154 Total length mm: 176.00 Terminal type: Common Communication: LIN Pulley: SP/FW Voltage regulator type: IR Remarks: This Alternator has a Common terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032116141, 104210-6090, 116141, 04727866 AB, 04727866AB, 4727866AB

  • Normalised article numbler
    a6466s, cal40374, dra0963, f032116141, 20393, 20393r, 116141, 287504, 553924ri, 04727866ab, 4727866ab, 12090756, 1042106090, 5341462202
  • Description
    Chrysler 2.8CRD Alternator 220A 12V - 220A, 6-pole flywheel ( - LIN - ) For Yourex product order 90-095-7866 Voltage: 14 Current: 210 Pulley distance: 38.40 Width/holder arm: 70.00 Mounting bracket distance: 56.00 Bracket hole: 10.70 Belt adjustment bracket hole 1: 10.00 Pulley diameter: 53.50 Grooves/pulley: 6 Radius: 93.50 Radius 2: 93.50 B+: M8 Position/B+ in min.: 50 Rotation: Clockwise Plug no.: PL154 Total length mm: 176.00 Terminal type: Common Communication: LIN Pulley: SP/FW Voltage regulator type: IR Remarks: This Alternator has a Common terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032116141, 104210-6090, 116141, 04727866 AB, 04727866AB, 4727866AB

    • Normalised article numbler
      a6466s, cal40374, dra0963, f032116141, 20393, 20393r, 116141, 287504, 553924ri, 04727866ab, 4727866ab, 12090756, 1042106090, 5341462202
