HC-Cargo Alternator

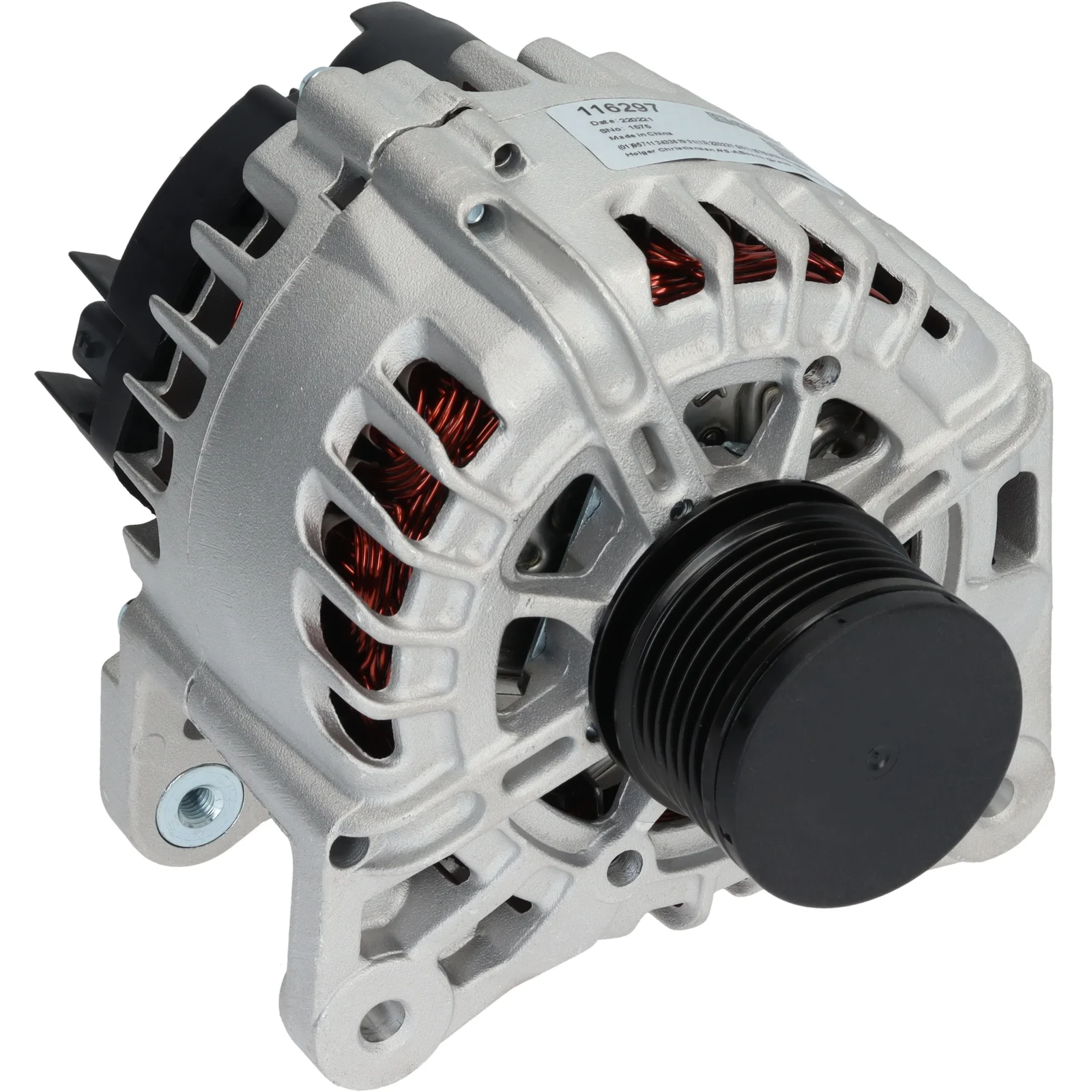

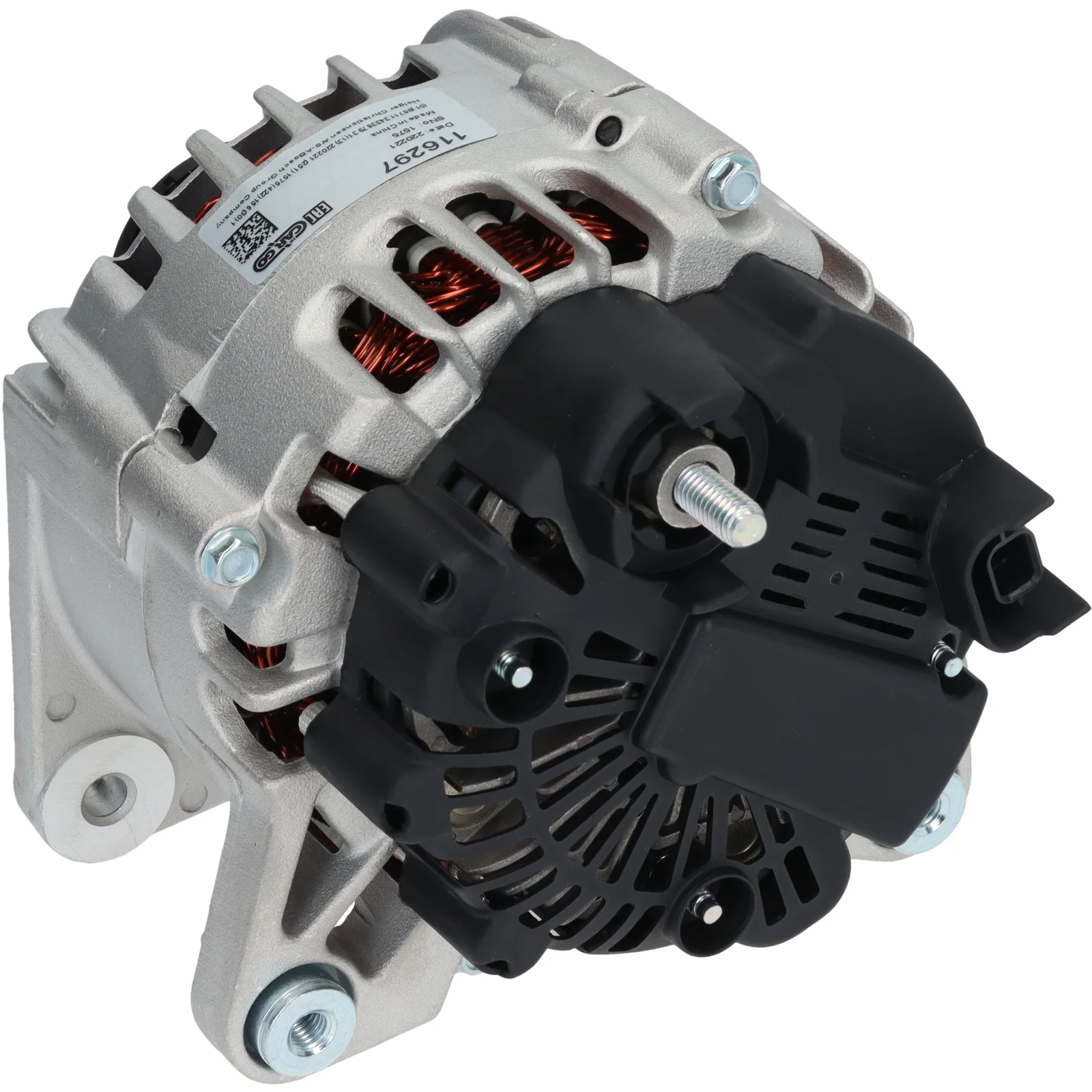

HC-Cargo Alternator
Article no.: F032116297

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 150, Rotation: CW, Mounting bracket distance: 60.50

Description

Voltage: 14
Amp: 150
Pulley diameter: 38.50
Width/holder arm: 14.00
Mounting bracket distance: 60.50
Bracket hole: 8.50
Belt adjustment bracket hole position: 45
Belt adjustment bracket hole 1: 8.50
Belt adjustment bracket hole 2: M8
Pulley diameter: 55.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 53
Rotation: CW
Plug number: PL132
Total length mm: 193.00
Terminal type: COM
ID code: 17
Communication: LIN
Pulley: SP/FW
Voltage regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032116297, FG15T057, 23100-7281R, 2612717A, 231007281R, 231007281RA

  • Normalised article numbler
    a3561s, cal15032, dra1491, f032116297, fg15t057, 8el011713591, 20608n, 20608noe, 209545, 209545a, 286842, 439834, 440559, 554409ri, 2612717a, 12090781, 32440559, 231007281r, 231007281ra, 575958150, 2303571502
  • Description
    Voltage: 14
    Amp: 150
    Pulley diameter: 38.50
    Width/holder arm: 14.00
    Mounting bracket distance: 60.50
    Bracket hole: 8.50
    Belt adjustment bracket hole position: 45
    Belt adjustment bracket hole 1: 8.50
    Belt adjustment bracket hole 2: M8
    Pulley diameter: 55.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 53
    Rotation: CW
    Plug number: PL132
    Total length mm: 193.00
    Terminal type: COM
    ID code: 17
    Communication: LIN
    Pulley: SP/FW
    Voltage regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032116297, FG15T057, 23100-7281R, 2612717A, 231007281R, 231007281RA

    • Normalised article numbler
      a3561s, cal15032, dra1491, f032116297, fg15t057, 8el011713591, 20608n, 20608noe, 209545, 209545a, 286842, 439834, 440559, 554409ri, 2612717a, 12090781, 32440559, 231007281r, 231007281ra, 575958150, 2303571502
