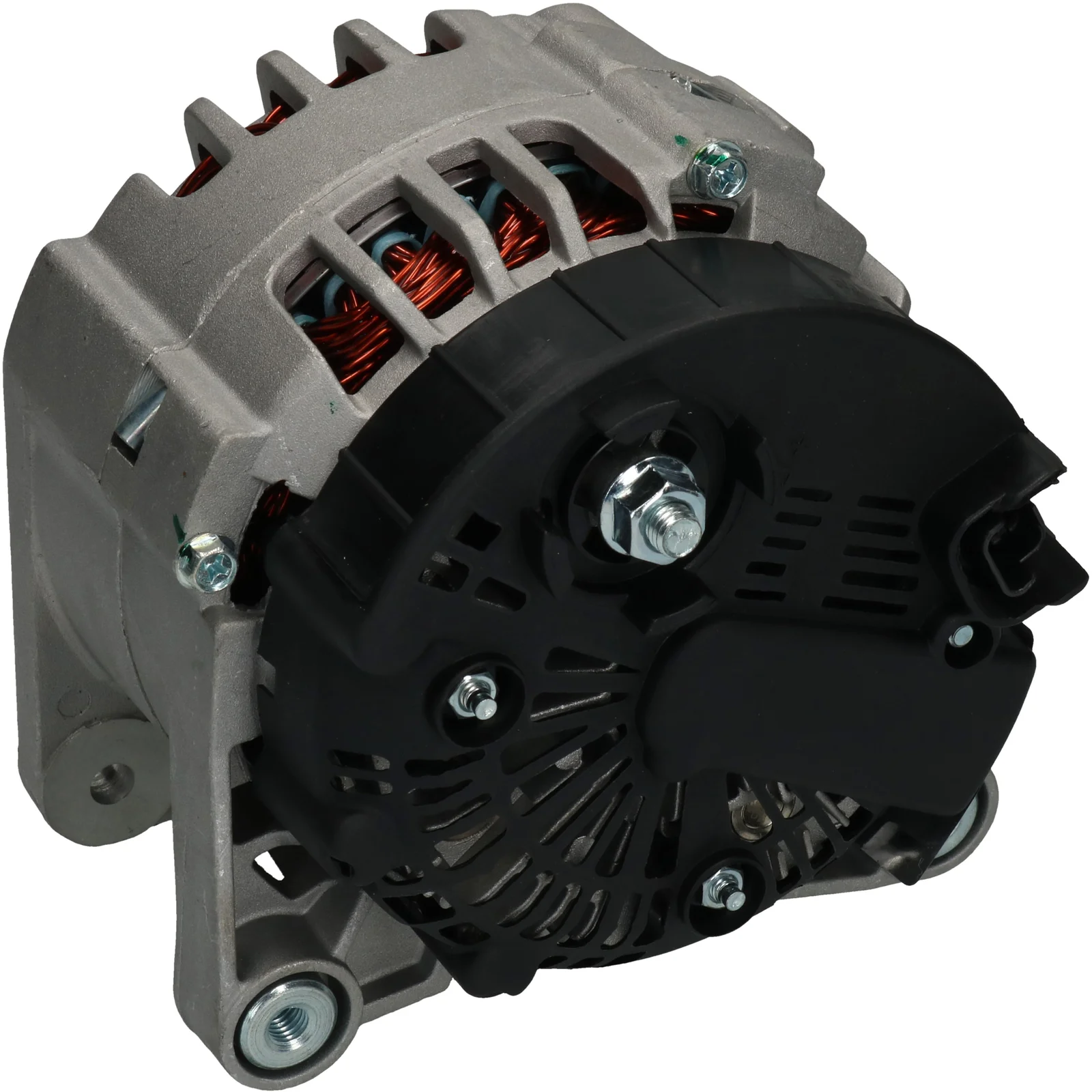

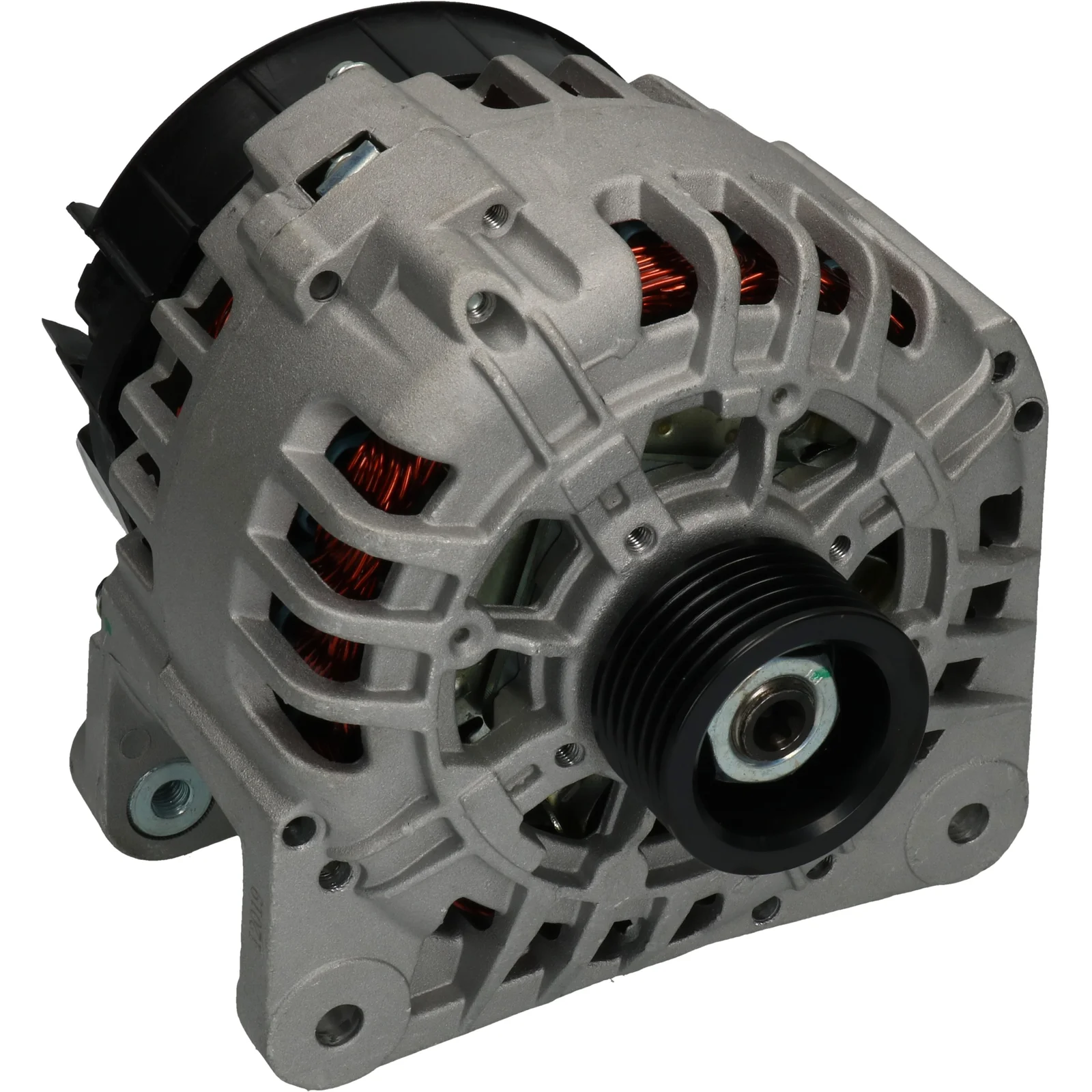

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032113245

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 125, Rotation: CW, Mount. bracket dist.: 60.70

Description

Voltage: 14
Amps: 125
Pulley diameter: 33.00
Width/holder arm: 14.00
Mounting bracket distance: 60.70
Bracket hole: 8.60
Belt adjustment bracket hole position: 45
Belt adjustment bracket hole 1: 8.60
Pulley diameter: 49.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 50
D+ Size: Plug
Rotation: CW
Plug no.: PL55
Total length mm: 172.00
Pulley: SP
Regulator type: IR
Prod. info: BN
Servicing: Renault

Files

  • OEM
    aak5788, F032113245, sg12b030, sg12b068, SG12B072, sg12b097, sg12b107, sg12b122, 11.204.022, 1661ir, 23100-00q0k, 23100-00Q1G, 23100-00qaj, 23100-00QAP, 23100-00qbf, 2542640, 2542722, 2542722A, 2542722B, 2542722C, 2543338, 2543338A, 2543386, 2543557, 2543557A, 2543557B, 4411318, 4430569, 4506176, 8253860, 9201826, 93160666, 93161427, 93198178, 7700427476, 7711134329, 8200153713, 8200206251, 8200495304, 8200538816, 8200690202

  • Normalised article numbler
    a3254valeo, aak5788, alt14131, alt7218, alth237, cal15134, dra4186, dra4208, dra4208x, f032113245, f042a0b032, f042a0h237, ia1434, lea0457, mg91, sg12b030, sg12b068, sg12b072, sg12b097, sg12b107, sg12b122, 8el011710641, 1661ir, 4693, 111608, 119777, 200103, 200272, 210353, 210353a, 210390, 210390a, 283988, 284610, 301661ri, 437423, 439417, 439464, 746095, 746895, 839013, 839024, 2310000q0k, 2310000q1g, 2310000qaj, 2310000qap, 2310000qbf, 2542640, 2542722, 2542722a, 2542722b, 2542722c, 2543338, 2543338a, 2543386, 2543557, 2543557a, 2543557b, 4411318, 4430569, 4506176, 8253860, 9201826, 11204022, 12090058, 32542653, 93160666, 93161427, 93198178, 2301791252, 2301801252, 7700427476, 7711134329, 8200153713, 8200206251, 8200495304, 8200538816, 8200690202, 944390901690
  • Description
    Voltage: 14
    Amps: 125
    Pulley diameter: 33.00
    Width/holder arm: 14.00
    Mounting bracket distance: 60.70
    Bracket hole: 8.60
    Belt adjustment bracket hole position: 45
    Belt adjustment bracket hole 1: 8.60
    Pulley diameter: 49.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 50
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL55
    Total length mm: 172.00
    Pulley: SP
    Regulator type: IR
    Prod. info: BN
    Servicing: Renault

    Files

  • Suitable for these vehicles

    • OEM
      aak5788, F032113245, sg12b030, sg12b068, SG12B072, sg12b097, sg12b107, sg12b122, 11.204.022, 1661ir, 23100-00q0k, 23100-00Q1G, 23100-00qaj, 23100-00QAP, 23100-00qbf, 2542640, 2542722, 2542722A, 2542722B, 2542722C, 2543338, 2543338A, 2543386, 2543557, 2543557A, 2543557B, 4411318, 4430569, 4506176, 8253860, 9201826, 93160666, 93161427, 93198178, 7700427476, 7711134329, 8200153713, 8200206251, 8200495304, 8200538816, 8200690202

    • Normalised article numbler
      a3254valeo, aak5788, alt14131, alt7218, alth237, cal15134, dra4186, dra4208, dra4208x, f032113245, f042a0b032, f042a0h237, ia1434, lea0457, mg91, sg12b030, sg12b068, sg12b072, sg12b097, sg12b107, sg12b122, 8el011710641, 1661ir, 4693, 111608, 119777, 200103, 200272, 210353, 210353a, 210390, 210390a, 283988, 284610, 301661ri, 437423, 439417, 439464, 746095, 746895, 839013, 839024, 2310000q0k, 2310000q1g, 2310000qaj, 2310000qap, 2310000qbf, 2542640, 2542722, 2542722a, 2542722b, 2542722c, 2543338, 2543338a, 2543386, 2543557, 2543557a, 2543557b, 4411318, 4430569, 4506176, 8253860, 9201826, 11204022, 12090058, 32542653, 93160666, 93161427, 93198178, 2301791252, 2301801252, 7700427476, 7711134329, 8200153713, 8200206251, 8200495304, 8200538816, 8200690202, 944390901690
