HC-Cargo Alternator

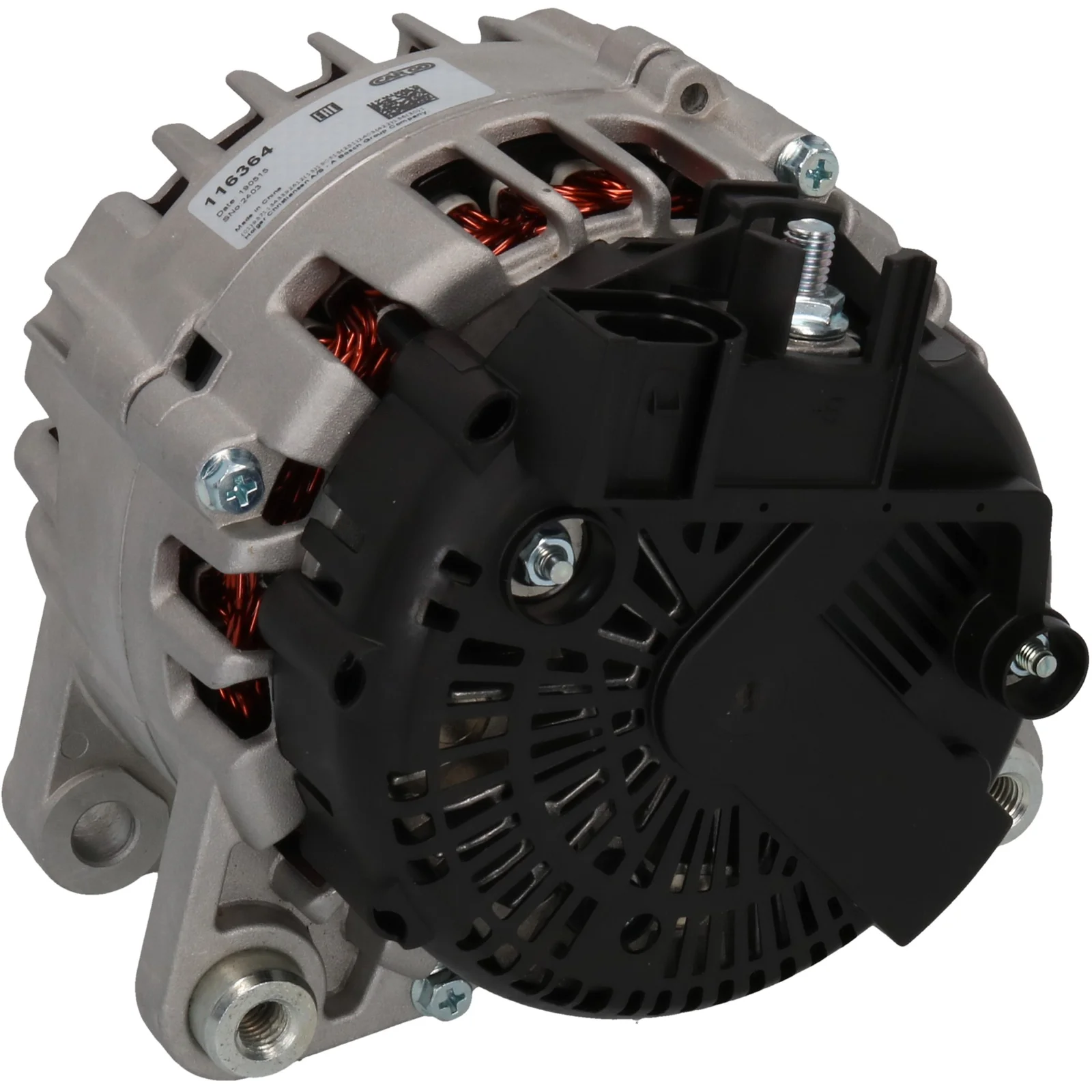

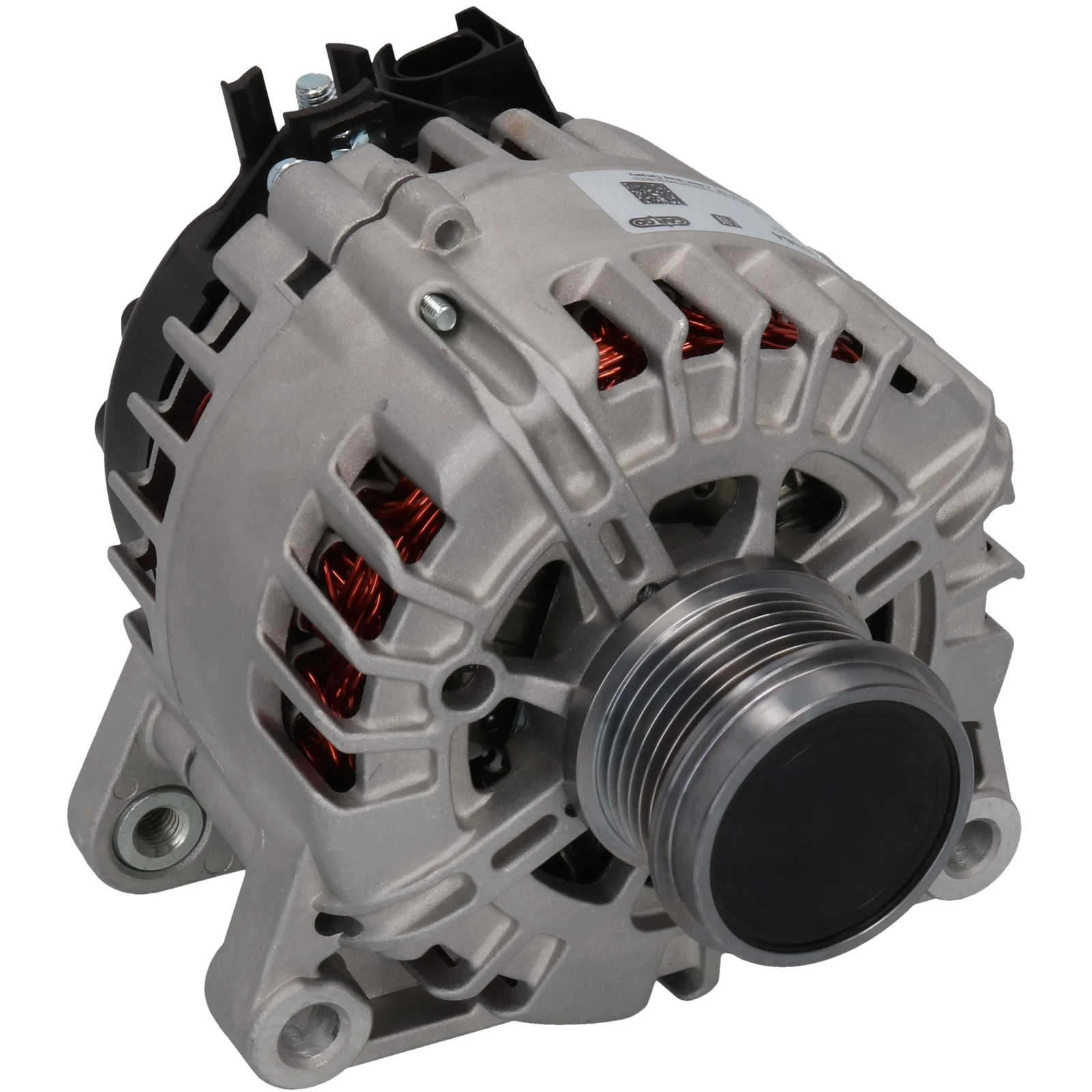

HC-Cargo Alternator
Article no.: F032116364

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 150, Rotation: CW, Mounting bracket distance: 48.50

Description

Voltage: 14
Amps: 150
Pulley diameter: 42.50
Width/holder arm: 21.00
Mounting bracket distance: 48.50
Bracket hole: 11.20
Belt adjustment bracket hole position: 47
Belt adjustment bracket hole 1: 11.20
Pulley diameter: 53.50
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 54
D+ Size: M5
Rotation: CW
Plug number: PL174
Total length mm: 193.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Fan: IF
Remarks: This Alternator has a COM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    AG9T10300BA, ag9t10300da, F032116364, TG15C173, TG15C175, 1684713, 2610692B, 2610812A

  • Normalised article numbler
    a3274valeo, a3318, ag9t10300ba, ag9t10300da, cal15050, dra1239, f032116364, lra03555, tg15c173, tg15c175, 210878, 210878a, 286995, 439914, 553944ri, 1684713, 2610692b, 2610812a, 12090858, 595530150, 2191411502, 2193271502
  • Description
    Voltage: 14
    Amps: 150
    Pulley diameter: 42.50
    Width/holder arm: 21.00
    Mounting bracket distance: 48.50
    Bracket hole: 11.20
    Belt adjustment bracket hole position: 47
    Belt adjustment bracket hole 1: 11.20
    Pulley diameter: 53.50
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 54
    D+ Size: M5
    Rotation: CW
    Plug number: PL174
    Total length mm: 193.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Fan: IF
    Remarks: This Alternator has a COM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      AG9T10300BA, ag9t10300da, F032116364, TG15C173, TG15C175, 1684713, 2610692B, 2610812A

    • Normalised article numbler
      a3274valeo, a3318, ag9t10300ba, ag9t10300da, cal15050, dra1239, f032116364, lra03555, tg15c173, tg15c175, 210878, 210878a, 286995, 439914, 553944ri, 1684713, 2610692b, 2610812a, 12090858, 595530150, 2191411502, 2193271502
