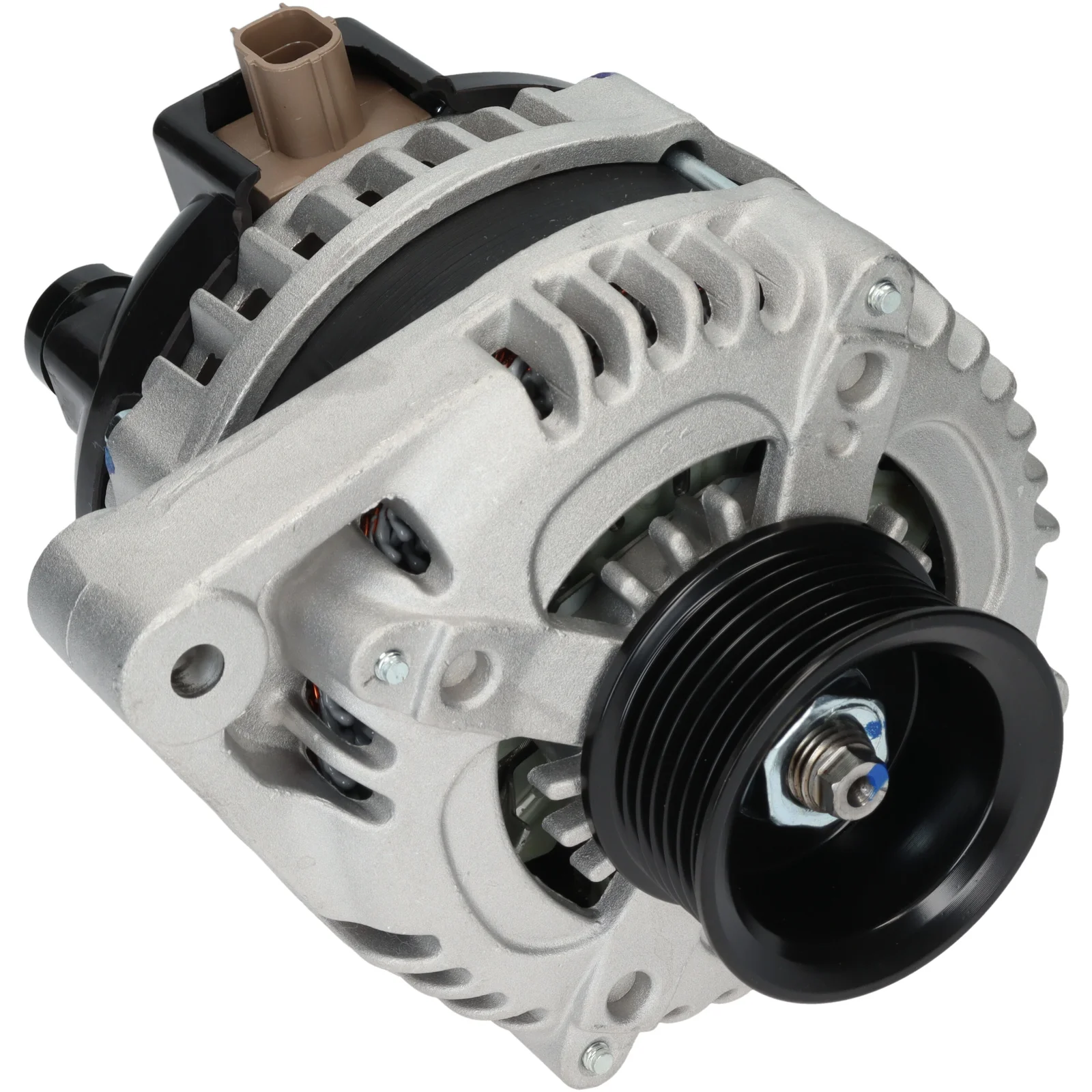

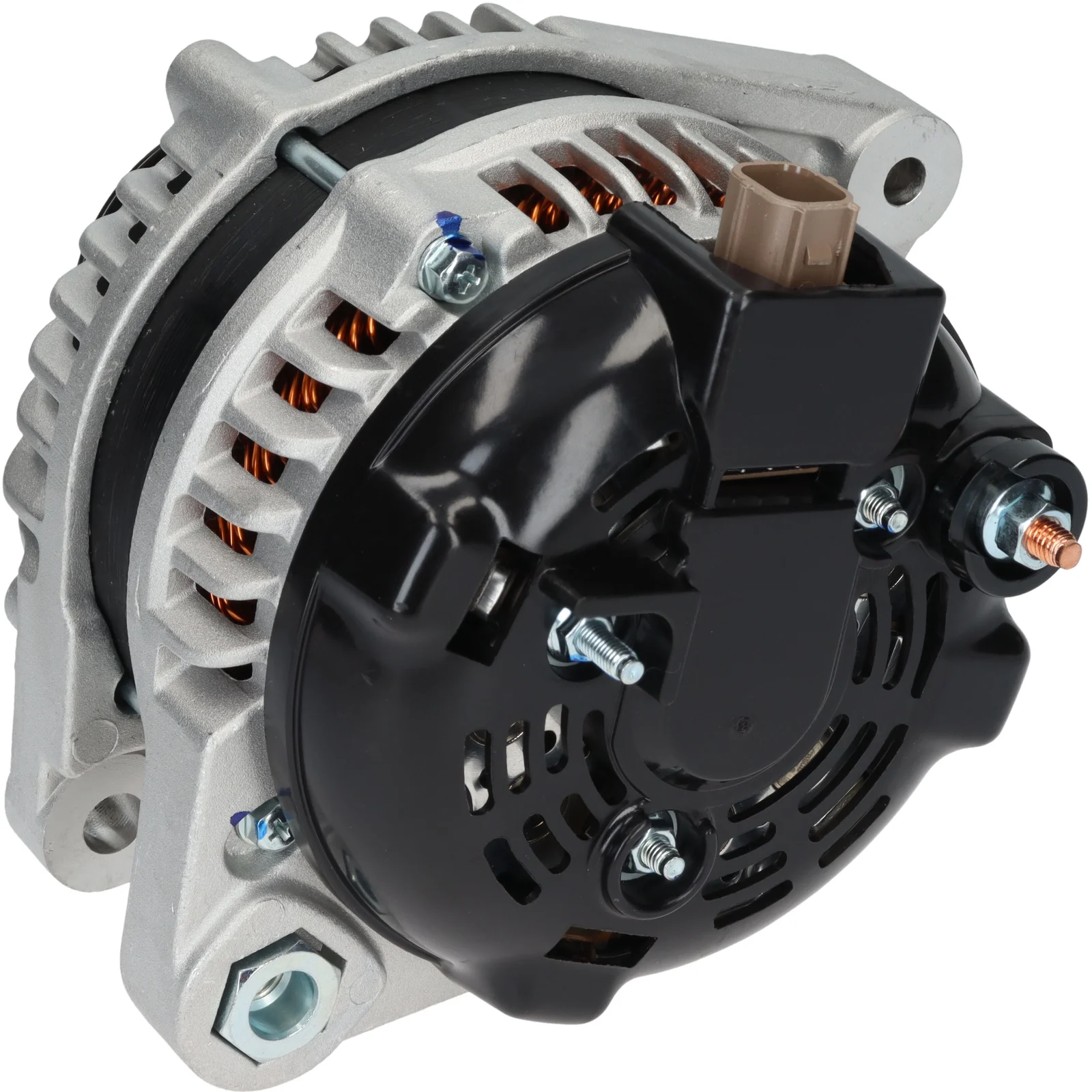

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116658

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 130, Rotation: CW, Mount. bracket distribution: 34.50

Description

Voltage: 14
Amp: 130
Pulley diameter: 42.90
Width/holder arm: 15.00
Mounting bracket distance: 34.50
Bracket hole: 11.00
Belt adjustment bracket hole position: 57
Belt adjustment bracket hole 1: 8.50
Pulley dia.: 60.00
Grooves/pulley: 7
Radius: 81.50
Radius 2: 90.00
B+: M6
Position/B+ in min.: 3
Rotation: CW
Plug no.: PL193
Total length mm: 176.00
Terminal type: L-IG-FR-C
Pulley: SP
Fan: IF
Regulator type: IR

Files

  • OEM
    F032116658, 31100-r40-a01, 104210-5890

  • Normalised article numbler
    a6300, cal40338, dan1376, dra0927, f032116658, lra03974, 10194, 11390n, 31100r40a01, 287584, 553935ri, 12060956, 125567130, 1042105890, 2221671302
  • Description
    Voltage: 14
    Amp: 130
    Pulley diameter: 42.90
    Width/holder arm: 15.00
    Mounting bracket distance: 34.50
    Bracket hole: 11.00
    Belt adjustment bracket hole position: 57
    Belt adjustment bracket hole 1: 8.50
    Pulley dia.: 60.00
    Grooves/pulley: 7
    Radius: 81.50
    Radius 2: 90.00
    B+: M6
    Position/B+ in min.: 3
    Rotation: CW
    Plug no.: PL193
    Total length mm: 176.00
    Terminal type: L-IG-FR-C
    Pulley: SP
    Fan: IF
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      F032116658, 31100-r40-a01, 104210-5890

    • Normalised article numbler
      a6300, cal40338, dan1376, dra0927, f032116658, lra03974, 10194, 11390n, 31100r40a01, 287584, 553935ri, 12060956, 125567130, 1042105890, 2221671302
