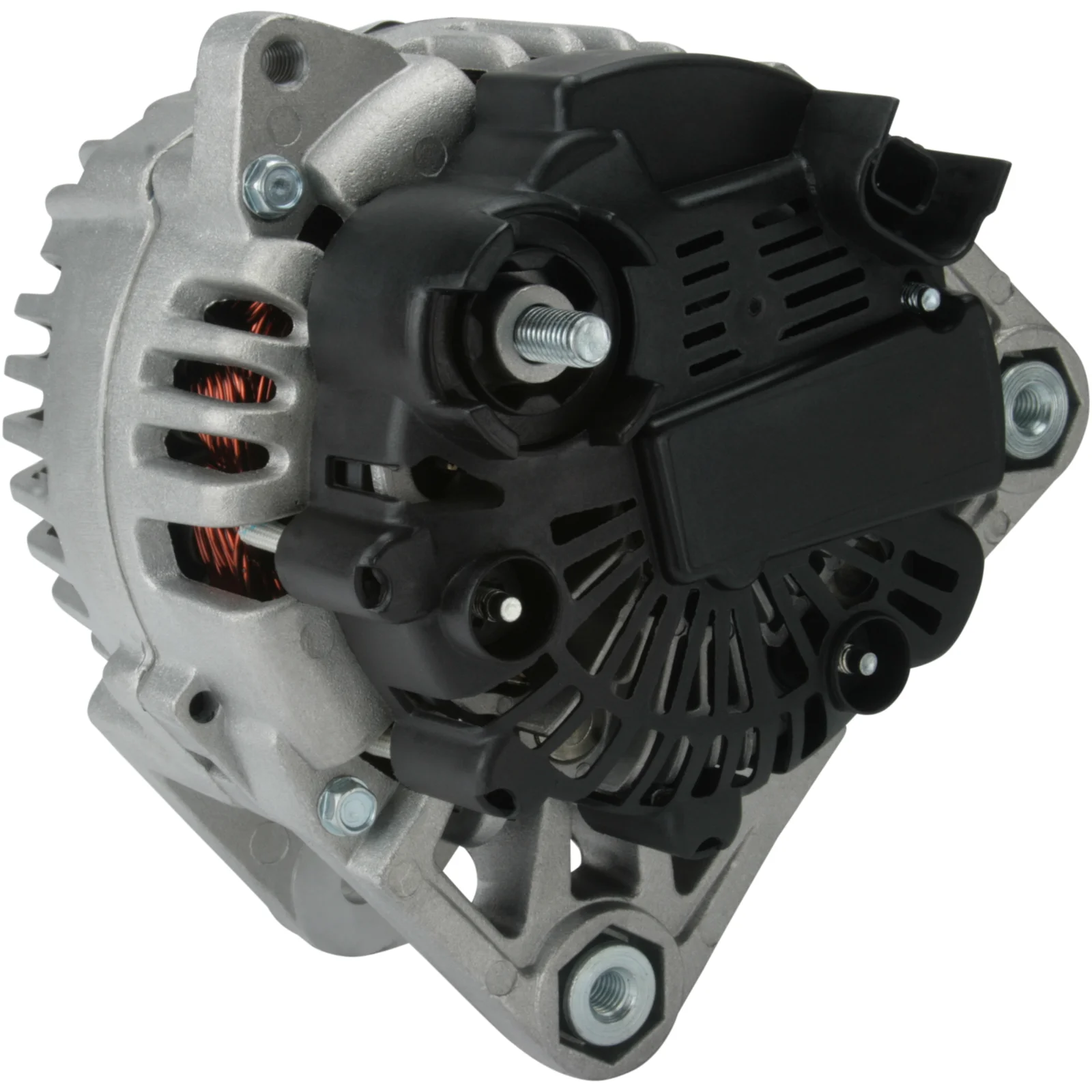

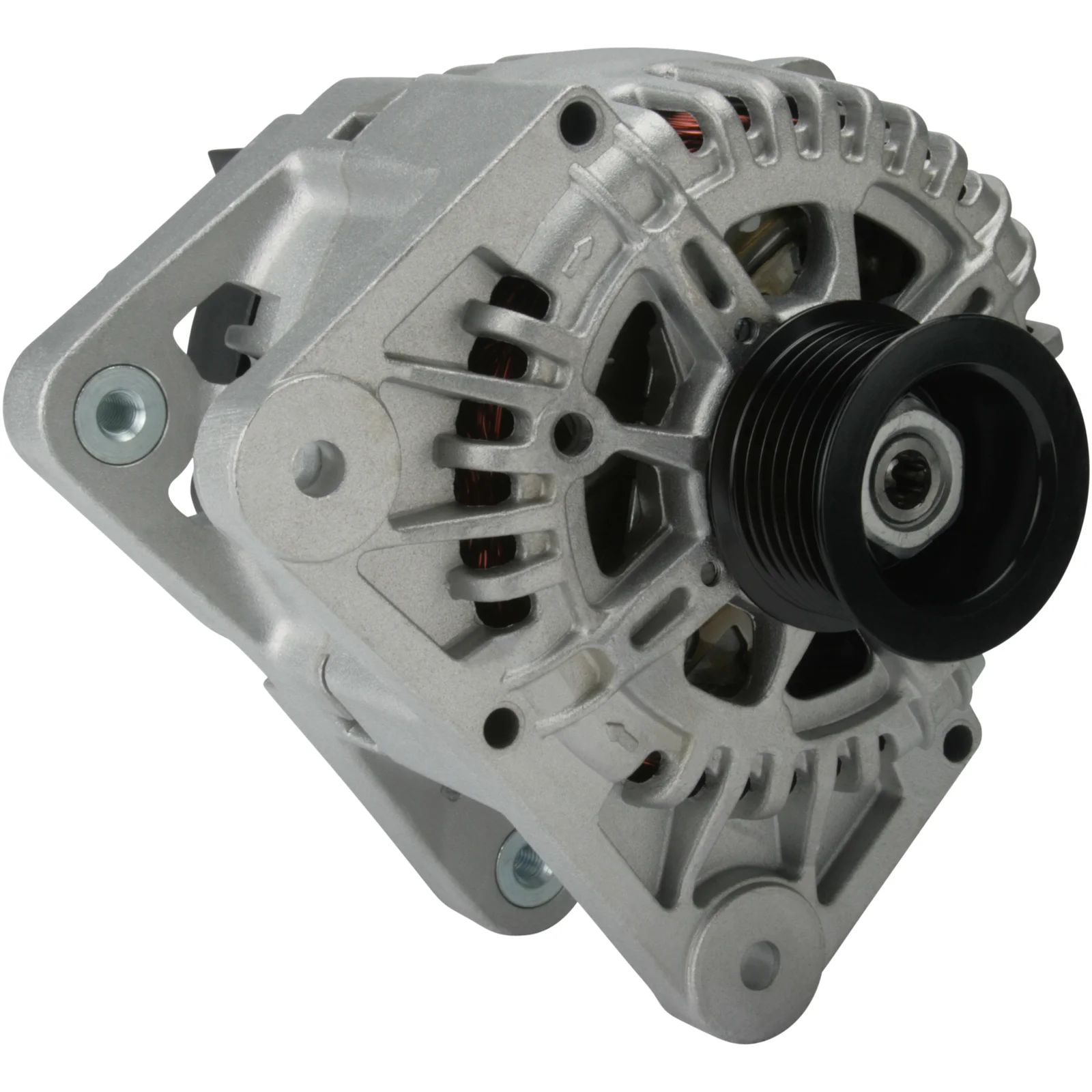

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115419

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 110, Rotation: CW, Mounting bracket distributor: 60.80

Description

Voltage: 14
Amp: 110
Pulley diameter: 33.00
Width/holder arm: 14.00
Mounting bracket distance: 60.80
Bracket hole: 8.40
Belt adjustment bracket hole position: 15
Belt adjustment bracket hole 1: 8.40
Pulley diameter: 49.00
Grooves/pulley: 7
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in minutes: 5
Rotation: CW
Plug no.: PL131
Total length mm: 183.00
Terminal type: COM
Communication: BSS
Pulley: SP
Regulator type: IR
Product information: BN
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032115419, TG11C040, TG11C065, 2057ir, 2543207, 2543563, 2543563B, 7711368602, 8200410671, 8200410671B, 8200667610

  • Normalised article numbler
    a3320, a3320pr, cal15335, dra0647, f032115419, tg11c040, tg11c065, 8el012240111, 8el738213281, 2057ir, 4898, 24108n, 200220, 210514, 210514a, 285720, 439588, 440060, 553235ri, 747038, 2543207, 2543563, 2543563b, 12090216, 7711368602, 8200410671, 8200410671b, 8200667610
  • Description
    Voltage: 14
    Amp: 110
    Pulley diameter: 33.00
    Width/holder arm: 14.00
    Mounting bracket distance: 60.80
    Bracket hole: 8.40
    Belt adjustment bracket hole position: 15
    Belt adjustment bracket hole 1: 8.40
    Pulley diameter: 49.00
    Grooves/pulley: 7
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in minutes: 5
    Rotation: CW
    Plug no.: PL131
    Total length mm: 183.00
    Terminal type: COM
    Communication: BSS
    Pulley: SP
    Regulator type: IR
    Product information: BN
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032115419, TG11C040, TG11C065, 2057ir, 2543207, 2543563, 2543563B, 7711368602, 8200410671, 8200410671B, 8200667610

    • Normalised article numbler
      a3320, a3320pr, cal15335, dra0647, f032115419, tg11c040, tg11c065, 8el012240111, 8el738213281, 2057ir, 4898, 24108n, 200220, 210514, 210514a, 285720, 439588, 440060, 553235ri, 747038, 2543207, 2543563, 2543563b, 12090216, 7711368602, 8200410671, 8200410671b, 8200667610
