HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032113903

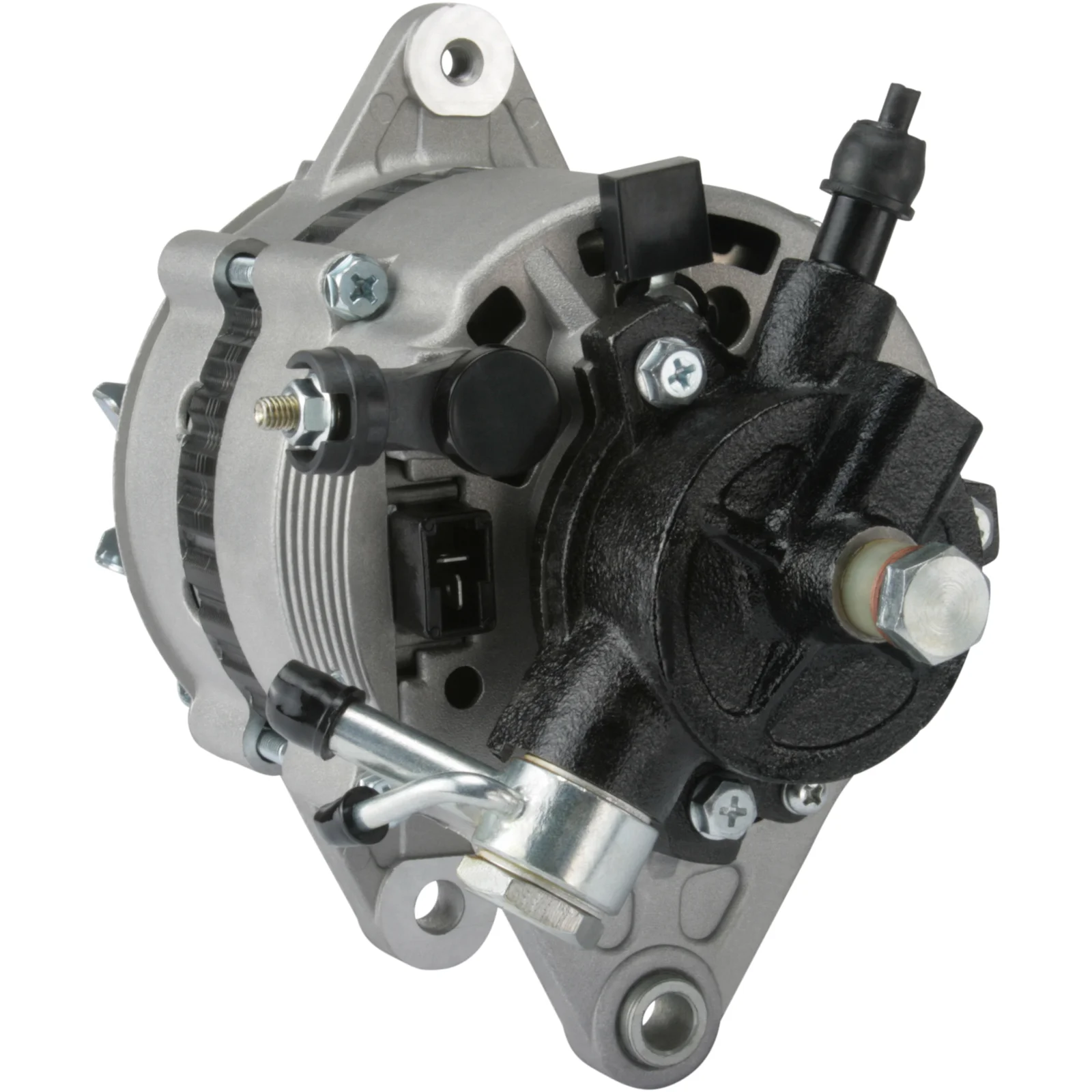

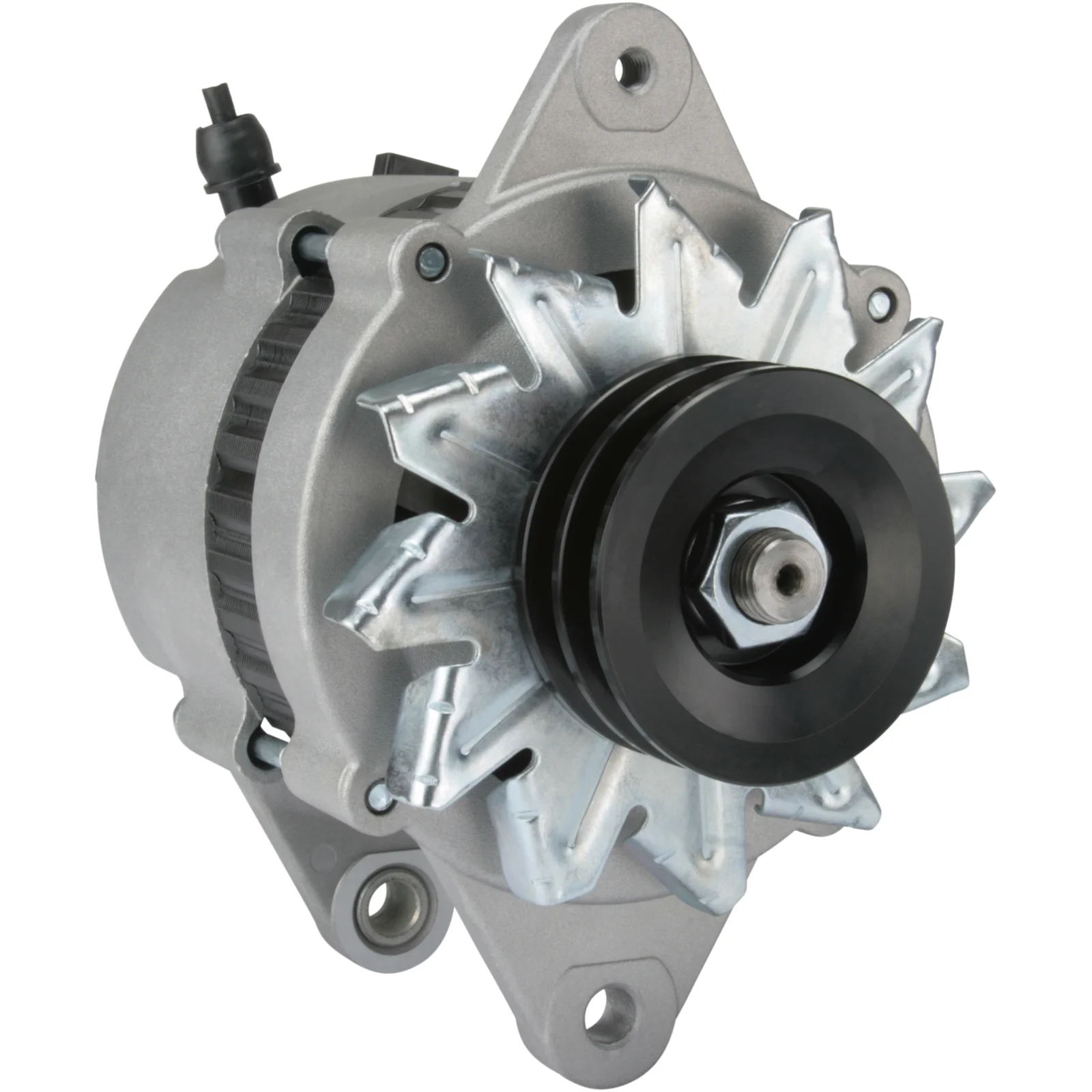

HC-Cargo Alternator

Technical info:

Voltage: 14, Current: 60, Rotation: CW, Mounting bracket distance: 80.60

Description

Voltage: 14
Amp: 60
Pulley dist.: 46.50
Width/holder arm: 13.00
Mount. bracket dist.: 80.60
Bracket hole: 10.60
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 73.20
Grooves/pulley: 2
Radius: 90.00
Radius 2: 85.00
B+: M6
Position/B+ in min.: 45
D+ Size: Plug
Rotation: CW
Plug no.: PL09
Total length mm: 226.00
Pulley: DP
Regulator type: IR
Vacuum pump: Yes
Prod. info: BN

Files

  • OEM
    0K05418300, 0K05418300A, 0K05418300B, 0K05418300C, F032113903, ja1795ir, OK05418300C, 02121-8074, 37300-2W000, 37300-2W001

  • Normalised article numbler
    0k05418300, 0k05418300a, 0k05418300b, 0k05418300c, a9070, cal41100, dra4198, f032113903, ja1795ir, ok05418300c, 23326, 210250, 210250a, 284821, 373002w000, 373002w001, 401795ri, 12060786, 021218074, 063532621, 524113602, 063532621010
  • Description
    Voltage: 14
    Amp: 60
    Pulley dist.: 46.50
    Width/holder arm: 13.00
    Mount. bracket dist.: 80.60
    Bracket hole: 10.60
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 73.20
    Grooves/pulley: 2
    Radius: 90.00
    Radius 2: 85.00
    B+: M6
    Position/B+ in min.: 45
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL09
    Total length mm: 226.00
    Pulley: DP
    Regulator type: IR
    Vacuum pump: Yes
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      0K05418300, 0K05418300A, 0K05418300B, 0K05418300C, F032113903, ja1795ir, OK05418300C, 02121-8074, 37300-2W000, 37300-2W001

    • Normalised article numbler
      0k05418300, 0k05418300a, 0k05418300b, 0k05418300c, a9070, cal41100, dra4198, f032113903, ja1795ir, ok05418300c, 23326, 210250, 210250a, 284821, 373002w000, 373002w001, 401795ri, 12060786, 021218074, 063532621, 524113602, 063532621010
