HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115683

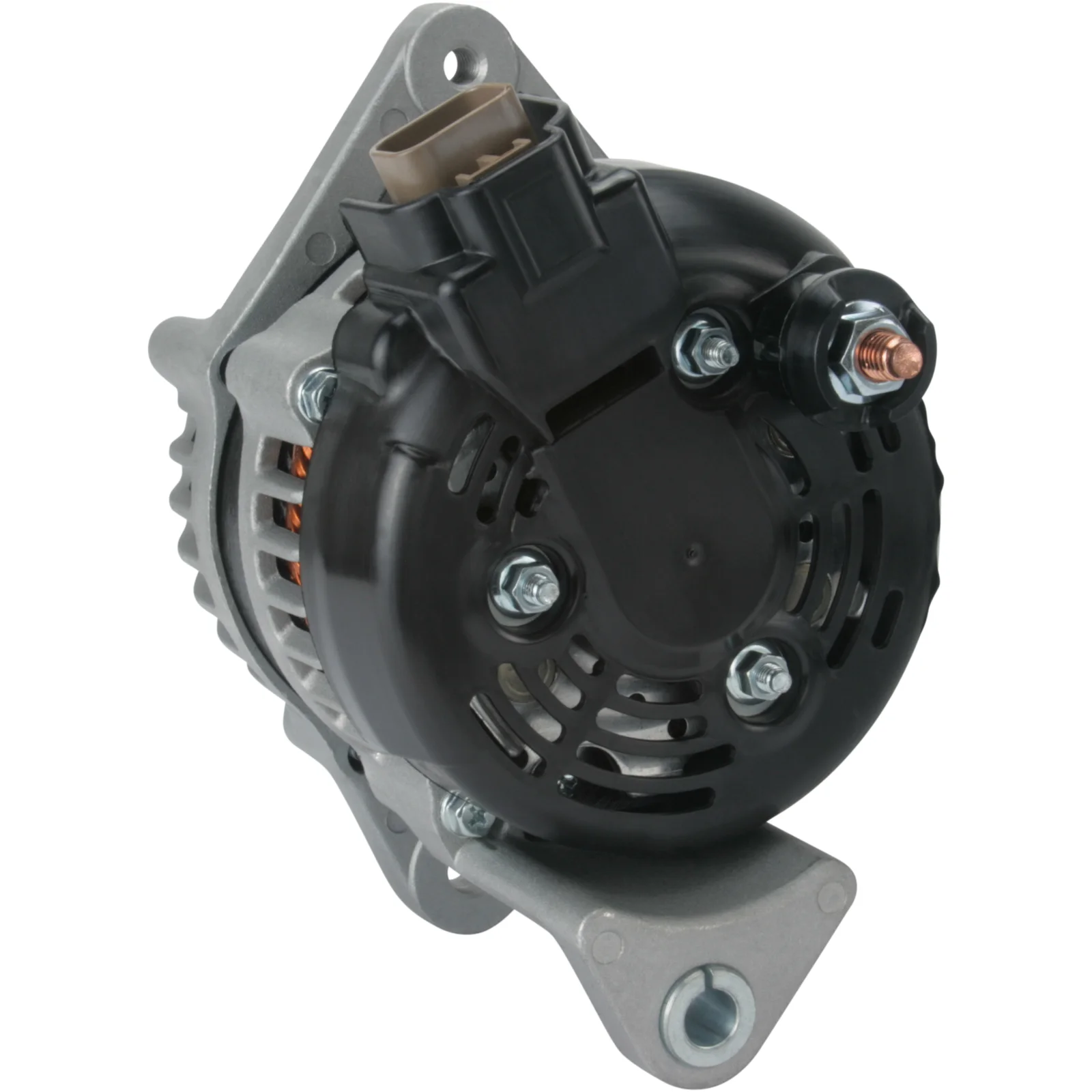

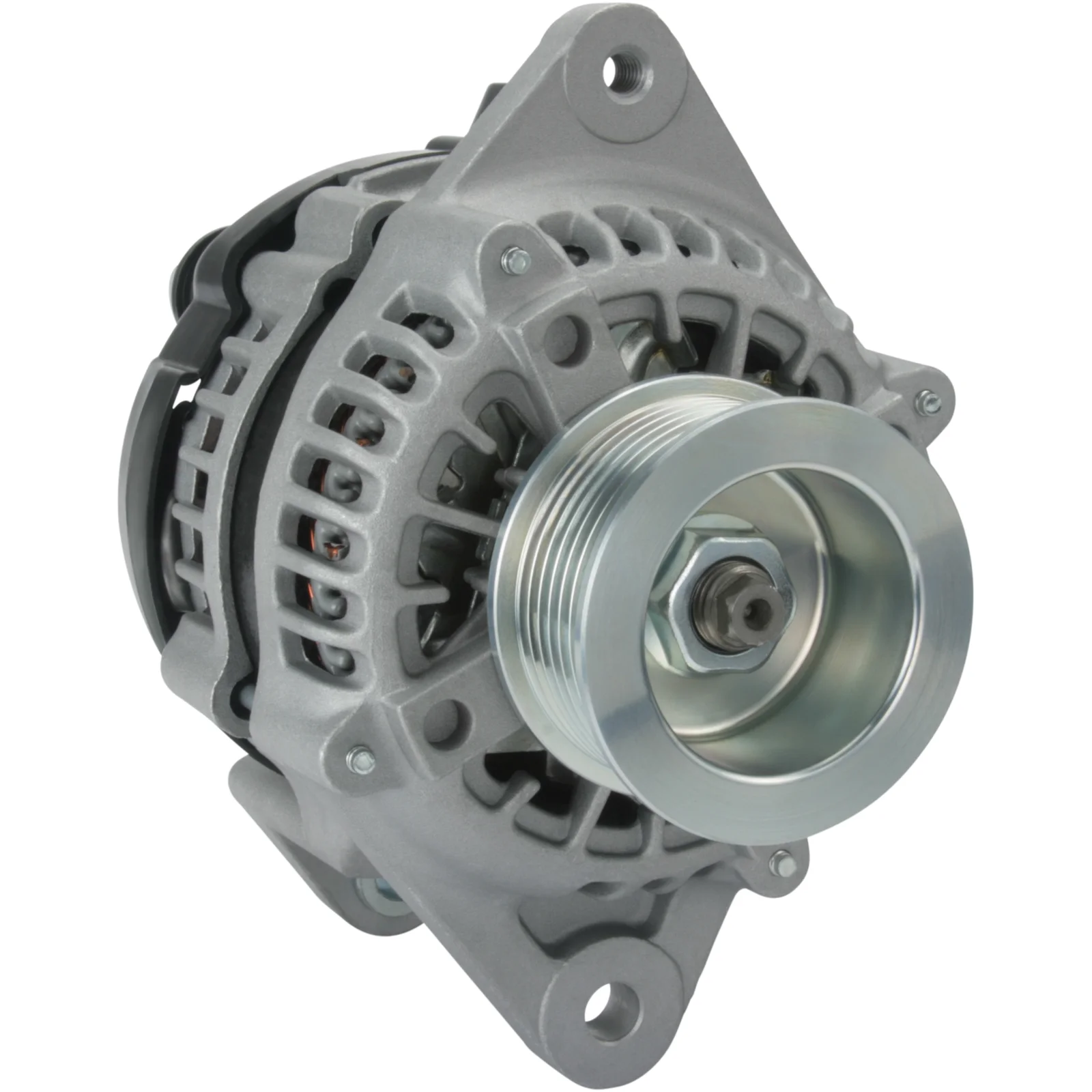

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 85, Rotation: clockwise, Mounting bracket distributor: 80.00

Description

Isuzu D-MAX 2.5D Gen. 12V-90A 12V - 90A, 7 grooves, ( - , L) For Your product order 90-250-4903 Voltage: 14 Amp: 85 Pulley distance: 43.00 Width/holder arm: 13.00 Mounting bracket distance: 80.00 Bracket hole: 10.20 Belt tensioning bracket hole position: 60 Belt tensioning bracket hole 1: M8 Pulley diameter: 62.50 Grooves/pulley: 7 Radius: 80.50 Radius 2: 80.50 B+: M8 Position/B+ in minutes: 5 D+ size: Plug Rotation: clockwise Plug number: PL100 Total length mm: 185.00 Pulley: SP Regulator type: IR Production info: BN

Files

  • OEM
    F032115683, TG1042109033, TG1042109840, 8-98196-5850, 8-98229-0710, 104210-9030, 104210-9031, 104210-9032, 104210-9033, 104210-9840, 104210-9841, 104210-9960, 115683, 8973697161, 8981530040, 8981965850, 8982290710, 8982290711, 8982903230

  • Normalised article numbler
    a6152, a6611s, cal40313, cal40584, dan1487, dra1314, f032115683, f042205224, lra03597, tg1042109033, tg1042109840, 8el015630551, 20212n, 115683, 286707, 287628, 287641, 554321ri, 12060997, 135573080, 135573090, 135928090, 243130802, 1042109030, 1042109031, 1042109032, 1042109033, 1042109840, 1042109841, 1042109960, 8973697161, 8981530040, 8981965850, 8982290710, 8982290711, 8982903230
  • Description
    Isuzu D-MAX 2.5D Gen. 12V-90A 12V - 90A, 7 grooves, ( - , L) For Your product order 90-250-4903 Voltage: 14 Amp: 85 Pulley distance: 43.00 Width/holder arm: 13.00 Mounting bracket distance: 80.00 Bracket hole: 10.20 Belt tensioning bracket hole position: 60 Belt tensioning bracket hole 1: M8 Pulley diameter: 62.50 Grooves/pulley: 7 Radius: 80.50 Radius 2: 80.50 B+: M8 Position/B+ in minutes: 5 D+ size: Plug Rotation: clockwise Plug number: PL100 Total length mm: 185.00 Pulley: SP Regulator type: IR Production info: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032115683, TG1042109033, TG1042109840, 8-98196-5850, 8-98229-0710, 104210-9030, 104210-9031, 104210-9032, 104210-9033, 104210-9840, 104210-9841, 104210-9960, 115683, 8973697161, 8981530040, 8981965850, 8982290710, 8982290711, 8982903230

    • Normalised article numbler
      a6152, a6611s, cal40313, cal40584, dan1487, dra1314, f032115683, f042205224, lra03597, tg1042109033, tg1042109840, 8el015630551, 20212n, 115683, 286707, 287628, 287641, 554321ri, 12060997, 135573080, 135573090, 135928090, 243130802, 1042109030, 1042109031, 1042109032, 1042109033, 1042109840, 1042109841, 1042109960, 8973697161, 8981530040, 8981965850, 8982290710, 8982290711, 8982903230
