HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116304

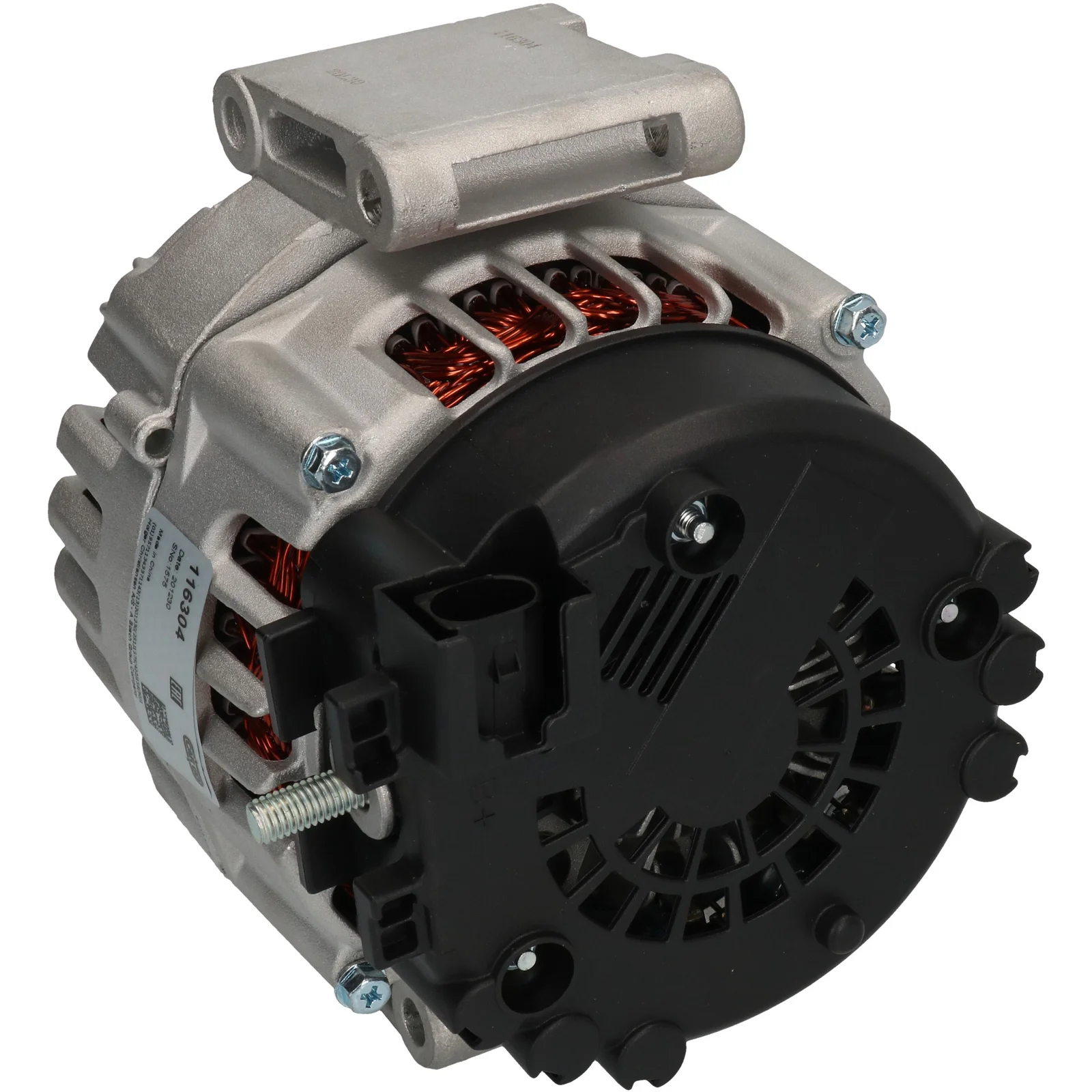

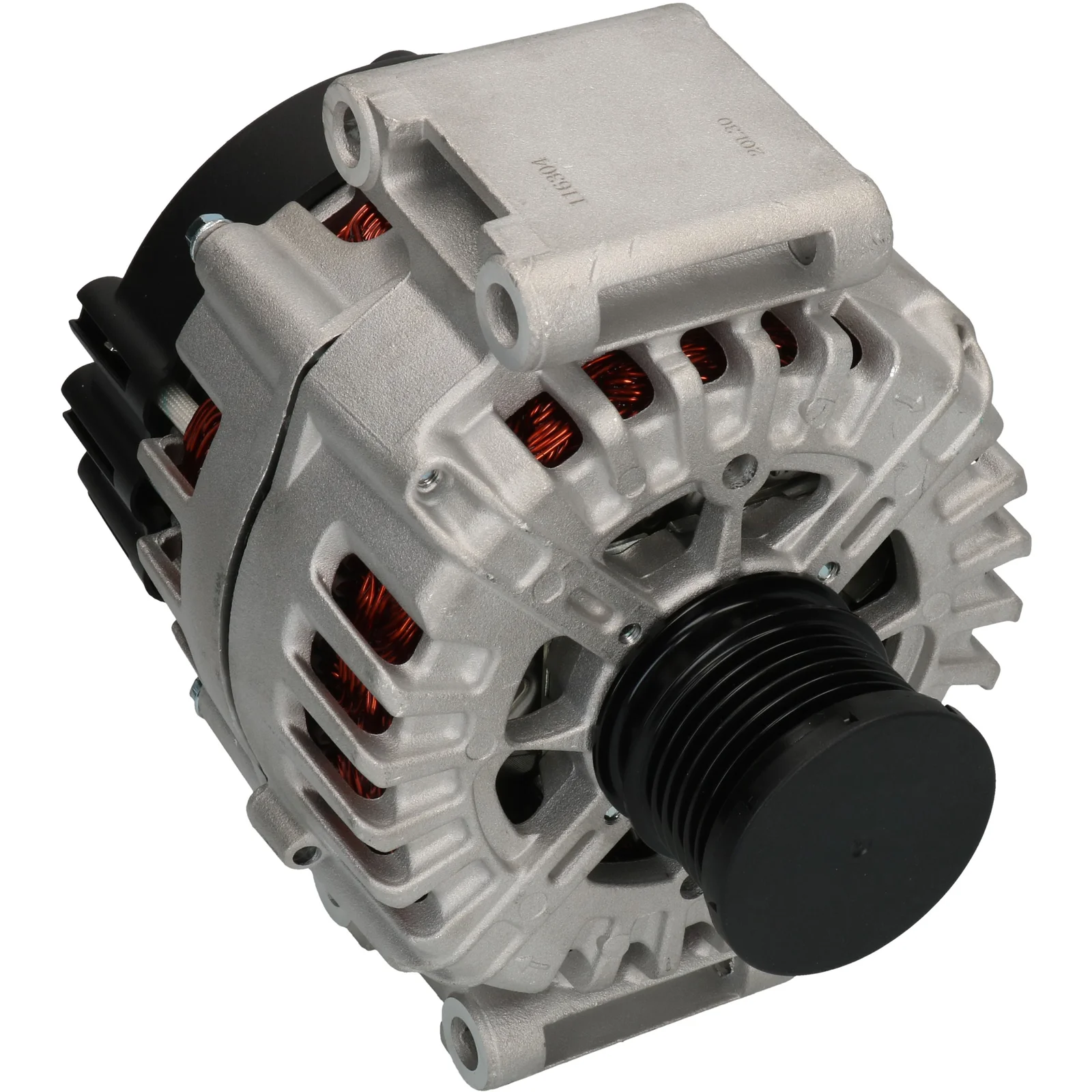

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 180, Rotation: CW, Mounting bracket distributor: 55.80

Description

Alternator 12V-180A (MB) 12V - 180A, 6 grooves, (LIN) Vehicles WITHOUT Start/Stop Vehicles WITHOUT Start/Stop For Yourrex product order 90-365-1439 Voltage: 14 Amp: 180 Pulley distance: 31.60 Width/holder arm: 70.00 Mounting bracket distance: 55.80 Bracket hole: 9.20 Belt adjustment bracket hole 1: 8.50 Pulley diameter: 50.00 Grooves/pulley: 6 Radius: 81.50 Radius 2: 81.50 B+: M8 Position/B+ in min.: 15 Rotation: CW Plug no.: PL125 Total length mm: 193.00 Terminal type: COM ID Code: 41 Communication: LIN Pulley: SP/FW Fan: IF Regulator type: IR Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    A014 1543902, A0141543902, A01415439020080, A0141543902080, A014154390280, A3466S, CAL15564, DRA1067, F032116304, FG18S 047, FG18S047, FGN18S047, LRA03471, 014 154 3902, 28-6581, 95 608 852, 225.304.1802, 555.592.180, 11738N, 116304, 209175, 209175A, 439704, 440295, 553550RI, 2607384, 2607384A, 9090678, 12090646, 0141543902, 141543902, 014154390280, 0141543902080, 01415439020080

  • Normalised article numbler
    a0141543902, a01415439020080, a0141543902080, a014154390280, a3466s, cal15564, dra1067, f032116304, fg18s047, fgn18s047, lra03471, 11738n, 116304, 209175, 209175a, 286581, 439704, 440295, 553550ri, 2607384, 2607384a, 9090678, 12090646, 95608852, 0141543902, 141543902, 555592180, 2253041802, 014154390280, 0141543902080, 01415439020080
  • Description
    Alternator 12V-180A (MB) 12V - 180A, 6 grooves, (LIN) Vehicles WITHOUT Start/Stop Vehicles WITHOUT Start/Stop For Yourrex product order 90-365-1439 Voltage: 14 Amp: 180 Pulley distance: 31.60 Width/holder arm: 70.00 Mounting bracket distance: 55.80 Bracket hole: 9.20 Belt adjustment bracket hole 1: 8.50 Pulley diameter: 50.00 Grooves/pulley: 6 Radius: 81.50 Radius 2: 81.50 B+: M8 Position/B+ in min.: 15 Rotation: CW Plug no.: PL125 Total length mm: 193.00 Terminal type: COM ID Code: 41 Communication: LIN Pulley: SP/FW Fan: IF Regulator type: IR Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      A014 1543902, A0141543902, A01415439020080, A0141543902080, A014154390280, A3466S, CAL15564, DRA1067, F032116304, FG18S 047, FG18S047, FGN18S047, LRA03471, 014 154 3902, 28-6581, 95 608 852, 225.304.1802, 555.592.180, 11738N, 116304, 209175, 209175A, 439704, 440295, 553550RI, 2607384, 2607384A, 9090678, 12090646, 0141543902, 141543902, 014154390280, 0141543902080, 01415439020080

    • Normalised article numbler
      a0141543902, a01415439020080, a0141543902080, a014154390280, a3466s, cal15564, dra1067, f032116304, fg18s047, fgn18s047, lra03471, 11738n, 116304, 209175, 209175a, 286581, 439704, 440295, 553550ri, 2607384, 2607384a, 9090678, 12090646, 95608852, 0141543902, 141543902, 555592180, 2253041802, 014154390280, 0141543902080, 01415439020080
