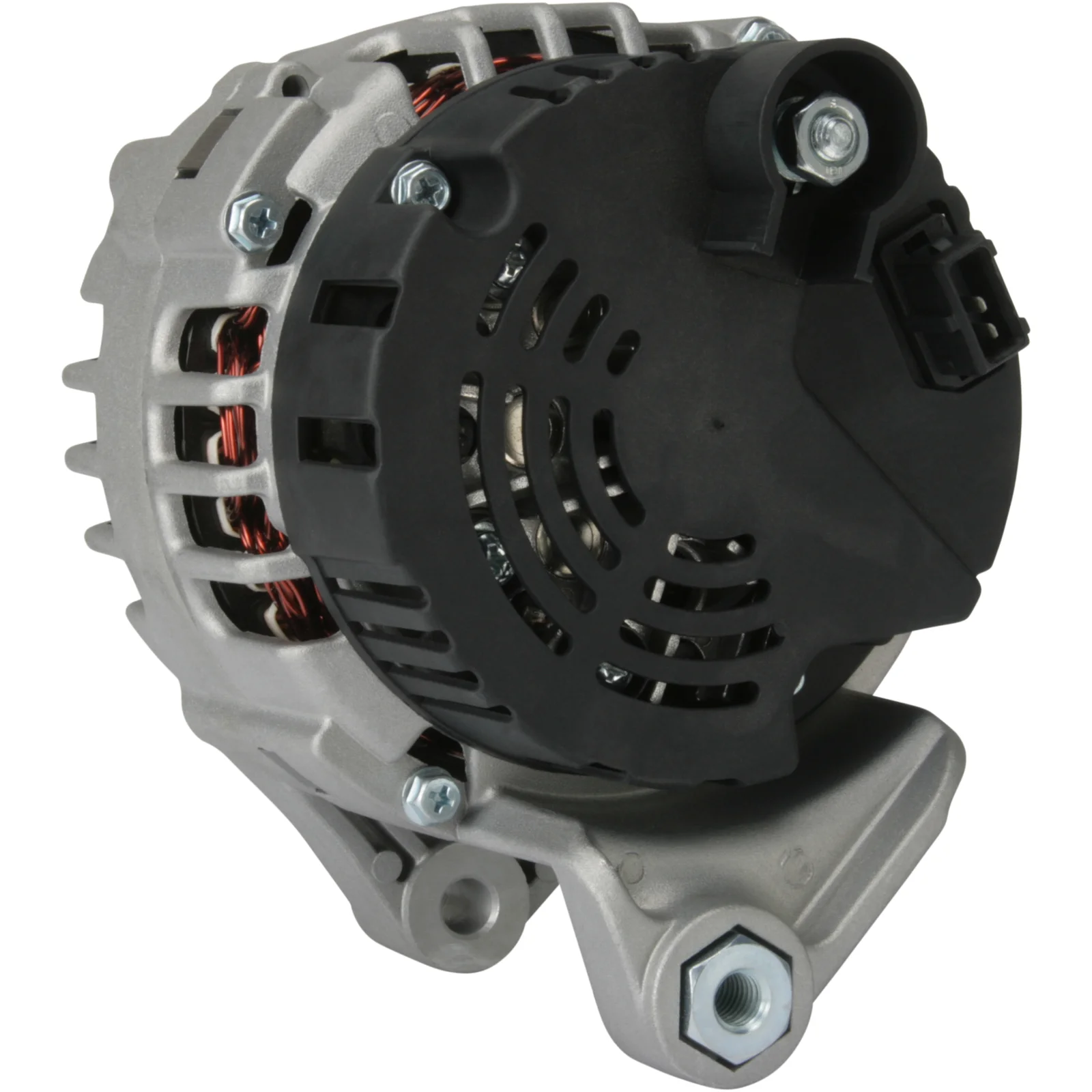

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115307

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 120, Rotation: CW, Mounting bracket distance: 75.50

Description

Voltage: 14
Amp: 120
Pulley distance: 69.00
Width/holder arm: 28.00
Mounting bracket distance: 75.50
Bracket hole: 10.50
Belt adjustment bracket hole position: 45
Belt adjustment bracket hole 1: 10.50

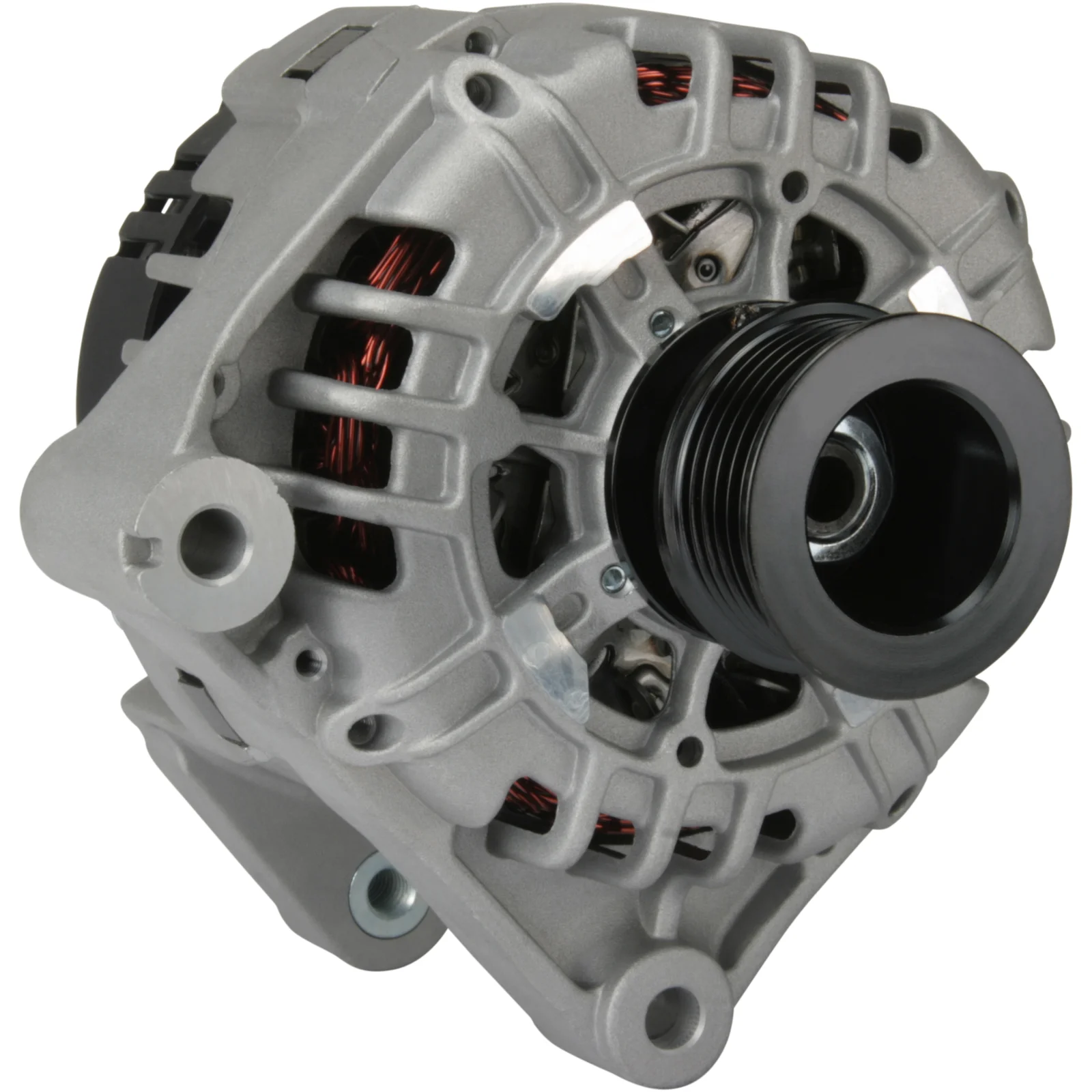

Pulley diameter: 52.50
Grooves/pulley: 6
B+: M8
Position/B+ in minimum: 1
Rotation: CW
Plug number: PL215
Pulley: SP
Voltage regulator type: IR
Product information: BN

Files

  • OEM
    F032115307, sg12b039, 1982ir, 2542432, 2542432B, 7830791, 7831436, 12317830791, 12317831436

  • Normalised article numbler
    a3537s, cal15277, dra0251, f032115307, sg12b039, 8el738212281, 1982ir, 13974, 13974n, 13974r, 200268, 210012, 210012a, 283862, 301982ri, 437320, 747080, 2542432, 2542432b, 7830791, 7831436, 12090527, 2151391202, 12317830791, 12317831436
  • Description
    Voltage: 14
    Amp: 120
    Pulley distance: 69.00
    Width/holder arm: 28.00
    Mounting bracket distance: 75.50
    Bracket hole: 10.50
    Belt adjustment bracket hole position: 45
    Belt adjustment bracket hole 1: 10.50
    Pulley diameter: 52.50
    Grooves/pulley: 6
    B+: M8
    Position/B+ in minimum: 1
    Rotation: CW
    Plug number: PL215
    Pulley: SP
    Voltage regulator type: IR
    Product information: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032115307, sg12b039, 1982ir, 2542432, 2542432B, 7830791, 7831436, 12317830791, 12317831436

    • Normalised article numbler
      a3537s, cal15277, dra0251, f032115307, sg12b039, 8el738212281, 1982ir, 13974, 13974n, 13974r, 200268, 210012, 210012a, 283862, 301982ri, 437320, 747080, 2542432, 2542432b, 7830791, 7831436, 12090527, 2151391202, 12317830791, 12317831436
