HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032111980

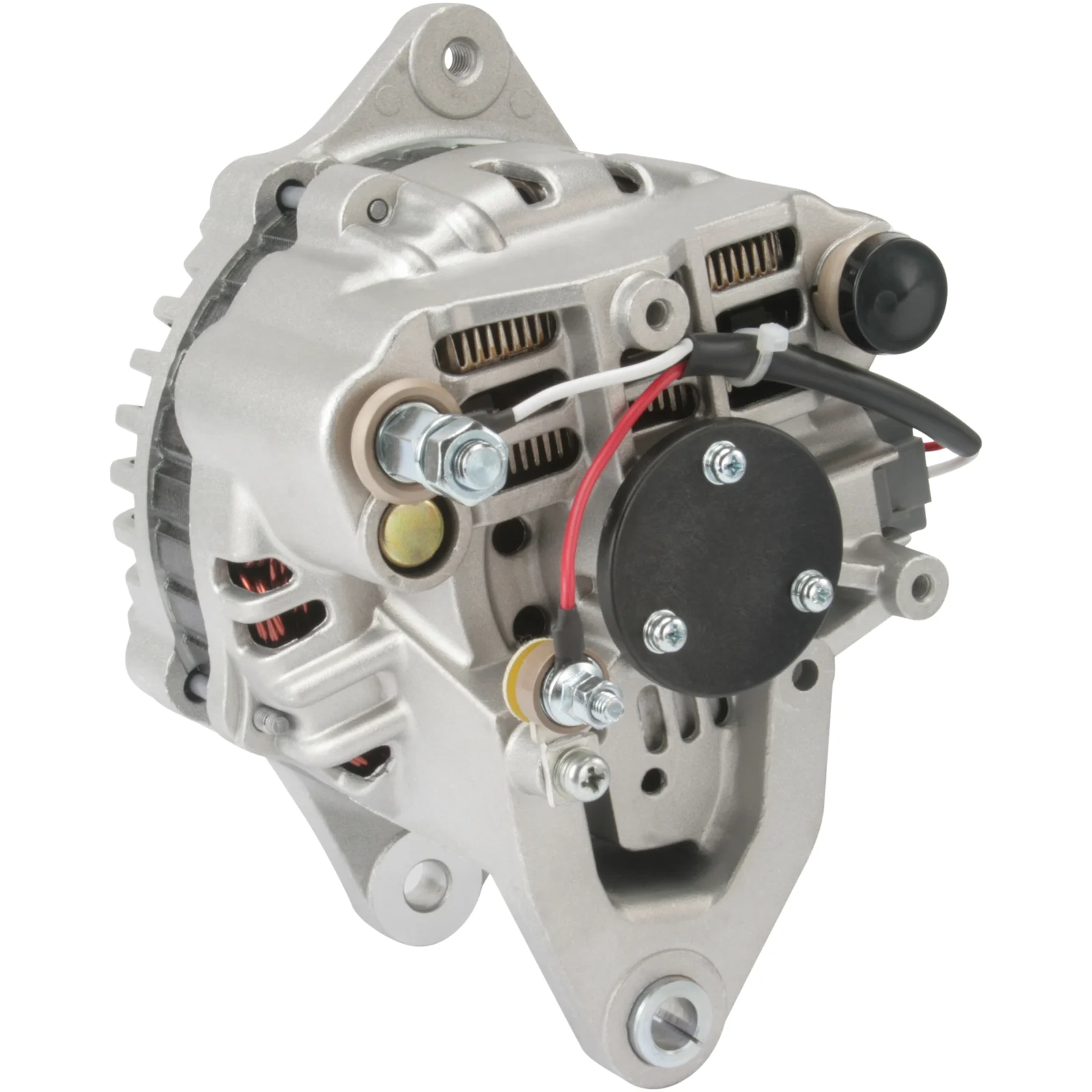

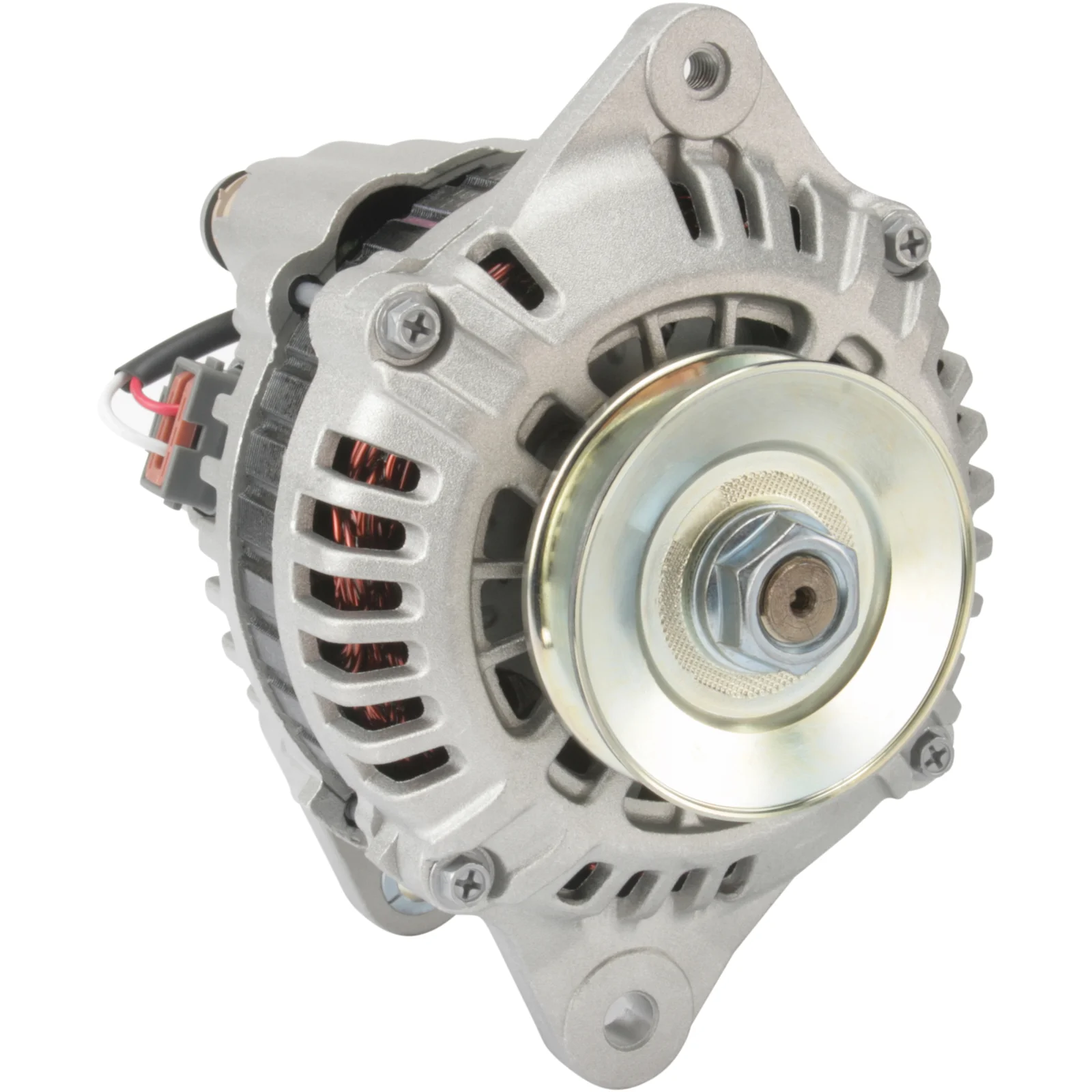

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 70, Rotation: CW, Mounting bracket distributor: 81.00

Description

Voltage: 14
Amp: 70
Pulley dist.: 42.00
Width/holder arm: 13.00
Mounting bracket dist.: 81.00
Bracket hole: 10.20
Belt adjustment bracket hole position: 60
Belt adjustment bracket hole 1: M8
Pulley diameter: 78.00
Grooves/pulley: 1
Radius: 90.00
Radius 2: 85.00
B+: M8
Position/B+ in min.: 50
D+ Size: M5
Rotation: CW
Total length mm: 179.00
Pulley: P
Regulator type: IR
Product info: BN/OE
Servicing: Nissan
Info: No W terminal

Files

  • OEM
    F032111980, ja1364ir, 1986A01475, 23100-7f000, 23100-7f001, 1959007, 0123310033, 0123310051

  • Normalised article numbler
    a0731s, alt10171, alth075, cal10330, cal45111, drb0850, f032111980, f042a0h075, j5111106, ja1364ir, lra01712, 8el011711691, 8el737548001, 1986a01475, 6011, 9222, 22712r, 118984, 210110, 210110a, 231007f000, 231007f001, 282968, 401364ri, 437715, 1959007, 12060725, 12060800, 0123310033, 0123310051, 227160702, 0986040850, 943355029010, 944390408500
  • Description
    Voltage: 14
    Amp: 70
    Pulley dist.: 42.00
    Width/holder arm: 13.00
    Mounting bracket dist.: 81.00
    Bracket hole: 10.20
    Belt adjustment bracket hole position: 60
    Belt adjustment bracket hole 1: M8
    Pulley diameter: 78.00
    Grooves/pulley: 1
    Radius: 90.00
    Radius 2: 85.00
    B+: M8
    Position/B+ in min.: 50
    D+ Size: M5
    Rotation: CW
    Total length mm: 179.00
    Pulley: P
    Regulator type: IR
    Product info: BN/OE
    Servicing: Nissan
    Info: No W terminal

    Files

  • Suitable for these vehicles

    • OEM
      F032111980, ja1364ir, 1986A01475, 23100-7f000, 23100-7f001, 1959007, 0123310033, 0123310051

    • Normalised article numbler
      a0731s, alt10171, alth075, cal10330, cal45111, drb0850, f032111980, f042a0h075, j5111106, ja1364ir, lra01712, 8el011711691, 8el737548001, 1986a01475, 6011, 9222, 22712r, 118984, 210110, 210110a, 231007f000, 231007f001, 282968, 401364ri, 437715, 1959007, 12060725, 12060800, 0123310033, 0123310051, 227160702, 0986040850, 943355029010, 944390408500
