Article no.: F032113950

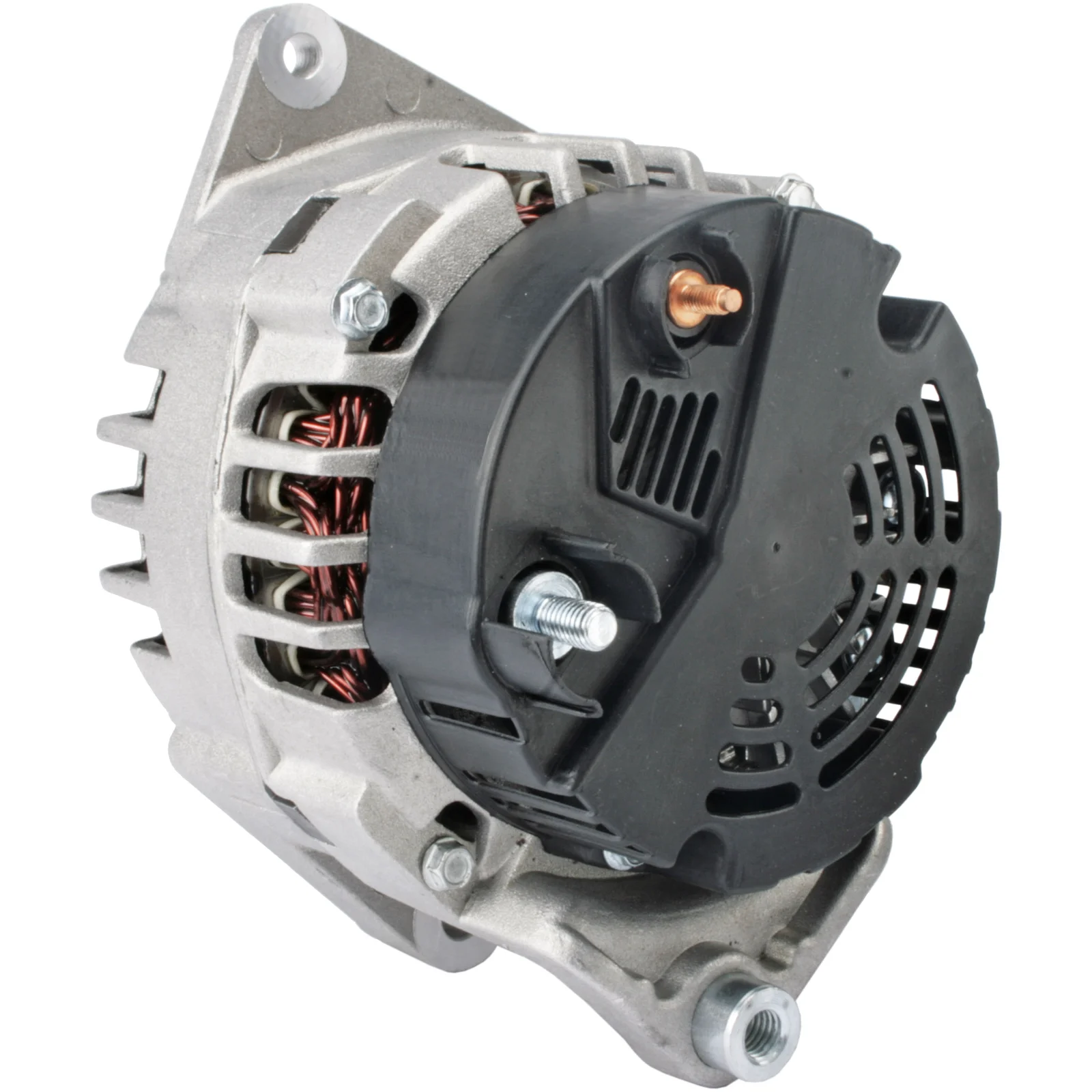

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 90, Rotation: CW, Mounting bracket distributor: 67.00

Description

Voltage: 14
Amp: 90
Pulley distance: 52.50
Width/holder arm: 26.40
Mounting bracket distance: 67.00
Bracket hole: 10.30
Belt adjustment bracket hole position: 3
Belt adjustment bracket hole 1: 8.50
Pulley diameter: 60.00
Grooves/pulley: 6
Radius: 88.50
Radius 2: 92.50
B+: M8
Position/B+ in min.: 44
D+ Size: M5
Rotation: CW
Total length mm: 179.00
Pulley: SP
Regulator type: IR
Product information: BN

Files

  • OEM
    A3053SR, A3314, ALT-7225, CAL15313, DRA4267, F032113950, F042208036, F042A0B014, SG9B054, 8EL012426-361, 8EL738191-001, 28-4689, 218.177.902, 1781ir, 4759, 5702C0, 5702C1, 5705AF, 5705AK, 5705C0, 5705C1, 5705EV, 23222R, 23223N, 111857, 210586, 210586A, 301781RI, 437431, 439472, 747055, 2542708, 2542708A, 2542708B, 12090123, 037903025D, 71721786, 71723395, 71723396, 71780140, 500371244, 504033459, 0986080030, 944390901980

  • Normalised article numbler
    a3053sr, a3314, alt7225, cal15313, dra4267, f032113950, f042208036, f042a0b014, sg9b054, 8el012426361, 8el738191001, 1781ir, 4759, 5702c0, 5702c1, 5705af, 5705ak, 5705c0, 5705c1, 5705ev, 23222r, 23223n, 111857, 210586, 210586a, 284689, 301781ri, 437431, 439472, 747055, 2542708, 2542708a, 2542708b, 12090123, 037903025d, 71721786, 71723395, 71723396, 71780140, 218177902, 500371244, 504033459, 0986080030, 944390901980
  • Description
    Voltage: 14
    Amp: 90
    Pulley distance: 52.50
    Width/holder arm: 26.40
    Mounting bracket distance: 67.00
    Bracket hole: 10.30
    Belt adjustment bracket hole position: 3
    Belt adjustment bracket hole 1: 8.50
    Pulley diameter: 60.00
    Grooves/pulley: 6
    Radius: 88.50
    Radius 2: 92.50
    B+: M8
    Position/B+ in min.: 44
    D+ Size: M5
    Rotation: CW
    Total length mm: 179.00
    Pulley: SP
    Regulator type: IR
    Product information: BN

    Files

  • Suitable for these vehicles

    • OEM
      A3053SR, A3314, ALT-7225, CAL15313, DRA4267, F032113950, F042208036, F042A0B014, SG9B054, 8EL012426-361, 8EL738191-001, 28-4689, 218.177.902, 1781ir, 4759, 5702C0, 5702C1, 5705AF, 5705AK, 5705C0, 5705C1, 5705EV, 23222R, 23223N, 111857, 210586, 210586A, 301781RI, 437431, 439472, 747055, 2542708, 2542708A, 2542708B, 12090123, 037903025D, 71721786, 71723395, 71723396, 71780140, 500371244, 504033459, 0986080030, 944390901980

    • Normalised article numbler
      a3053sr, a3314, alt7225, cal15313, dra4267, f032113950, f042208036, f042a0b014, sg9b054, 8el012426361, 8el738191001, 1781ir, 4759, 5702c0, 5702c1, 5705af, 5705ak, 5705c0, 5705c1, 5705ev, 23222r, 23223n, 111857, 210586, 210586a, 284689, 301781ri, 437431, 439472, 747055, 2542708, 2542708a, 2542708b, 12090123, 037903025d, 71721786, 71723395, 71723396, 71780140, 218177902, 500371244, 504033459, 0986080030, 944390901980
