HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115532

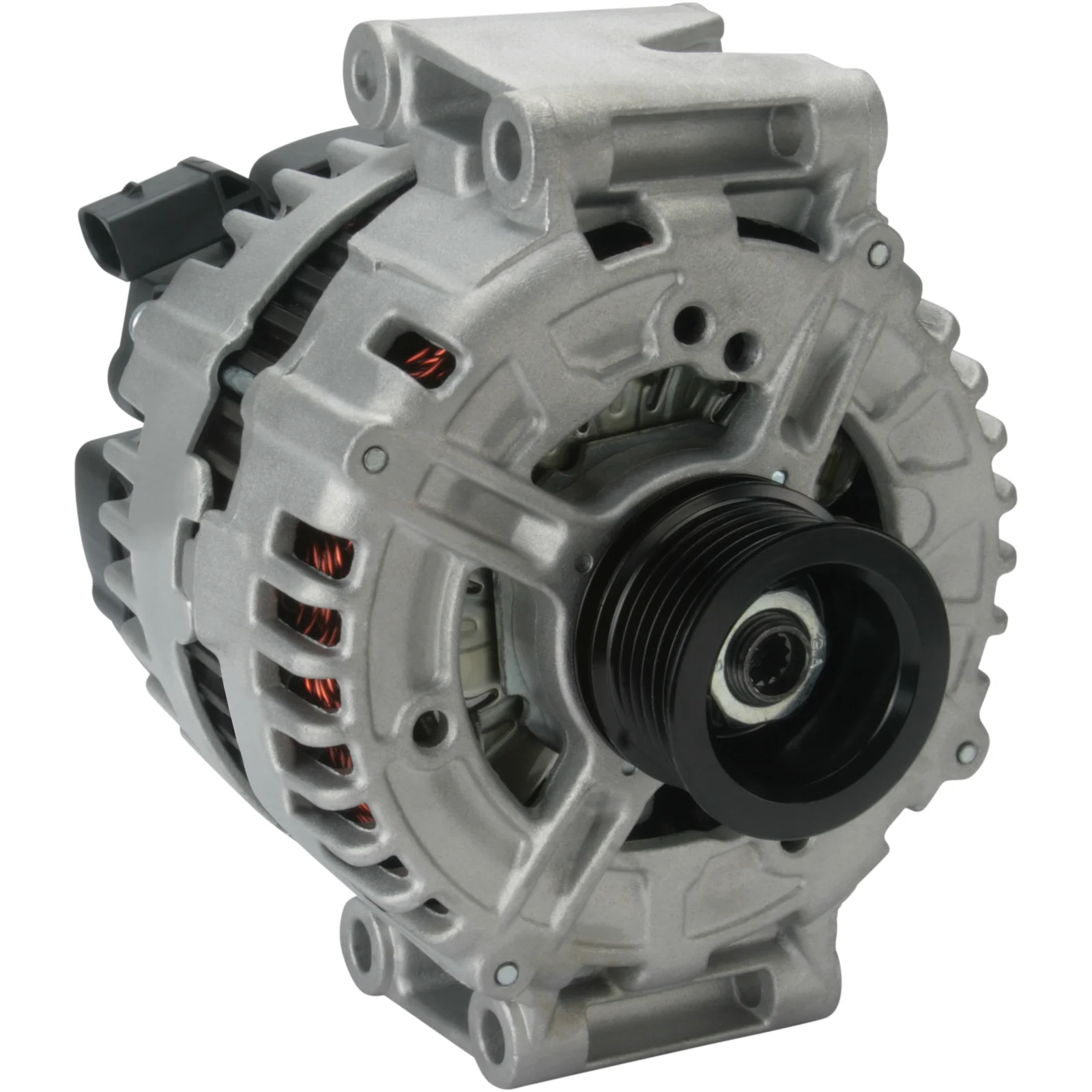

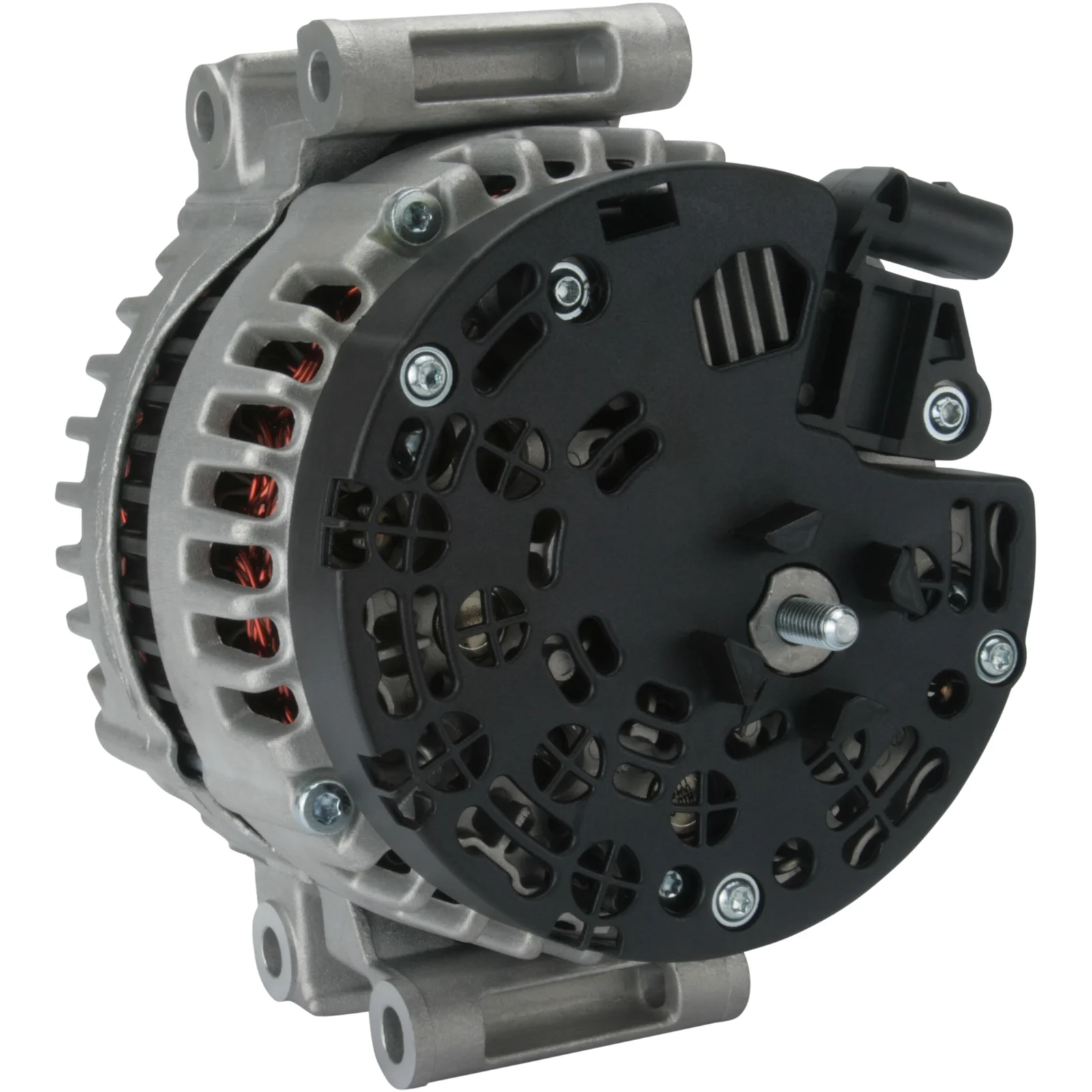

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 180, Rotation: CW, Mounting bracket distributor: 56.00

Description

Voltage: 14
Amp: 180
Pulley dist.: 32.00
Width/holder arm: 70.00
Mount. bracket dist.: 56.00
Bracket hole: 9.00
Bracket hole 2: 9.00
Belt. adj. brackethole pos.: 60
Pulley dia.: 50.00
Grooves/pulley: 6
B+: M8
Position/B+ in min.: 50
Rotation: CW
Plug no.: PL86
Total length mm: 182.00
Terminal type: COM
Communication: LIN
Pulley: SP
Prod. info: BN
Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    a0131543502, A013154350280, a0131545602, A013154560280, A013154560283, a1561540102, A156154010280, A2721540802, F032115532, 1986A00766, 1986A01098, 438717, 442272, 0121715006, 0121715007, 0121715014, 0121715107, 0121715114, 0131543502, 0131545602, 1561540102, 2721540802, 013154350280, 013154560280, 013154560283, 156154010280

  • Normalised article numbler
    a0131543502, a013154350280, a0131545602, a013154560280, a013154560283, a0286, a0290, a0442, a1561540102, a156154010280, a2721540802, cal10390, cal10551, cal15384, dra0378, drb7670, f032115532, f042205209, lra03111, lra03573, 1986a00766, 1986a01098, 11220n, 11303n, 11303r, 11455n, 11455r, 112231, 209267, 209267a, 285723, 286683, 438717, 440925, 442272, 443272, 9047670, 12047650, 12047670, 12047860, 32047860, 32439649, 0121715006, 0121715007, 0121715014, 0121715107, 0121715114, 0131543502, 0131545602, 555559180, 0986047650, 0986047653, 0986047670, 0986047673, 0986047674, 0986047677, 0986047860, 0986047863, 0986047867, 1561540102, 2251821802, 2253081802, 2721540802, 013154350280, 013154560280, 013154560283, 156154010280
  • Description
    Voltage: 14
    Amp: 180
    Pulley dist.: 32.00
    Width/holder arm: 70.00
    Mount. bracket dist.: 56.00
    Bracket hole: 9.00
    Bracket hole 2: 9.00
    Belt. adj. brackethole pos.: 60
    Pulley dia.: 50.00
    Grooves/pulley: 6
    B+: M8
    Position/B+ in min.: 50
    Rotation: CW
    Plug no.: PL86
    Total length mm: 182.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP
    Prod. info: BN
    Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      a0131543502, A013154350280, a0131545602, A013154560280, A013154560283, a1561540102, A156154010280, A2721540802, F032115532, 1986A00766, 1986A01098, 438717, 442272, 0121715006, 0121715007, 0121715014, 0121715107, 0121715114, 0131543502, 0131545602, 1561540102, 2721540802, 013154350280, 013154560280, 013154560283, 156154010280

    • Normalised article numbler
      a0131543502, a013154350280, a0131545602, a013154560280, a013154560283, a0286, a0290, a0442, a1561540102, a156154010280, a2721540802, cal10390, cal10551, cal15384, dra0378, drb7670, f032115532, f042205209, lra03111, lra03573, 1986a00766, 1986a01098, 11220n, 11303n, 11303r, 11455n, 11455r, 112231, 209267, 209267a, 285723, 286683, 438717, 440925, 442272, 443272, 9047670, 12047650, 12047670, 12047860, 32047860, 32439649, 0121715006, 0121715007, 0121715014, 0121715107, 0121715114, 0131543502, 0131545602, 555559180, 0986047650, 0986047653, 0986047670, 0986047673, 0986047674, 0986047677, 0986047860, 0986047863, 0986047867, 1561540102, 2251821802, 2253081802, 2721540802, 013154350280, 013154560280, 013154560283, 156154010280
