Article no.: F032113718

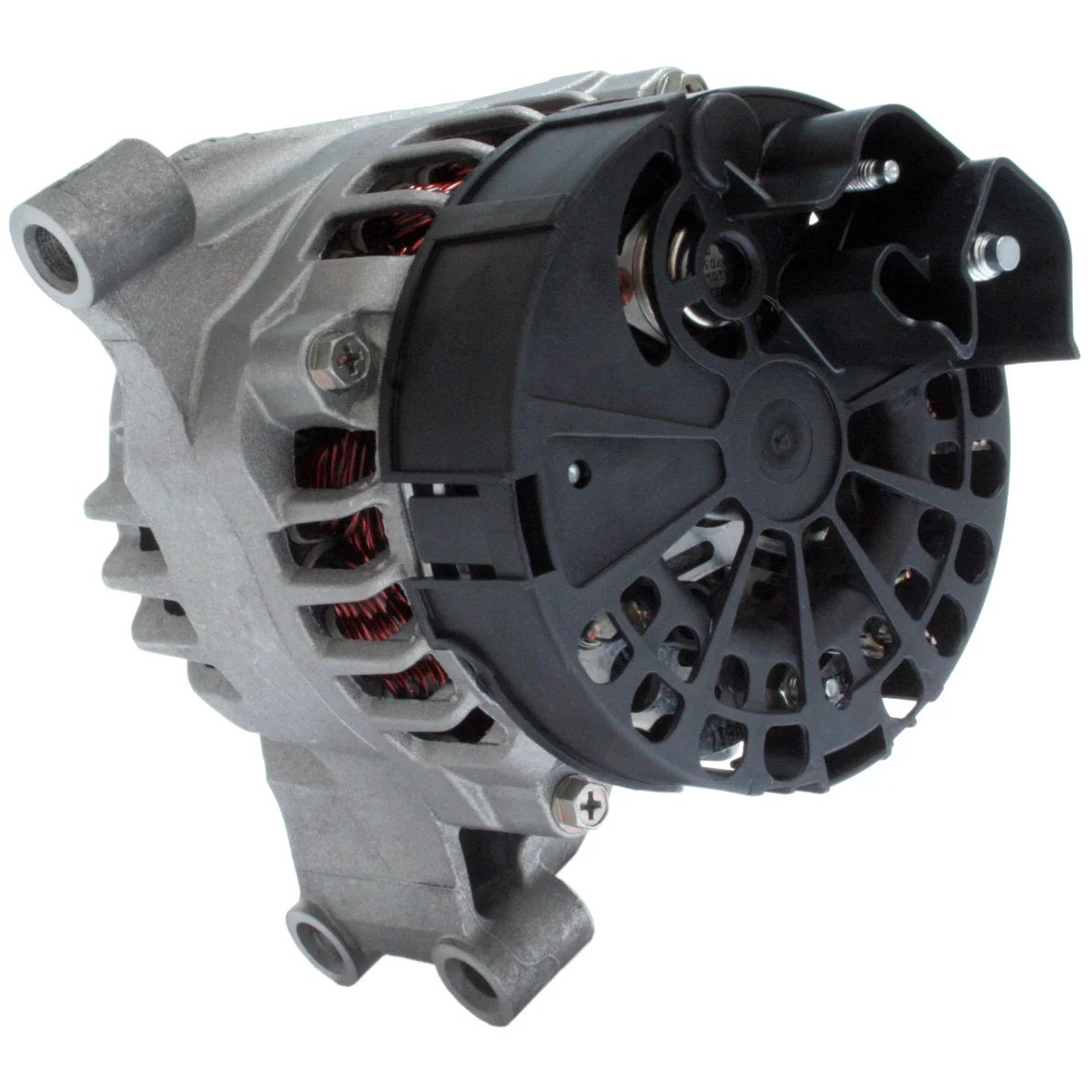

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 70, Rotation: CW, Mount. bracket dist.: 50.00

Description

Voltage: 14
Amp: 70
Pulley distance: 16.50
Width/holder arm: 23.50
Mounting bracket distance: 50.00
Bracket hole: 8.50
Bracket hole 2: 8.60
Belt adjustment bracket hole 1: 8.50
Pulley diameter: 53.00
Grooves/pulley: 5
B+: M8
D+ Size: M5
Rotation: CW
Total length mm: 184.50
Pulley: SP
Voltage regulator type: IR
Product info: BN
Servicing: Fiat

Files

  • OEM
    F032113718, 1766ir, 1986A00584, 102211-8230, 102211-8430, 102211-8431, 102211-8440, 102211-8441, 46542889, 46843091, 51709133, 51714794, 51859037, 52003531, 63321718, 63377002, 63377006, 63377008

  • Normalised article numbler
    a4127pr, a4131s, a6269denso, a6626denso, alt4233, cal30171, cal30176, cal30187, dan517, dan591, dan596, dendan517, dendan591, dendan596, dra0007, dra0007n, f032113718, f042208017, f042a07027, ga16718, lea0710, lra02266, lra02545, 8el012428381, 8el738161001, 1766ir, 1986a00584, 4750, 23266r, 23545r, 23800n, 112176, 112434, 200041, 210659, 210659a, 210661, 210661a, 284746, 284889, 301766ri, 12049080, 32049540, 32118440, 46542889, 46843091, 51709133, 51714794, 51859037, 52003531, 63321718, 063377002, 63377002, 063377006, 63377006, 063377008, 63377008, 218172702, 218172752, 505560070, 0986049081, 1022118230, 1022118430, 1022118431, 1022118440, 1022118441, 063377002010, 063377006010, 063377008010, 944390901880, 944390901940
  • Description
    Voltage: 14
    Amp: 70
    Pulley distance: 16.50
    Width/holder arm: 23.50
    Mounting bracket distance: 50.00
    Bracket hole: 8.50
    Bracket hole 2: 8.60
    Belt adjustment bracket hole 1: 8.50
    Pulley diameter: 53.00
    Grooves/pulley: 5
    B+: M8
    D+ Size: M5
    Rotation: CW
    Total length mm: 184.50
    Pulley: SP
    Voltage regulator type: IR
    Product info: BN
    Servicing: Fiat

    Files

  • Suitable for these vehicles

    • OEM
      F032113718, 1766ir, 1986A00584, 102211-8230, 102211-8430, 102211-8431, 102211-8440, 102211-8441, 46542889, 46843091, 51709133, 51714794, 51859037, 52003531, 63321718, 63377002, 63377006, 63377008

    • Normalised article numbler
      a4127pr, a4131s, a6269denso, a6626denso, alt4233, cal30171, cal30176, cal30187, dan517, dan591, dan596, dendan517, dendan591, dendan596, dra0007, dra0007n, f032113718, f042208017, f042a07027, ga16718, lea0710, lra02266, lra02545, 8el012428381, 8el738161001, 1766ir, 1986a00584, 4750, 23266r, 23545r, 23800n, 112176, 112434, 200041, 210659, 210659a, 210661, 210661a, 284746, 284889, 301766ri, 12049080, 32049540, 32118440, 46542889, 46843091, 51709133, 51714794, 51859037, 52003531, 63321718, 063377002, 63377002, 063377006, 63377006, 063377008, 63377008, 218172702, 218172752, 505560070, 0986049081, 1022118230, 1022118430, 1022118431, 1022118440, 1022118441, 063377002010, 063377006010, 063377008010, 944390901880, 944390901940
