Article no.: F032111990

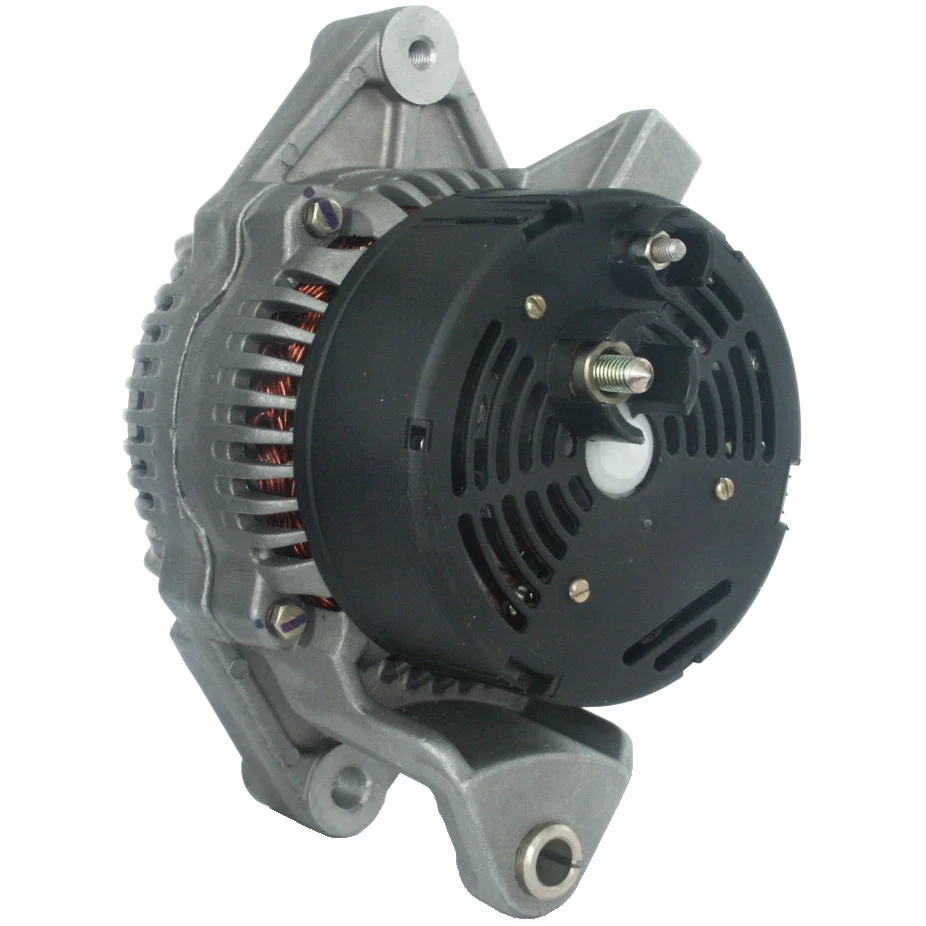

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperes: 70, Rotation: CW, Mounting bracket distance: 56.00

Description

Voltage: 14
Amp: 70
Pulley distance: 55.00
Width/holder arm: 33.50
Mounting bracket distance: 56.00
Bracket hole: 10.50
Belt adjustment bracket hole position: 60
Belt adjustment bracket hole 1: M8
Pulley diameter: 54.00
Grooves/pulley: 5
Radius: 92.00
Radius 2: 92.00
B+: M8
Position/B+ in min.: 55
D+ size: M5
Rotation: CW
Total length mm: 178.00
Pulley: SP
Regulator type: IR
Product info: BN
Servicing: Opel

Files

  • OEM
    C101972105, F032111990, R1530035, R1530082, SG7S021, 1391ir, 1986A00584, 913360, 1204123, 1516460R, 2542543, 6204076, 6204155, 6204192, 6204243, 9117931, 9129823, 09133600, 9133600, 9133601, 9192823, 9512180, 9512783, 13156051, 24463063, 90561970, 93175795, 93175942, 93180415, 93183891, 93189246, 93189266, 0124225002, 0124225024, 0124225046, 0124225050

  • Normalised article numbler
    a0788s, a6256denso, alt10035, alt7001, bao3254, c101972105, cal15289, dan1341, dra8190, drb1260, f032111990, f04230b000, f042a0b000, fra931, lrb00404, qa2380, r1530035, r1530082, sg7s021, 8el012428051, 8el737580001, 1391ir, 1986a00584, 4597, 6035, 21404r, 118983, 210352, 210352a, 283657, 301391ri, 437414, 439454, 913360, 1204123, 1516460r, 2542543, 6204076, 6204155, 6204192, 6204243, 9041260, 9117931, 9129823, 09133600, 9133600, 9133601, 9192823, 9213350, 9512180, 9512783, 12041260, 13156051, 24463063, 32041260, 35215230, 90561970, 93175795, 93175942, 93180415, 93183891, 93189246, 93189266, 0124225002, 0124225024, 0124225046, 0124225050, 228134702, 0986041260, 0986041263, 0986048223, 943355049010
  • Description
    Voltage: 14
    Amp: 70
    Pulley distance: 55.00
    Width/holder arm: 33.50
    Mounting bracket distance: 56.00
    Bracket hole: 10.50
    Belt adjustment bracket hole position: 60
    Belt adjustment bracket hole 1: M8
    Pulley diameter: 54.00
    Grooves/pulley: 5
    Radius: 92.00
    Radius 2: 92.00
    B+: M8
    Position/B+ in min.: 55
    D+ size: M5
    Rotation: CW
    Total length mm: 178.00
    Pulley: SP
    Regulator type: IR
    Product info: BN
    Servicing: Opel

    Files

  • Suitable for these vehicles

    • OEM
      C101972105, F032111990, R1530035, R1530082, SG7S021, 1391ir, 1986A00584, 913360, 1204123, 1516460R, 2542543, 6204076, 6204155, 6204192, 6204243, 9117931, 9129823, 09133600, 9133600, 9133601, 9192823, 9512180, 9512783, 13156051, 24463063, 90561970, 93175795, 93175942, 93180415, 93183891, 93189246, 93189266, 0124225002, 0124225024, 0124225046, 0124225050

    • Normalised article numbler
      a0788s, a6256denso, alt10035, alt7001, bao3254, c101972105, cal15289, dan1341, dra8190, drb1260, f032111990, f04230b000, f042a0b000, fra931, lrb00404, qa2380, r1530035, r1530082, sg7s021, 8el012428051, 8el737580001, 1391ir, 1986a00584, 4597, 6035, 21404r, 118983, 210352, 210352a, 283657, 301391ri, 437414, 439454, 913360, 1204123, 1516460r, 2542543, 6204076, 6204155, 6204192, 6204243, 9041260, 9117931, 9129823, 09133600, 9133600, 9133601, 9192823, 9213350, 9512180, 9512783, 12041260, 13156051, 24463063, 32041260, 35215230, 90561970, 93175795, 93175942, 93180415, 93183891, 93189246, 93189266, 0124225002, 0124225024, 0124225046, 0124225050, 228134702, 0986041260, 0986041263, 0986048223, 943355049010
