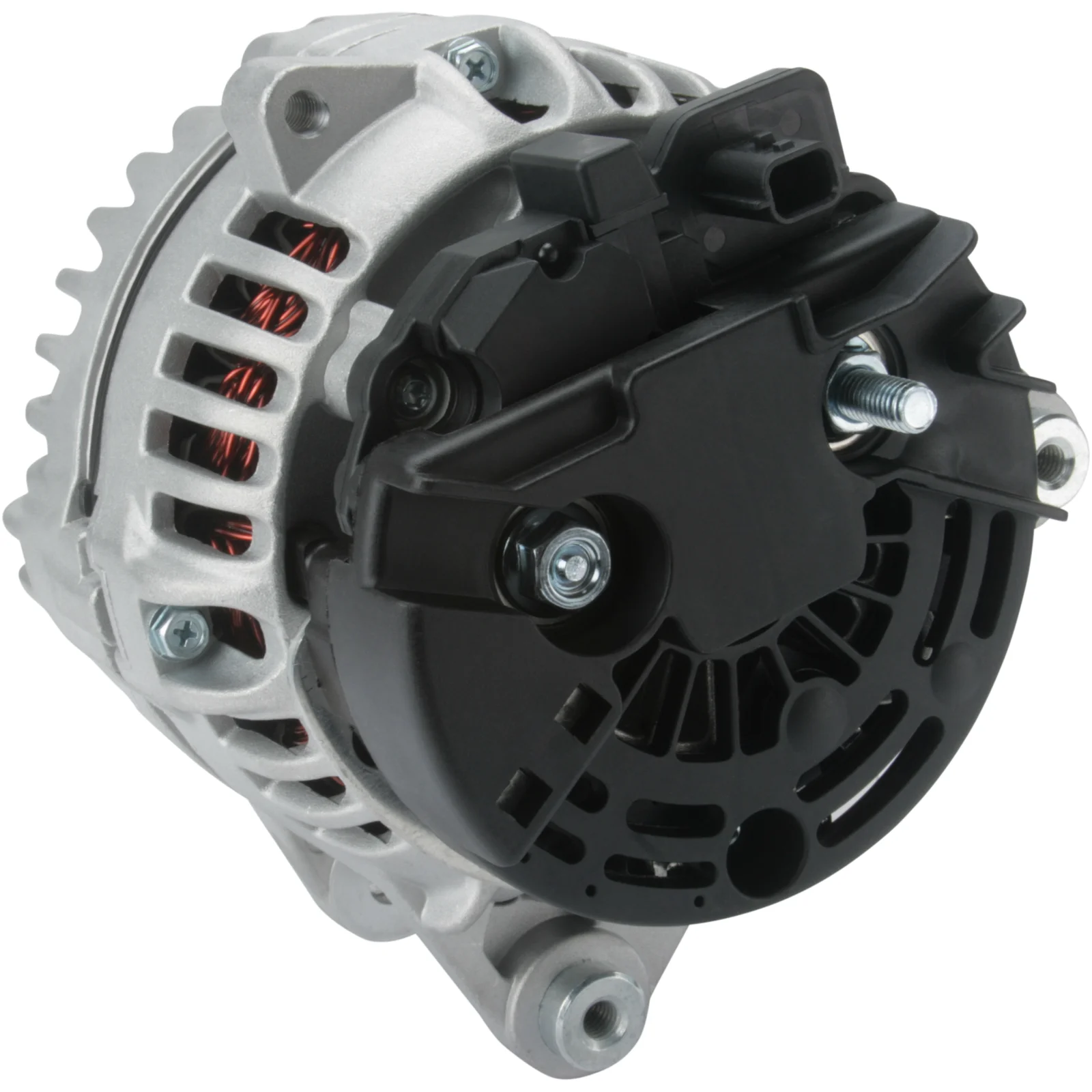

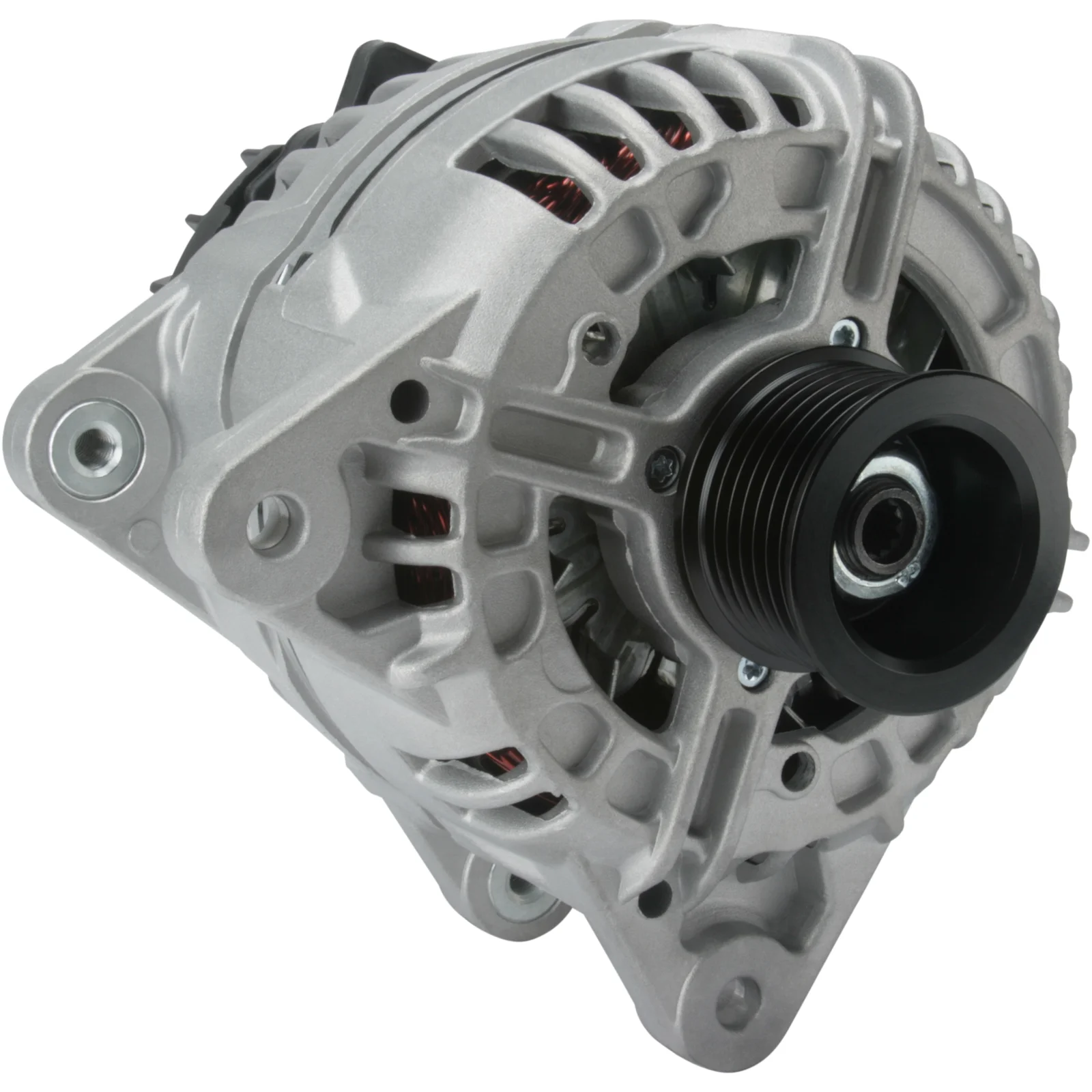

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115649

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 150, Rotation: clockwise, Mounting bracket distributor: 61.00

Description

Voltage: 14
Amp: 150
Pulley: Diameter: 33.00
Width/holder arm: 14.00
Mounting bracket distance: 61.00
Bracket hole: 8.50
Belt adjustment bracket hole position: 45
Belt adjustment bracket hole 1: 8.50
Pulley diameter: 49.00
Grooves/pulley: 7
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 10
Rotation: Clockwise
Plug no.: PL124
Total length mm: 193.00
Terminal type: COM
Communication: BSS
Pulley: SP
Voltage regulator: IR
Product information: BN
Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    A0369, CAL10496, DRA0553, F032115649, lea0786, LEA0786, LRA03168, 8EL012429-211, 8EL738211-851, 28-5780, 230.332.1402, 230.332.1502, 1918ir, 1986A00901, 20332N, 209404, 209404A, 301918RI, 440891, 443049, 443408, 9212553, 12090334, 32081100, 0124525101, 0124525151, 0124525538, 0986081100, 7711368601, 8200474219, 8200660041, 8200901783

  • Normalised article numbler
    a0369, cal10496, dra0553, f032115649, lea0786, lra03168, 8el012429211, 8el738211851, 1918ir, 1986a00901, 20332n, 209404, 209404a, 285780, 301918ri, 440891, 443049, 443408, 9212553, 12090334, 32081100, 0124525101, 0124525151, 0124525538, 0986081100, 2303321402, 2303321502, 7711368601, 8200474219, 8200660041, 8200901783
  • Description
    Voltage: 14
    Amp: 150
    Pulley: Diameter: 33.00
    Width/holder arm: 14.00
    Mounting bracket distance: 61.00
    Bracket hole: 8.50
    Belt adjustment bracket hole position: 45
    Belt adjustment bracket hole 1: 8.50
    Pulley diameter: 49.00
    Grooves/pulley: 7
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 10
    Rotation: Clockwise
    Plug no.: PL124
    Total length mm: 193.00
    Terminal type: COM
    Communication: BSS
    Pulley: SP
    Voltage regulator: IR
    Product information: BN
    Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      A0369, CAL10496, DRA0553, F032115649, lea0786, LEA0786, LRA03168, 8EL012429-211, 8EL738211-851, 28-5780, 230.332.1402, 230.332.1502, 1918ir, 1986A00901, 20332N, 209404, 209404A, 301918RI, 440891, 443049, 443408, 9212553, 12090334, 32081100, 0124525101, 0124525151, 0124525538, 0986081100, 7711368601, 8200474219, 8200660041, 8200901783

    • Normalised article numbler
      a0369, cal10496, dra0553, f032115649, lea0786, lra03168, 8el012429211, 8el738211851, 1918ir, 1986a00901, 20332n, 209404, 209404a, 285780, 301918ri, 440891, 443049, 443408, 9212553, 12090334, 32081100, 0124525101, 0124525151, 0124525538, 0986081100, 2303321402, 2303321502, 7711368601, 8200474219, 8200660041, 8200901783
