HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032111899

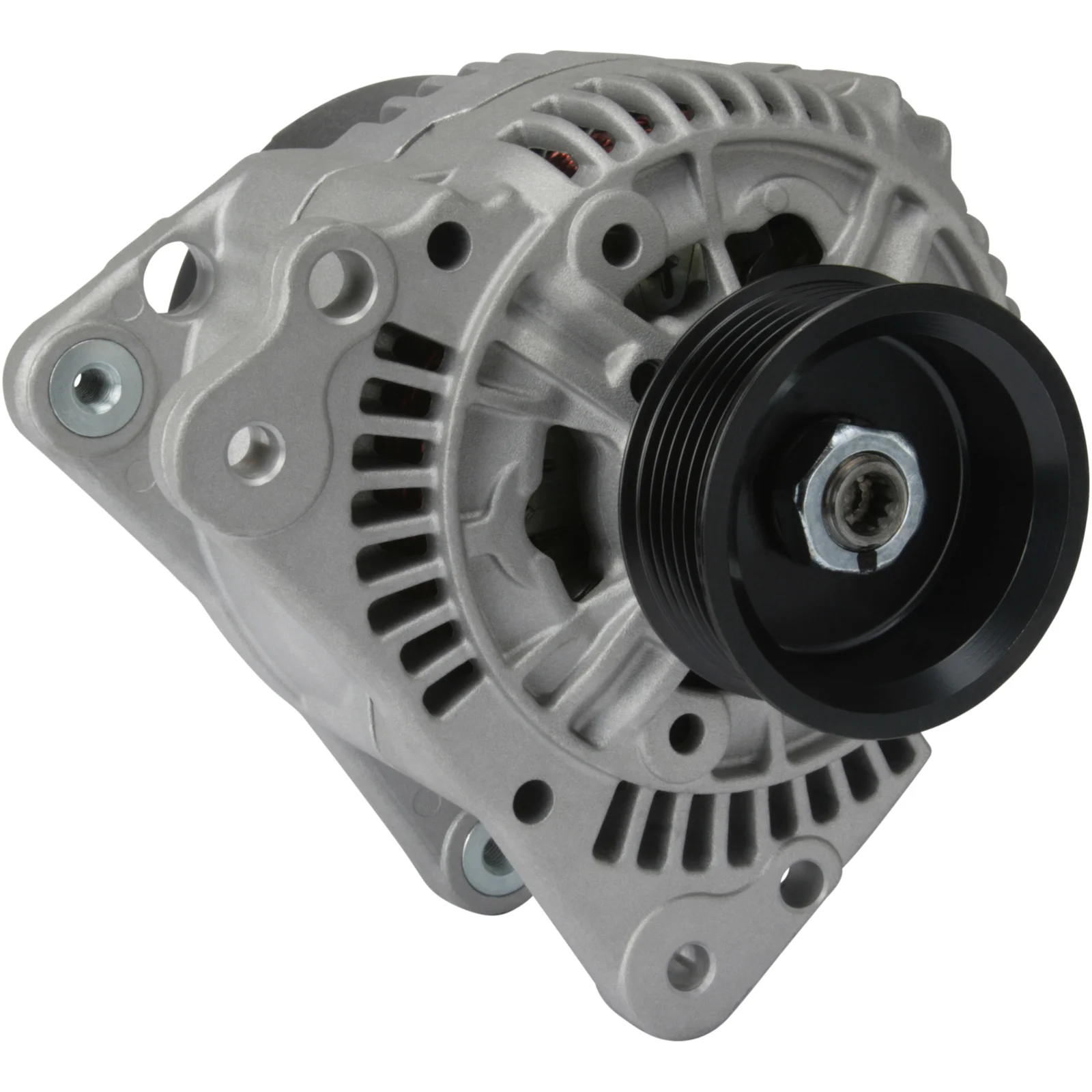

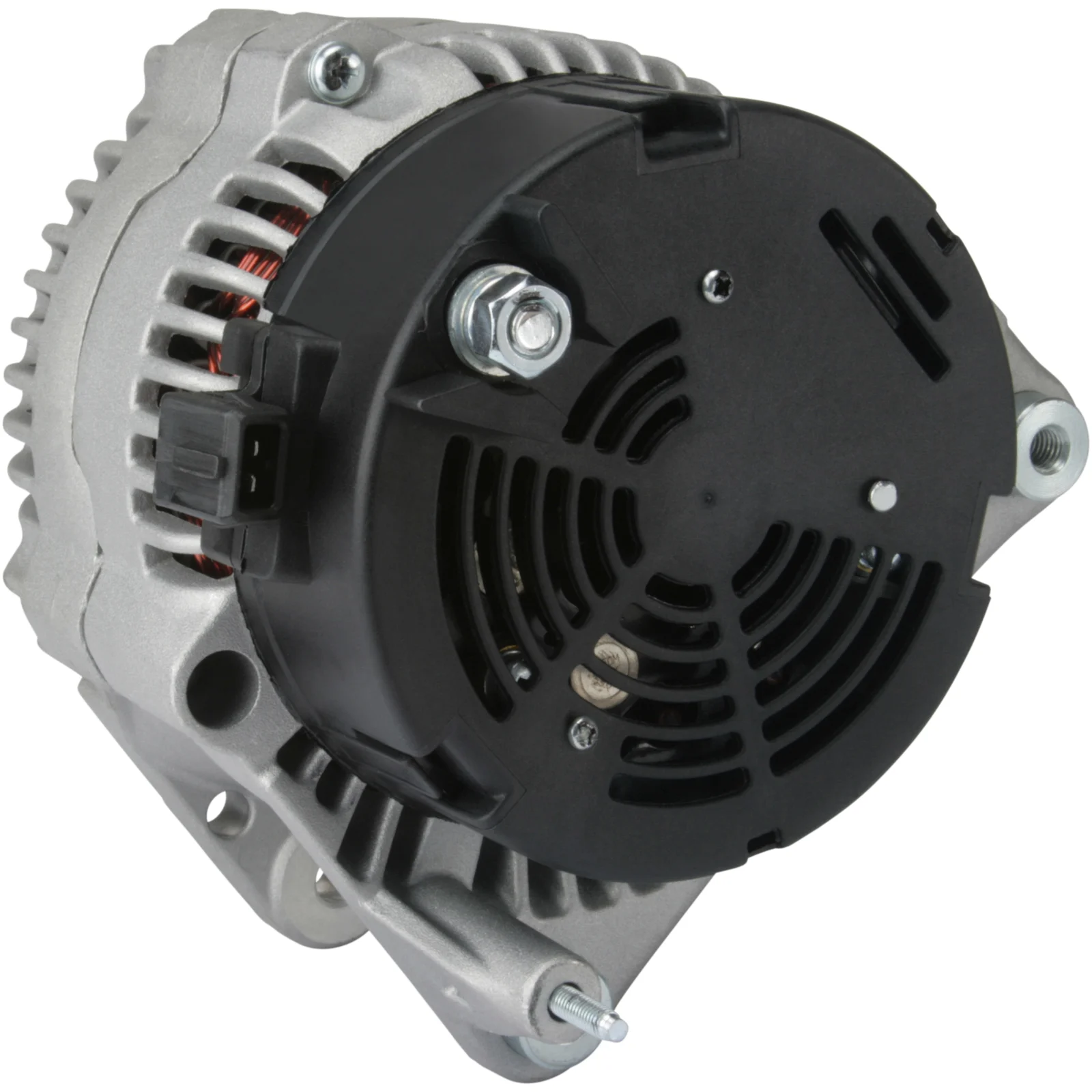

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 90, Rotation: CW, Mounting bracket distributor: 61.00

Description

Voltage: 14
Amp: 90
Terminal: W
Pulley dist.: 39.50
Width/holder arm: 14.00
Mount. bracket dist.: 61.00
Bracket hole: 8.50
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 68.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 50
D+ Size: Plug
Rotation: CW
Plug no.: PL23
W plug type: Plug
Total length mm: 188.00
Pulley: SP
Alternator type: IR
Prod. info: BN

Files

  • OEM
    aak5350, F032111899, 11.203.079, 1228ir, 1986A01848, 1516433R, 9517189, 028903027n, 0123320018

  • Normalised article numbler
    a0019, a0019pr, aak5350, alt2030d, bao3242, cal10137, dra0523, dra9440, drb0330, drb0870n, f032111899, f042301047, f042a01047, ia1065, lrb00295, mg254, qa3181, 8el012427941, 8el737309001, 1228ir, 1986a01848, 5661, 13626n, 13902n, 13903r, 118924, 210598, 210598a, 282777, 301228ri, 437614, 443174, 1516433r, 9040330, 9517189, 11203079, 12040330, 028903027n, 32040330, 0123320018, 211178902, 0986040330, 943355109010, 944390403300
  • Description
    Voltage: 14
    Amp: 90
    Terminal: W
    Pulley dist.: 39.50
    Width/holder arm: 14.00
    Mount. bracket dist.: 61.00
    Bracket hole: 8.50
    Belt. adj. brackethole pos.: 45
    Belt. adj. bracket hole 1: 8.50
    Pulley dia.: 68.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 50
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL23
    W plug type: Plug
    Total length mm: 188.00
    Pulley: SP
    Alternator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      aak5350, F032111899, 11.203.079, 1228ir, 1986A01848, 1516433R, 9517189, 028903027n, 0123320018

    • Normalised article numbler
      a0019, a0019pr, aak5350, alt2030d, bao3242, cal10137, dra0523, dra9440, drb0330, drb0870n, f032111899, f042301047, f042a01047, ia1065, lrb00295, mg254, qa3181, 8el012427941, 8el737309001, 1228ir, 1986a01848, 5661, 13626n, 13902n, 13903r, 118924, 210598, 210598a, 282777, 301228ri, 437614, 443174, 1516433r, 9040330, 9517189, 11203079, 12040330, 028903027n, 32040330, 0123320018, 211178902, 0986040330, 943355109010, 944390403300
