Article no.: F032111847

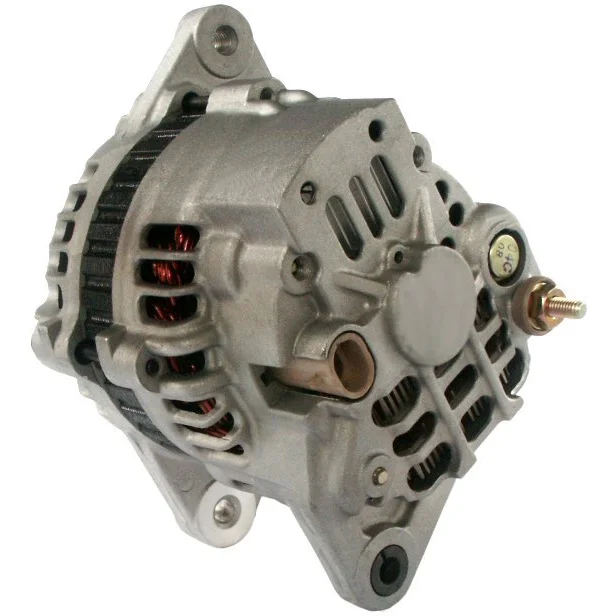

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 65, Rotation: CW, Mounting bracket distributor: 65.30

Description

Voltage: 14
Amp: 65
Pulley dist.: 42.00
Width/holder arm: 15.00
Mount. bracket dist.: 65.30
Bracket hole: 8.50
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 69.50
Grooves/pulley: 1
Radius: 78.00
Radius 2: 78.00
B+: M6
Position/B+ in min.: 15
D+ Size: Plug
Rotation: CW
Plug no.: PL77
Total length mm: 161.00
Pulley: P
Fan: IF
Regulator type: IR
Prod. info: BN
Servicing: Chevrolet

Files

  • OEM
    F032111847, TA000A52201, 2104ir, 2655476, 96404263, 96566262

  • Normalised article numbler
    a1042, alt35002, alth064, dra0572, dra0572x, dra0637, dra0637n, f032111847, f042a0h064, ta000a52201, 2104ir, 20340n, 210208, 210208a, 210683, 210683a, 285846, 444346, 600197, 2655476, 12060869, 96404263, 96566262, 0986082910
  • Description
    Voltage: 14
    Amp: 65
    Pulley dist.: 42.00
    Width/holder arm: 15.00
    Mount. bracket dist.: 65.30
    Bracket hole: 8.50
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 69.50
    Grooves/pulley: 1
    Radius: 78.00
    Radius 2: 78.00
    B+: M6
    Position/B+ in min.: 15
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL77
    Total length mm: 161.00
    Pulley: P
    Fan: IF
    Regulator type: IR
    Prod. info: BN
    Servicing: Chevrolet

    Files

  • Suitable for these vehicles

    • OEM
      F032111847, TA000A52201, 2104ir, 2655476, 96404263, 96566262

    • Normalised article numbler
      a1042, alt35002, alth064, dra0572, dra0572x, dra0637, dra0637n, f032111847, f042a0h064, ta000a52201, 2104ir, 20340n, 210208, 210208a, 210683, 210683a, 285846, 444346, 600197, 2655476, 12060869, 96404263, 96566262, 0986082910
