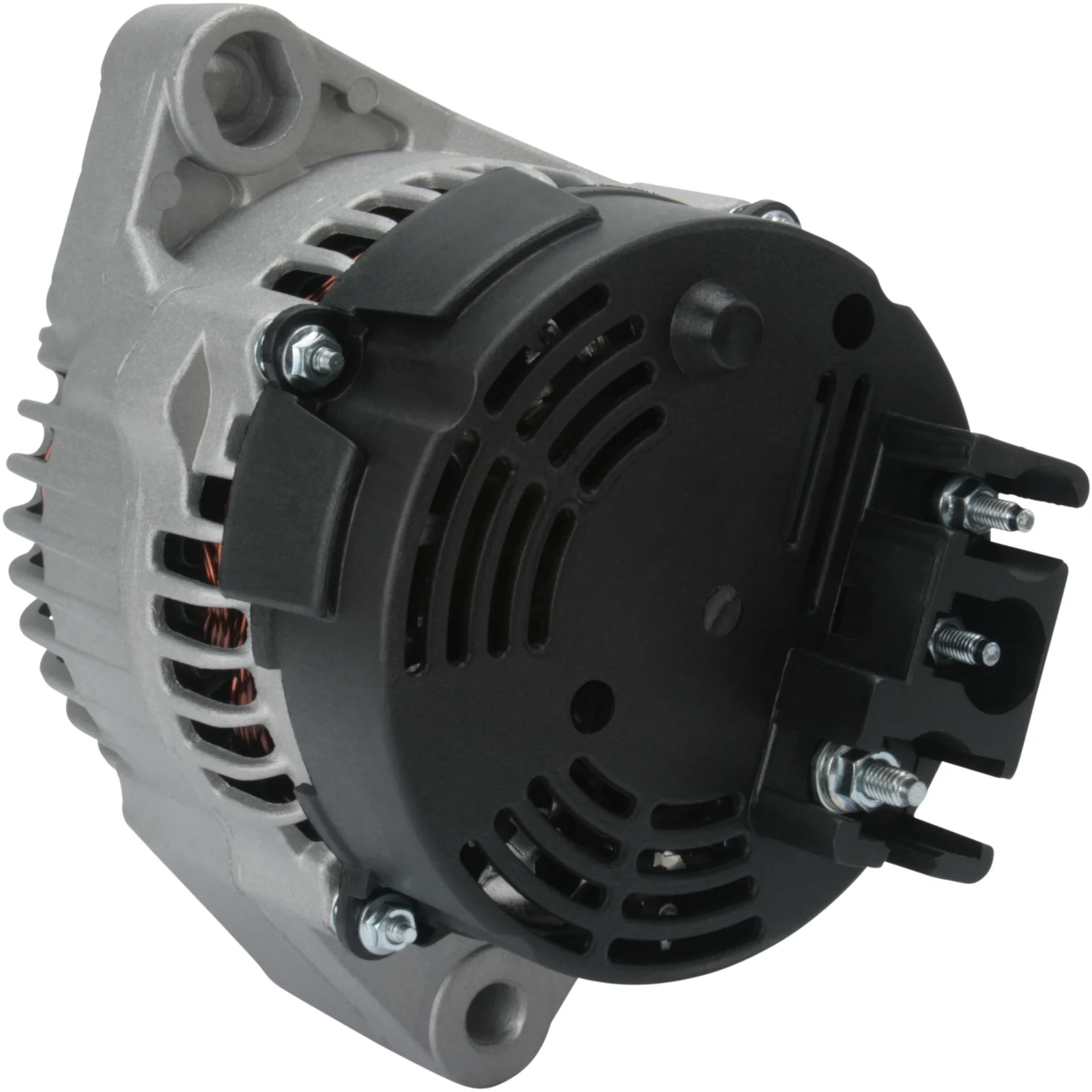

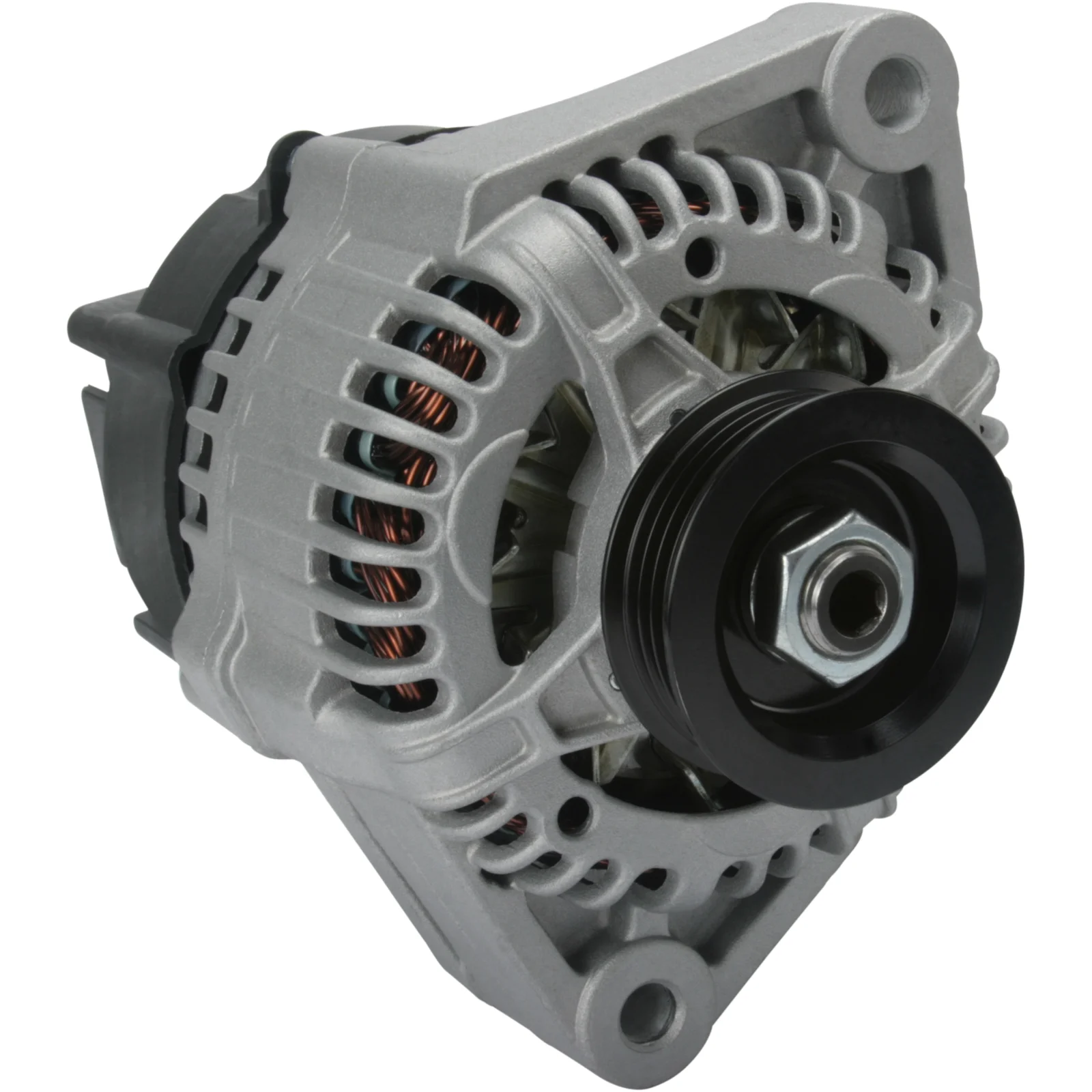

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032112384

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 75, Rotation: CW, Pulley diameter: 58.00

Description

Voltage: 14
Amp: 75
Pulley dist.: 90.00
Width/holder arm: 58.00
Bracket hole: 10.30
Belt. adj. brackethole pos.: 4
Belt. adj. bracket hole 1: 11.30
Pulley dia.: 58.00
Grooves/pulley: 4
Radius: 80.00
Radius 2: 80.00
B+: M6
Position/B+ in min.: 22
D+ Size: M5
Rotation: CW
Glow plug no.: PL105
Total length mm: 176.00
Pulley: SP
Voltage regulator type: IR
Prod. info: BN
Servicing: Smart (MCC)
Remarks: Please note! If 3 connections = HC-CARGO 112384. If 2 connections = HC-CARGO 114025. They cannot replace each other.

Files

  • OEM
    A1601540301, A1601540401, A1601540501, A1601540601, F032112384, Q0002801V005, Q0002801V005000000, Q0002801V006, Q0002801V006000000, Q0003250V009, Q0003250V009000000, Q0003250V010, Q0003250V010000000, Q0003250V011, Q0003250V011000000, 1734ir, 1986A01191, 0002801V005, 0002801V006, 0003250V009, 0003250V010, 0003250v011, 63321658, 63321702, 63341658, 63341702, 1601540301, 1601540401, 1601540501, 1601540601

  • Normalised article numbler
    a1601540301, a1601540401, a1601540501, a1601540601, a4062, a4062pr, a4062sr, a6476denso, alt12069, alth100, cal30132, cal30213, dan521, dan647, dendan521, dra0301, dra0389, dra4115, f032112384, f042a0h100, lra02077, q0002801v005, q0002801v005000000, q0002801v006, q0002801v006000000, q0003250v009, q0003250v009000000, q0003250v010, q0003250v010000000, q0003250v011, q0003250v011000000, 8el012427051, 8el012430631, 8el737895001, 1734ir, 1986a01191, 0002801v005, 0002801v006, 0003250v009, 0003250v010, 0003250v011, 23001n, 111798, 119960, 210529, 210529a, 210667, 210667a, 273907, 301734ri, 443095, 444263, 12090076, 32063341, 63321658, 63321702, 63341658, 63341702, 525120752, 0986049111, 1601540301, 1601540401, 1601540501, 1601540601, 063341658010, 063341702010, 944390901730
  • Description
    Voltage: 14
    Amp: 75
    Pulley dist.: 90.00
    Width/holder arm: 58.00
    Bracket hole: 10.30
    Belt. adj. brackethole pos.: 4
    Belt. adj. bracket hole 1: 11.30
    Pulley dia.: 58.00
    Grooves/pulley: 4
    Radius: 80.00
    Radius 2: 80.00
    B+: M6
    Position/B+ in min.: 22
    D+ Size: M5
    Rotation: CW
    Glow plug no.: PL105
    Total length mm: 176.00
    Pulley: SP
    Voltage regulator type: IR
    Prod. info: BN
    Servicing: Smart (MCC)
    Remarks: Please note! If 3 connections = HC-CARGO 112384. If 2 connections = HC-CARGO 114025. They cannot replace each other.

    Files

  • Suitable for these vehicles

    • OEM
      A1601540301, A1601540401, A1601540501, A1601540601, F032112384, Q0002801V005, Q0002801V005000000, Q0002801V006, Q0002801V006000000, Q0003250V009, Q0003250V009000000, Q0003250V010, Q0003250V010000000, Q0003250V011, Q0003250V011000000, 1734ir, 1986A01191, 0002801V005, 0002801V006, 0003250V009, 0003250V010, 0003250v011, 63321658, 63321702, 63341658, 63341702, 1601540301, 1601540401, 1601540501, 1601540601

    • Normalised article numbler
      a1601540301, a1601540401, a1601540501, a1601540601, a4062, a4062pr, a4062sr, a6476denso, alt12069, alth100, cal30132, cal30213, dan521, dan647, dendan521, dra0301, dra0389, dra4115, f032112384, f042a0h100, lra02077, q0002801v005, q0002801v005000000, q0002801v006, q0002801v006000000, q0003250v009, q0003250v009000000, q0003250v010, q0003250v010000000, q0003250v011, q0003250v011000000, 8el012427051, 8el012430631, 8el737895001, 1734ir, 1986a01191, 0002801v005, 0002801v006, 0003250v009, 0003250v010, 0003250v011, 23001n, 111798, 119960, 210529, 210529a, 210667, 210667a, 273907, 301734ri, 443095, 444263, 12090076, 32063341, 63321658, 63321702, 63341658, 63341702, 525120752, 0986049111, 1601540301, 1601540401, 1601540501, 1601540601, 063341658010, 063341702010, 944390901730
