Article no.: F032110267

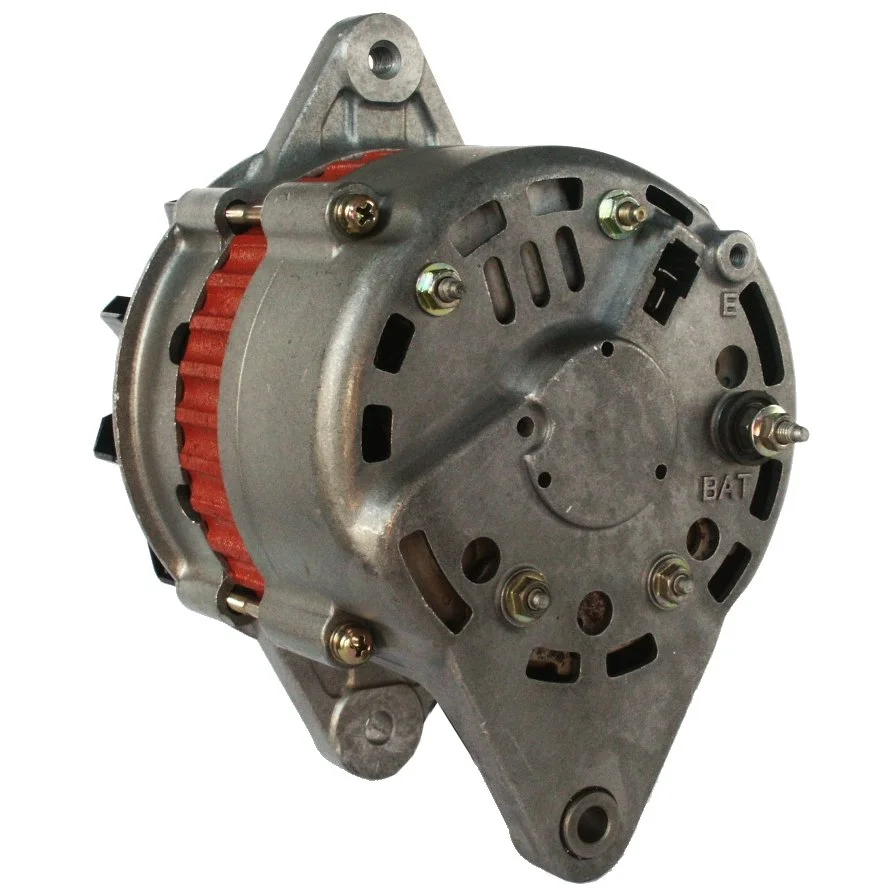

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 55, Rotation: CW, Mounting bracket distance: 81.00

Description

Voltage: 14
Amp: 55
Pulley drive: 42.00
Width/holder arm: 13.00
Mounting bracket drive: 81.00
Bracket hole: 8.00
Belt adjustment bracket hole position: 60
Belt adjustment bracket hole 1: M8
Pulley diameter: 75.20
Grooves/pulley: 1
Radius: 88.00
Radius 2: 86.00
B+: M5
Position/B+ in minutes: 15
Rotation: CW
Spark plug no.: PL08
Total length mm: 172.00
Pulley: P
Voltage regulator type: IR
Product info: BN
Servicing: Sabaru

Files

  • OEM
    F032110267, lr150-110, lr150-110c, lr155-15, lr155-15b, lr155-15c, lr155-17, lr155-18, lr155-25, lr160-137, lr160-138, 23700-7050, 23700-aa000, 23700-AA010, 23700-aa020, 23700-AA031, 42990-7330, 42990-7340, 42990-7400, 429907010, 429907020, 429907320

  • Normalised article numbler
    a2132s, alt32058, asa393, asa394, dra3471, dra5431, f032110267, lr150110, lr150110c, lr15515, lr15515b, lr15515c, lr15517, lr15518, lr15525, lr160137, lr160138, lra00574, lra02670, qa1994, va226, 8el726264001, 2538, 14255n, 14303n, 14303r, 14585, 14585r, 14742n, 14742r, 14745n, 14745r, 23700aa000, 23700aa010, 23700aa020, 23700aa031, 56054, 281682, 281880, 436506, 436518, 436551, 1125301hi, 1159302hi, 3651702, 3651703, 12060317, 233102602, 233108602, 237007050, 429907010, 429907020, 429907320, 429907330, 429907340, 429907400, 0986033471, 0986035431
  • Description
    Voltage: 14
    Amp: 55
    Pulley drive: 42.00
    Width/holder arm: 13.00
    Mounting bracket drive: 81.00
    Bracket hole: 8.00
    Belt adjustment bracket hole position: 60
    Belt adjustment bracket hole 1: M8
    Pulley diameter: 75.20
    Grooves/pulley: 1
    Radius: 88.00
    Radius 2: 86.00
    B+: M5
    Position/B+ in minutes: 15
    Rotation: CW
    Spark plug no.: PL08
    Total length mm: 172.00
    Pulley: P
    Voltage regulator type: IR
    Product info: BN
    Servicing: Sabaru

    Files

  • Suitable for these vehicles

    • OEM
      F032110267, lr150-110, lr150-110c, lr155-15, lr155-15b, lr155-15c, lr155-17, lr155-18, lr155-25, lr160-137, lr160-138, 23700-7050, 23700-aa000, 23700-AA010, 23700-aa020, 23700-AA031, 42990-7330, 42990-7340, 42990-7400, 429907010, 429907020, 429907320

    • Normalised article numbler
      a2132s, alt32058, asa393, asa394, dra3471, dra5431, f032110267, lr150110, lr150110c, lr15515, lr15515b, lr15515c, lr15517, lr15518, lr15525, lr160137, lr160138, lra00574, lra02670, qa1994, va226, 8el726264001, 2538, 14255n, 14303n, 14303r, 14585, 14585r, 14742n, 14742r, 14745n, 14745r, 23700aa000, 23700aa010, 23700aa020, 23700aa031, 56054, 281682, 281880, 436506, 436518, 436551, 1125301hi, 1159302hi, 3651702, 3651703, 12060317, 233102602, 233108602, 237007050, 429907010, 429907020, 429907320, 429907330, 429907340, 429907400, 0986033471, 0986035431
