Article no.: F032113656

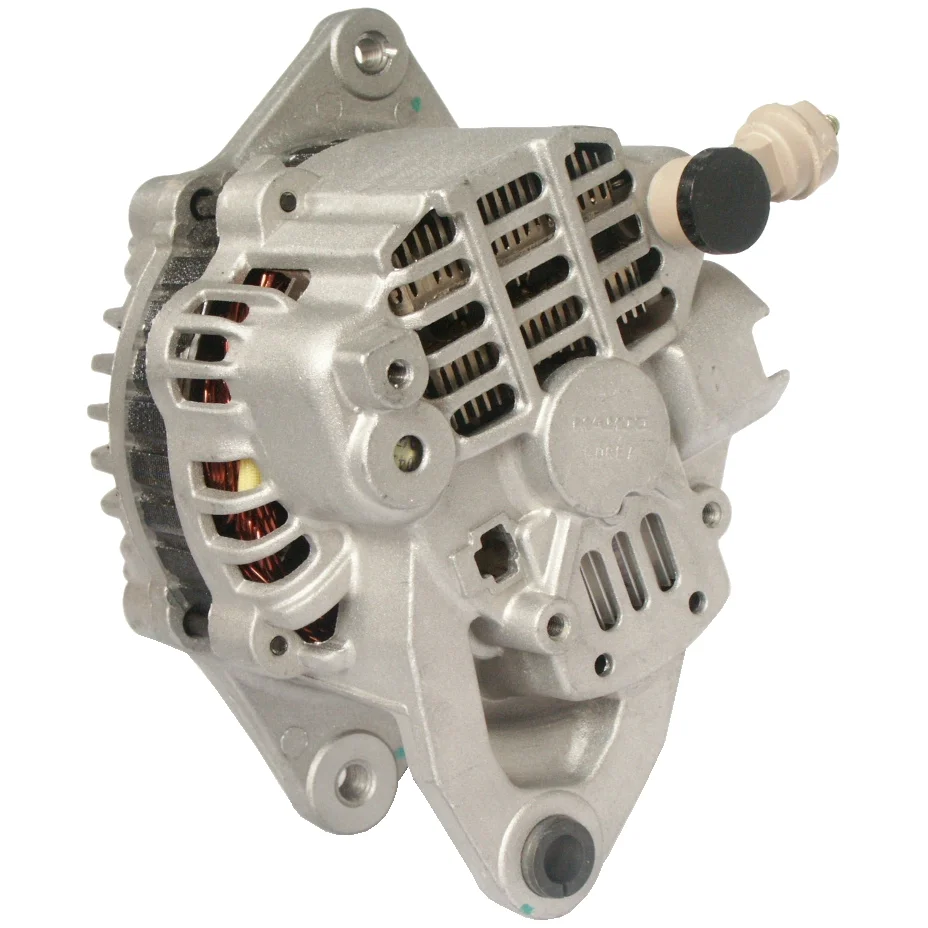

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperes: 80, Rotation: CW, Mounting bracket distributor: 67.00

Description

Voltage: 14
Amp: 80
Pulley dist.: 37.50
Width/holder arm: 13.20
Mount. bracket dist.: 67.00
Bracket hole: M10-1.25
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 60.00
Grooves/pulley: 4
Radius: 90.00
Radius 2: 85.00
B+: M6
Position/B+ in min.: 2
D+ Size: Plug
Rotation: CW
Plug no.: PL07
Total length mm: 154.00
Terminal type: L-S
Pulley: SP
Regulator type: IR
Prod. info: BN
Servicing: Kia

Files

  • OEM
    0K30C18300, 0K30D18300, ab180140, F032113656, ja1785ir, OK30C18300, OK30D18300, TA000A28801, 4860

  • Normalised article numbler
    0k30c18300, 0k30d18300, a5099, a80026, a9106mando, ab180140, alt3013, alth149, am00106r, cal41105, dra0156, f032113656, f042206014, f042a0h149, ja1785ir, lea0405, ok30c18300, ok30d18300, ta000a28801, 8el011711301, 8el738176001, 4860, 13948, 13948n, 112182, 210370, 210370a, 284939, 401785ri, 444356, 600020, 1244601md, 12060795, 063532607, 0986080520, 063532607010
  • Description
    Voltage: 14
    Amp: 80
    Pulley dist.: 37.50
    Width/holder arm: 13.20
    Mount. bracket dist.: 67.00
    Bracket hole: M10-1.25
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 60.00
    Grooves/pulley: 4
    Radius: 90.00
    Radius 2: 85.00
    B+: M6
    Position/B+ in min.: 2
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL07
    Total length mm: 154.00
    Terminal type: L-S
    Pulley: SP
    Regulator type: IR
    Prod. info: BN
    Servicing: Kia

    Files

  • Suitable for these vehicles

    • OEM
      0K30C18300, 0K30D18300, ab180140, F032113656, ja1785ir, OK30C18300, OK30D18300, TA000A28801, 4860

    • Normalised article numbler
      0k30c18300, 0k30d18300, a5099, a80026, a9106mando, ab180140, alt3013, alth149, am00106r, cal41105, dra0156, f032113656, f042206014, f042a0h149, ja1785ir, lea0405, ok30c18300, ok30d18300, ta000a28801, 8el011711301, 8el738176001, 4860, 13948, 13948n, 112182, 210370, 210370a, 284939, 401785ri, 444356, 600020, 1244601md, 12060795, 063532607, 0986080520, 063532607010
