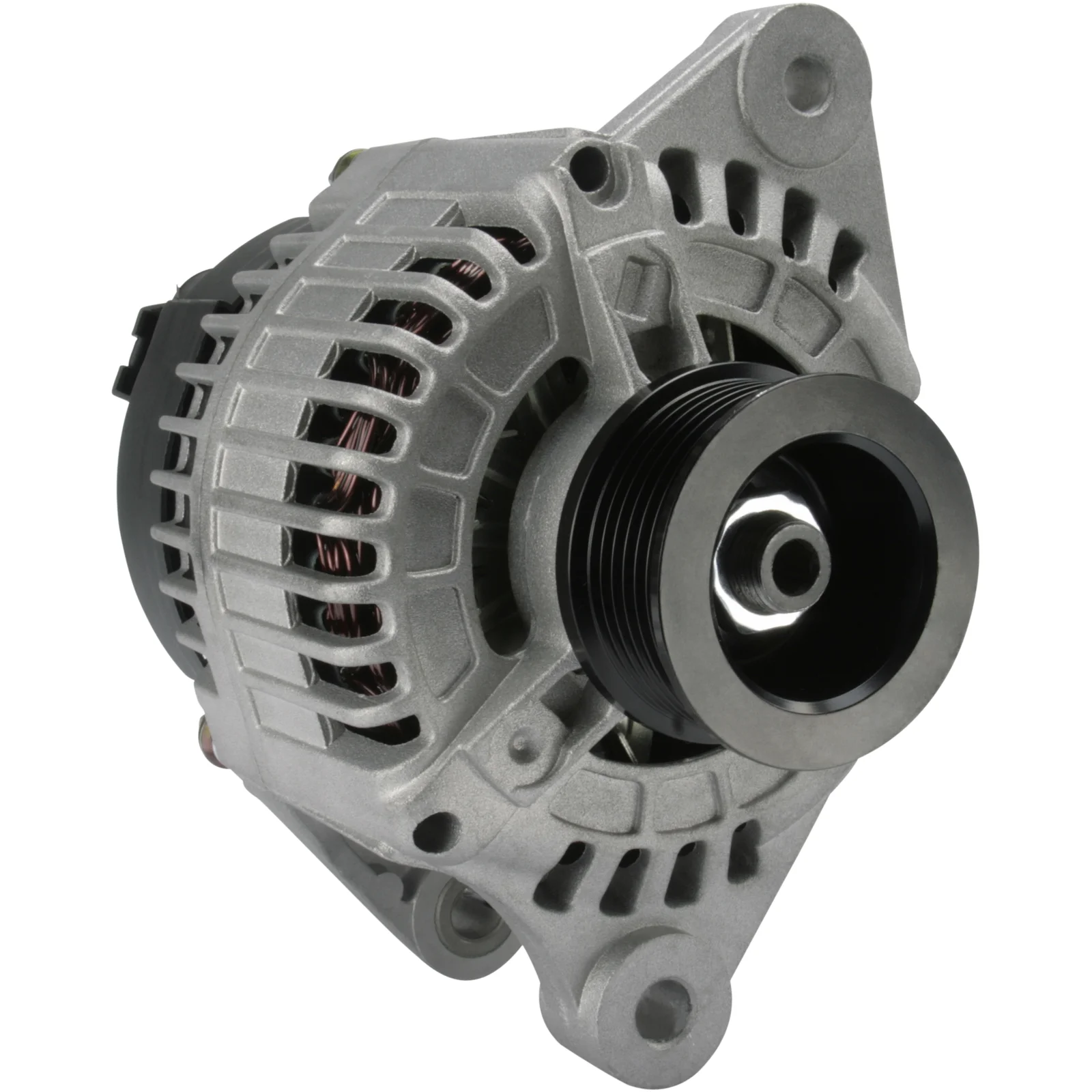

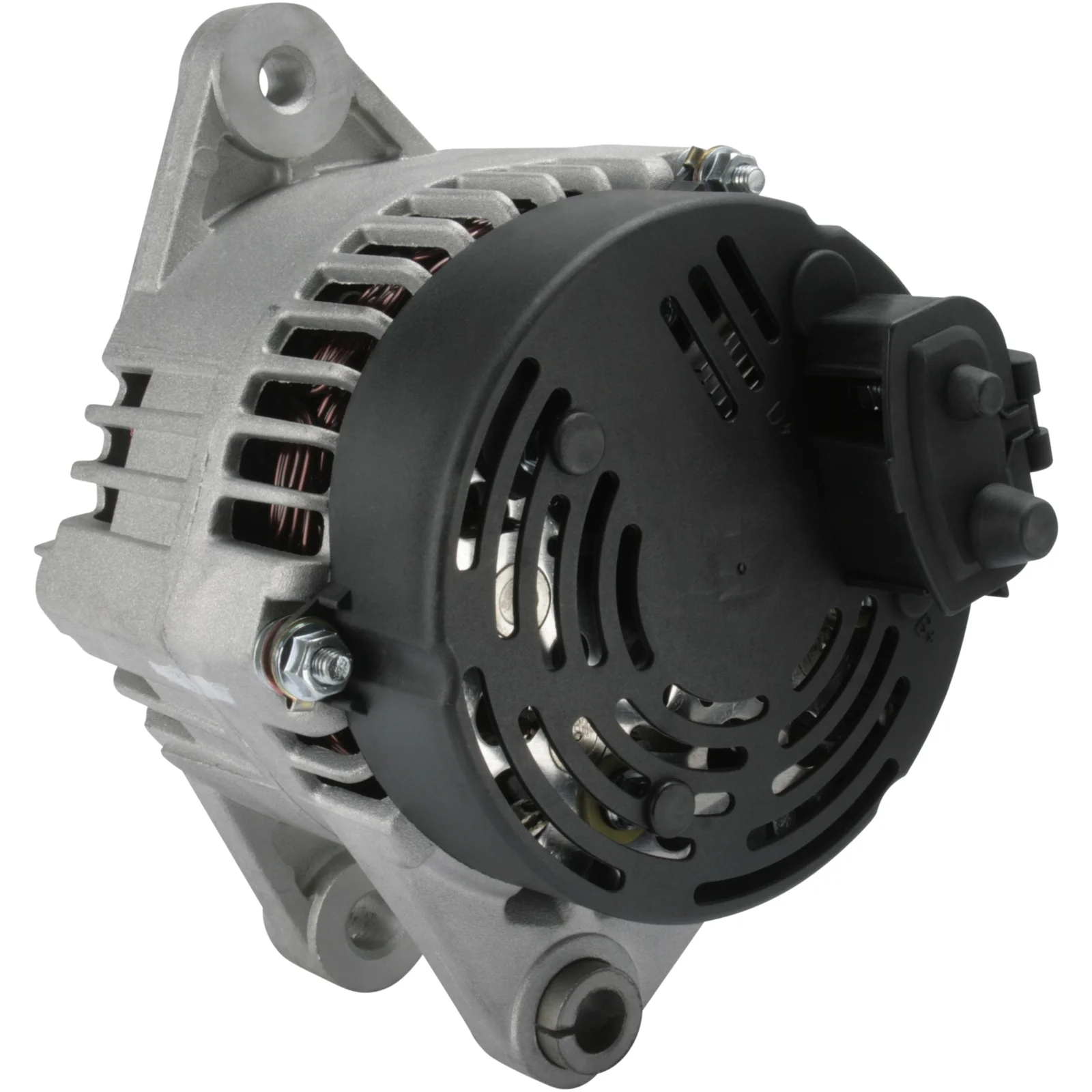

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032113942

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperes: 100, Rotation: CW, Mounting bracket distance: 54.20

Description

Voltage: 14
Amp: 100
Pulley distance: 44.50
Width/holder arm: 22.60
Mounting bracket distance: 54.20
Bracket hole: 12.00
Belt adjustment bracket hole position: 3
Belt adjustment bracket hole 1: 10.30
Pulley diameter: 62.00
Grooves/pulley: 6
Radius: 89.00
Radius 2: 89.00
B+: M8
Position/B+ in minutes: 10
D+ Size: M5
Rotation: clockwise
Total length mm: 202.00
Pulley: SP
Regulator type: IR

Files

  • OEM
    F032113942, 1223ir, 1986A01296, 101210-1880, 7782314, 46305329, 46445658, 46765836, 46769369, 60812535, 60816046, 63321232, 63321310, 63321418, 63321801, 63321841, 0124415015

  • Normalised article numbler
    a0663pr, a4023, alth179, cal10262, cal40488, dan1140, dra3403, dra3639, drb2780, drb2780x, f032113942, f042a0h179, lra02083, lrb00418, 8el012428471, 8el737298001, 1223ir, 1986a01296, 4005, 21427r, 23082r, 23315n, 119920, 210246, 210246a, 210759, 210759a, 210947, 210947a, 283647, 284522, 301223ri, 440001, 7782314, 12042780, 32049400, 46305329, 46445658, 46765836, 46769369, 60812535, 60816046, 63321232, 63321310, 63321418, 63321801, 63321841, 105504105, 0124415015, 0986042780, 1012101880, 2181481002, 2181481052, 944390427800
  • Description
    Voltage: 14
    Amp: 100
    Pulley distance: 44.50
    Width/holder arm: 22.60
    Mounting bracket distance: 54.20
    Bracket hole: 12.00
    Belt adjustment bracket hole position: 3
    Belt adjustment bracket hole 1: 10.30
    Pulley diameter: 62.00
    Grooves/pulley: 6
    Radius: 89.00
    Radius 2: 89.00
    B+: M8
    Position/B+ in minutes: 10
    D+ Size: M5
    Rotation: clockwise
    Total length mm: 202.00
    Pulley: SP
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      F032113942, 1223ir, 1986A01296, 101210-1880, 7782314, 46305329, 46445658, 46765836, 46769369, 60812535, 60816046, 63321232, 63321310, 63321418, 63321801, 63321841, 0124415015

    • Normalised article numbler
      a0663pr, a4023, alth179, cal10262, cal40488, dan1140, dra3403, dra3639, drb2780, drb2780x, f032113942, f042a0h179, lra02083, lrb00418, 8el012428471, 8el737298001, 1223ir, 1986a01296, 4005, 21427r, 23082r, 23315n, 119920, 210246, 210246a, 210759, 210759a, 210947, 210947a, 283647, 284522, 301223ri, 440001, 7782314, 12042780, 32049400, 46305329, 46445658, 46765836, 46769369, 60812535, 60816046, 63321232, 63321310, 63321418, 63321801, 63321841, 105504105, 0124415015, 0986042780, 1012101880, 2181481002, 2181481052, 944390427800
