HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115856

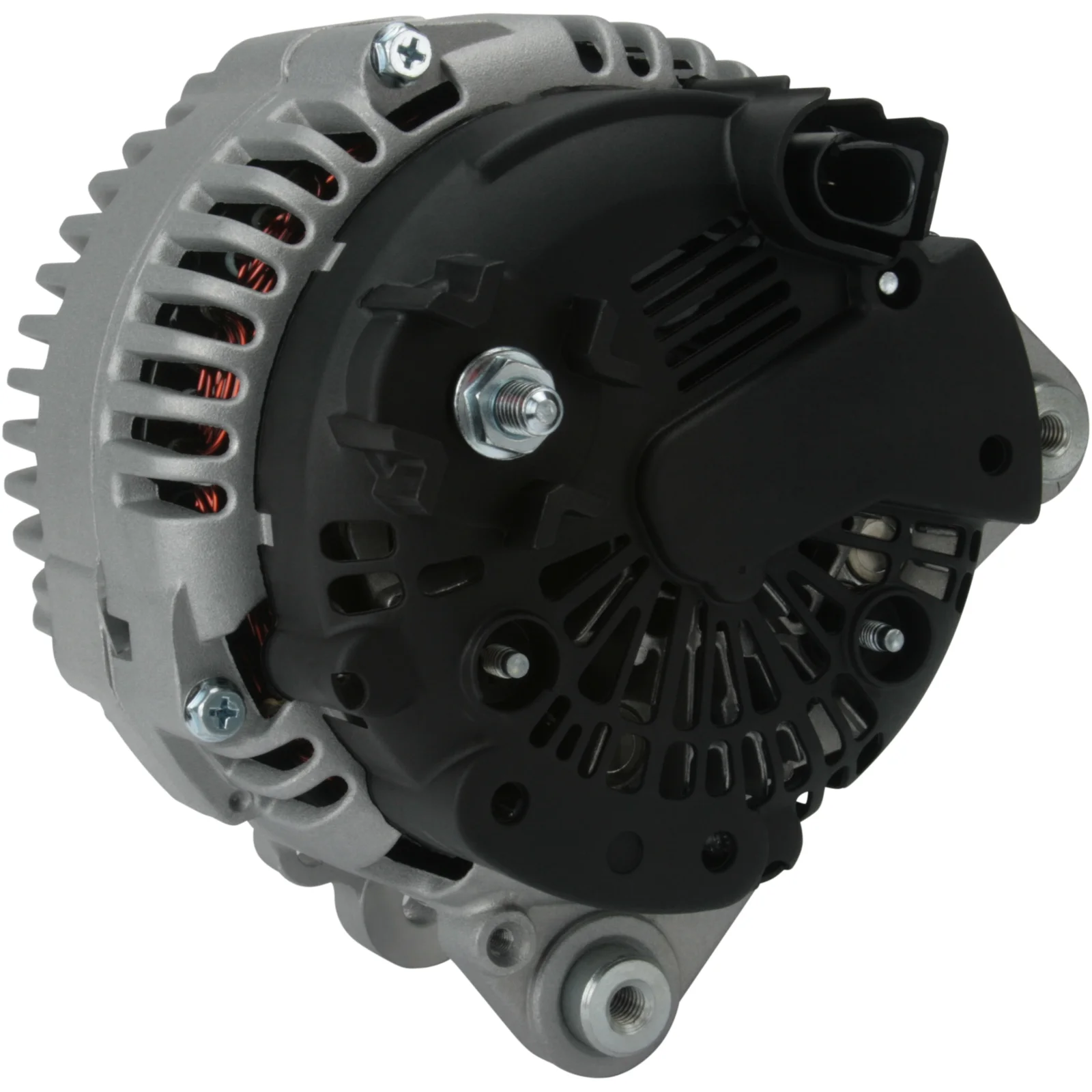

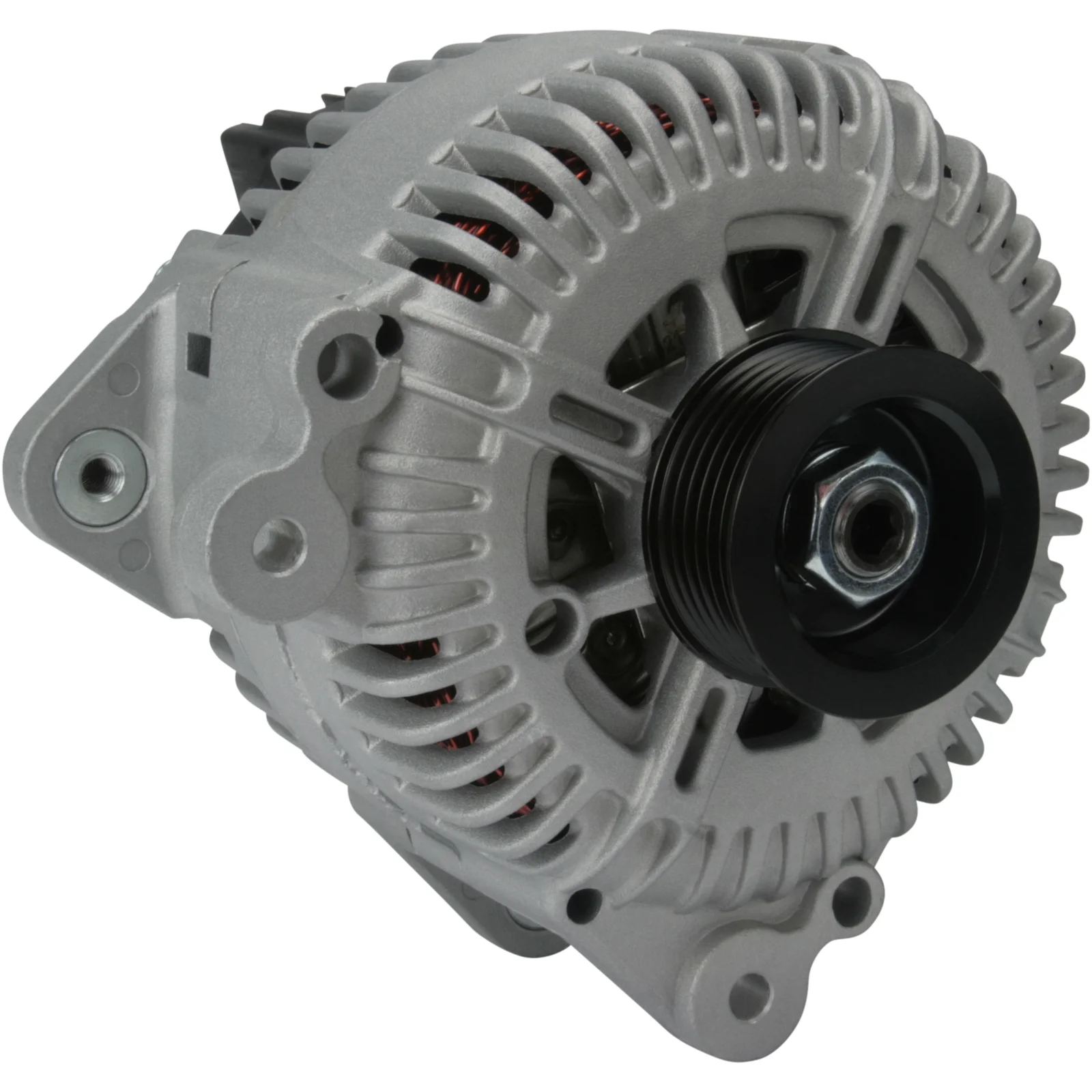

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 150, Rotation: clockwise, Mounting bracket distributor: 61.00

Description

Voltage: 14
Amps: 150
Pulley diameter: 30.00
Width/holder arm: 14.00
Mounting bracket diameter: 61.00
Bracket hole: 8.50
Belt adjustment bracket hole position: 45
Belt adjustment bracket hole 1: 8.50
Pulley diameter: 57.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in minutes: 50
D+ Size: Plug
Rotation: CW
Plug number: PL61
Total length mm: 185.00
Terminal type: L-DFM
Pulley: SP
Fan: IF
Voltage regulator type: IR
Product information: BN

Files

  • OEM
    F032115856, TG15C048, tg16c013, 1911ir, 2542891, 2543264, 2543264A, 2543264B, 059903016D, 059903016DX, 059903023B, 059903023BX, 0124525075, 0124525094

  • Normalised article numbler
    a3080, cal15351, dra0124, f032115856, tg15c048, tg16c013, 1911ir, 20024r, 112514, 209277, 209277a, 285781, 301911ri, 437554, 439557, 2542891, 2543264, 2543264a, 2543264b, 12090324, 32000019, 059903016d, 059903016dx, 059903023b, 059903023bx, 0124525075, 0124525094, 205522150
  • Description
    Voltage: 14
    Amps: 150
    Pulley diameter: 30.00
    Width/holder arm: 14.00
    Mounting bracket diameter: 61.00
    Bracket hole: 8.50
    Belt adjustment bracket hole position: 45
    Belt adjustment bracket hole 1: 8.50
    Pulley diameter: 57.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in minutes: 50
    D+ Size: Plug
    Rotation: CW
    Plug number: PL61
    Total length mm: 185.00
    Terminal type: L-DFM
    Pulley: SP
    Fan: IF
    Voltage regulator type: IR
    Product information: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032115856, TG15C048, tg16c013, 1911ir, 2542891, 2543264, 2543264A, 2543264B, 059903016D, 059903016DX, 059903023B, 059903023BX, 0124525075, 0124525094

    • Normalised article numbler
      a3080, cal15351, dra0124, f032115856, tg15c048, tg16c013, 1911ir, 20024r, 112514, 209277, 209277a, 285781, 301911ri, 437554, 439557, 2542891, 2543264, 2543264a, 2543264b, 12090324, 32000019, 059903016d, 059903016dx, 059903023b, 059903023bx, 0124525075, 0124525094, 205522150
