Article no.: F032112470

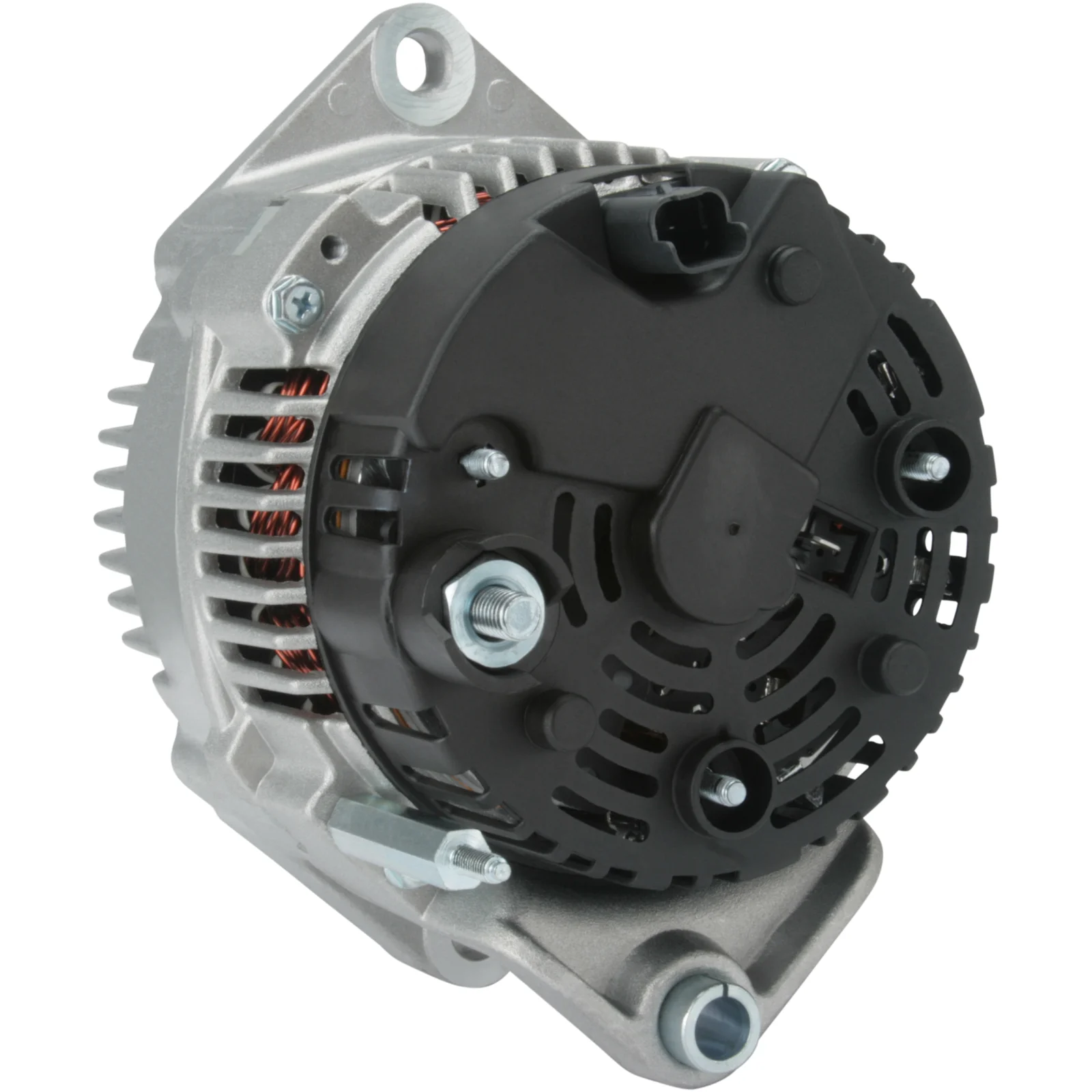

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 110, Rotation: CW, Mounting bracket distributor: 66.50

Description

Voltage: 14
Amp: 110
Terminal: W
Pulley dist.: 47.00
Width/holder arm: 26.50
Mounting bracket dist.: 66.50
Bracket hole: 10.50
V-belt adjustment bracket hole position.: 60
V-belt adjustment bracket hole 1: 8.00
Pulley diameter: 55.00
Grooves/pulley: 6
Radius: 84.00
Radius 2: 86.00
B+: M8
Position/B+ in minutes: 45
D+ Size: Plug
Rotation: CW
Plug no.: PL55
W plug type: 6.30
Total length mm: 181.50
Pulley: SP
Regulator type: IR
Servicing: Renault

Files

  • OEM
    a13vi238, a13vi253, F032112470, 1621ir, 1986A00076, 2542302A, 2542327, 2542327B, 7700428035, 7700430183, 7700431944, 7701499971

  • Normalised article numbler
    a13vi238, a13vi253, a3292, a3443s, dra0049, dra3915, dra4047, f032112470, lrb00505, 8el012426931, 1621ir, 1986a00076, 118943, 200150, 200189, 210570, 210570a, 284612, 301621ri, 437200, 439284, 747056, 839051, 2542302a, 2542327, 2542327b, 9212291, 12090198, 0986049650, 0986081720, 2301731102, 7700428035, 7700430183, 7700431944, 7701499971
  • Description
    Voltage: 14
    Amp: 110
    Terminal: W
    Pulley dist.: 47.00
    Width/holder arm: 26.50
    Mounting bracket dist.: 66.50
    Bracket hole: 10.50
    V-belt adjustment bracket hole position.: 60
    V-belt adjustment bracket hole 1: 8.00
    Pulley diameter: 55.00
    Grooves/pulley: 6
    Radius: 84.00
    Radius 2: 86.00
    B+: M8
    Position/B+ in minutes: 45
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL55
    W plug type: 6.30
    Total length mm: 181.50
    Pulley: SP
    Regulator type: IR
    Servicing: Renault

    Files

  • Suitable for these vehicles

    • OEM
      a13vi238, a13vi253, F032112470, 1621ir, 1986A00076, 2542302A, 2542327, 2542327B, 7700428035, 7700430183, 7700431944, 7701499971

    • Normalised article numbler
      a13vi238, a13vi253, a3292, a3443s, dra0049, dra3915, dra4047, f032112470, lrb00505, 8el012426931, 1621ir, 1986a00076, 118943, 200150, 200189, 210570, 210570a, 284612, 301621ri, 437200, 439284, 747056, 839051, 2542302a, 2542327, 2542327b, 9212291, 12090198, 0986049650, 0986081720, 2301731102, 7700428035, 7700430183, 7700431944, 7701499971
