Article no.: F032112578

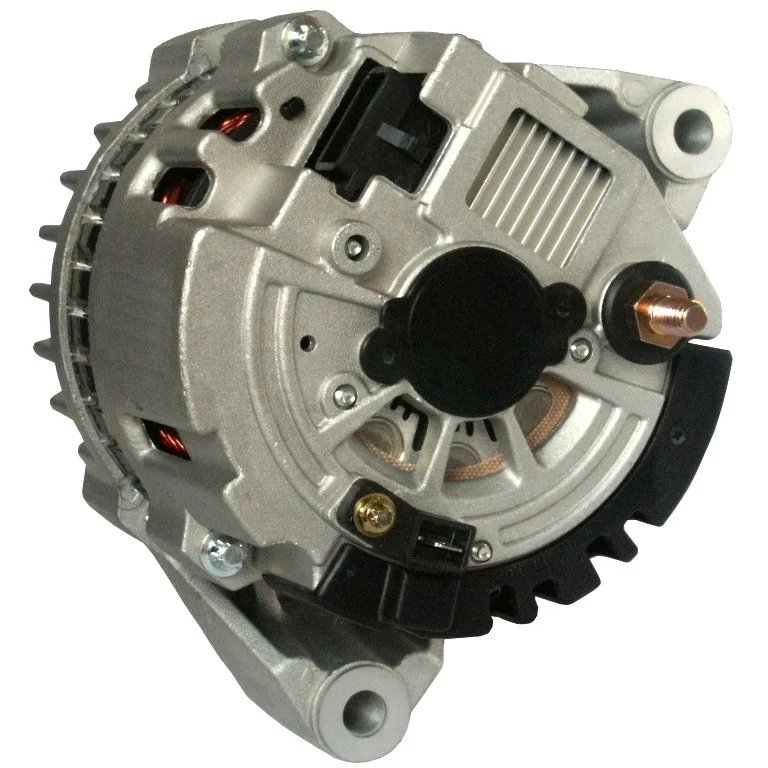

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 75, Rotation: CW, Pulley dia.: 55.00

Description

Voltage: 14
Amp: 75
Pulley dist.: 93.00
Width/holder arm: 56.00
Bracket hole: 10.00
Belt. adj. brackethole pos.: 50
Belt. adj. bracket hole 1: 10.00
Pulley dia.: 55.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 13
D+ Size: Plug
Rotation: CW
Plug no.: PL62
W plug type: 6.30
Total length mm: 165.00
Pulley: SP
Regulator type: IR
Prod. info: BN
Servicing: Daewoo

Files

  • OEM
    A6621543202, A6621544102, F032112578, 1685ir, 6621543202, 6621544102

  • Normalised article numbler
    a6621543202, a6621544102, a9292s, alt45203, alth114, cal42100, dra1227, dra4154, f032112578, f042a0h114, j5110400, lra01674, lra03529, 8el012429871, 1685ir, 22674r, 210536, 210536a, 282894, 286639, 12060757, 547120752, 935501075, 6621543202, 6621544102
  • Description
    Voltage: 14
    Amp: 75
    Pulley dist.: 93.00
    Width/holder arm: 56.00
    Bracket hole: 10.00
    Belt. adj. brackethole pos.: 50
    Belt. adj. bracket hole 1: 10.00
    Pulley dia.: 55.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 13
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL62
    W plug type: 6.30
    Total length mm: 165.00
    Pulley: SP
    Regulator type: IR
    Prod. info: BN
    Servicing: Daewoo

    Files

  • Suitable for these vehicles

    • OEM
      A6621543202, A6621544102, F032112578, 1685ir, 6621543202, 6621544102

    • Normalised article numbler
      a6621543202, a6621544102, a9292s, alt45203, alth114, cal42100, dra1227, dra4154, f032112578, f042a0h114, j5110400, lra01674, lra03529, 8el012429871, 1685ir, 22674r, 210536, 210536a, 282894, 286639, 12060757, 547120752, 935501075, 6621543202, 6621544102
