Article no.: F032112629

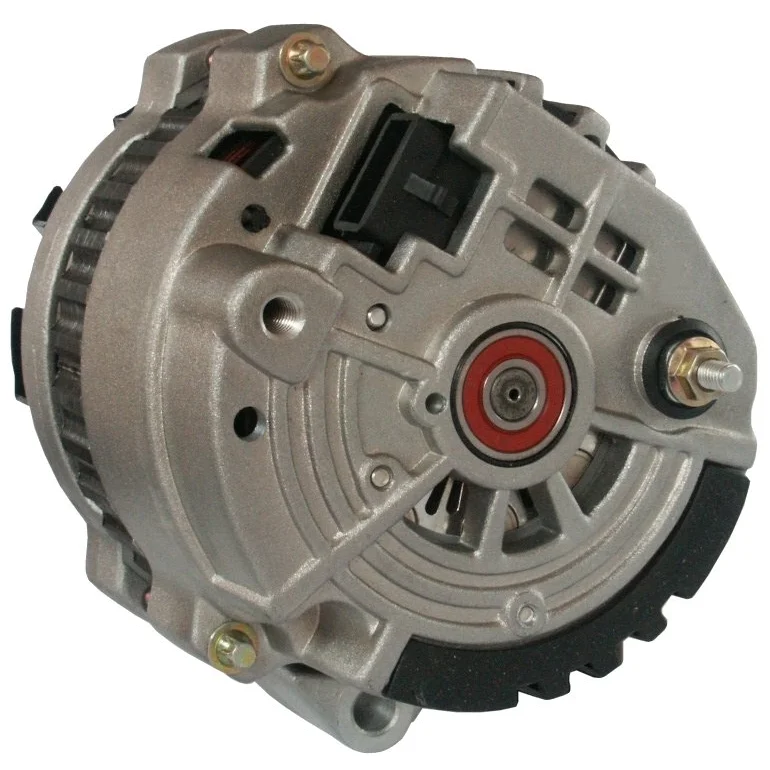

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 100/105, Rotation: CW, Pulley diameter: 55.00

Description

Voltage: 14
Amp: 100/105
Pulley dist.: 73.50
Width/holder arm: 51.00
Bracket hole: 10.20
Belt. adj. bracket hole position: 50
Belt. adj. bracket hole 1: M8
Pulley diameter: 55.00
Grooves/pulley: 6
Radius: 77.50
Radius 2: 77.50
B+: M6
Position/B+ in min.: 15
D+ Size: Plug
Rotation: CW
Plug no.: PL24
Total length mm: 172.00
Pulley: SP
Regulator type: IR
Prod. info: BN
Servicing: Buick
Remarks: Replacing: Alternator 130.

Files

  • OEM
    F032112629, 321-1016, 321-339, 321-439, 321-452, 321-479, 321-503, 1101599, 1101600, 1101645, 1101646, 1101647, 1105711, 1105715, 10463001, 10463002, 10463045, 10463104, 10463148, 10463158, 10463181, 10463212, 10479906, 10479912

  • Normalised article numbler
    alt1301c, alt40009, drz0151, f032112629, f042300084, f042a00084, 56257, 78607n6g2, 281951, 321339, 321439, 321452, 321479, 321503, 786111n6g, 816511n, 1101599, 1101600, 1101645, 1101646, 1101647, 1105711, 1105715, 1162931dr, 2014533, 3211016, 10463001, 10463002, 10463045, 10463104, 10463148, 10463158, 10463181, 10463212, 10479906, 10479912, 12090144, 20145331, 32992875, 2001231052, 5281011002, 5281021002, 5281251002
  • Description
    Voltage: 14
    Amp: 100/105
    Pulley dist.: 73.50
    Width/holder arm: 51.00
    Bracket hole: 10.20
    Belt. adj. bracket hole position: 50
    Belt. adj. bracket hole 1: M8
    Pulley diameter: 55.00
    Grooves/pulley: 6
    Radius: 77.50
    Radius 2: 77.50
    B+: M6
    Position/B+ in min.: 15
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL24
    Total length mm: 172.00
    Pulley: SP
    Regulator type: IR
    Prod. info: BN
    Servicing: Buick
    Remarks: Replacing: Alternator 130.

    Files

  • Suitable for these vehicles

    • OEM
      F032112629, 321-1016, 321-339, 321-439, 321-452, 321-479, 321-503, 1101599, 1101600, 1101645, 1101646, 1101647, 1105711, 1105715, 10463001, 10463002, 10463045, 10463104, 10463148, 10463158, 10463181, 10463212, 10479906, 10479912

    • Normalised article numbler
      alt1301c, alt40009, drz0151, f032112629, f042300084, f042a00084, 56257, 78607n6g2, 281951, 321339, 321439, 321452, 321479, 321503, 786111n6g, 816511n, 1101599, 1101600, 1101645, 1101646, 1101647, 1105711, 1105715, 1162931dr, 2014533, 3211016, 10463001, 10463002, 10463045, 10463104, 10463148, 10463158, 10463181, 10463212, 10479906, 10479912, 12090144, 20145331, 32992875, 2001231052, 5281011002, 5281021002, 5281251002
