Article no.: F032112648

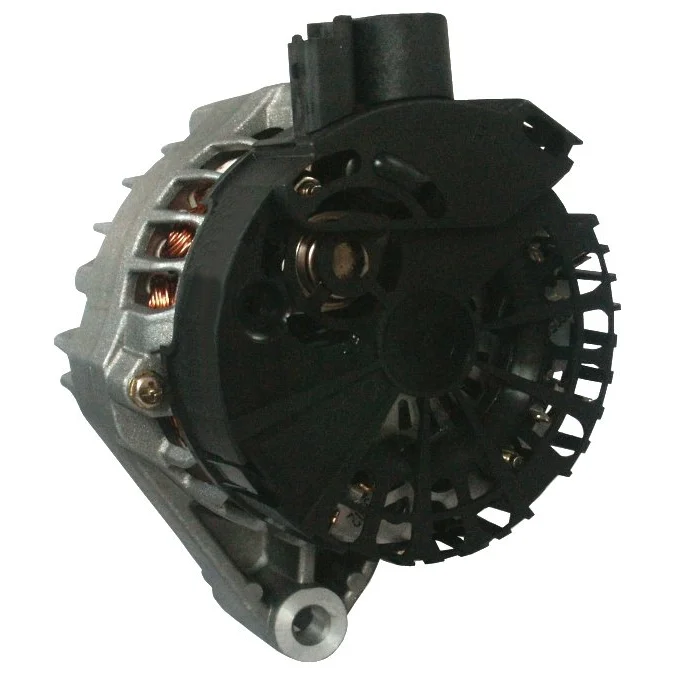

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 70, Rotation: CW, Pulley dia.: 56.20

Description

Voltage: 14
Amp: 70
Pulley dist.: 75.00
Width/holder arm: 56.00
Bracket hole: 10.20
Belt. adj. bracket hole position: 50
Belt. adj. bracket hole 1: 9.00
Pulley diameter: 56.20
Grooves/pulley: 5
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 58
D+ Size: Plug
Rotation: CW
Plug no.: PL72
Total length mm: 173.00
Pulley: SP
Voltage regulator type: IR
Prod. info: BN
Servicing: Citroen

Files

  • OEM
    a11vi102, a11vi108, F032112648, 1640ir, 2542305, 2542398, 2542398B, 63321741, 9638276180

  • Normalised article numbler
    a11vi102, a11vi108, a4076, alt14040, alth115, cal15210, cal15271, dra3815, dra3949, f032112648, f042a0h115, lrb00448, 8el737931001, 1640ir, 5705gf, 5705gi, 5705gj, 23811r, 23813n, 57054n, 57055m, 57055n, 57055x, 57056s, 57056t, 111730, 200149, 210123, 210123a, 284515, 301640ri, 437190, 437345, 746059, 746859, 839088, 2542305, 2542398, 2542398b, 12090105, 63321741, 229119702, 229124702, 943341740, 0986049910, 9638276180, 063341740010, 063341741010, 943341740010
  • Description
    Voltage: 14
    Amp: 70
    Pulley dist.: 75.00
    Width/holder arm: 56.00
    Bracket hole: 10.20
    Belt. adj. bracket hole position: 50
    Belt. adj. bracket hole 1: 9.00
    Pulley diameter: 56.20
    Grooves/pulley: 5
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 58
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL72
    Total length mm: 173.00
    Pulley: SP
    Voltage regulator type: IR
    Prod. info: BN
    Servicing: Citroen

    Files

  • Suitable for these vehicles

    • OEM
      a11vi102, a11vi108, F032112648, 1640ir, 2542305, 2542398, 2542398B, 63321741, 9638276180

    • Normalised article numbler
      a11vi102, a11vi108, a4076, alt14040, alth115, cal15210, cal15271, dra3815, dra3949, f032112648, f042a0h115, lrb00448, 8el737931001, 1640ir, 5705gf, 5705gi, 5705gj, 23811r, 23813n, 57054n, 57055m, 57055n, 57055x, 57056s, 57056t, 111730, 200149, 210123, 210123a, 284515, 301640ri, 437190, 437345, 746059, 746859, 839088, 2542305, 2542398, 2542398b, 12090105, 63321741, 229119702, 229124702, 943341740, 0986049910, 9638276180, 063341740010, 063341741010, 943341740010
