Article no.: F032112665

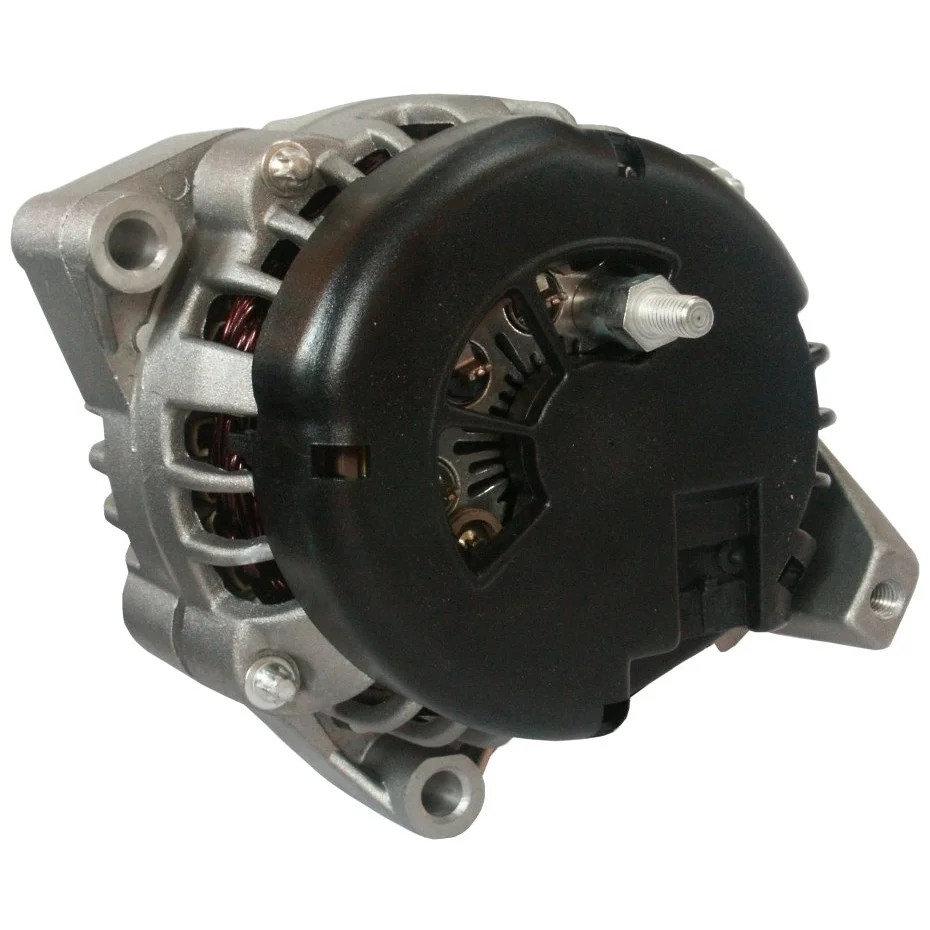

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 100, Rotation: CW, Pulley diameter: 56.50

Description

Voltage: 14
Amp: 100
Pulley diameter: 72.00
Width/holder arm: 50.80
Bracket hole: 10.30
Belt adjustment bracket hole position: 10
Belt adjustment bracket hole 1: 10.30
Pulley diameter: 56.50
Grooves/pulley: 6
Radius: 82.00
Radius 2: 82.00
B+: M8
Position/B+ in min.: 60
D+ Size: Plug
Rotation: CW
Plug no.: PL187
W plug type: Plug
Total length mm: 176.00
Pulley: SP
Regulator type: IR
Prod. info: BN
Servicing: Chevrolet
Remarks: Replacing: Alternator 130.

Files

  • OEM
    F032112665, 8231, 10464084, 10480251, 10480254

  • Normalised article numbler
    a1006, alt1420, f032112665, f042300159, f042a00159, 8231, 8231n, 8231r, 82315, 1215621dr, 1215621dr1, 1215621dr2, 10464084, 10480251, 10480254, 835947105
  • Description
    Voltage: 14
    Amp: 100
    Pulley diameter: 72.00
    Width/holder arm: 50.80
    Bracket hole: 10.30
    Belt adjustment bracket hole position: 10
    Belt adjustment bracket hole 1: 10.30
    Pulley diameter: 56.50
    Grooves/pulley: 6
    Radius: 82.00
    Radius 2: 82.00
    B+: M8
    Position/B+ in min.: 60
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL187
    W plug type: Plug
    Total length mm: 176.00
    Pulley: SP
    Regulator type: IR
    Prod. info: BN
    Servicing: Chevrolet
    Remarks: Replacing: Alternator 130.

    Files

  • Suitable for these vehicles

    • OEM
      F032112665, 8231, 10464084, 10480251, 10480254

    • Normalised article numbler
      a1006, alt1420, f032112665, f042300159, f042a00159, 8231, 8231n, 8231r, 82315, 1215621dr, 1215621dr1, 1215621dr2, 10464084, 10480251, 10480254, 835947105
